Simpson Anchors | SKU:
TNTW25214TF

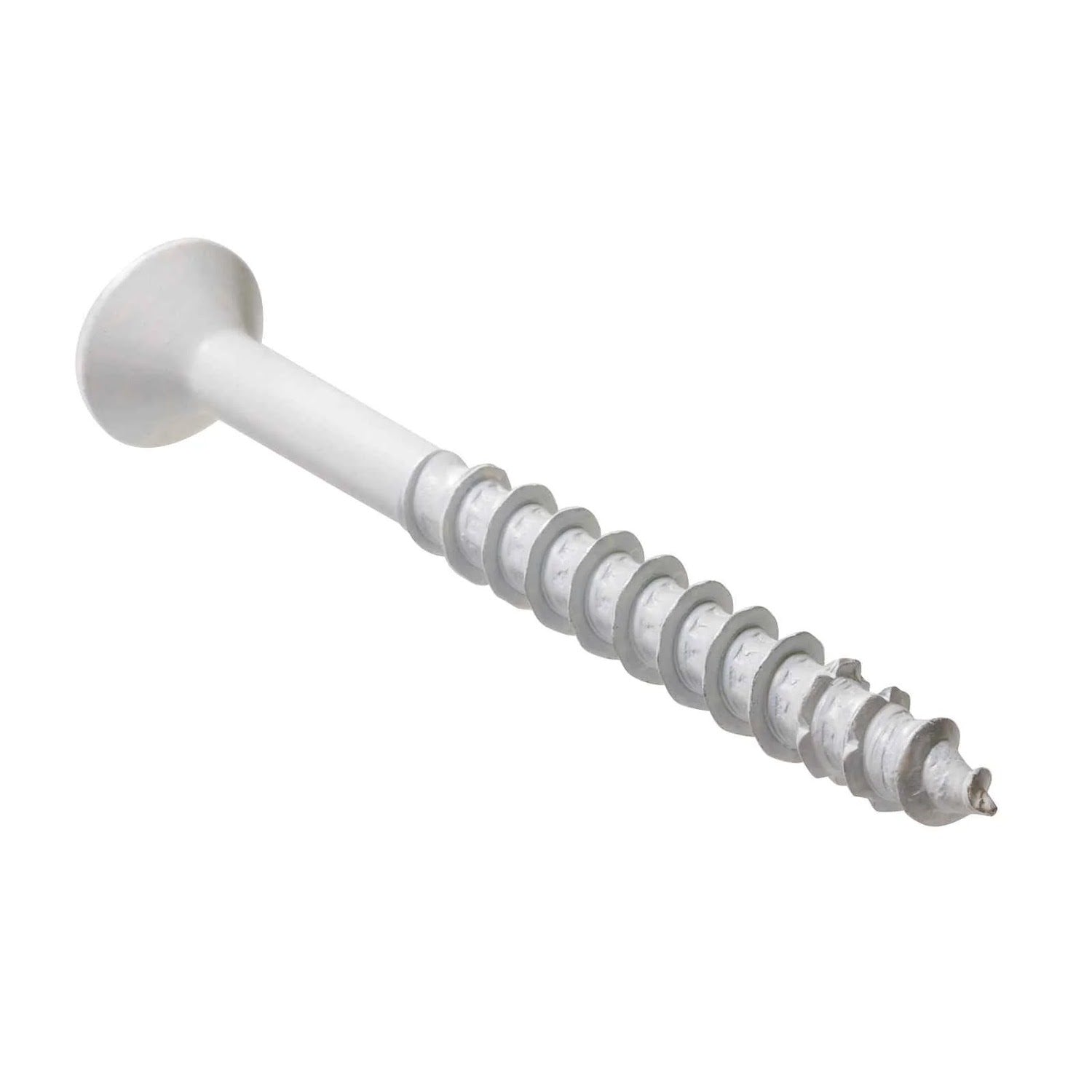

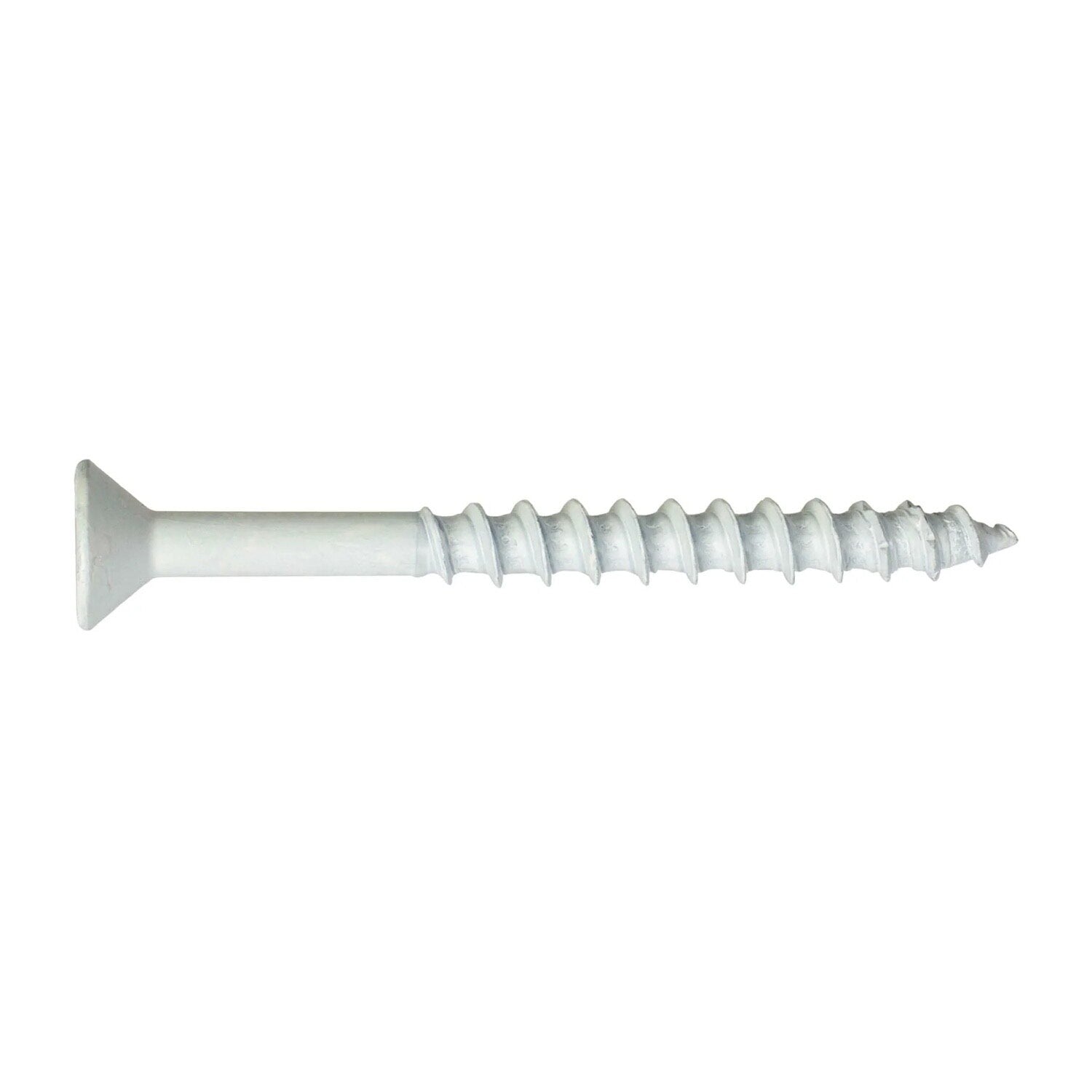

Simpson Strong-Tie TNTW25214TF Titen Turbo (1/4" x 2-1/4") T30 Flat-Head Concrete and Masonry Screw, White (100 Pack)
$16.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25214TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications.
Simpson Strong-Tie TNTW25214TF Includes
- (100) 1/4in x 2-1/4in Titen Turbo Concrete and Masonry Screws
- (1) T30 driver bit
Simpson Strong-Tie TNTW25214TF Features
- Patented Torque Reduction Channel reduces binding and stripping.
- Available in multiple coated versions including White Zinc.
- Flat head design for flush installations.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Code listed for uncracked concrete and masonry applications.
Simpson Strong-Tie TNTW25214TF Applications
- Electrical boxes and conduit installations.
- Mounting light fixtures and windows.
- Securing thresholds and basement furring strips.
- Shelf mounting to concrete or CMU.
- Handrail installations.
Simpson Strong-Tie TNTW25214TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
- Ensure the screw is securely fastened.
Simpson Strong-Tie TNTW25214TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 1/4" |
| Length | 2-1/4" |
| Drill Bit Size | 3/16" |

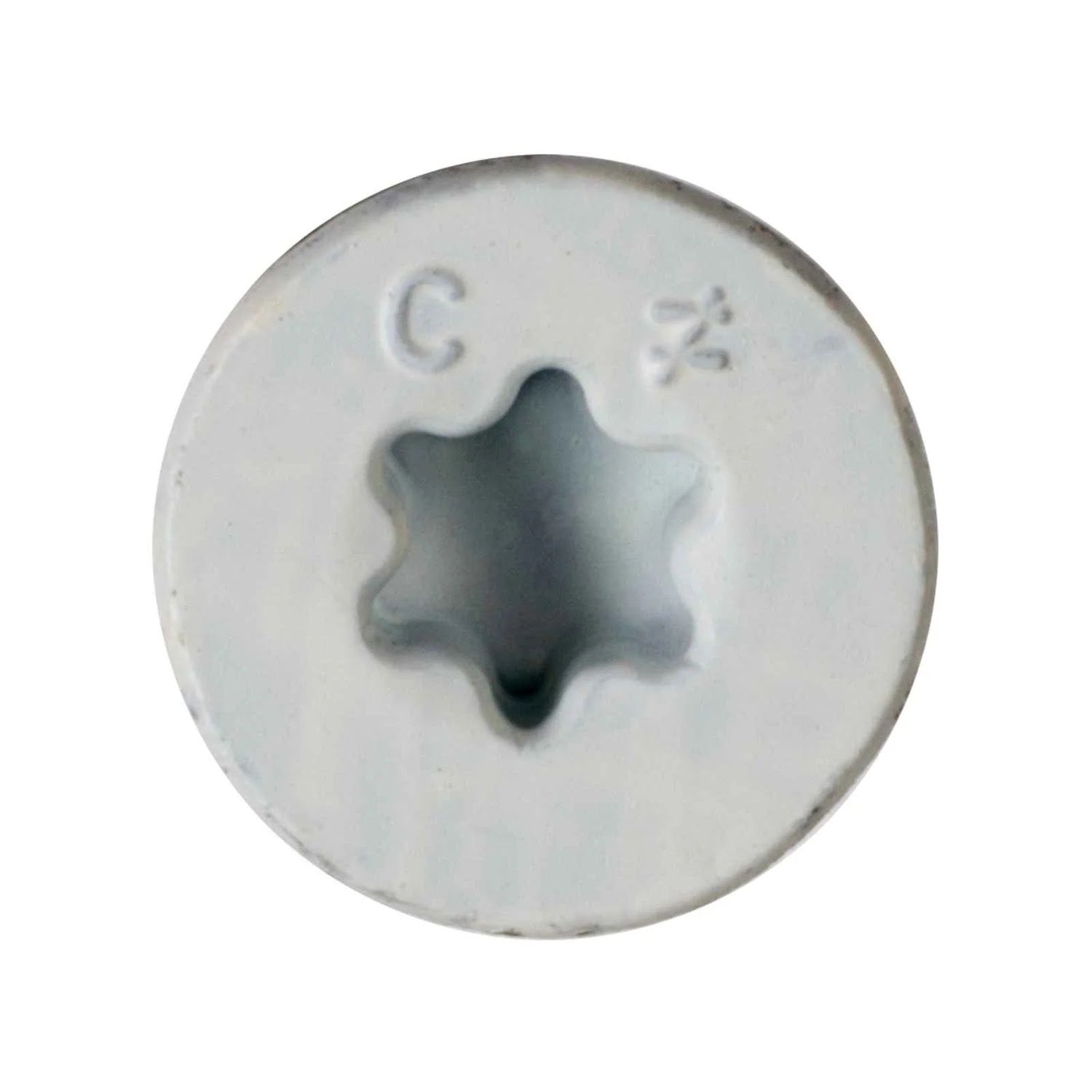

| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
