Simpson Anchors | SKU:
TNTW25234TF

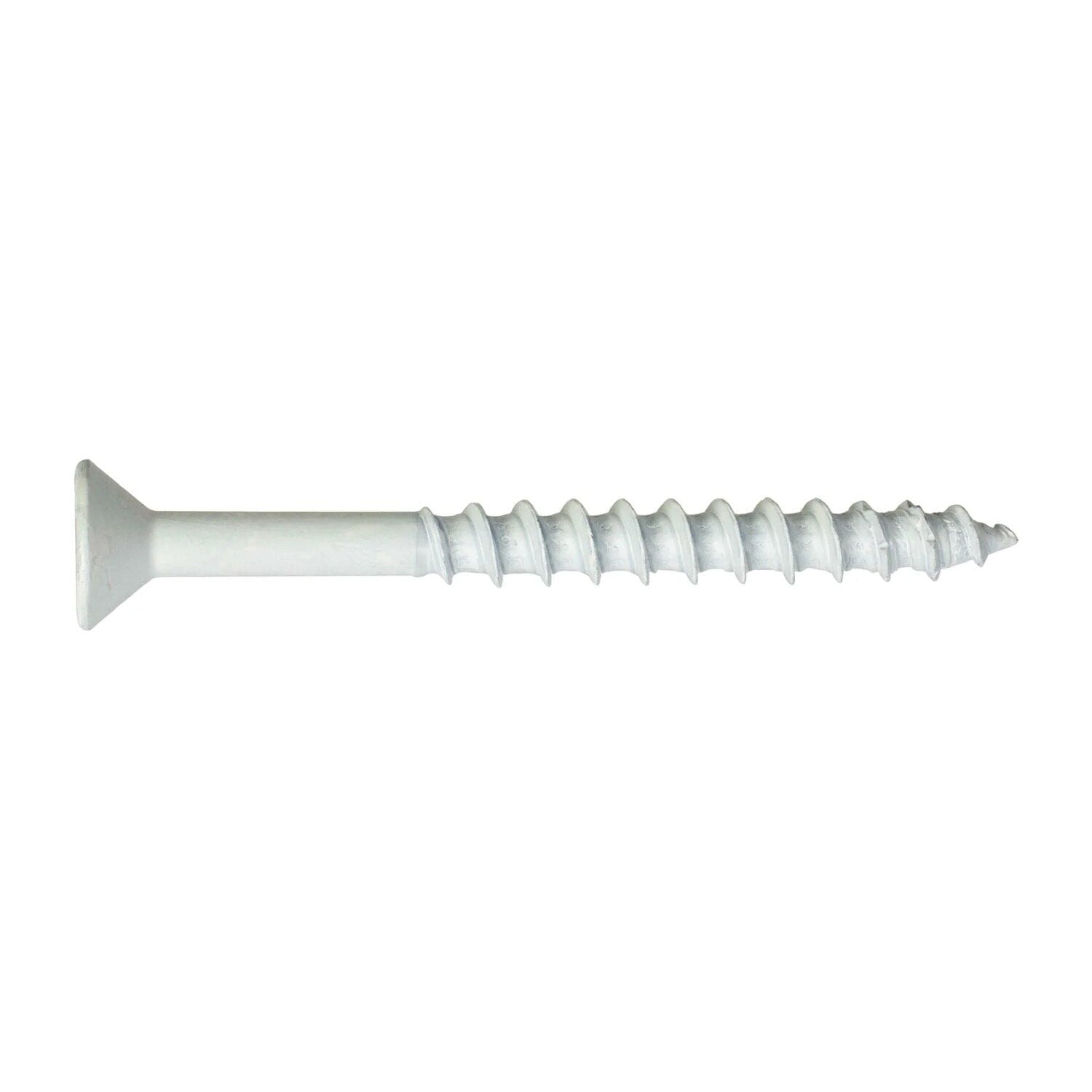

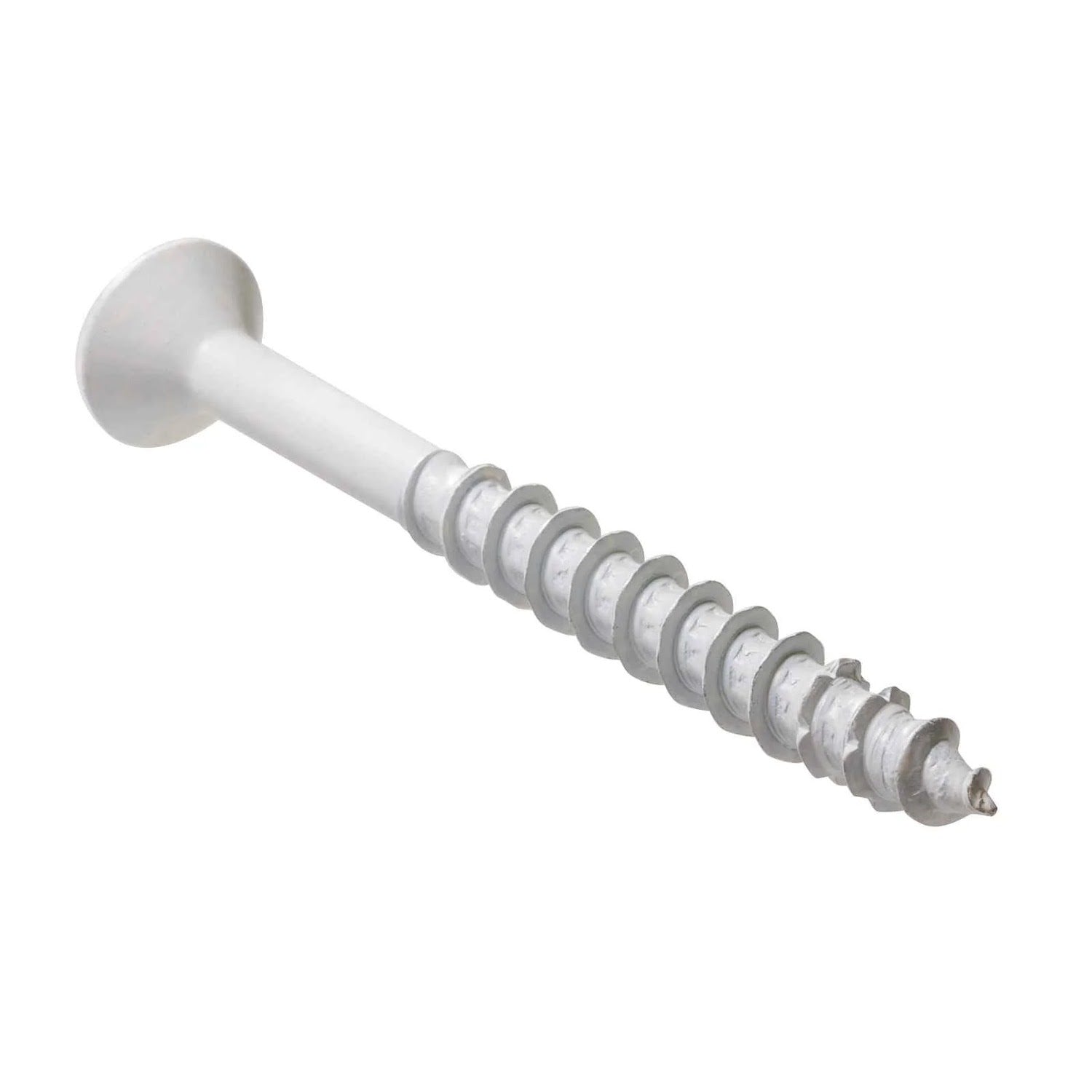

Simpson Strong-Tie TNTW25234TF Titen Turbo (1/4" x 2-3/4") T30 Flat-Head Screw Anchor, White (100 Pack)
$19.83
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25234TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications. Featuring a patented torque reduction channel, it ensures smooth driving with less torque and superior holding power.
Simpson Strong-Tie TNTW25234TF Includes
- (100) Titen Turbo Concrete and Masonry Screw, White Zinc, Flat Head
- (1) T30 drive bit
Simpson Strong-Tie TNTW25234TF Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White
- Flat head design for flush installation
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW25234TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNTW25234TF Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW25234TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 1/4" |
| Length | 2-3/4" |
| Drill Bit Size | 3/16" |

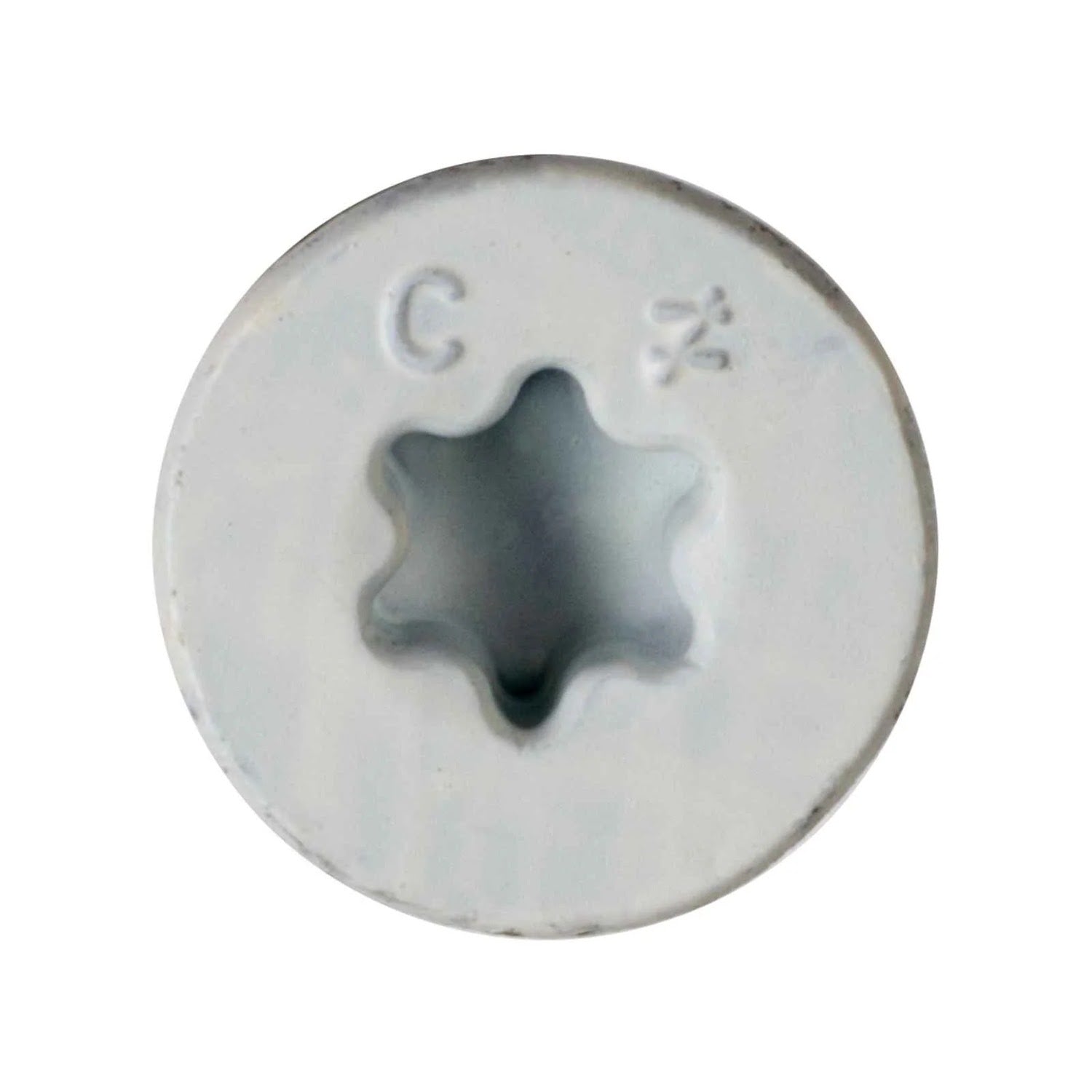

| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
