Simpson Anchors | SKU:
TNTW25234TFC25
Simpson Strong-Tie TNTW25234TFC25 Titen Turbo (1/4" x 2-3/4") T30 Flat-Head Screw Anchor, White (25 Pack)
$13.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25234TFC25 Description

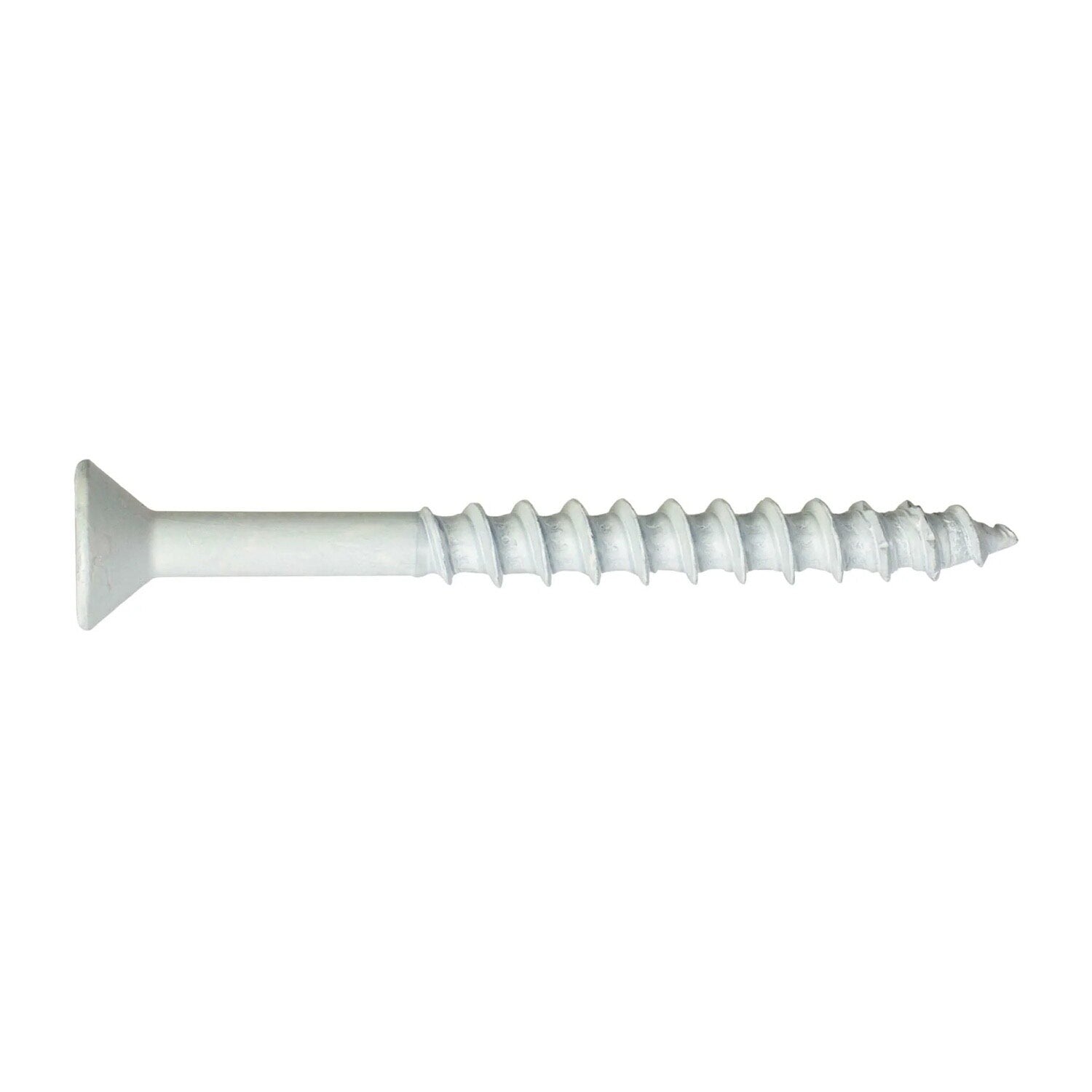

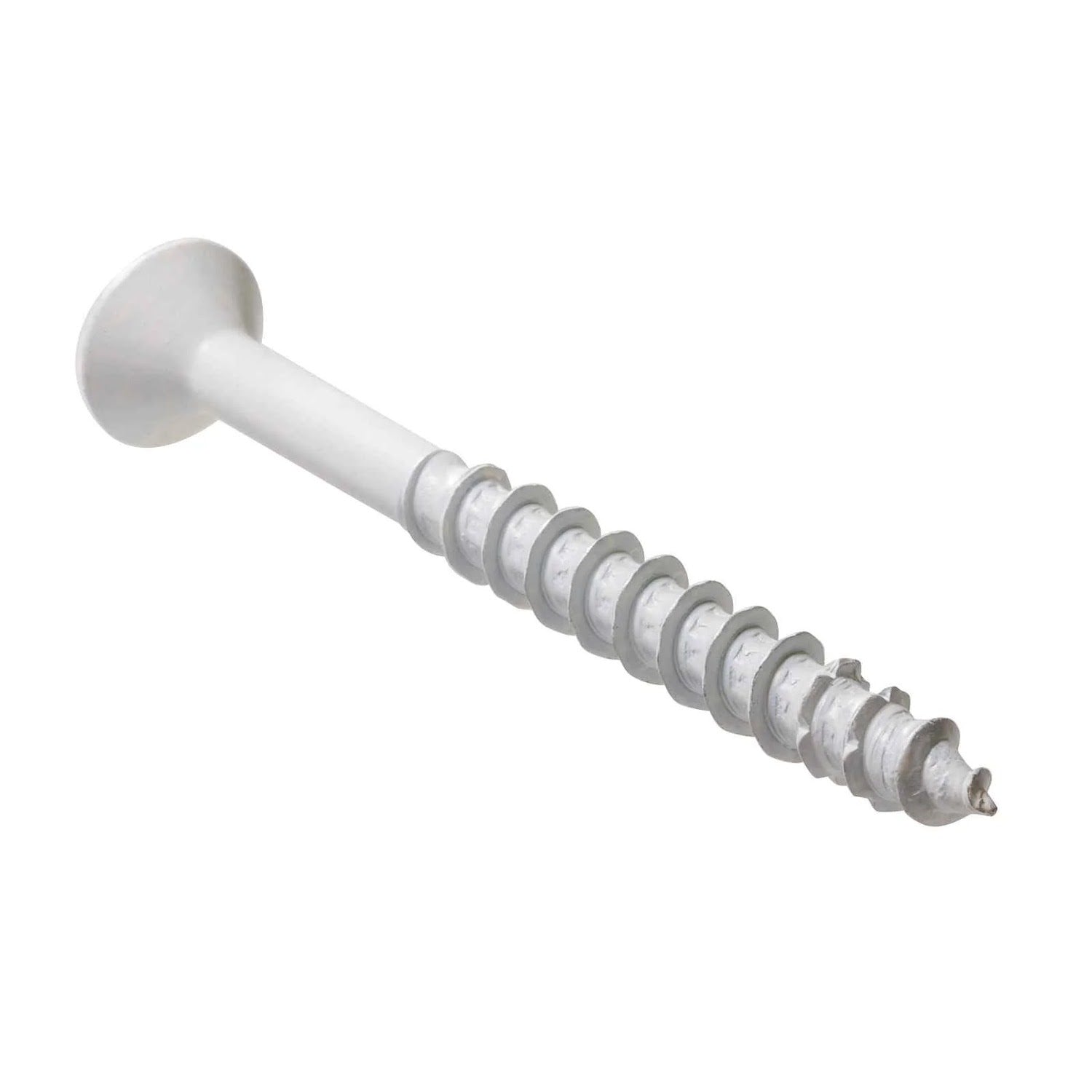

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNTW25234TFC25 Includes
- (25) 1/4 in. x 2-3/4 in. Flat Head Titen Turbo Screw Anchor
Simpson Strong-Tie TNTW25234TFC25 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple finishes including White Zinc
- Flat head design for flush installation
- Superior tension load performance
- Designed for use with standard ANSI drill bits
Simpson Strong-Tie TNTW25234TFC25 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting
- Light fixtures and window installations
- Thresholds and basement furring strips
Simpson Strong-Tie TNTW25234TFC25 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW25234TFC25 Specifications
| Diameter | 1/4 in. |
| Length | 2-3/4 in. |
| Finish | White Zinc |
| Material | Carbon Steel |
| Drill Bit Size | 3/16 in. |

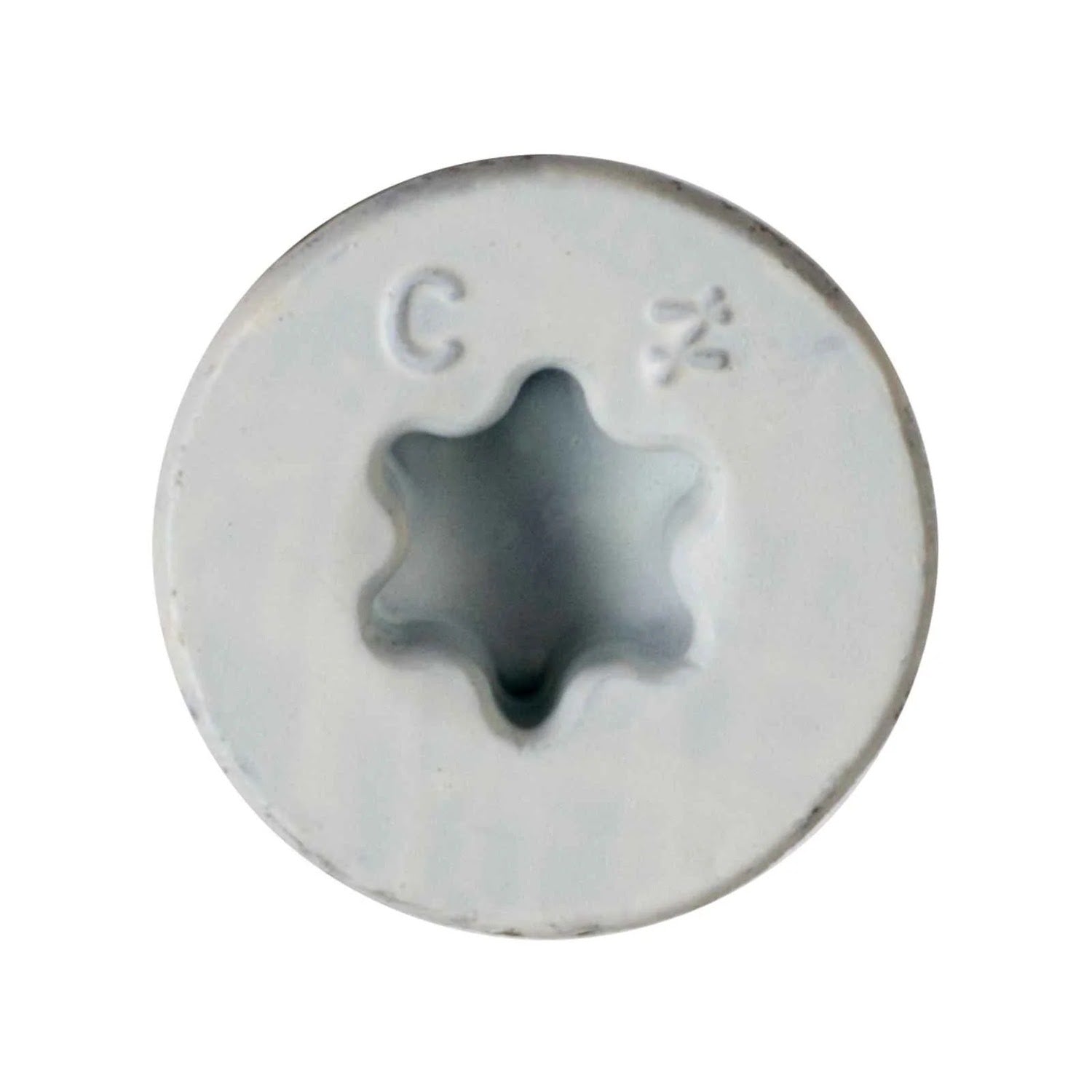

| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 25 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
