Simpson Anchors | SKU:
TNTW25234TFC75

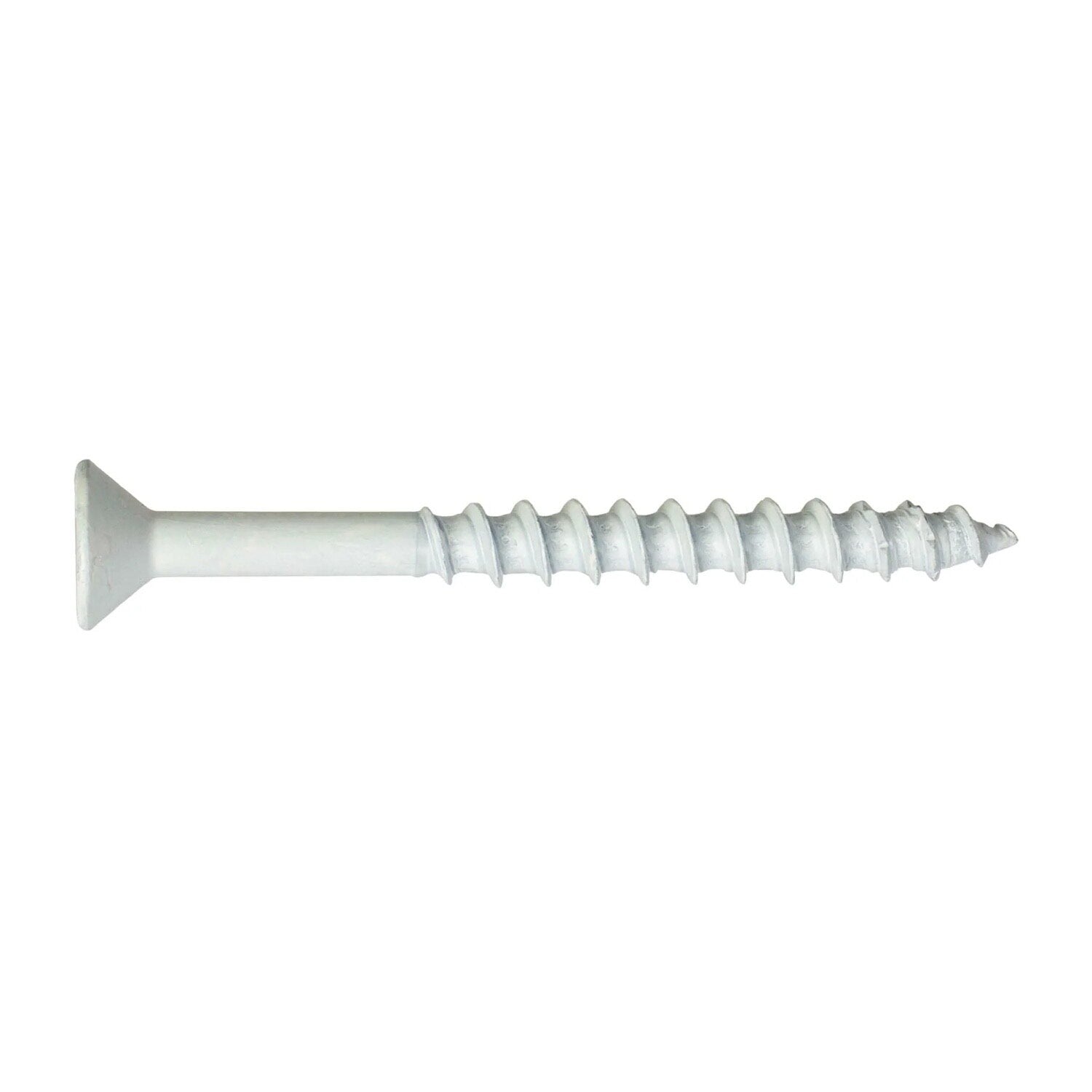

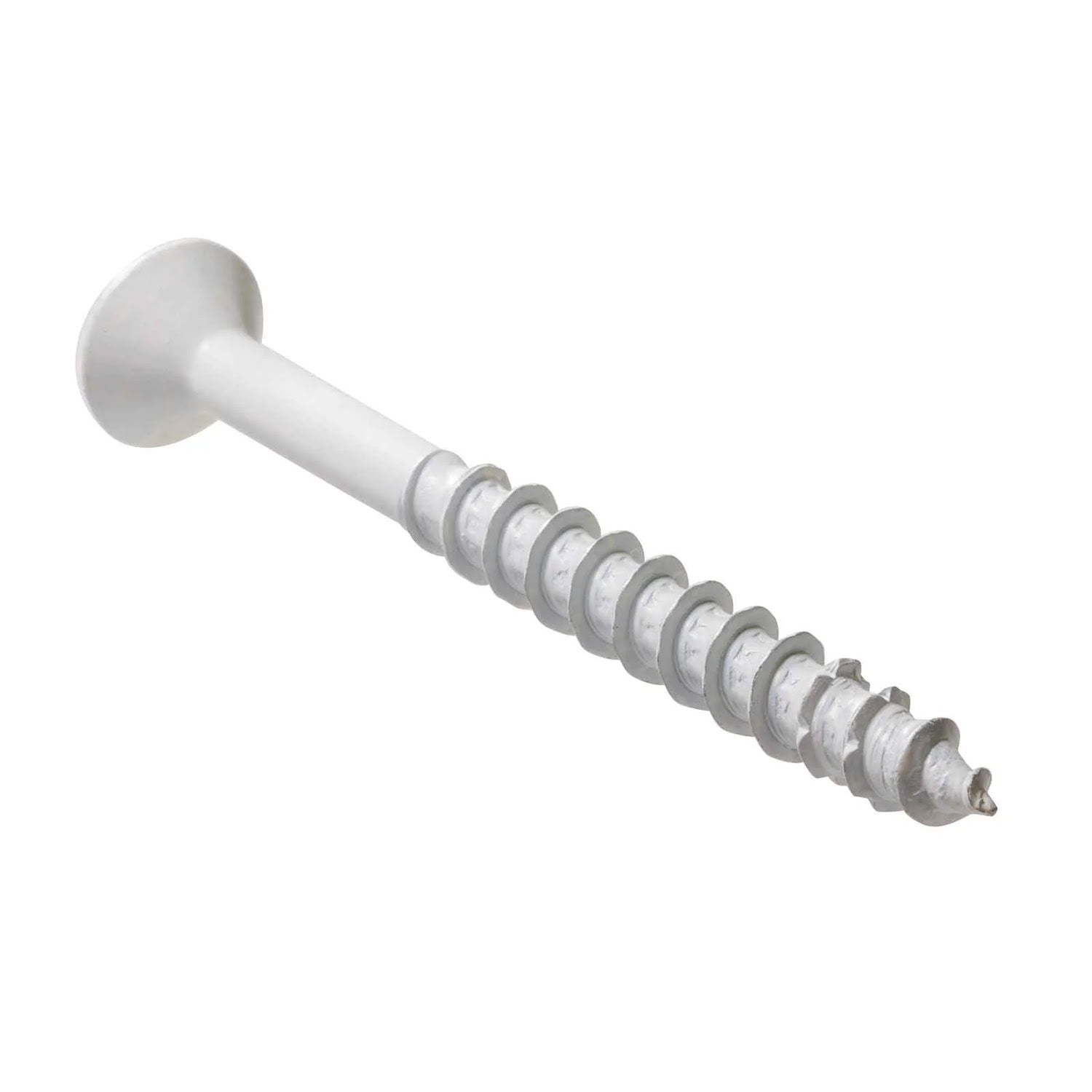

Simpson Strong-Tie TNTW25234TFC75 Titen Turbo (1/4" x 2-3/4") T30 Flat-Head Screw Anchor, White (75 Pack)
$22.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25234TFC75 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW25234TFC75 Includes
- (75) 1/4" x 2-3/4" Flat Head Concrete and Masonry Screw
- (1) T30 drive bit
- (1) standard ANSI drill bit
Simpson Strong-Tie TNTW25234TFC75 Features
- Patented Torque Reduction Channel for reduced binding and snapping
- Available in multiple coated versions including White Zinc
- Flat head design for flush profile
- Superior tension load performance
- Designed for installation with an impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW25234TFC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures
- Windows and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTW25234TFC75 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW25234TFC75 Specifications
| Diameter | 1/4" |
| Finish | White Zinc |
| Length | 2-3/4" |
| Material | Carbon Steel |
| Drill bit size | 3/16" |

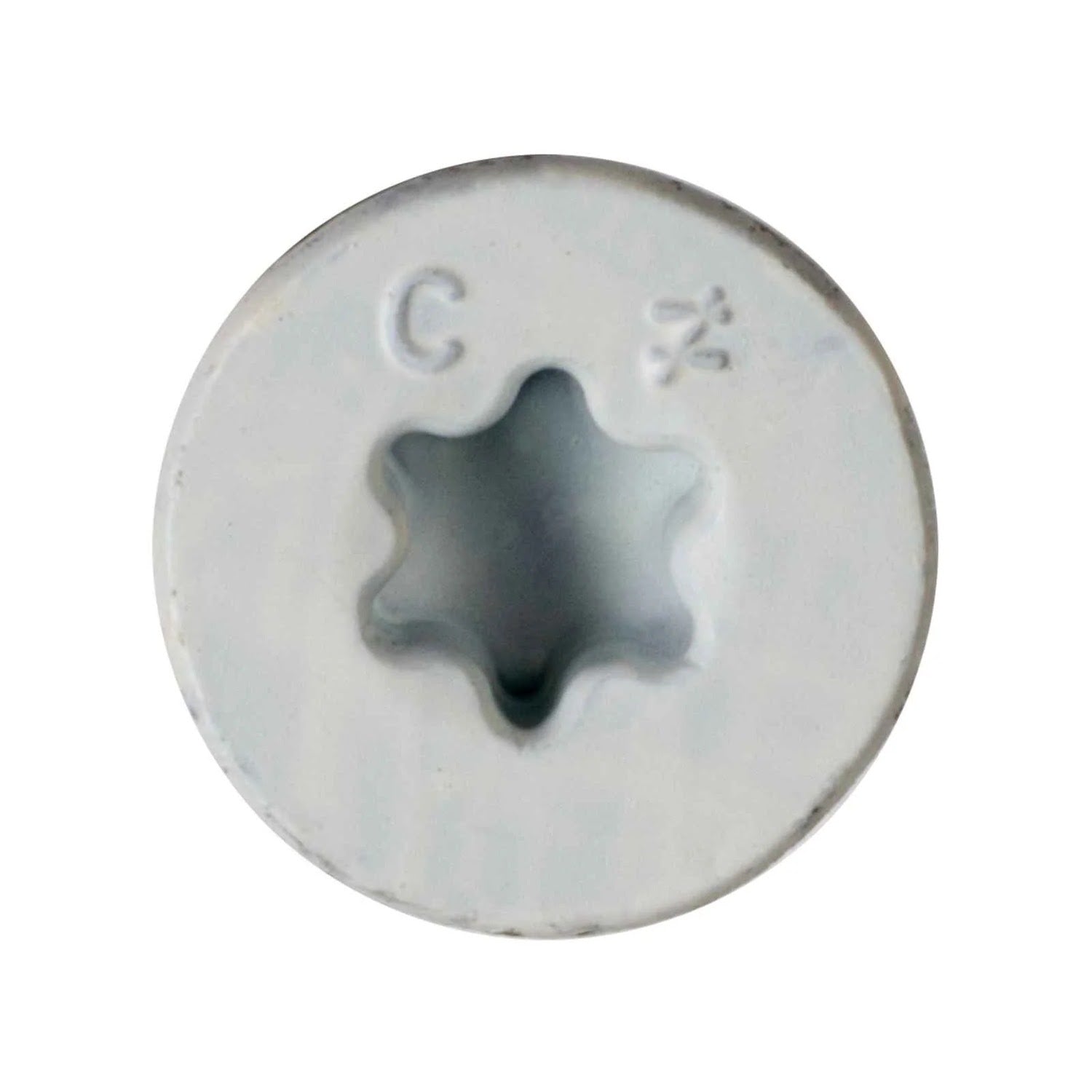

| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
