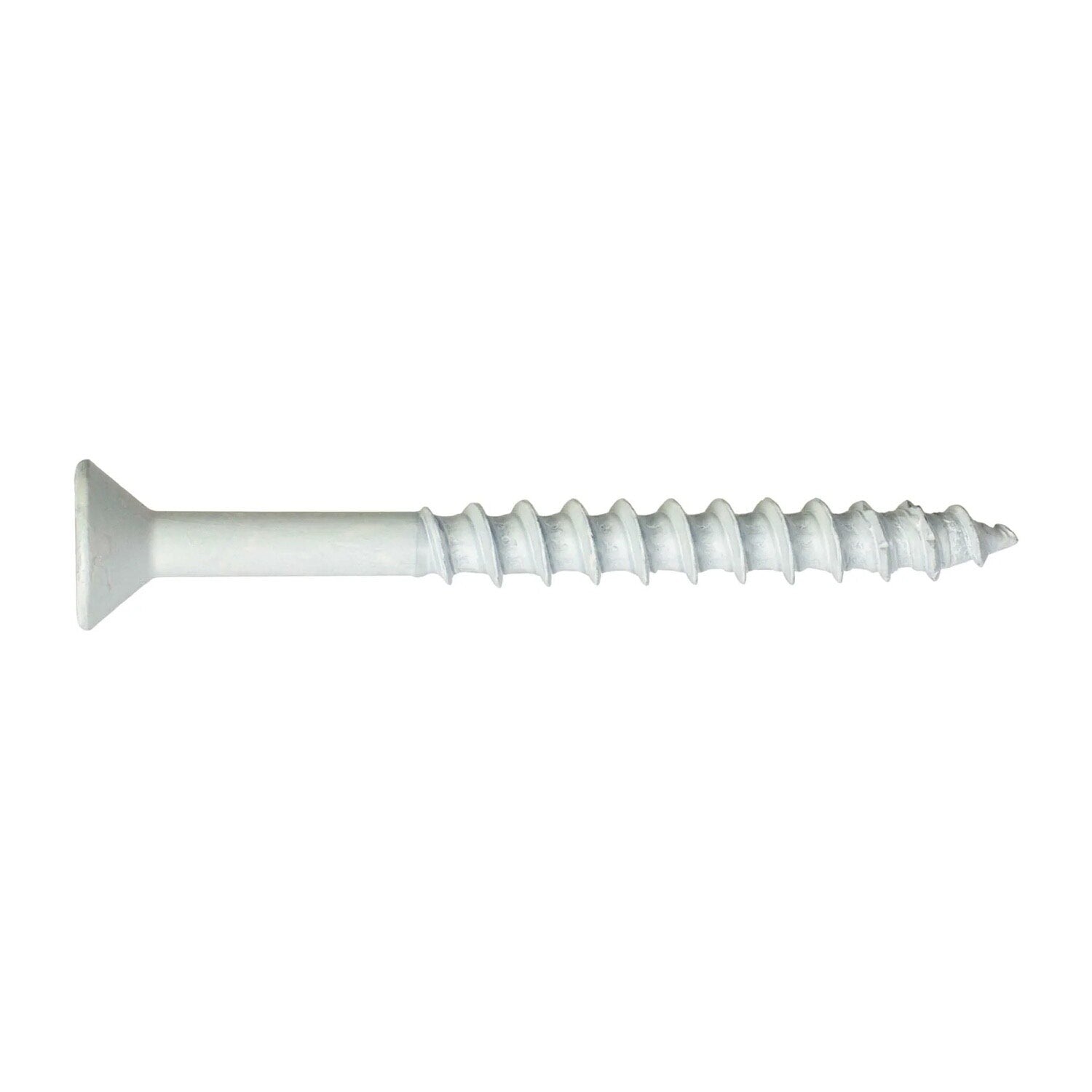

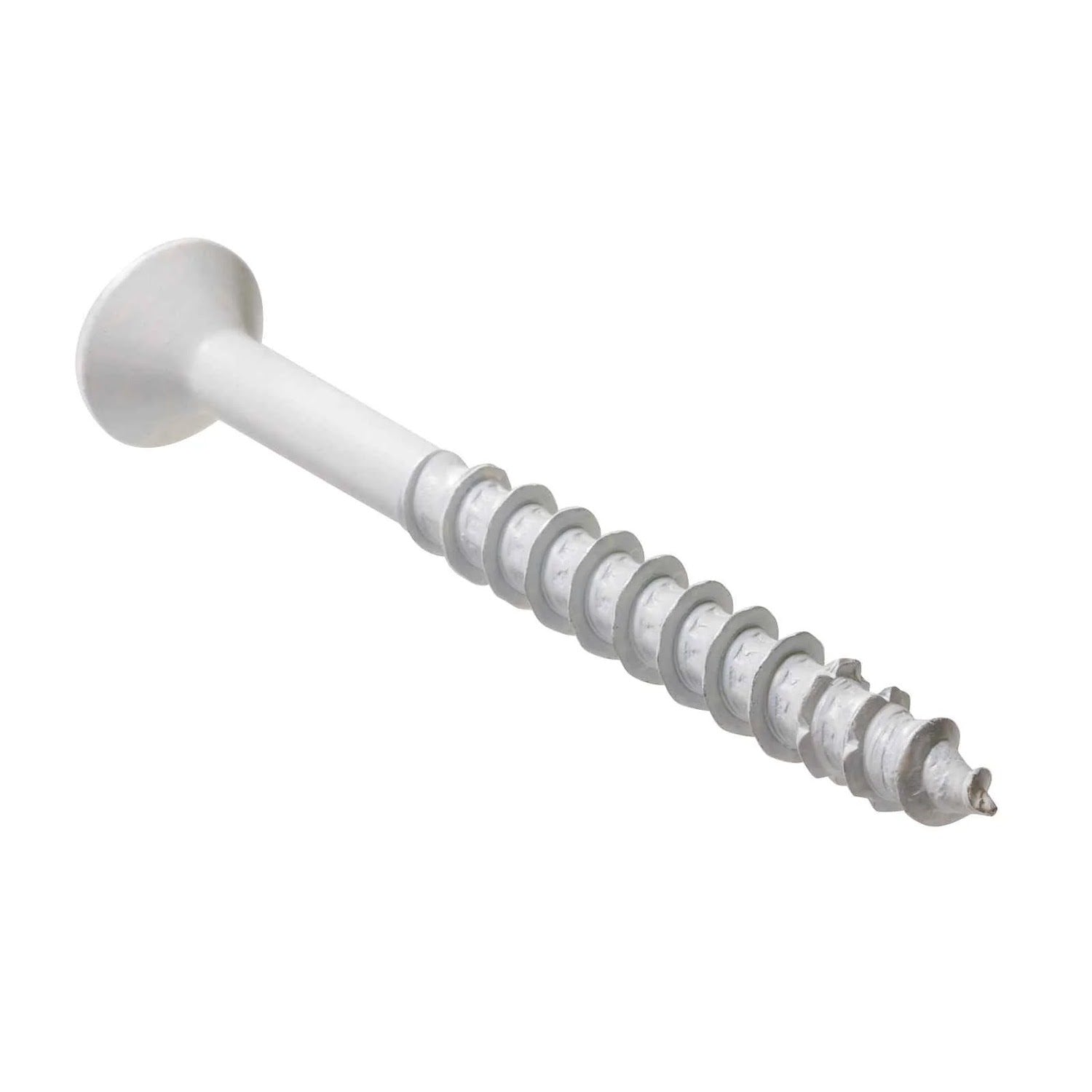

Simpson Strong-Tie TNTW25234TFC8 Titen Turbo (1/4" x 2-3/4") T30 Flat-Head Screw Anchor, White (8 Pack)
Description
Description
Simpson Strong-Tie TNTW25234TFC8 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for smooth driving and superior holding power.
Simpson Strong-Tie TNTW25234TFC8 Includes
- (8) 1/4" x 2-3/4" Screw Anchors
Simpson Strong-Tie TNTW25234TFC8 Features
- Patented Torque Reduction Channel for reduced binding and snapping
- Available in multiple coated versions including White Zinc

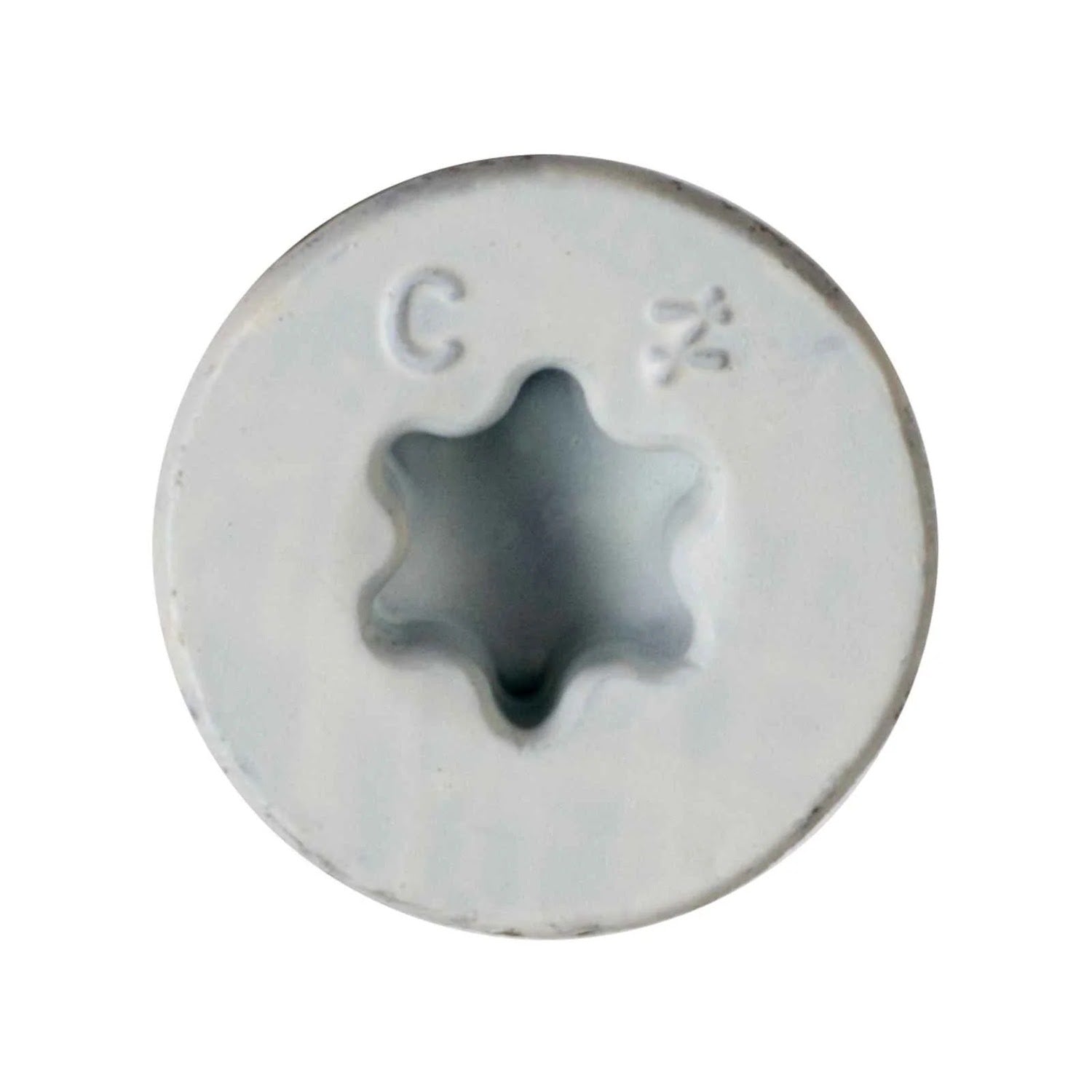

- Flat head design for flush profile
- Superior tension load performance
- Designed for installation with an impact driver or cordless drill
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW25234TFC8 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit
- Switch boxes and light fixtures
- Windows and thresholds
- Basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTW25234TFC8 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position fixture, insert screw, and tighten using a drill and Titen Turbo screw installation tool.
- Ensure the screw is securely fastened and flush with the surface.
Simpson Strong-Tie TNTW25234TFC8 Specifications
Diameter | 1/4" |
Finish | White Zinc |
Length | 2-3/4" |
Material | Carbon Steel |
Drill bit size | 3/16" |
Drive type | T30 Star Drive |
Head type | Flat Head |
Quantity | 8 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
