Simpson Anchors | SKU:
TNTW25314TF

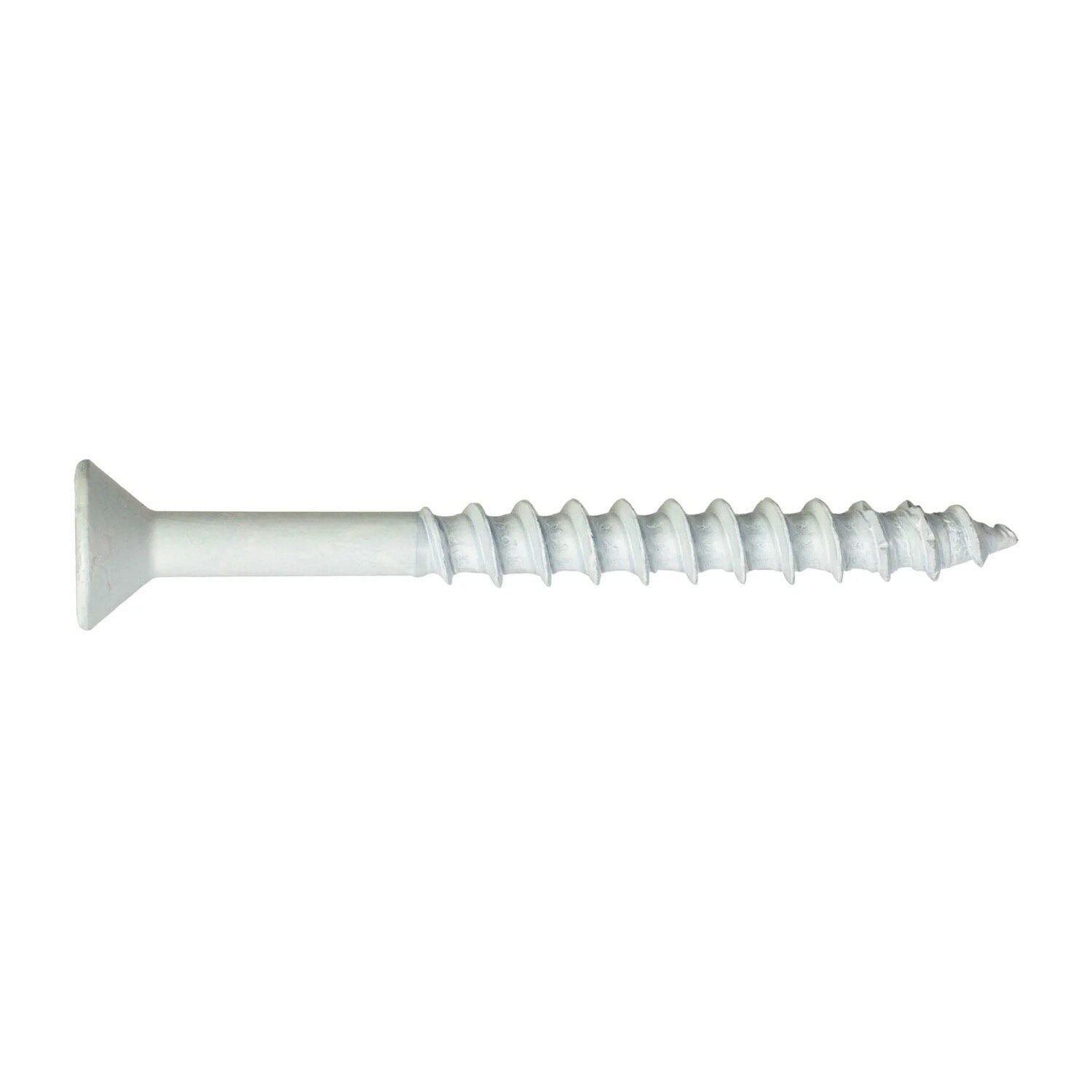

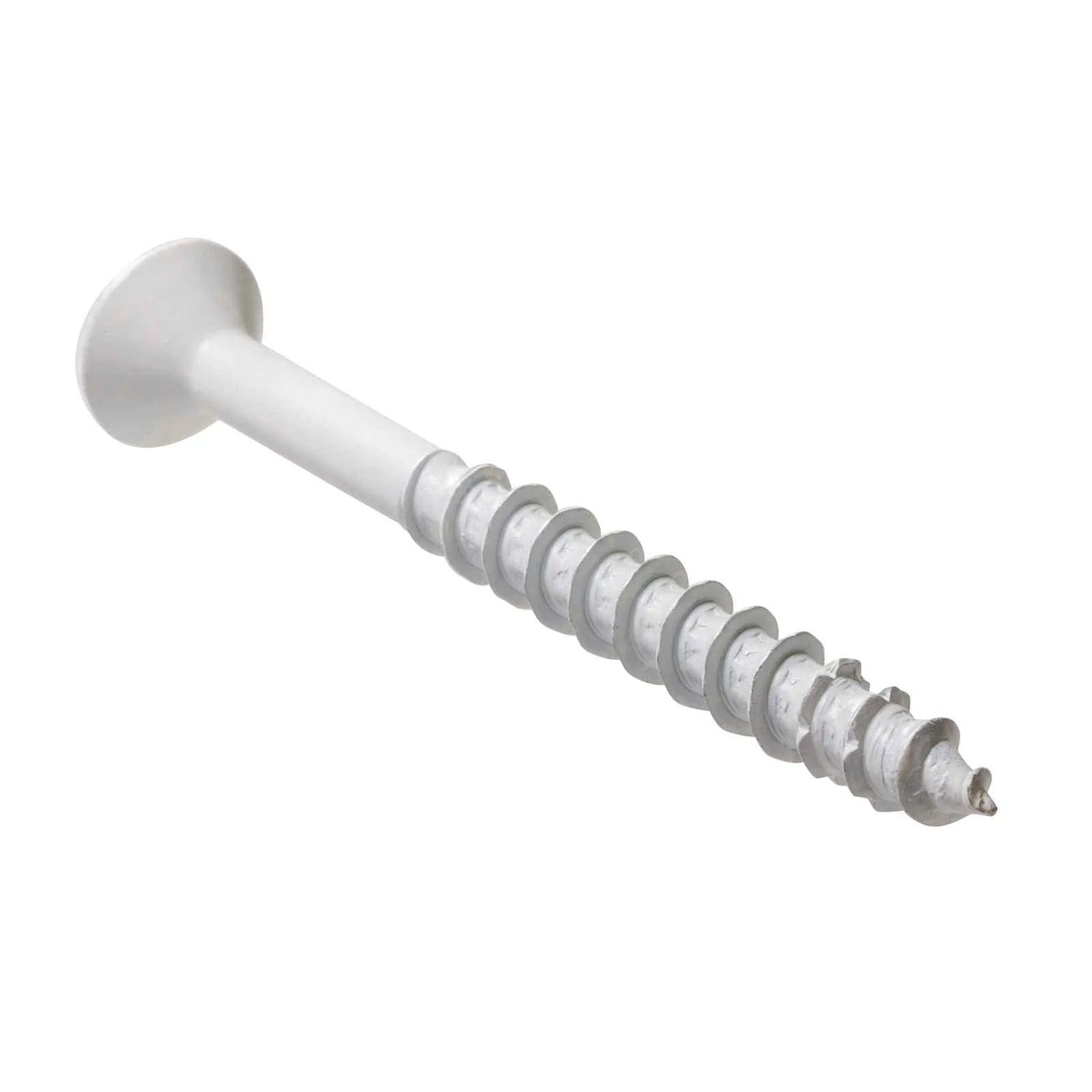

Simpson Strong-Tie TNTW25314TF Titen Turbo (1/4" x 3-1/4") T30 Flat-Head Screw Anchor, White (100 Pack)
$25.55
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25314TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in concrete and masonry applications.
Simpson Strong-Tie TNTW25314TF Includes
- (100) 1/4" x 3-1/4" Titen Turbo Concrete and Masonry Screw Anchor
- (1) T30 drive bit
Simpson Strong-Tie TNTW25314TF Features
- Patented Torque Reduction Channel reduces binding and obstruction.
- Available in multiple coated versions including White Zinc.
- Flat head design for flush profile.

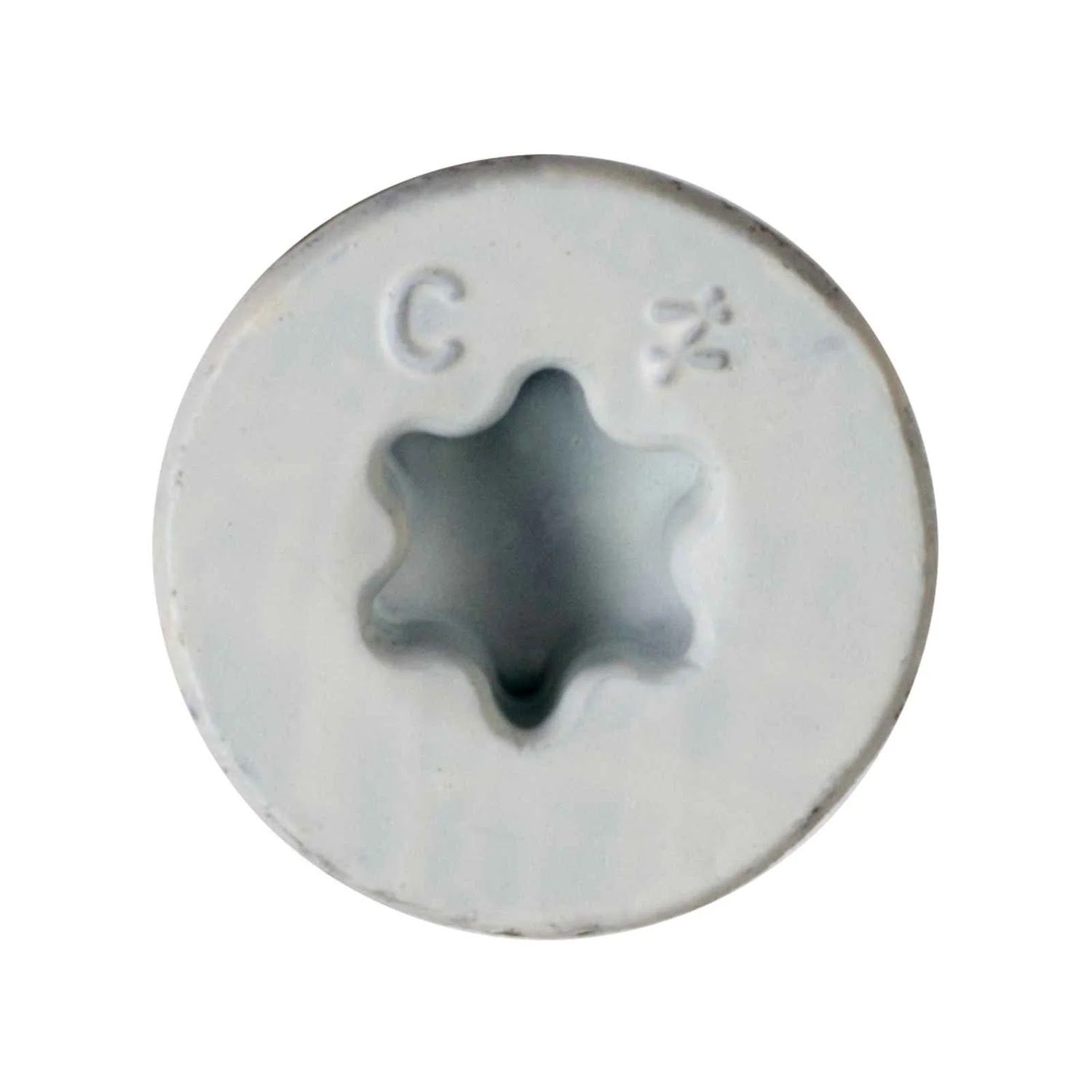

- 6-lobe drive for positive bit engagement.
- Superior tension load performance.
- Designed for use with impact drivers or cordless drills.
- Code listed for uncracked concrete and masonry applications.
Simpson Strong-Tie TNTW25314TF Applications
- Electrical boxes and conduit installation.
- Securing switch boxes and light fixtures.
- Mounting windows and thresholds.
- Basement furring strips.
- Shelf mounting to concrete or CMU.
- Handrails installation.
Simpson Strong-Tie TNTW25314TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position fixture and insert screw.
- Tighten using drill and Titen Turbo screw installation tool.
Simpson Strong-Tie TNTW25314TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 1/4" |
| Length | 3-1/4" |
| Drill Bit Size | 3/16" |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
