Simpson Anchors | SKU:
TNTW25314TFC75
Simpson Strong-Tie TNTW25314TFC75 Titen Turbo (1/4" x 3-1/4") T30 Flat-Head Screw Anchor, White (75 Pack)
$23.70
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25314TFC75 Description

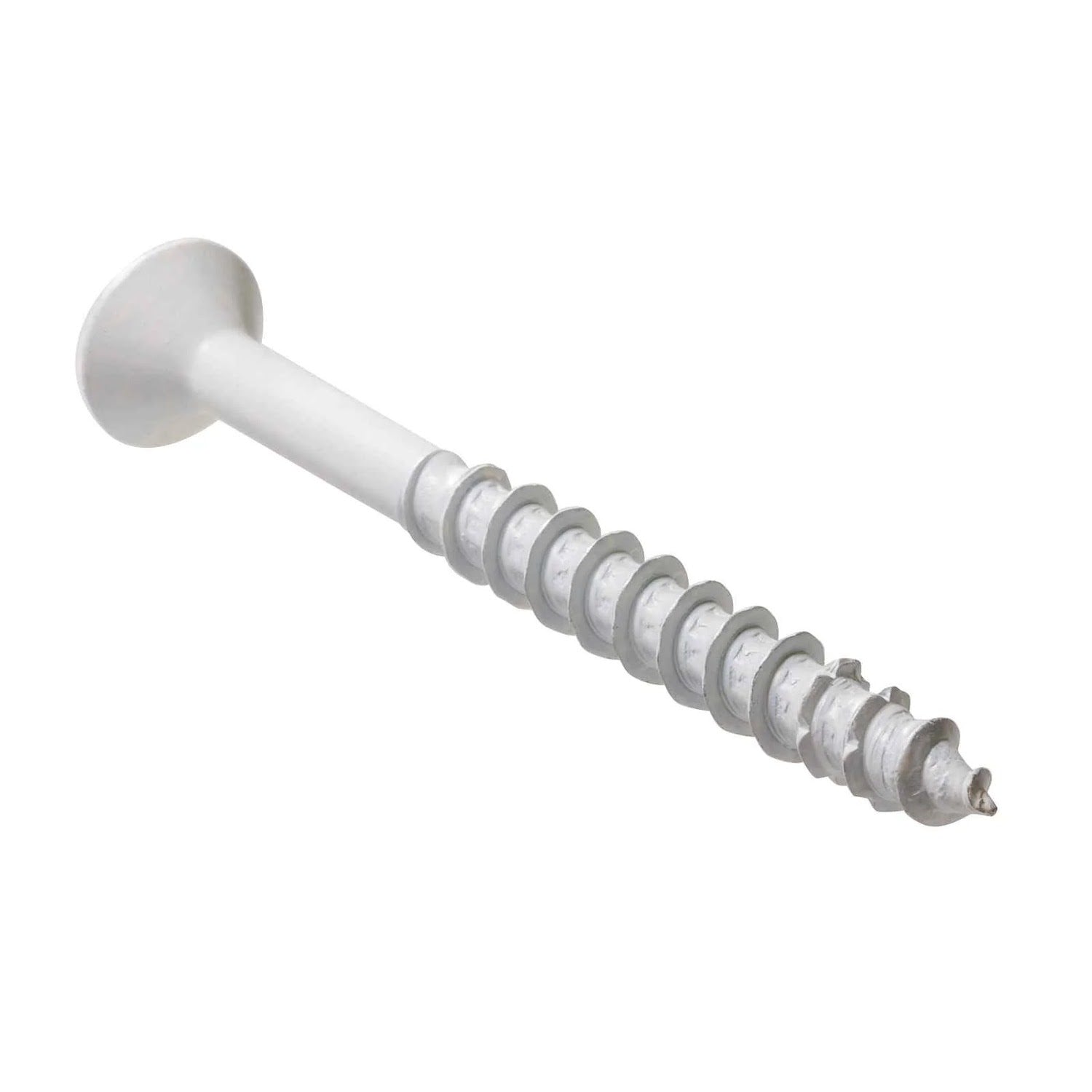

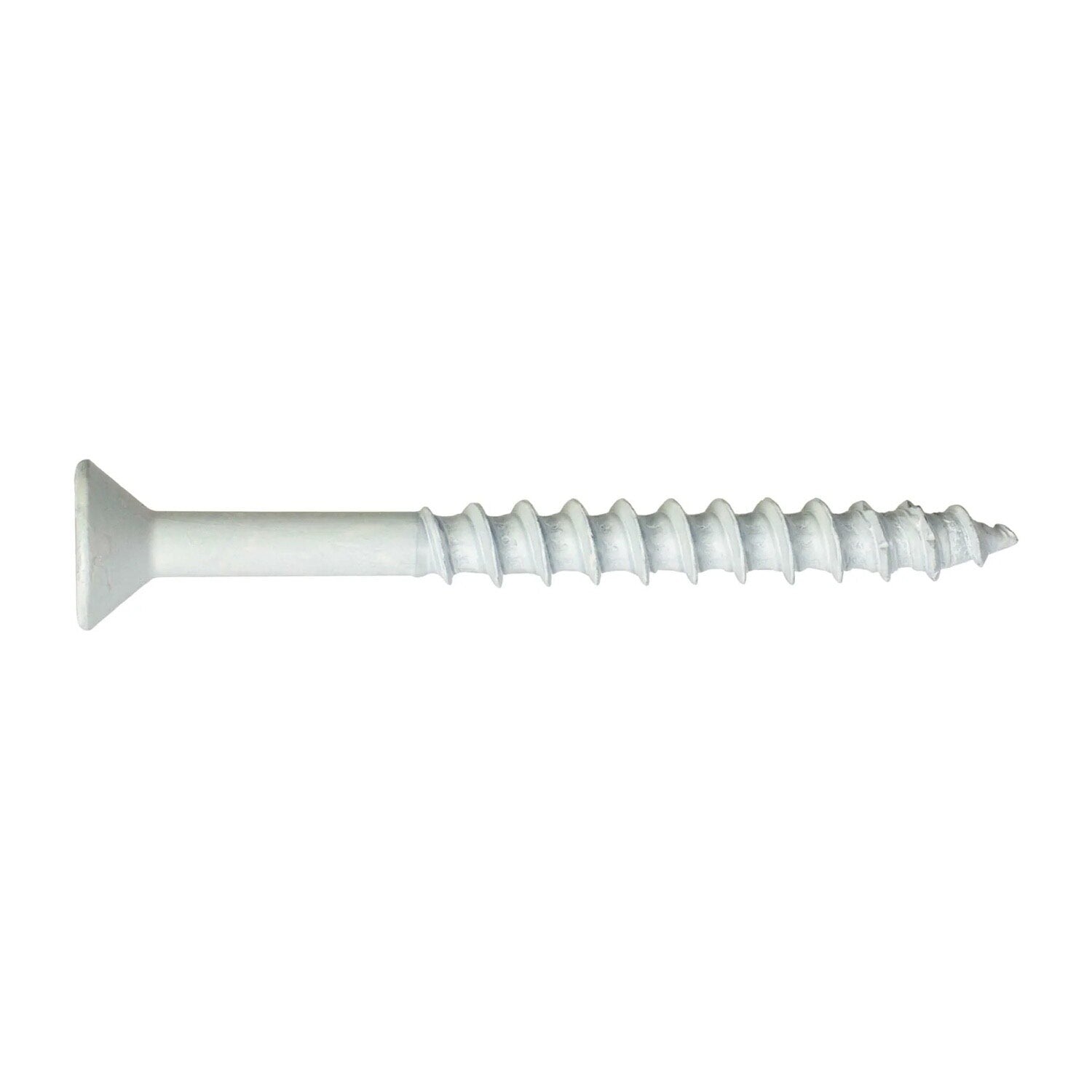

The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNTW25314TFC75 Includes
- (75) 1/4 in. x 3-1/4 in. Flat Head Titen Turbo Screw Anchor
- (1) T30 drive bit
- (1) standard ANSI drill bit
Simpson Strong-Tie TNTW25314TFC75 Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple finishes and head types

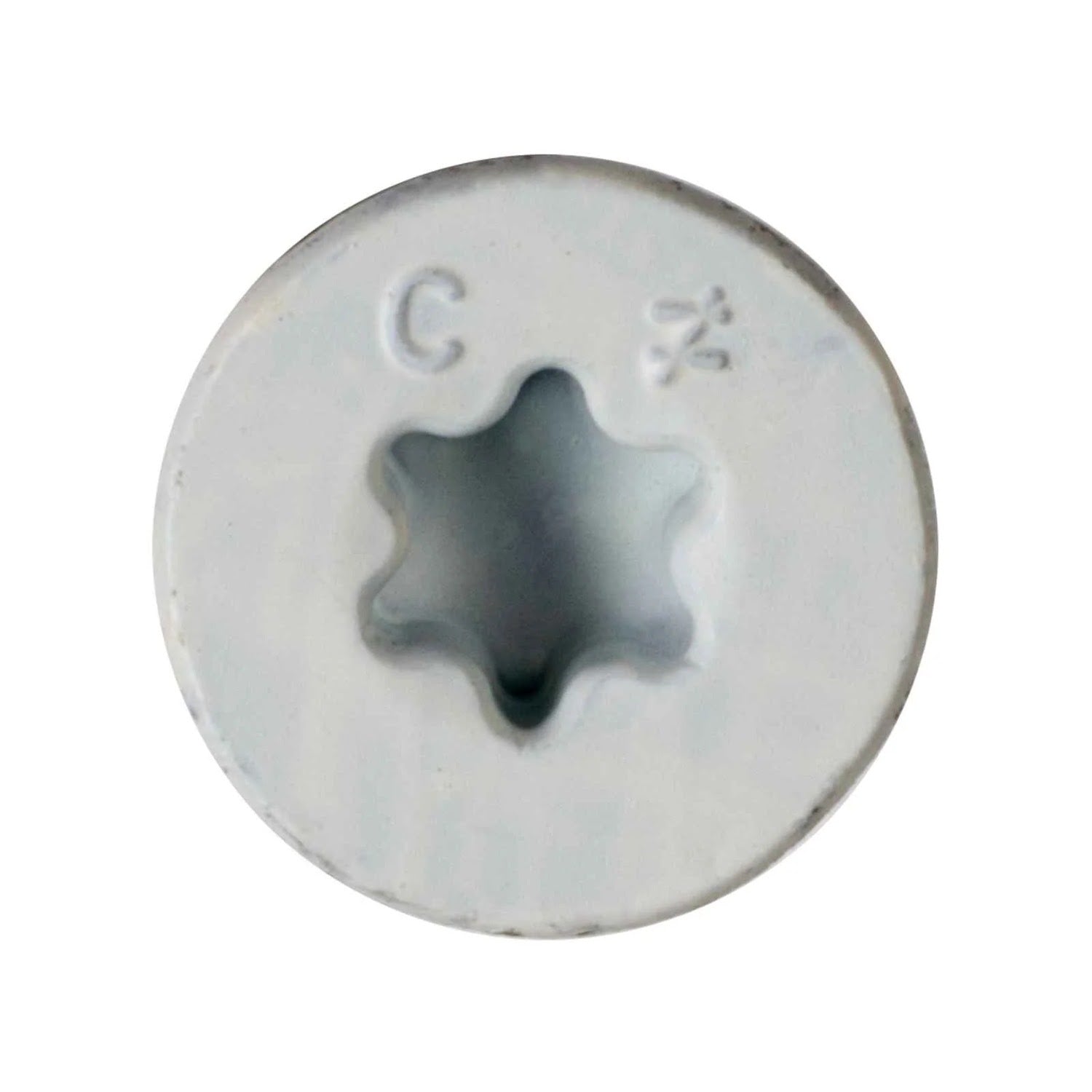

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW25314TFC75 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Electrical boxes and conduit mounting
- Light fixtures and window installations
- Handrails and thresholds
Simpson Strong-Tie TNTW25314TFC75 Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW25314TFC75 Specifications
| Diameter | 1/4 in. |
| Length | 3-1/4 in. |
| Finish | White Zinc |
| Material | Carbon Steel |
| Drill bit size | 3/16 in. |
| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Quantity | 75 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
