Simpson Anchors | SKU:
TNTW25314TTR

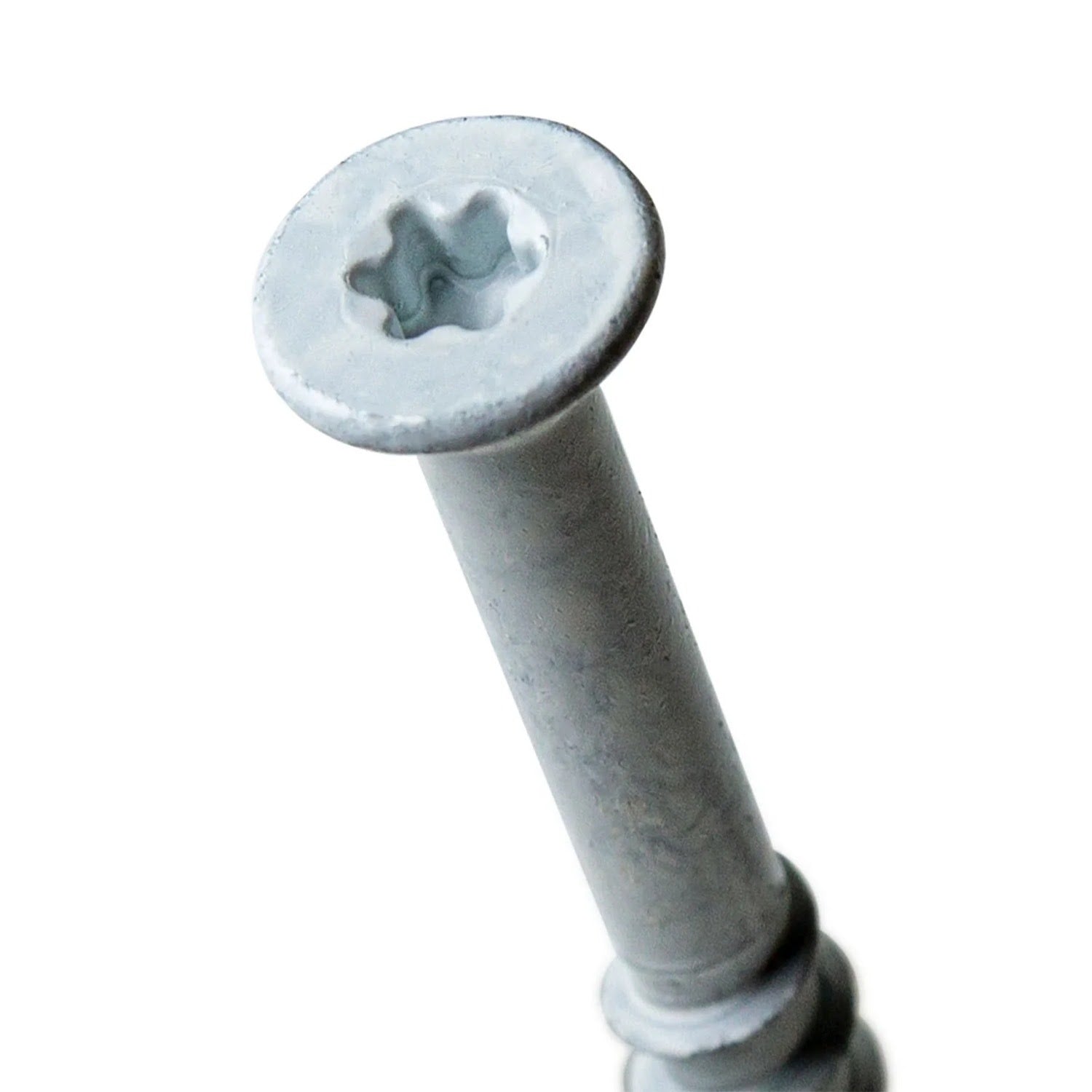

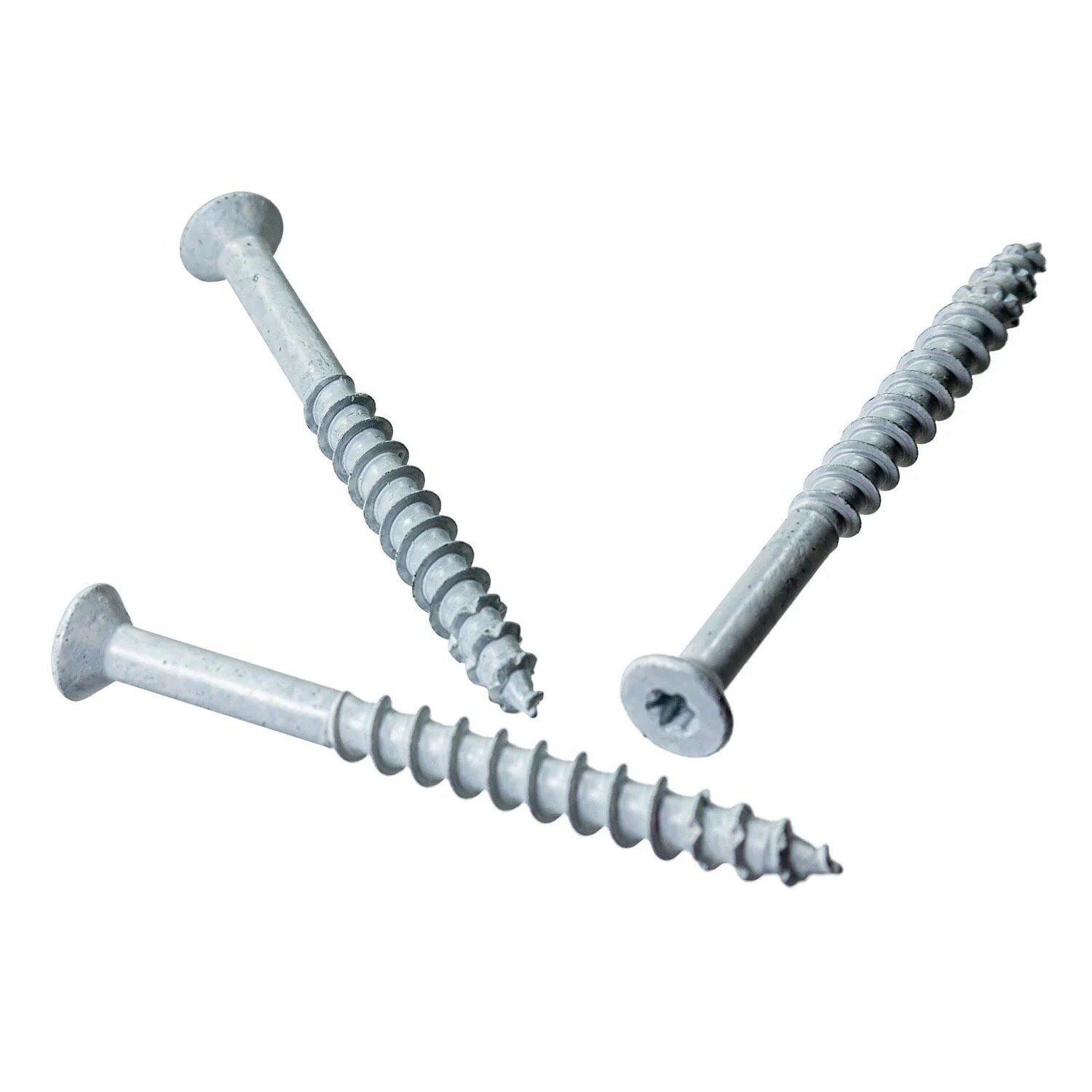

Simpson Strong-Tie TNTW25314TTR Titen Turbo (1/4" x 3-1/4") T30 Trim-Head Screw Anchor, White (100 Pack)
$24.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25314TTR Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener featuring an innovative torque reduction channel for reduced binding and superior holding power.
Simpson Strong-Tie TNTW25314TTR Includes
- (100) Titen Turbo Screw Anchor
- (1) T25 drive bit
Simpson Strong-Tie TNTW25314TTR Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White Zinc
- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with standard ANSI drill bits
- Serrated screw point for easier starts
- Recommended for use with Titen Turbo Installation Tool
- Code listed for uncracked concrete and masonry applications
Simpson Strong-Tie TNTW25314TTR Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNTW25314TTR Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool.
Simpson Strong-Tie TNTW25314TTR Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Diameter | 1/4" |
| Length | 3-1/4" |
| Drill Bit Size | 3/16" |
| Drive Type | T25 Star Drive |
| Head Type | Trim Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
