Simpson Anchors | SKU:
TNTW25334TF

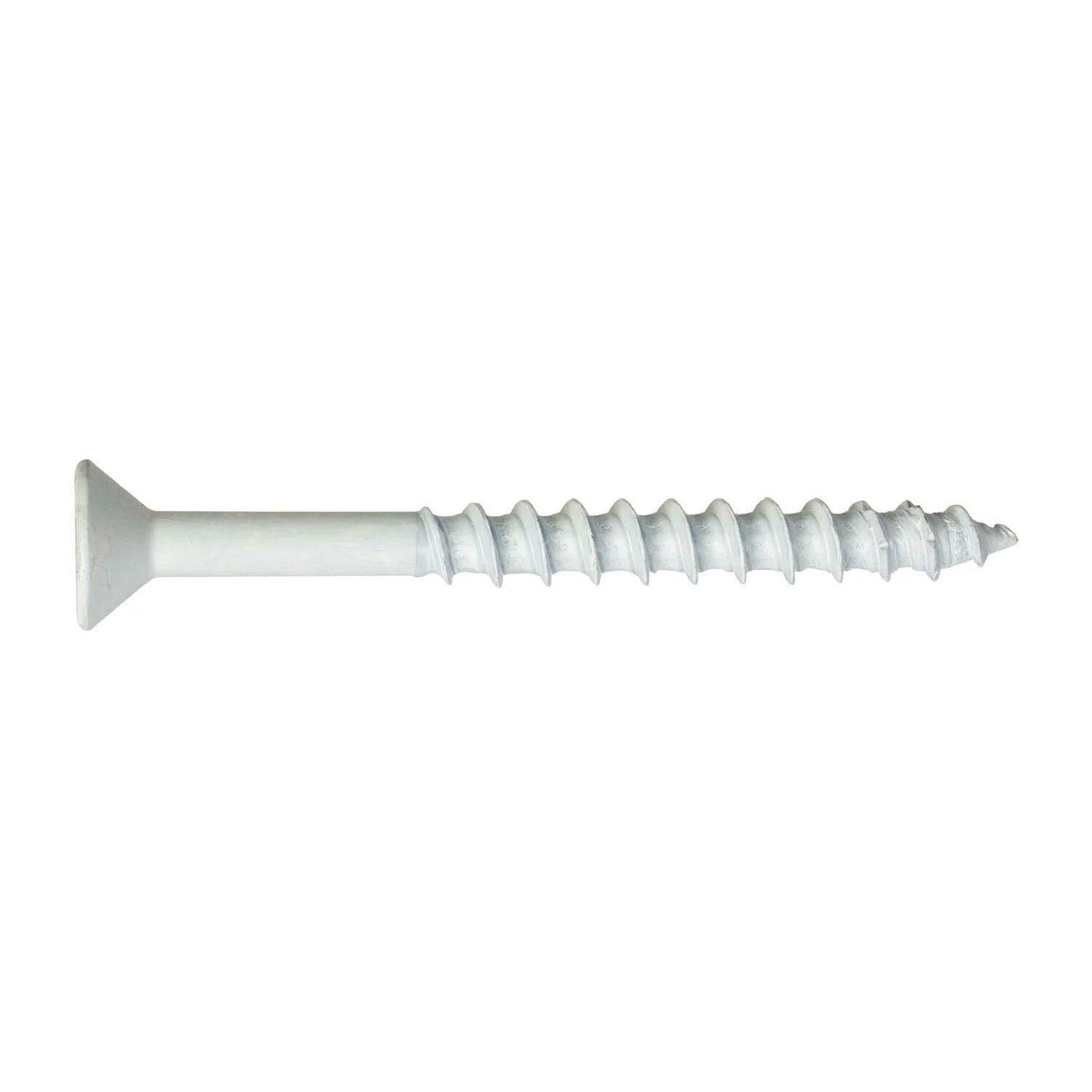

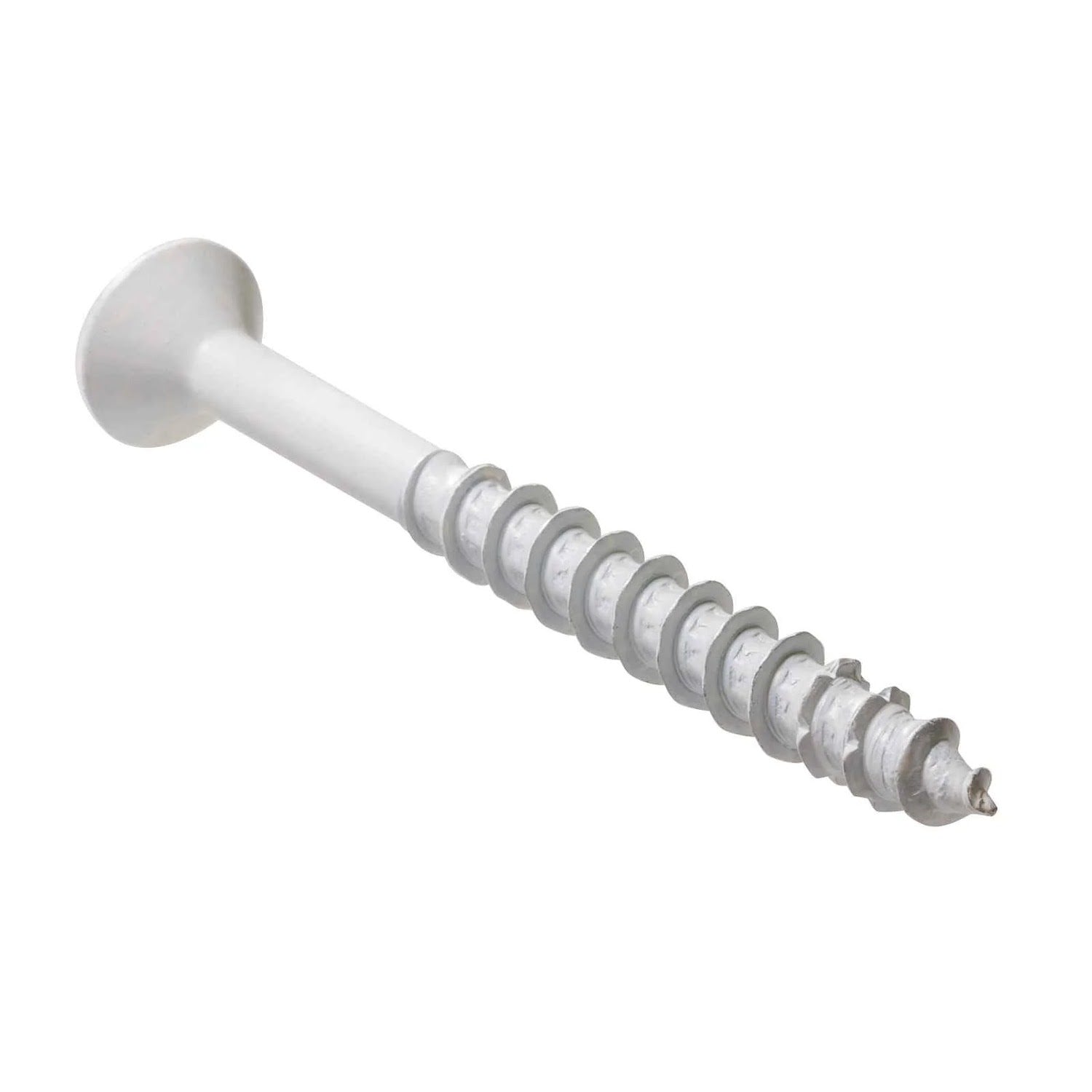

Simpson Strong-Tie TNTW25334TF Titen Turbo (1/4" x 3-3/4") T30 Flat-Head Screw Anchor, White (100 Pack)
$30.88
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25334TF Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNTW25334TF Includes
- (100) 1/4 in. x 3-3/4 in. Titen Turbo Screw Anchor
- (1) T30 drive bit
Simpson Strong-Tie TNTW25334TF Features
- Patented Torque Reduction Channel for reduced binding
- Available in multiple coated versions including White Zinc

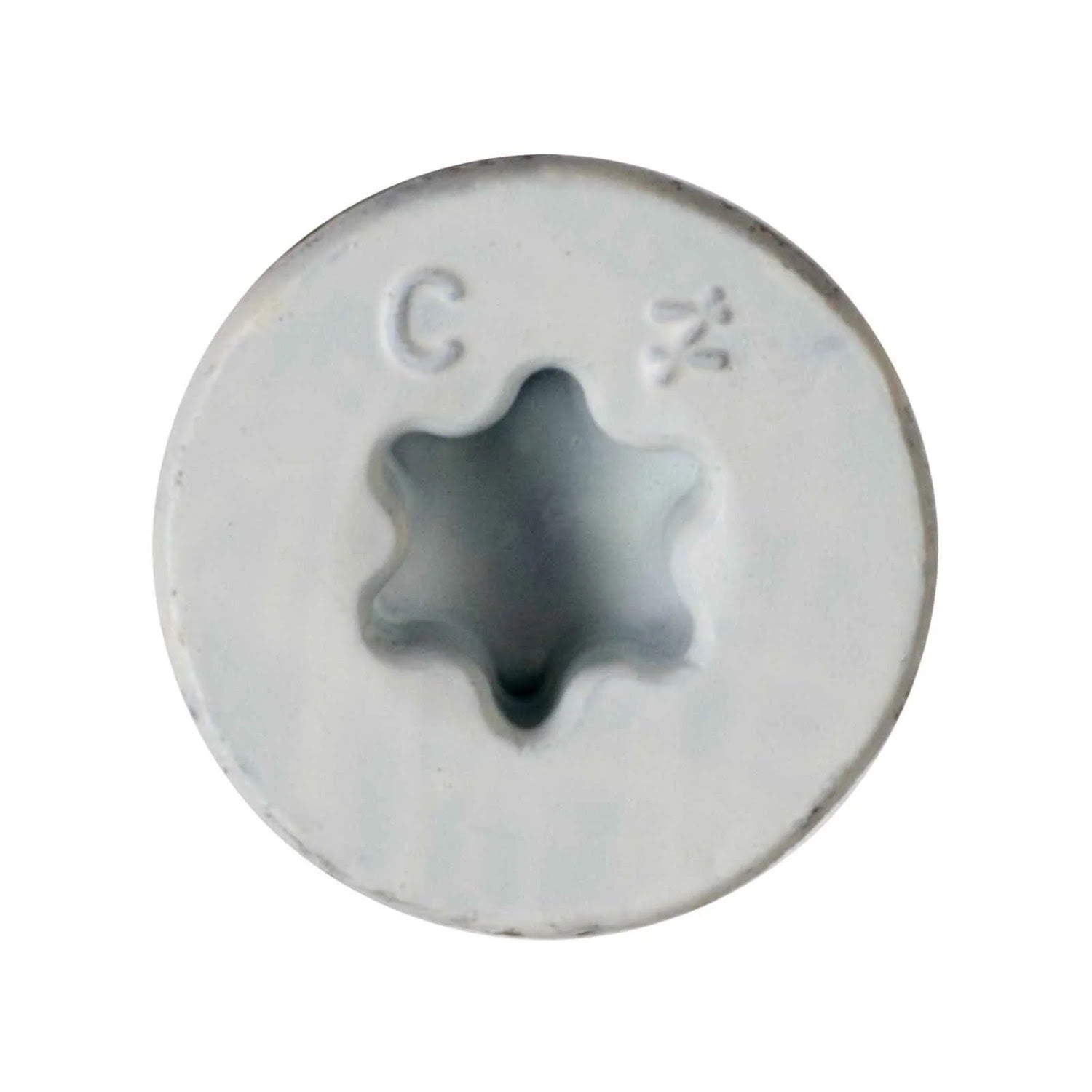

- 6-lobe drive for positive bit engagement
- Superior tension load performance
- Designed for use with impact drivers or cordless drills
Simpson Strong-Tie TNTW25334TF Applications
- Electrical boxes and conduit mounting
- Switch boxes and light fixtures installation
- Window and threshold anchoring
- Basement furring strips attachment
- Shelf mounting to concrete or CMU
- Handrails installation
Simpson Strong-Tie TNTW25334TF Installation Overview
- Drill a hole using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo installation tool.
Simpson Strong-Tie TNTW25334TF Specifications
| Material | Carbon Steel |
| Finish | White Zinc |
| Diameter | 1/4 in. |
| Length | 3-3/4 in. |
| Drill Bit Size | 3/16 in. |
| Drive Type | T30 Star Drive |
| Head Type | Flat Head |
| Quantity | 100 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
