Simpson Anchors | SKU:
TNTW25334TFR200

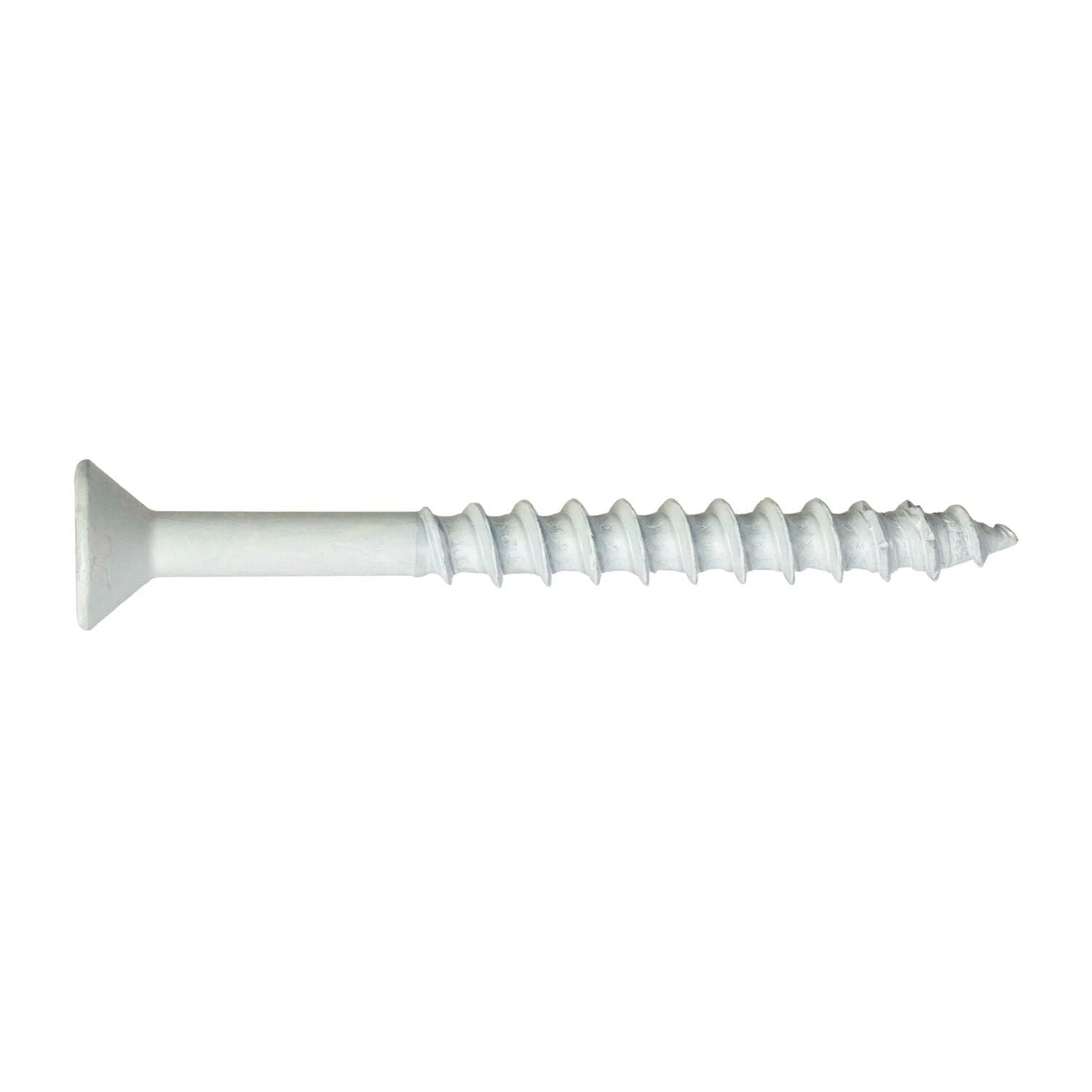

Simpson Strong-Tie TNTW25334TFR200 Titen Turbo (1/4" x 3-3/4") T30 Flat-Head Screw Anchor, White (200 Pack)
$48.24
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TNTW25334TFR200 Description
The Simpson Strong-Tie Titen Turbo screw anchor is a heavy-duty fastener designed for quick and easy installation in wood-to-concrete and wood-to-wood anchoring applications.
Simpson Strong-Tie TNTW25334TFR200 Includes
- (200) 1/4 in. x 3-3/4 in. Flat Head Titen Turbo Screw Anchor
- (1) T30 drive bit
- (1) standard ANSI drill bit
Simpson Strong-Tie TNTW25334TFR200 Features
- Patented Torque Reduction Channel for reduced binding and stripping
- Smooth driving with less torque and superior holding power
- Designed for installation with an impact driver or cordless drill
- Matched-tolerance bit not required; use a standard ANSI drill bit for installation
- Code listed in accordance with ICC-ES AC193 for uncracked concrete and ICC-ES AC106 for masonry applications
Simpson Strong-Tie TNTW25334TFR200 Applications
- Wood-to-concrete anchoring
- Wood-to-wood anchoring
- Masonry applications
Simpson Strong-Tie TNTW25334TFR200 Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Position the fixture and insert the screw.
- Tighten using a drill and the Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTW25334TFR200 Specifications
| Diameter | 1/4 in. |
| Finish | White Zinc |
| Length | 3-3/4 in. |
| Material | Carbon Steel |
| Drill bit size | 3/16 in. |
| Drive type | T30 Star Drive |
| Head type | Flat Head |
| Quantity | 200 |
NOTE: Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended. Matched-tolerance bit not required; use a standard ANSI drill bit for installation. Intended for use in dry interior environments only.
