Simpson Anchors | SKU:
TP316
Simpson Strong-Tie TP316 (3-1/8" x 16") 20Ga TP Galvanized Tie Plate - G90
$3.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TP316 Description

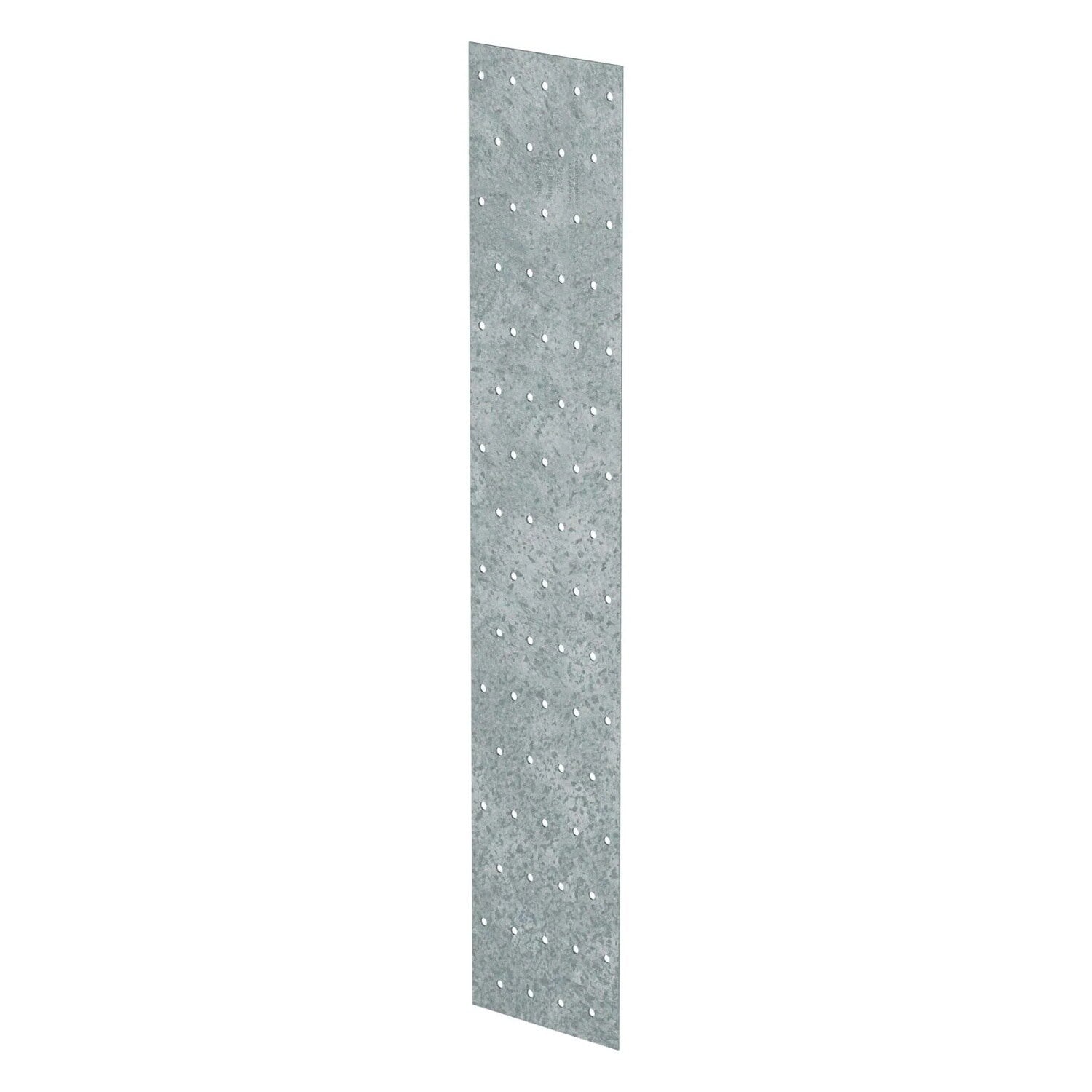

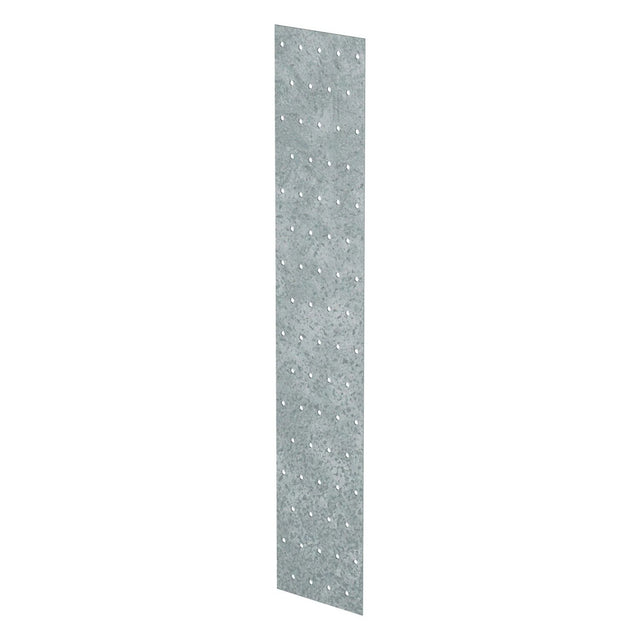

The Simpson TP316 Tie Plate is a simple and effective solution for connecting two wood members. Made from G90 galvanized steel, it ensures durability and resistance to corrosion.
Simpson Strong-Tie TP316 Includes
- (1) Tie Plate
Simpson Strong-Tie TP316 Features
- Simple and effective solution for connecting wood members
- Made from G90 galvanized steel for durability
- Holes sized for 8d common nails
- Flat tie plate design
Simpson Strong-Tie TP316 Applications
- Connecting two wood members in construction projects
- General wood framing applications
Simpson Strong-Tie TP316 Installation Overview
- Align the tie plate with the wood members to be connected.
- Secure the plate using the specified fasteners: 0.131" X 2-1/2" nails, 0.131" X 1-1/2" nails, or #9 Strong-Drive SD screws.
- Ensure all fasteners are properly installed for a secure connection.
Simpson Strong-Tie TP316 Specifications
| Finish | G90 Galvanized |
| Length | 16" |
| Material | Galvanized Steel |
| Fasteners required | (72) 0.131" X 2-1/2" nails, 0.131" X 1-1/2" nails or #9 Strong-Drive SD screws |
| Thickness | 20 Gauge |
| Width | 3-1/8" |
