Simpson TP35 Description

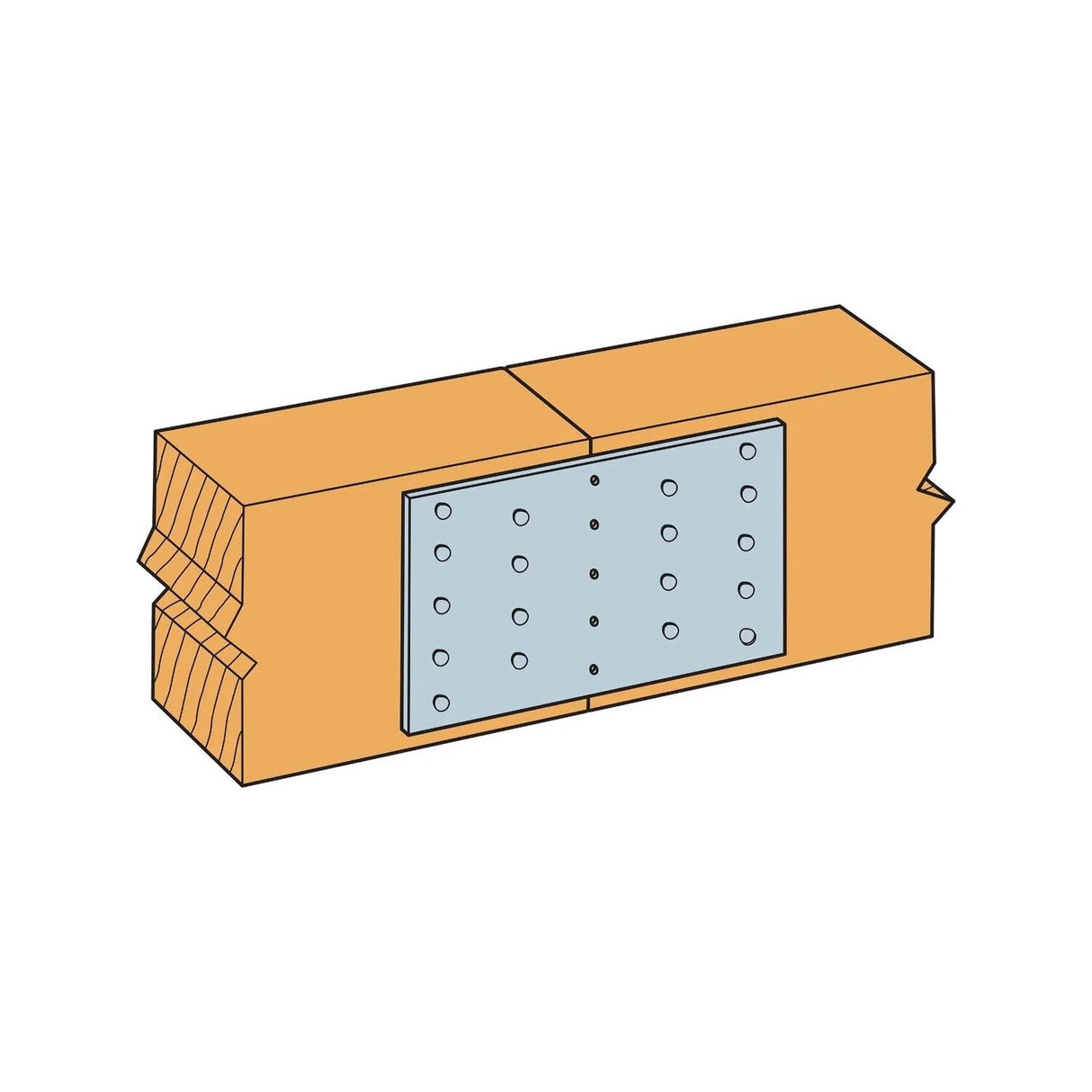

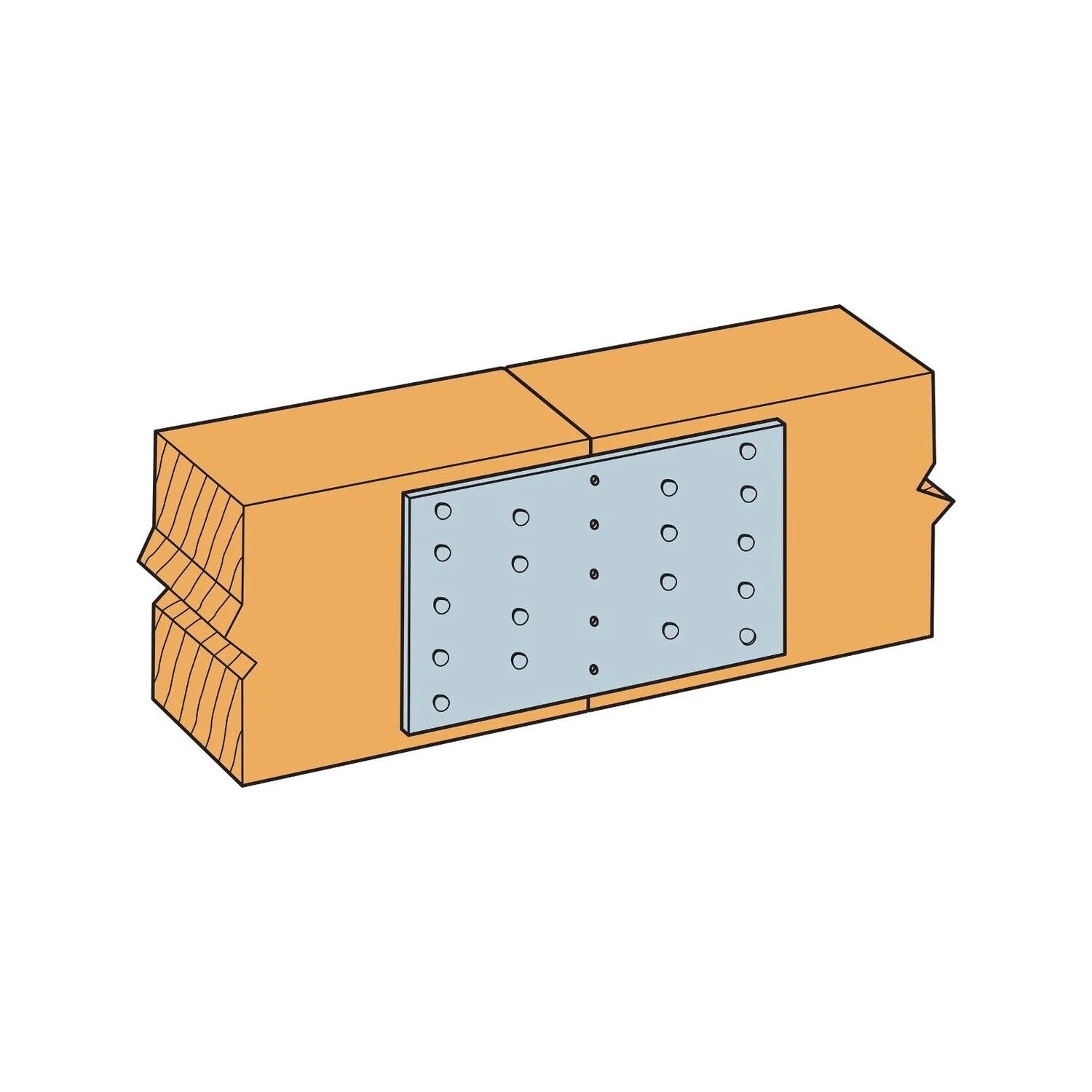

The Simpson TP35 Tie Plate is a flat tie plate designed for connecting two wood members. It features a G90 galvanized finish and is compatible with 8d common nails.
Simpson TP35 Includes

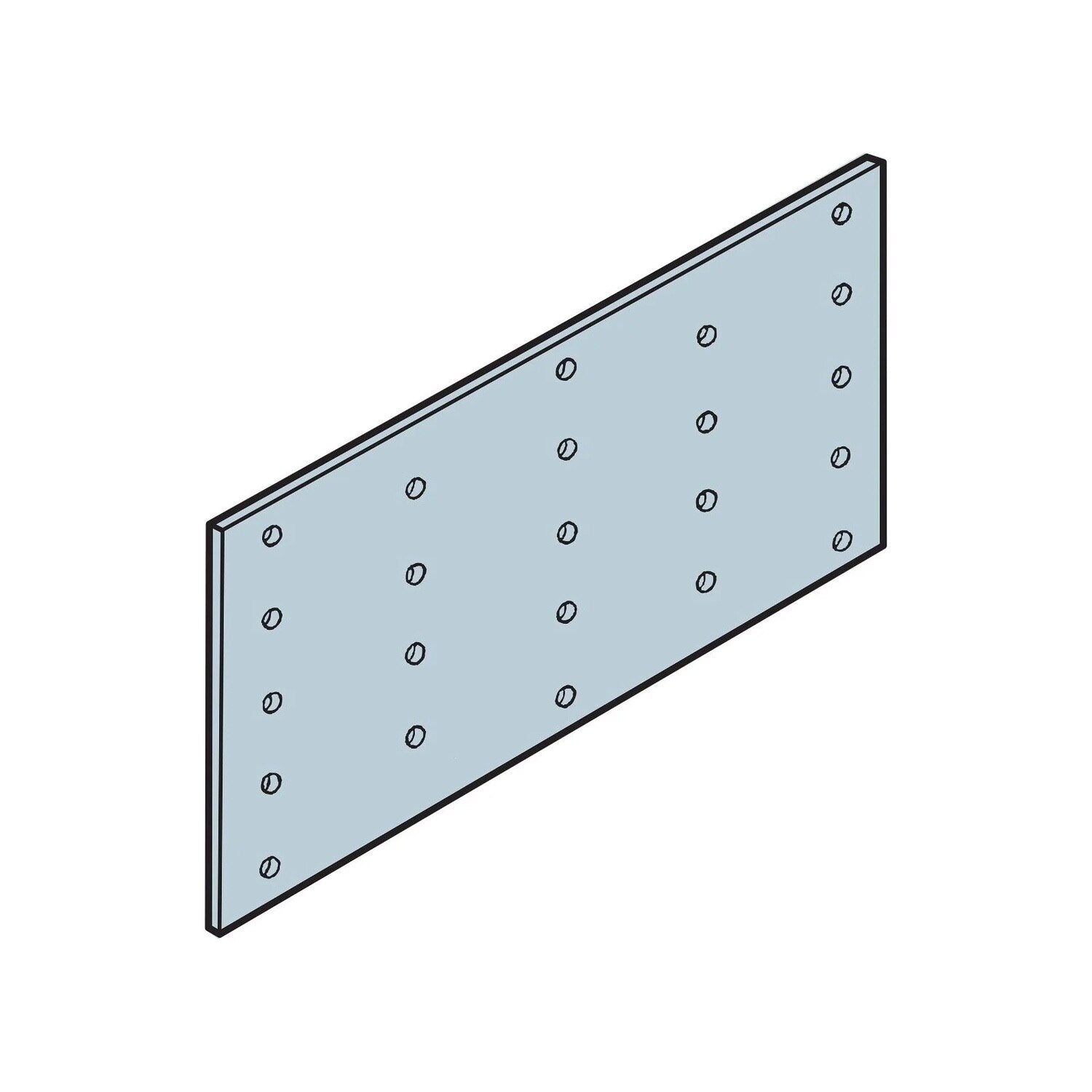

- (1) Tie Plate G90 Galvanized 3-1/8" x 5"
Simpson TP35 Features
- Flat tie plate design for connecting wood members
- G90 galvanized finish for corrosion resistance
- Compatible with 8d common nails
- Dimensions: 3-1/8" x 5"
Simpson TP35 Applications
- Wood member connection in construction projects
- General framing applications requiring flat tie plates
Simpson TP35 Installation Overview
- Align the tie plate with the wood members to be connected.
- Secure the plate using 8d common nails or SD9112 screws.
- Ensure all fasteners are properly installed for optimal performance.
Simpson TP35 Specifications
| Length | 5" |
| Width | 3-1/8" |
| Fasteners required | (23) 0.131" x 1-1/2" Nails OR (23) SD9112 Screws |
| Weight | 0.2 lb |
NOTE: These plates are not load rated, and the holes are sized for 8d common nails.
Toolup Part # :
825331
