Simpson Anchors | SKU:
TP49

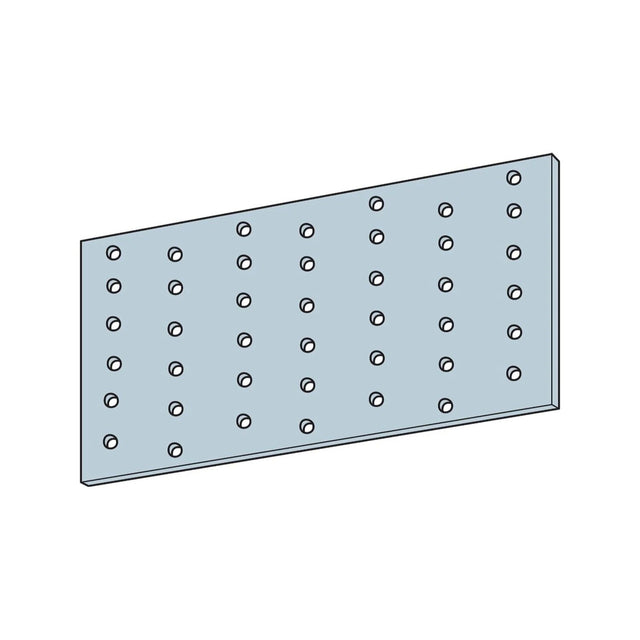

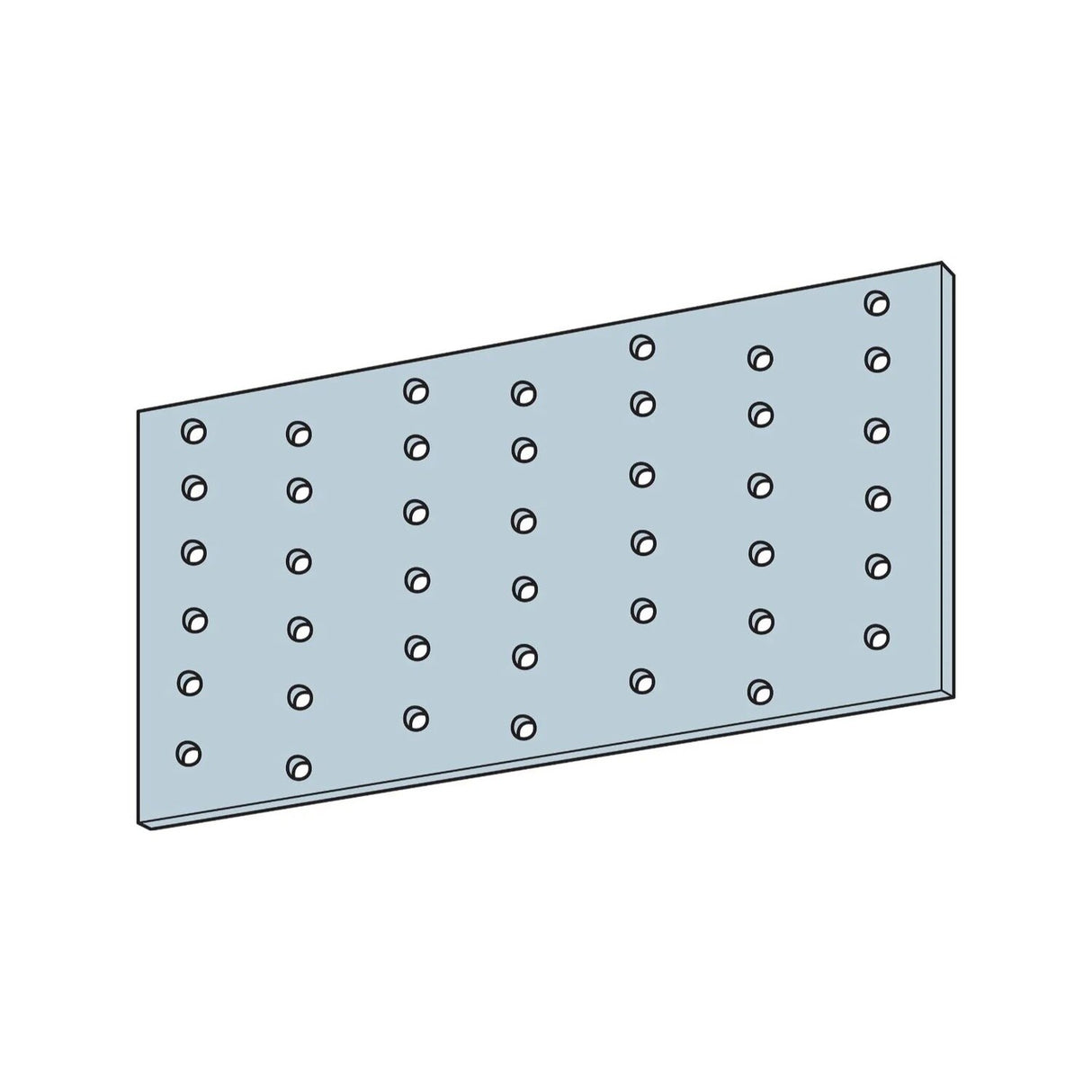

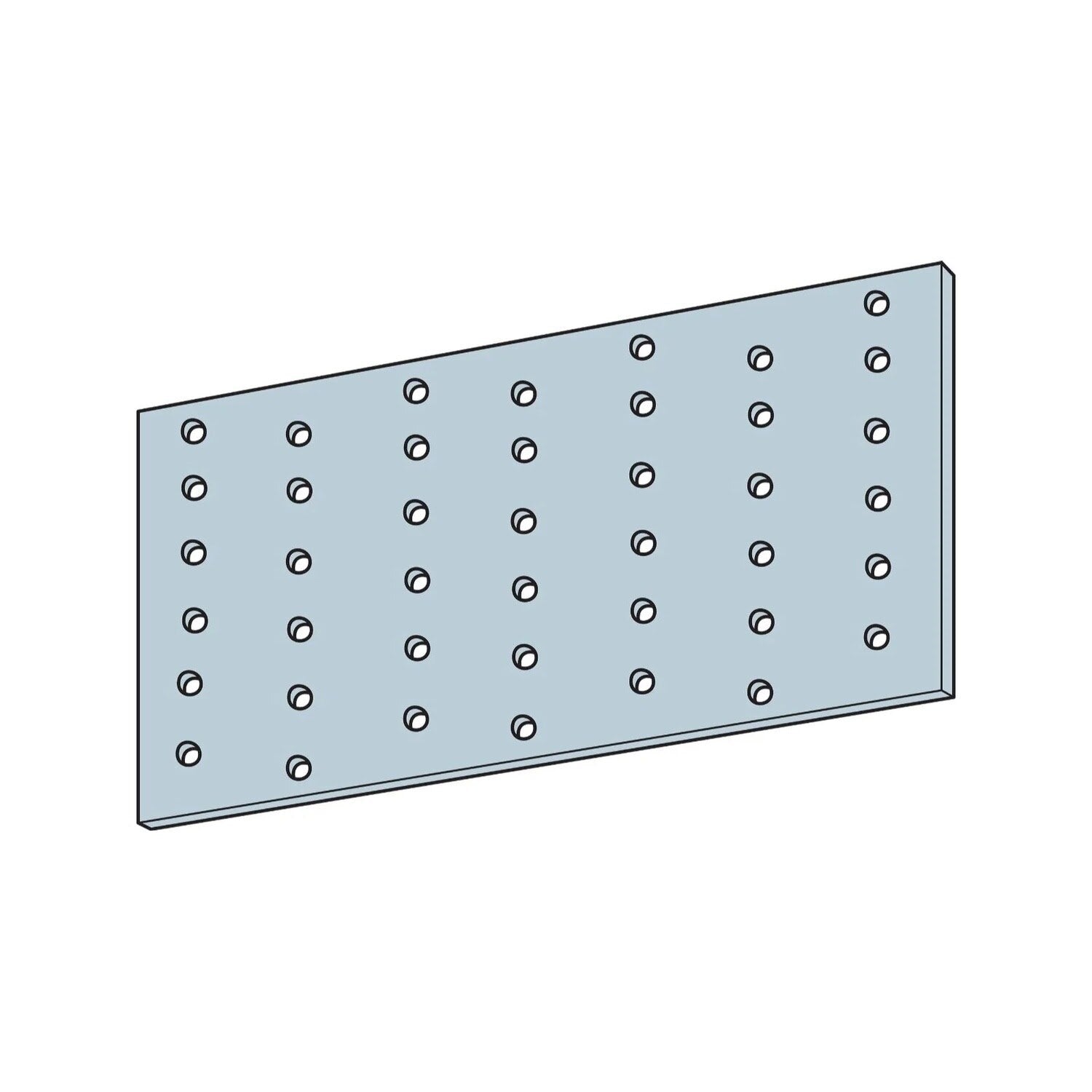

Simpson Strong-Tie TP49 (4-1/8" x 9") 20Ga TP Galvanized Tie Plate - G90
$2.63
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TP49 Description
The Simpson TP49 Tie Plate is a simple and effective solution for connecting two wood members. Made from G90 galvanized steel, it ensures durability and resistance to corrosion.
Simpson Strong-Tie TP49 Includes
- (1) 4-1/8" x 9" Tie Plate
Simpson Strong-Tie TP49 Features
- Simple and effective solution for connecting wood members
- Made from G90 galvanized steel for durability
- Holes sized for 8d common nails
- Flat tie plate design
Simpson Strong-Tie TP49 Applications
- Connecting two wood members in construction projects
- General wood framing applications

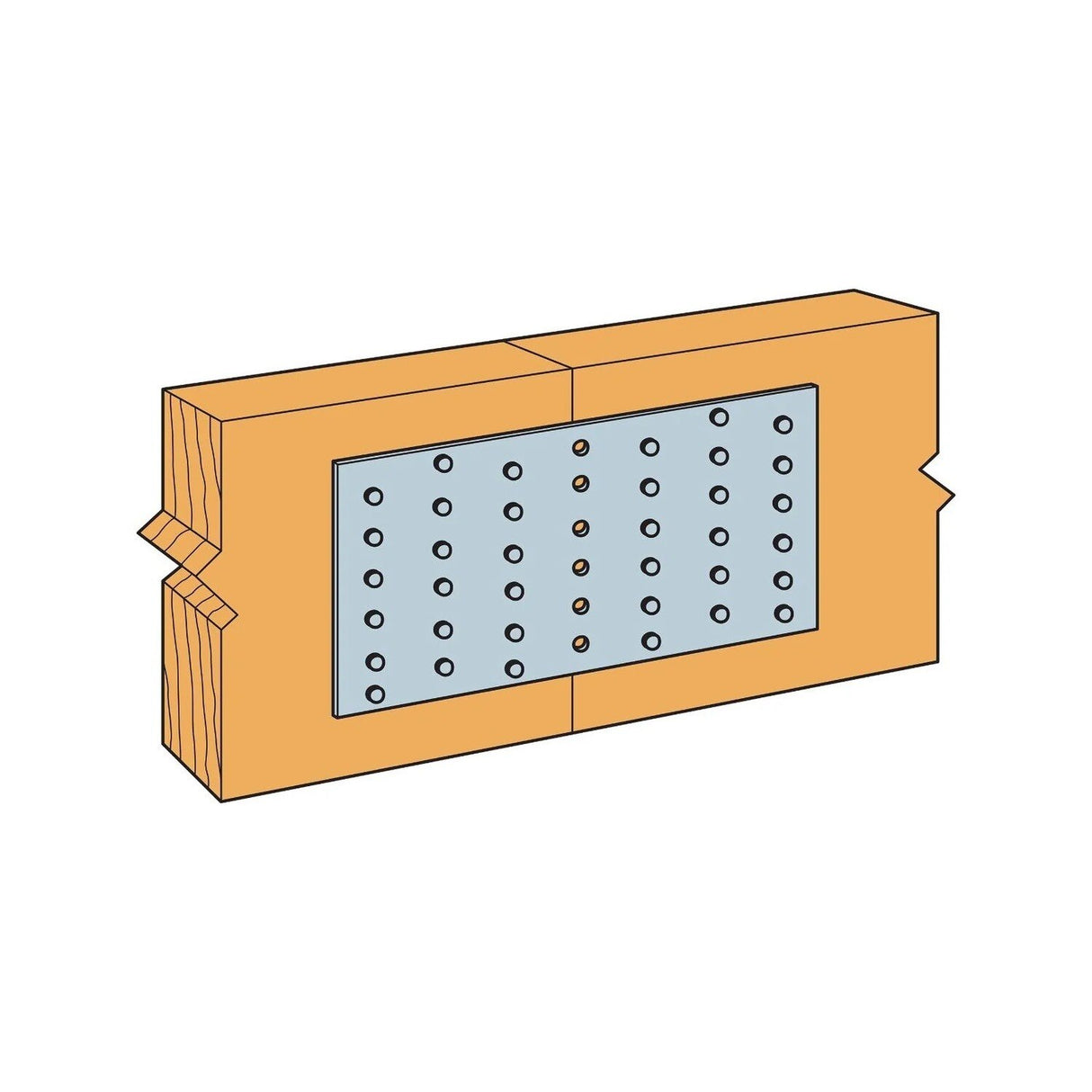

Simpson Strong-Tie TP49 Installation Overview
- Align the tie plate with the wood members to be connected.
- Secure the plate using 8d common nails or SD9112 screws.
- Ensure all fasteners are properly installed for a secure connection.
Simpson Strong-Tie TP49 Specifications
| Length | 9" |
| Width | 4-1/8" |
| Fasteners required | (54) 0.131" x 1-1/2" Nails OR (54) SD9112 Screws |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: These plates are not load rated, and the holes are sized for 8d common nails.
