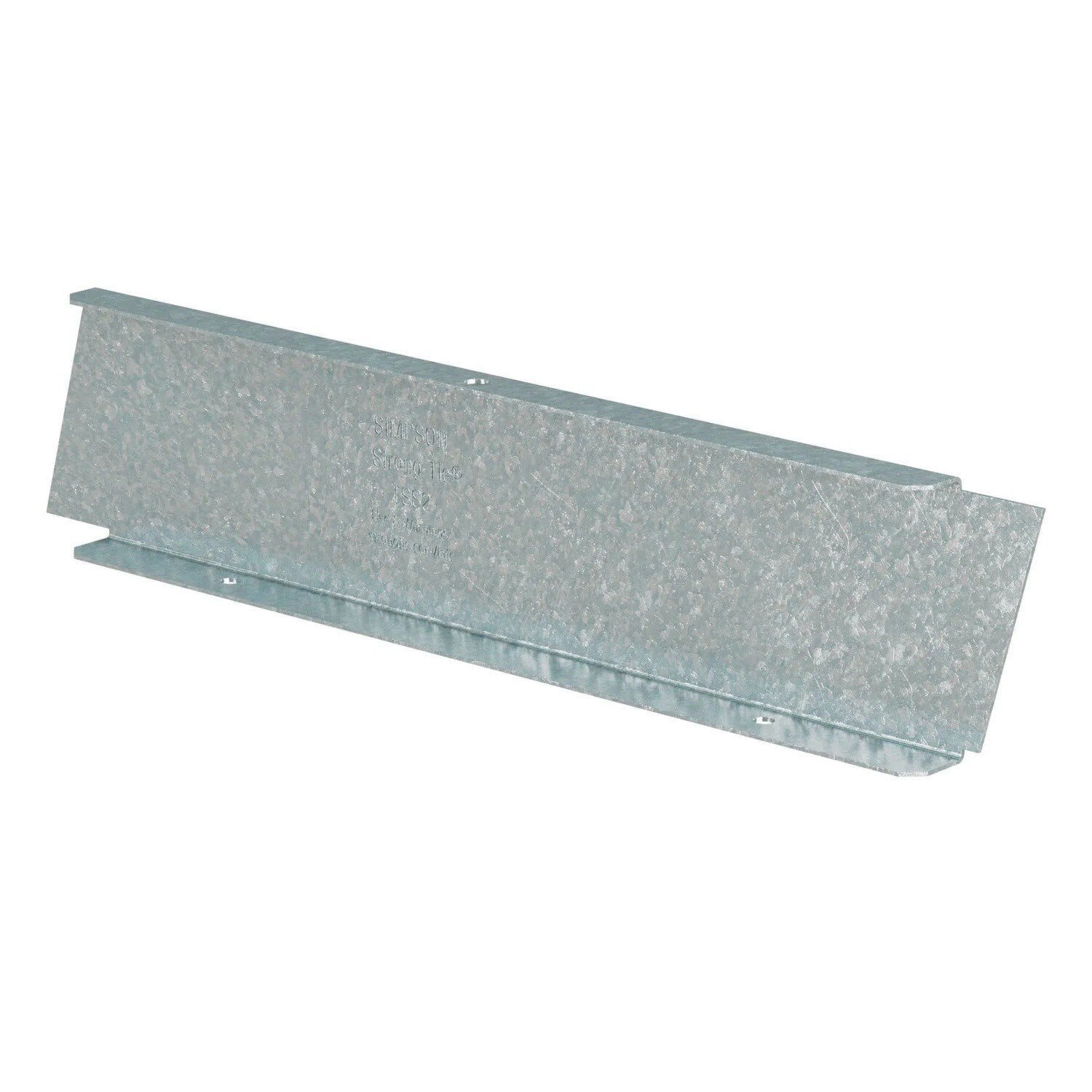

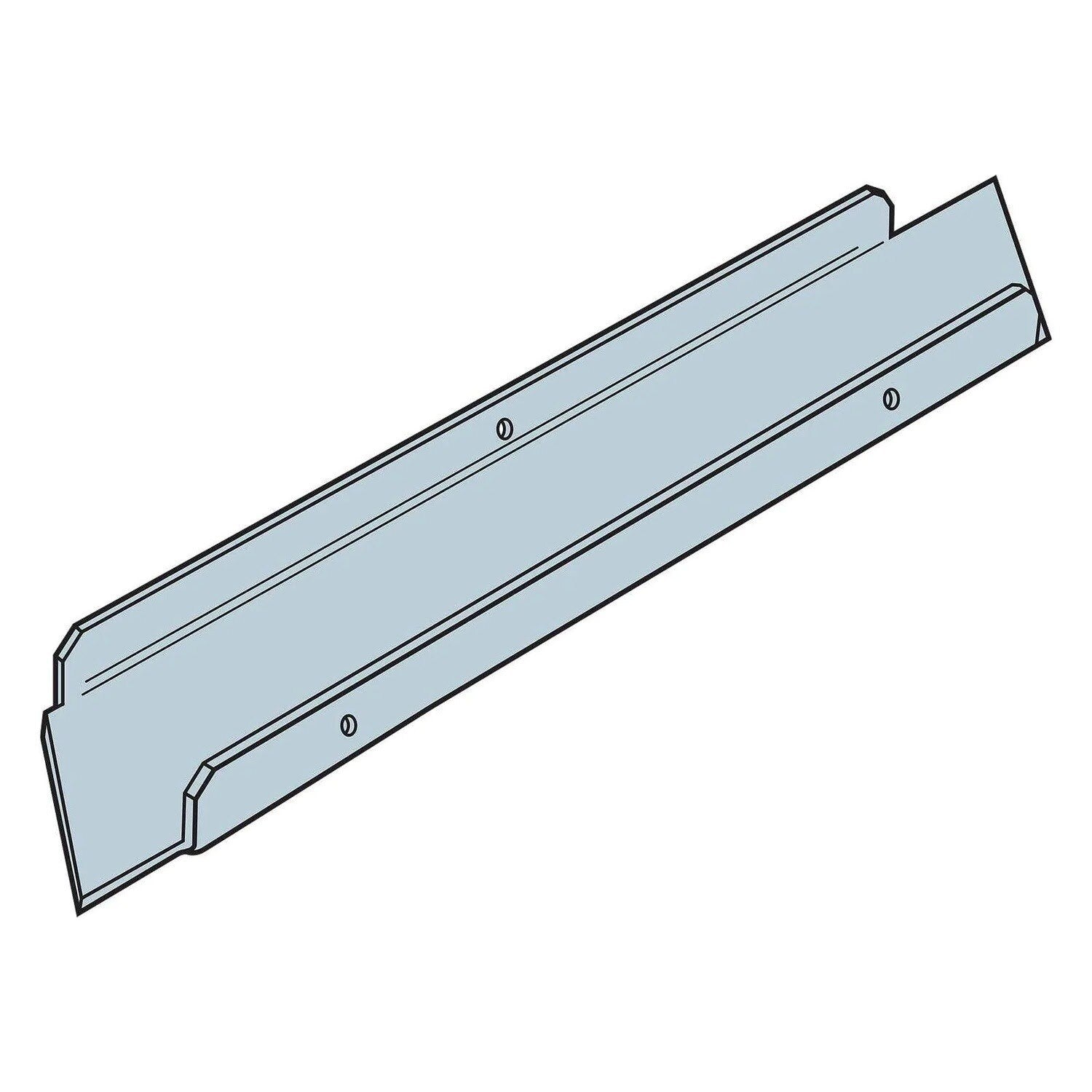

Simpson Strong-Tie TSS4 Description
The TSS4 Truss Seat Snap-In is designed to provide a moisture barrier between concrete or masonry and a truss, ideal for embedded truss anchor applications.
Simpson Strong-Tie TSS4 Includes
- (1) TSS4 Truss Seat Snap-In
Simpson Strong-Tie TSS4 Features
- Eliminates the need for higher-cost treated lumber
- Compatible with the Simpson Strong-Tie META, HETA, or HHETA
Simpson Strong-Tie TSS4 Applications
- Provides a moisture barrier between concrete or masonry and a truss
- Ideal for embedded truss anchor applications
Simpson Strong-Tie TSS4 Installation Overview
- Use all specified fasteners as per the general notes
- May be preattached to the truss using 0.113" x 2" nails
Simpson Strong-Tie TSS4 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Thickness | 22 Gauge |
| Width | 3-5/8" |
| Weight | 0.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
