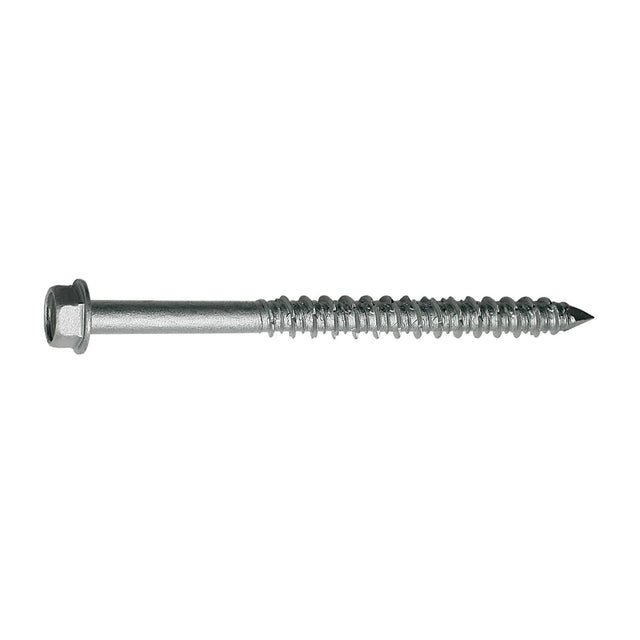

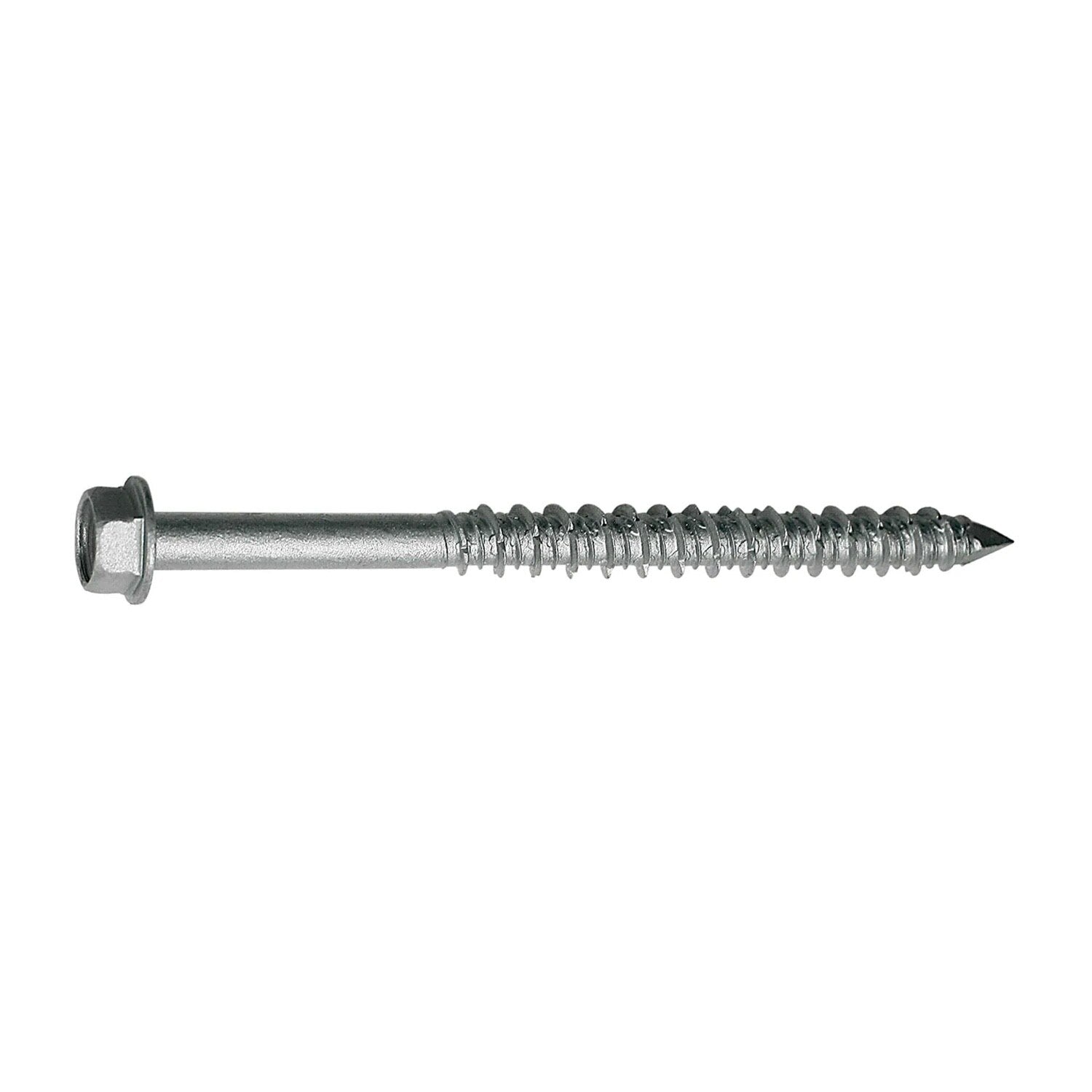

Simpson TTN25134HSS Description
Simpson Strong-Tie Titen screws are heavy-duty fasteners designed for concrete and masonry applications, offering enhanced corrosion resistance and reliable performance.
Simpson TTN25134HSS Includes
- (100) 1/4 x 1-3/4 in. Hex Head Screw
- (1) Drill Bit
Simpson TTN25134HSS Features
- Suitable for concrete, brick, grout-filled CMU, and hollow-block applications
- Acceptable for exterior use
- Made of 410 stainless steel with a zinc protective overcoat
- Includes Titen drill bits in each box
- Available in lengths ranging from 1-1/4" to 4"
Simpson TTN25134HSS Applications
- Fastening electrical boxes to concrete surfaces
- Securing light fixtures to masonry
- Attaching components to grout-filled CMU
- General concrete and masonry anchoring
Simpson TTN25134HSS Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit
- Blow the hole clean using compressed air
- Position the fixture and insert the screw
- Tighten using a drill and Titen screw installation tool fitted with a hex socket or Phillips bit
Simpson TTN25134HSS Specifications
| Material | 410 Stainless Steel |
| Finish | Zinc plated with a protective overcoat |
| Diameter | 1/4" |
| Length | 1-3/4" |
| Drill Bit Size | 3/16" |
| Drive Type | 5/16" Hex |
| Head Type | Hex Head |
| Quantity | 100 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
