Simpson Anchors | SKU:
TTN25314HSS

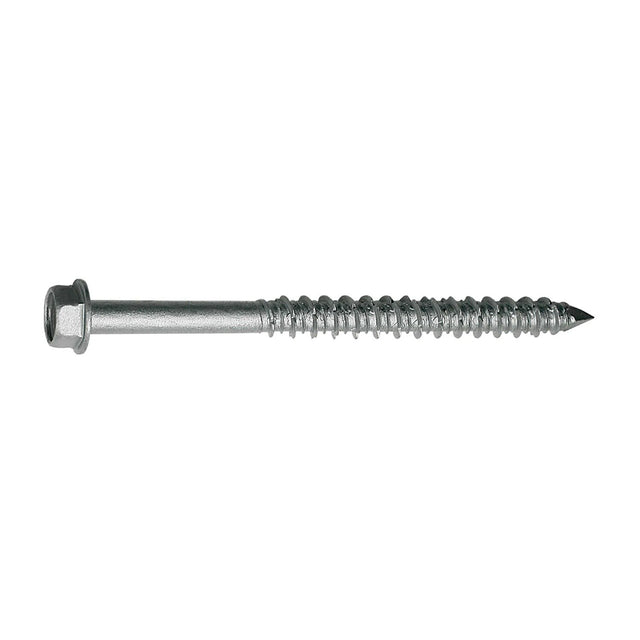

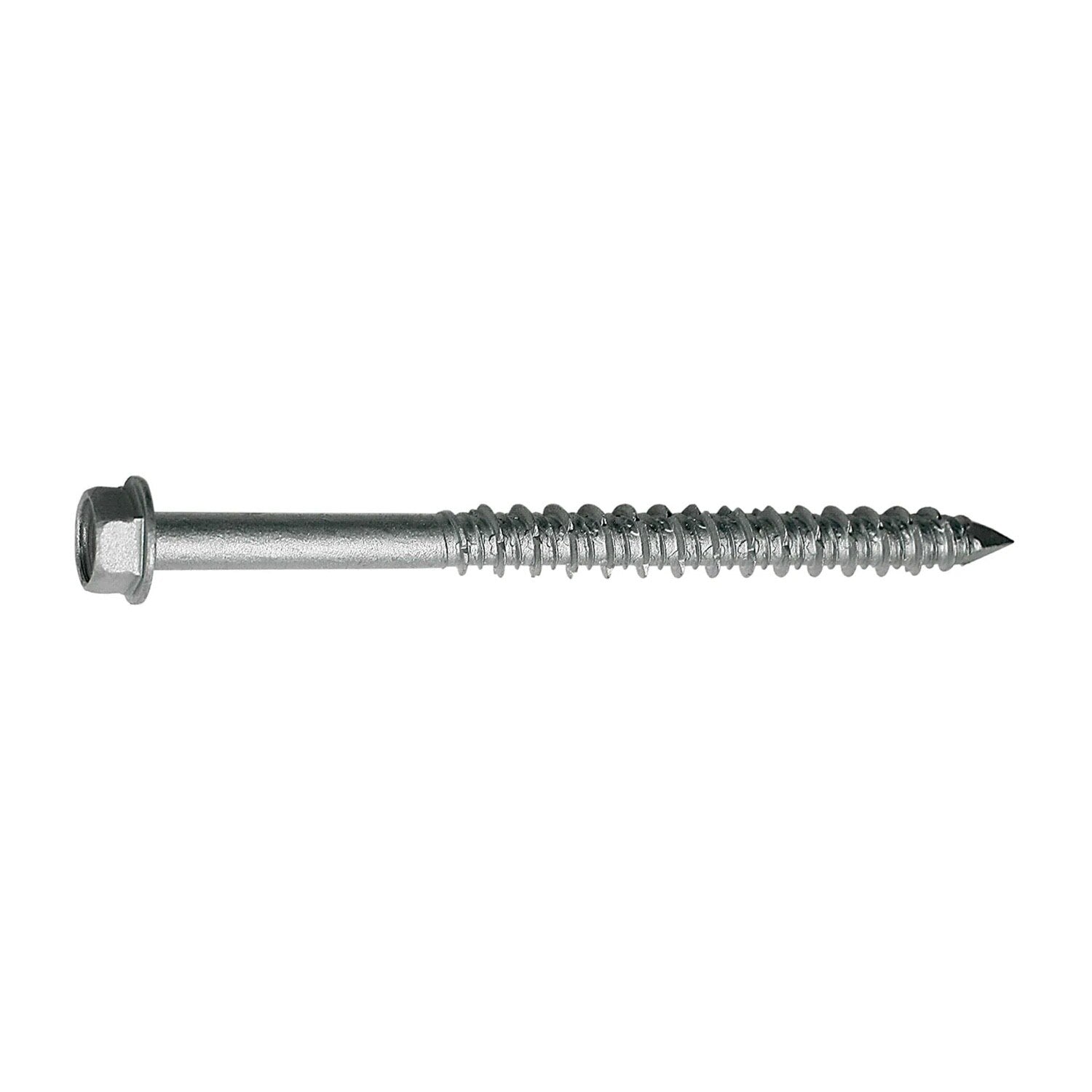

Simpson Strong-Tie TTN25314HSS Titen Turbo (1/4" x 3-1/4") Hex-Head Stainless-Steel Concrete and Masonry Screw (100 Pack)
$90.43
$100.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie TTN25314HSS Description
Simpson Strong-Tie Titen screws are heavy-duty fasteners designed to attach various types of components to concrete and masonry.
Simpson Strong-Tie TTN25314HSS Includes
- (100) 1/4in x 3-1/4in Hex-Head Stainless-Steel Concrete and Masonry Screws
- (1) Drill Bit
Simpson Strong-Tie TTN25314HSS Features
- Made of 410 stainless steel with a zinc protective overcoat for enhanced corrosion resistance
- Available in lengths ranging from 1-1/4" to 4"
- Hex or Phillips flat head options
- Heavy-duty fasteners for concrete and masonry applications
Simpson Strong-Tie TTN25314HSS Applications
- Fastening electrical boxes or light fixtures
- Attaching components to concrete and masonry
- Suitable for concrete, brick, grout-filled CMU, and hollow-block applications
- Suitable for some preservative-treated wood applications
Simpson Strong-Tie TTN25314HSS Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified.
- Position fixture, insert screw and tighten using drill and Titen screw installation tool fitted with a hex socket or Phillips bit.
- Ensure not to damage the coating during installation.
Simpson Strong-Tie TTN25314HSS Specifications
| Material | 410 Stainless Steel |
| Finish | Zinc plated with a protective overcoat |
| Diameter | 1/4 in. |
| Length | 3-1/4 in. |
| Drill Bit Size | 3/16 in. |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Head |
| Quantity | 100 |
NOTE: Suitable for concrete, brick, grout-filled CMU, and hollow-block applications. Suitable for some preservative-treated wood applications. Acceptable for exterior use. Titen drill bits are included in each box. Installation using the Titen installation Kit is recommended.
