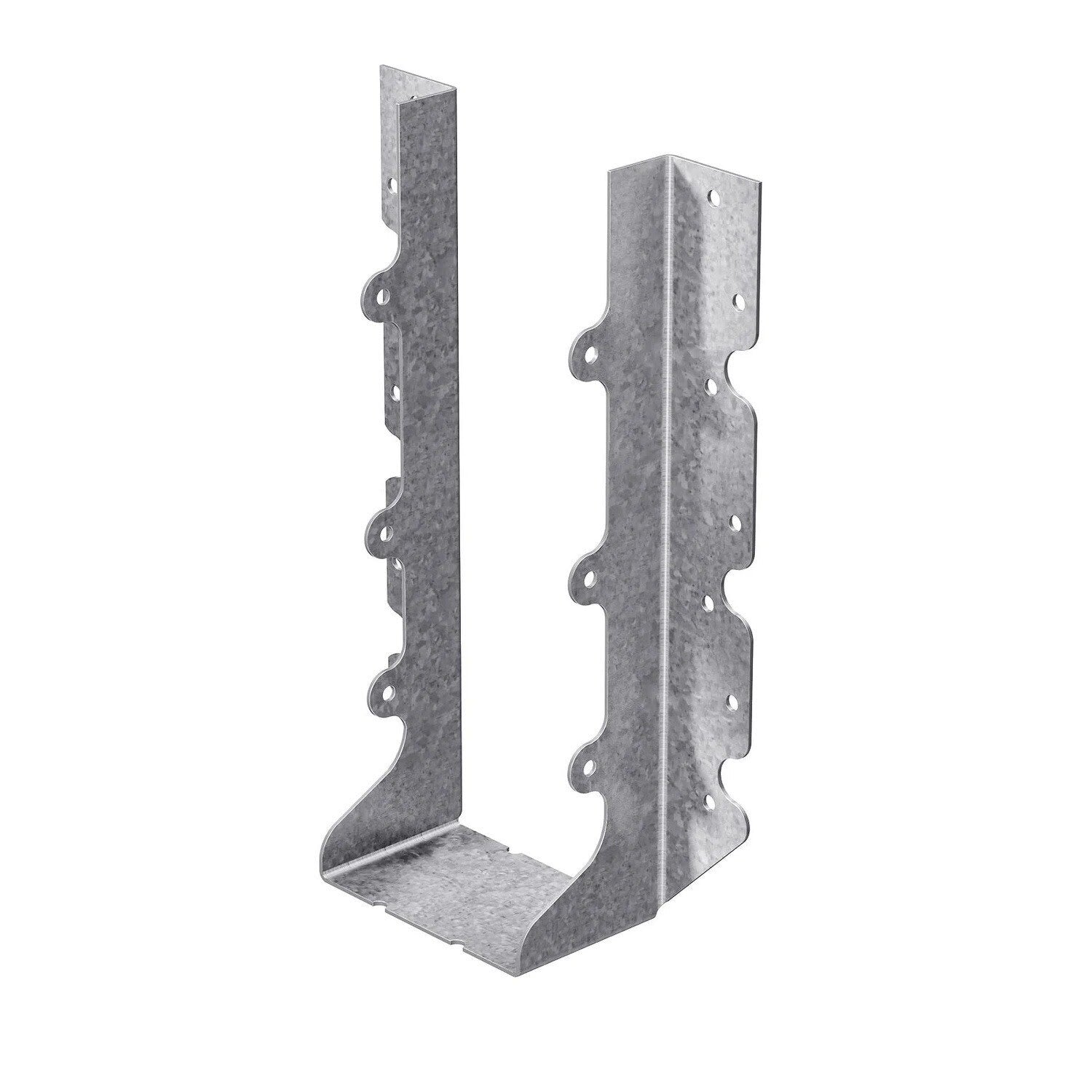

Simpson Strong-Tie U14 (10-1/4") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$13.24
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U14 Description
The Simpson Strong-Tie U14 Face-Mount Joist Hanger is designed for strong and secure wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U14 Includes
- (1) Face Mount Joist Hanger
Simpson Strong-Tie U14 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, helping to prevent twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance for durability.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U14 Applications
- Deck Framing: Secures joists to beams for a stable deck structure.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.
Simpson Strong-Tie U14 Installation Overview
- Use nails, screws, or SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all nail holes for strength.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet |
| For Treated Lumber | No |
| Height | 10-1/4" |
| Joist size | 2" X 14" |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 1-4/5" |
