Simpson Hangers | SKU:
U210-2
Simpson Strong-Tie U210-2 (8-1/2") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$6.68
$9.61
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U210-2 Description

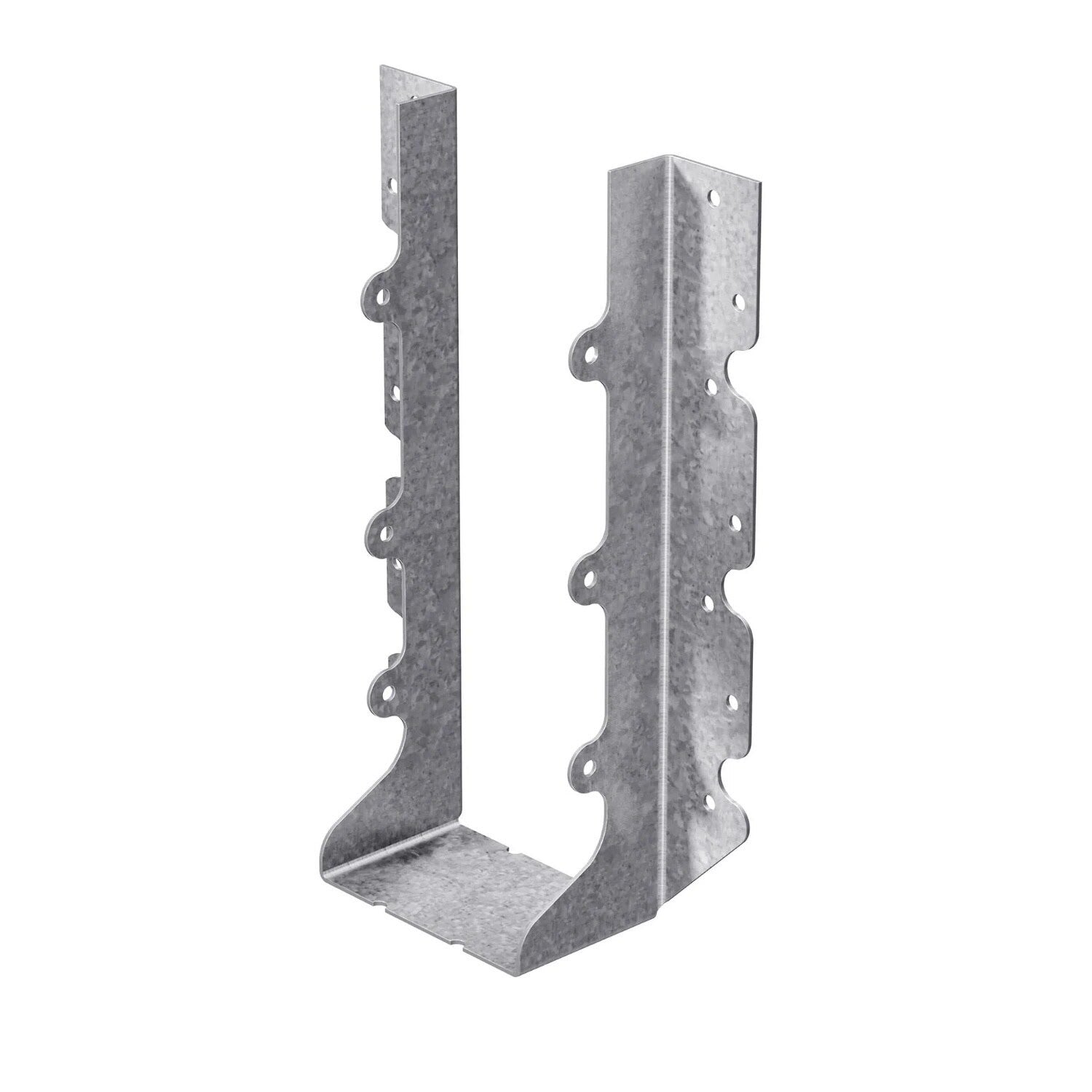

The Simpson Strong-Tie U210-2 is a galvanized face-mount joist hanger designed for double 2x10 joists, providing strong and secure connections for wood framing applications.
Simpson Strong-Tie U210-2 Includes
- (1) Galvanized Face-Mount Joist Hanger for Double 2x10
Simpson Strong-Tie U210-2 Features
- Versatile compatibility for solid sawn lumber and engineered wood joists
- Face-mount design for easy installation
- Optimized load distribution for full bearing support
- Galvanized steel construction for corrosion resistance
- Precision-engineered for tight tolerances and snug fit
Simpson Strong-Tie U210-2 Applications

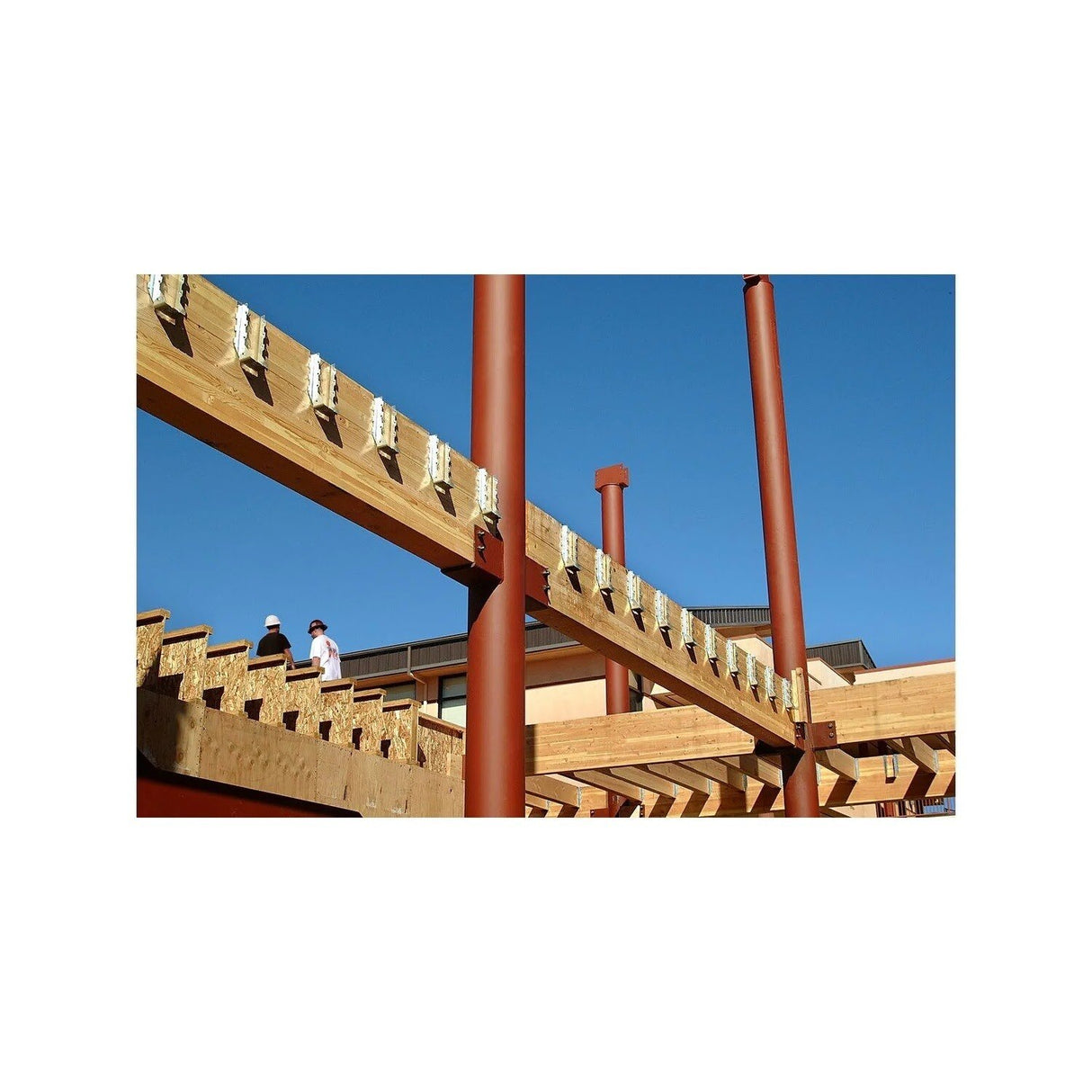

- Deck framing: Secures joists to beams for stable deck structures
- Floor joists: Supports floor framing systems in buildings
- Roof framing: Provides strong connections for rafters and ceiling joists

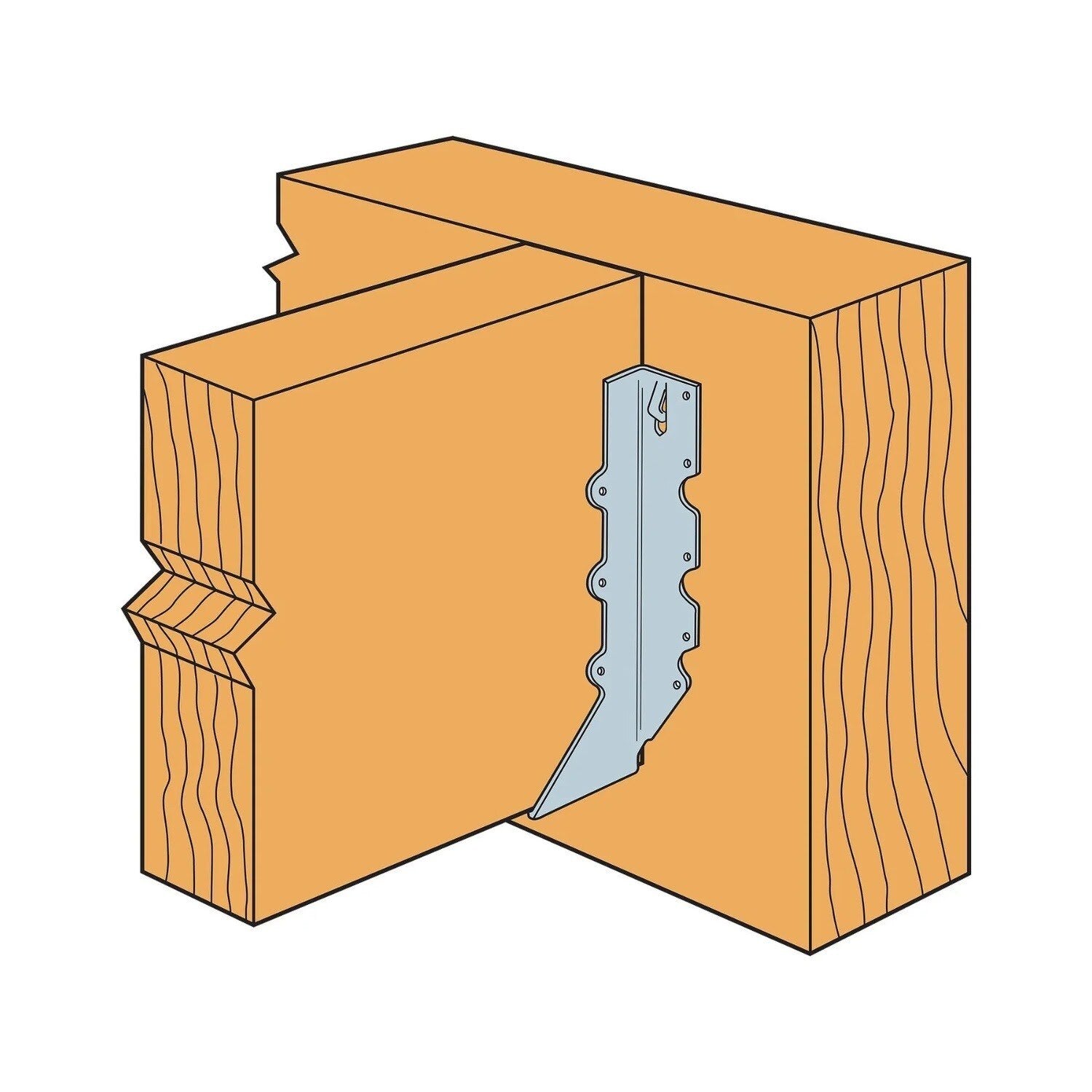

Simpson Strong-Tie U210-2 Installation Overview
- Use specified nails, screws, or SDS Heavy-Duty Connector screws
- Ensure joist is fully seated in the hanger
- Install fasteners into all nail holes for optimal strength
- Verify hanger meets required load capacity
Simpson Strong-Tie U210-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | Double 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-1/8" |
