Simpson Hangers | SKU:
U210-3

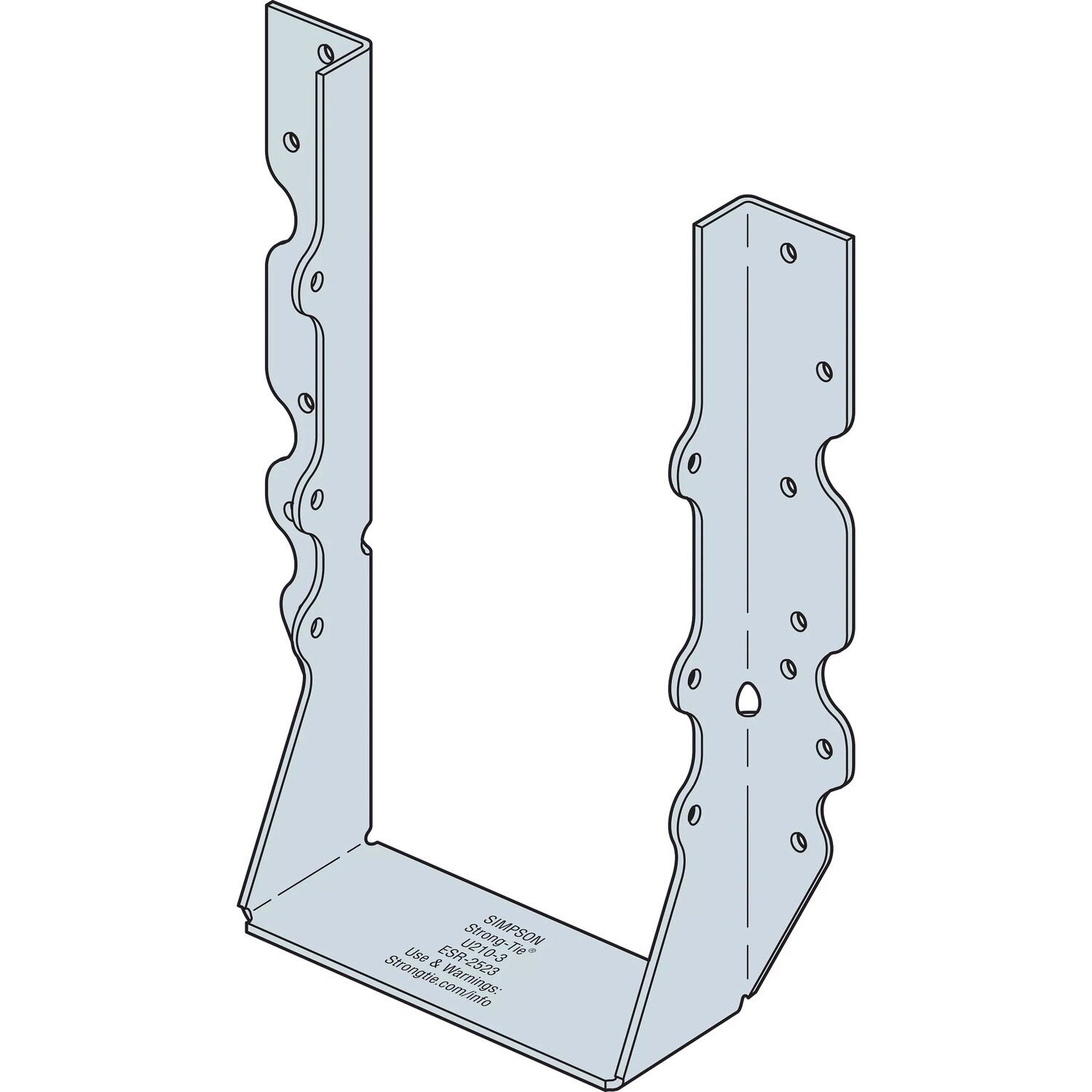

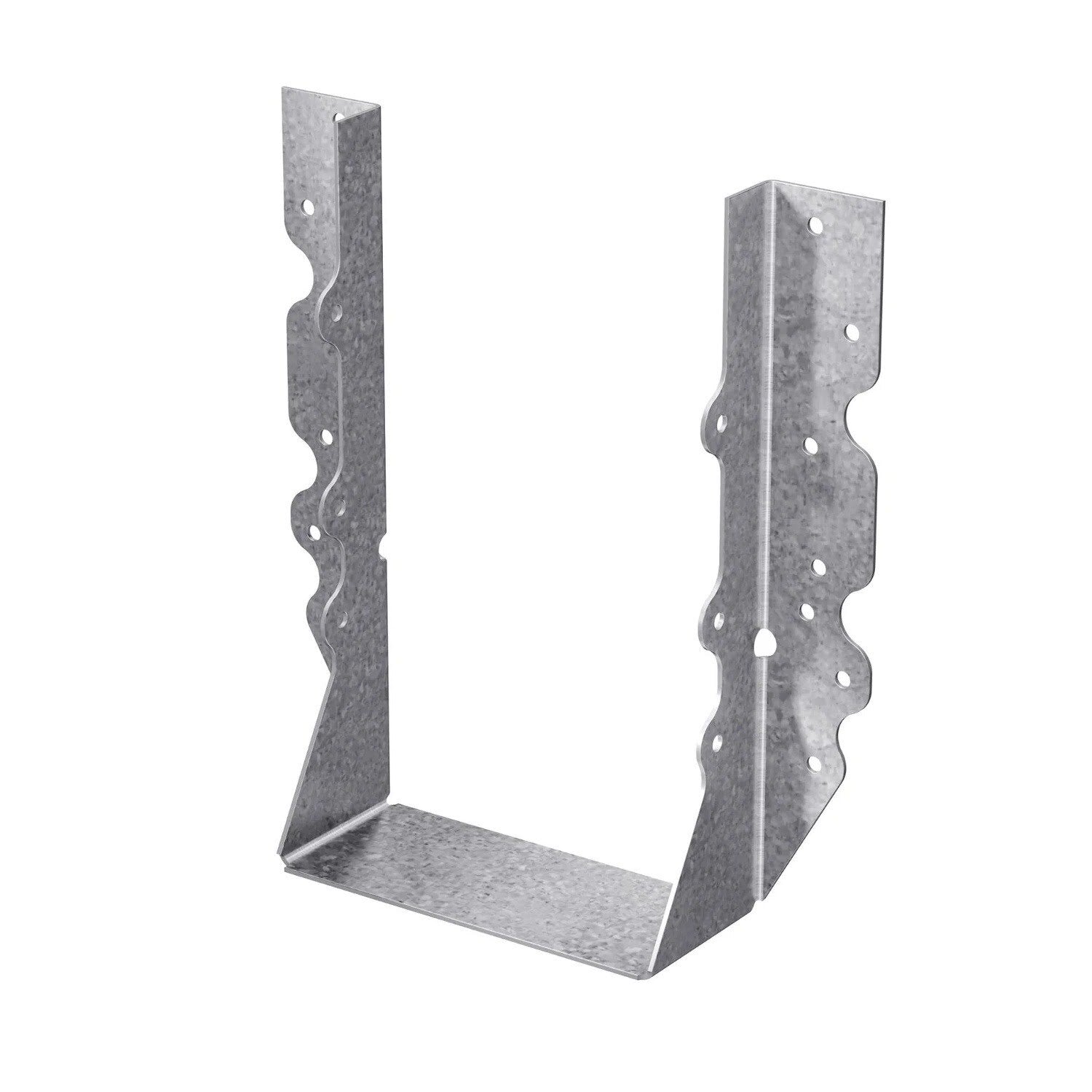

Simpson Strong-Tie U210-3 (7-3/4") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for (Triple 2x10)
$18.94
$27.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U210-3 Description
The Simpson Strong-Tie U210-3 is a face-mount joist hanger designed for triple 2x10 joists, offering strong and secure connections for wood framing applications. Made from G90 galvanized steel, it ensures durability and corrosion resistance.
Simpson Strong-Tie U210-3 Includes
- (1) Triple 2x10 Face-Mount Joist Hanger
Simpson Strong-Tie U210-3 Features
- Versatile compatibility for solid sawn lumber and engineered wood joists
- Face-mount design for easy installation
- Optimized load distribution for full bearing support
- Galvanized steel construction for corrosion resistance
- Precision-engineered for tight tolerances
Simpson Strong-Tie U210-3 Applications
- Deck framing: Secures joists to beams for stable deck structures
- Floor joists: Supports floor framing systems in buildings
- Roof framing: Provides strong connections for rafters and ceiling joists

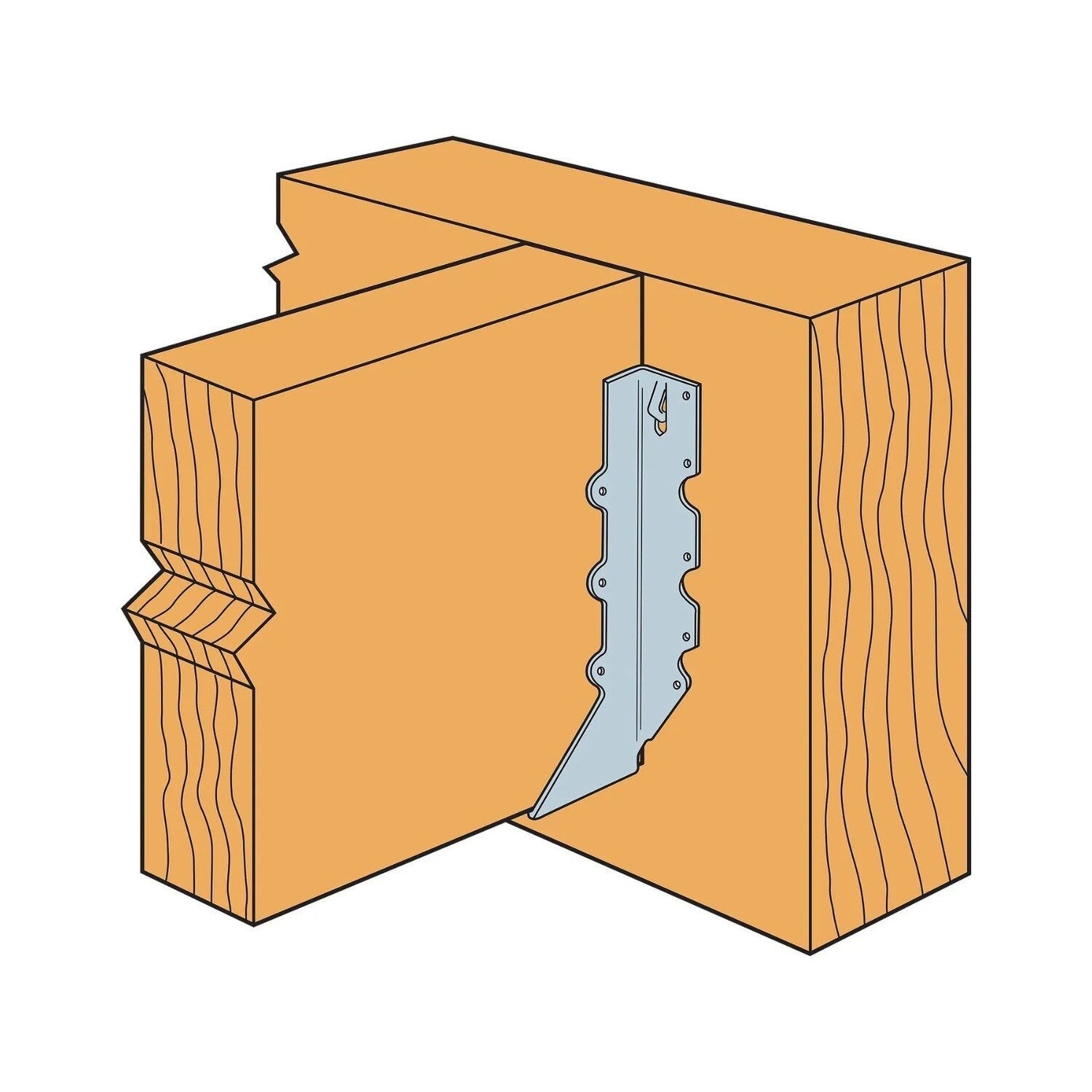

Simpson Strong-Tie U210-3 Installation Overview
- Use specified nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws
- Ensure the joist is fully seated in the hanger
- Install fasteners into all nail holes for optimal strength
- Verify the hanger meets the required load capacity
Simpson Strong-Tie U210-3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 7-3/4" |
| Joist size | Triple 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 4-5/8" |
