Simpson Hangers | SKU:
U210

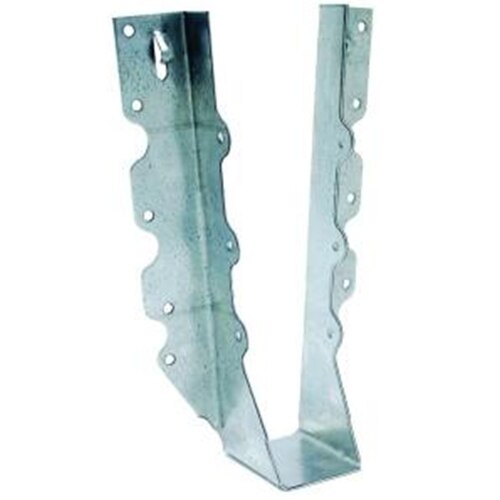

Simpson Strong-Tie U210 (7-13/16") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$4.16
$5.99
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson U210 Description
The Simpson U210 Galvanized Face-Mount Joist Hanger is designed for secure wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson U210 Includes
- (1) Galvanized Face-Mount Joist Hanger for 2x10
Simpson U210 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance for durability.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson U210 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceilings.
Simpson U210 Installation Overview
- Use specified nails, screws, or SDS Heavy-Duty Connector screws.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all available nail holes.
- Verify the hanger meets the required load capacity.
Simpson U210 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (10) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 7-13/16" |
| Joist size | 2" X 10" |
| Thickness | 16 Gauge |
| Width | 1-9/16" |
NOTE: Ensure the joist is fully seated in the hanger to achieve maximum bearing support.
