Simpson Hangers | SKU:
U210R
Simpson Strong-Tie U210R (9-1/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for (2x10 Rough)
$6.20
$8.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U210R Description

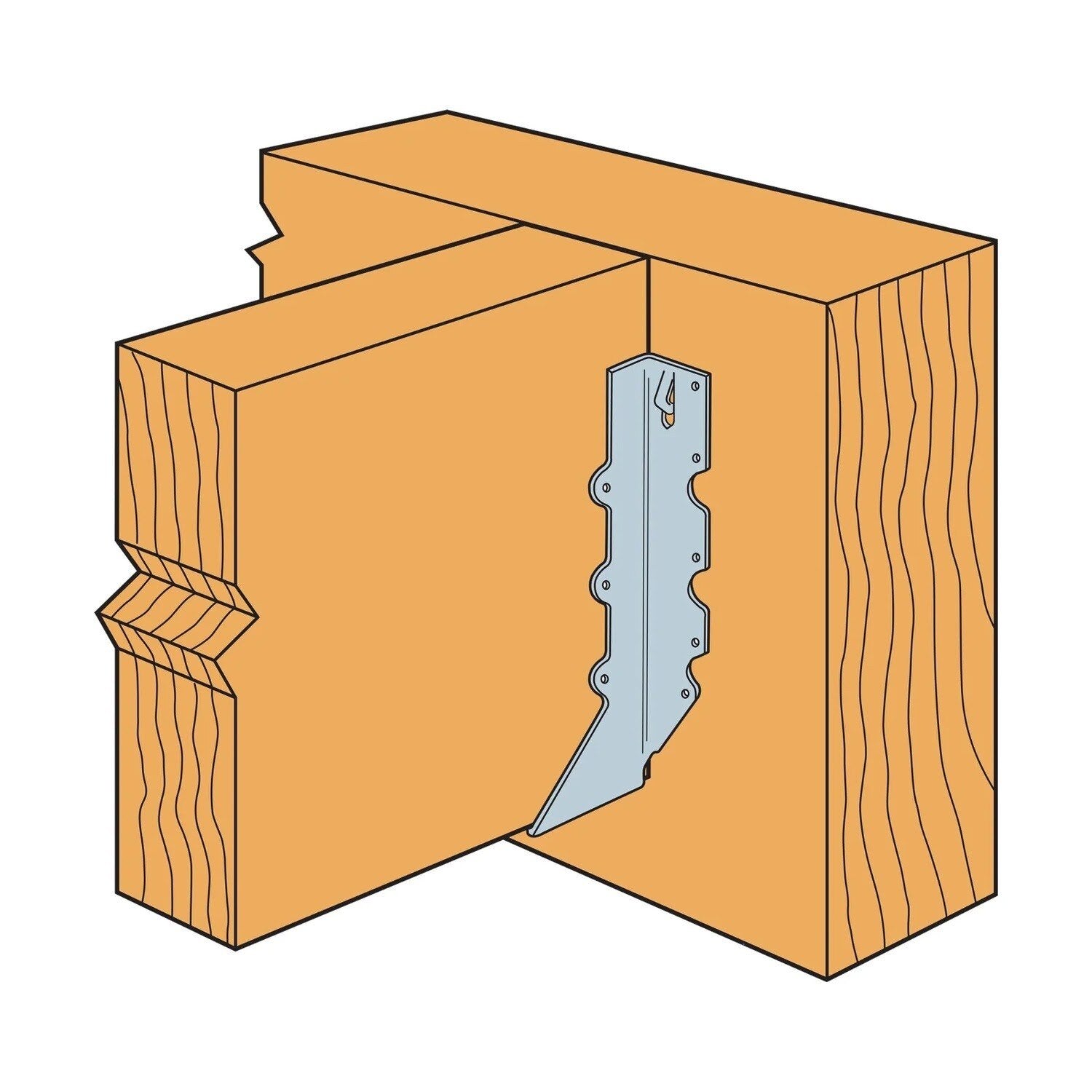

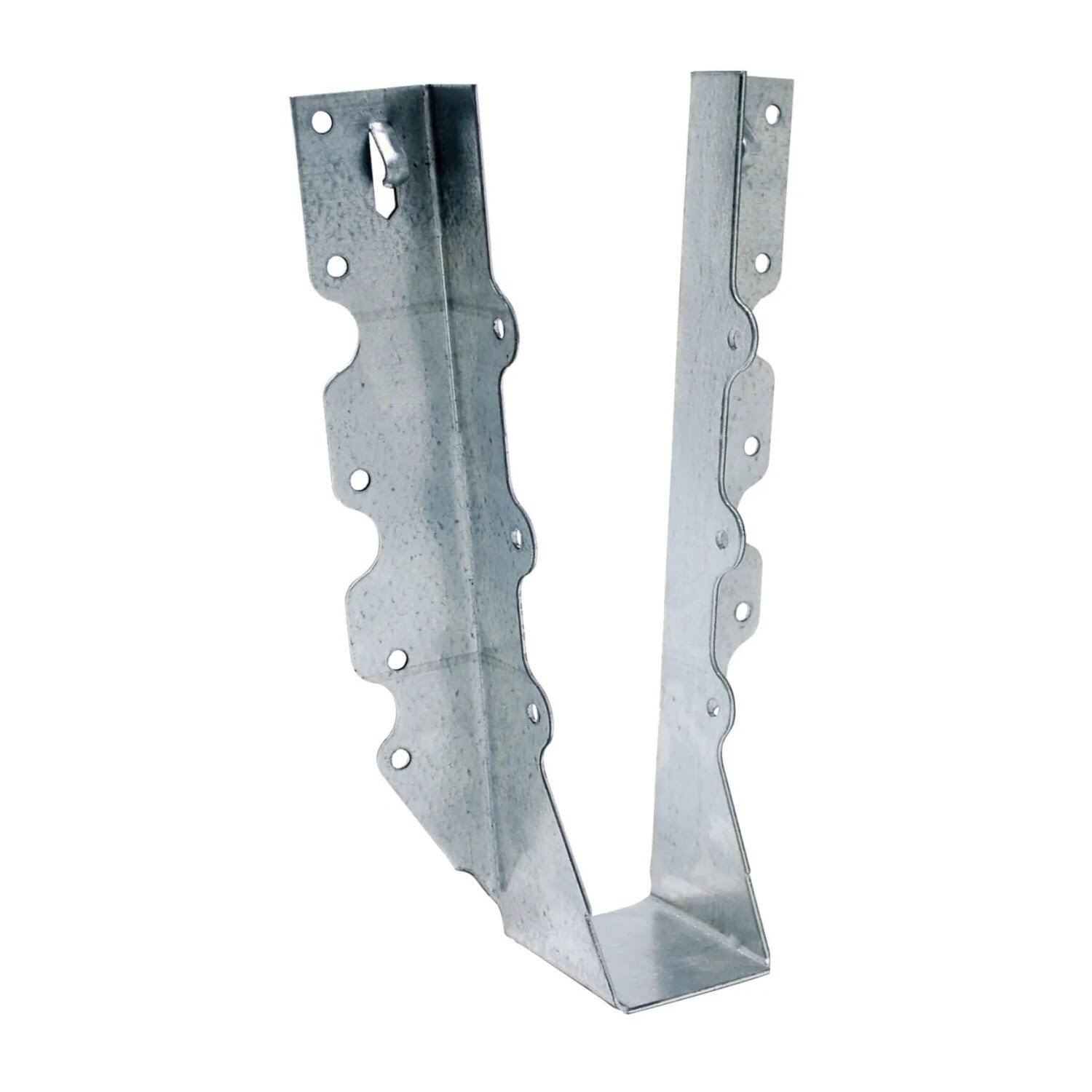

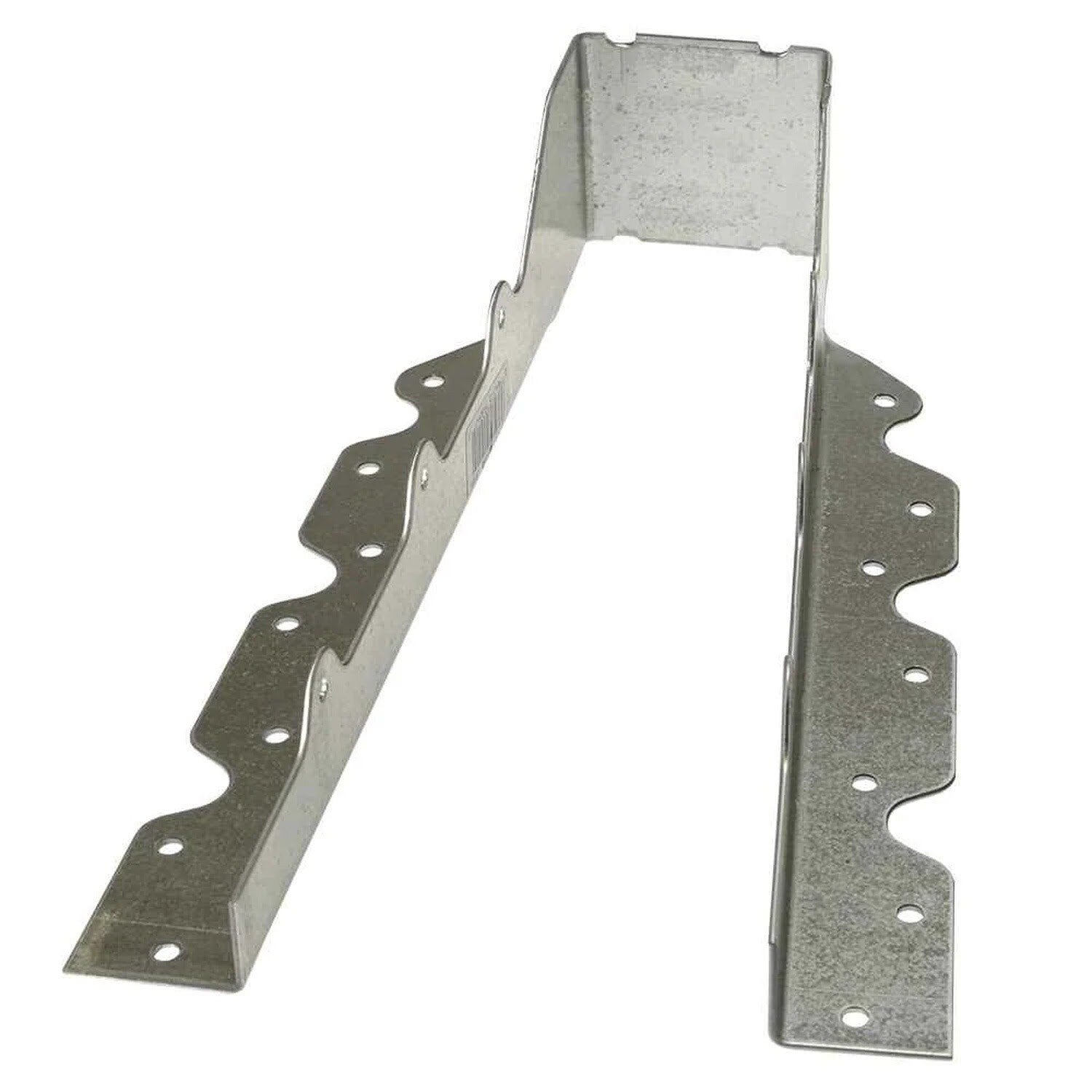

The Simpson Strong-Tie U210R is a galvanized face-mount joist hanger designed for 2x10 rough lumber, providing strong and secure joist-to-header connections.
Simpson Strong-Tie U210R Includes
- (1) U210R Joist Hanger
Simpson Strong-Tie U210R Features
- Precision engineering for consistent strength and performance
- Versatile design compatible with various joist sizes and wood species
- Corrosion-resistant G90 galvanized finish for durability

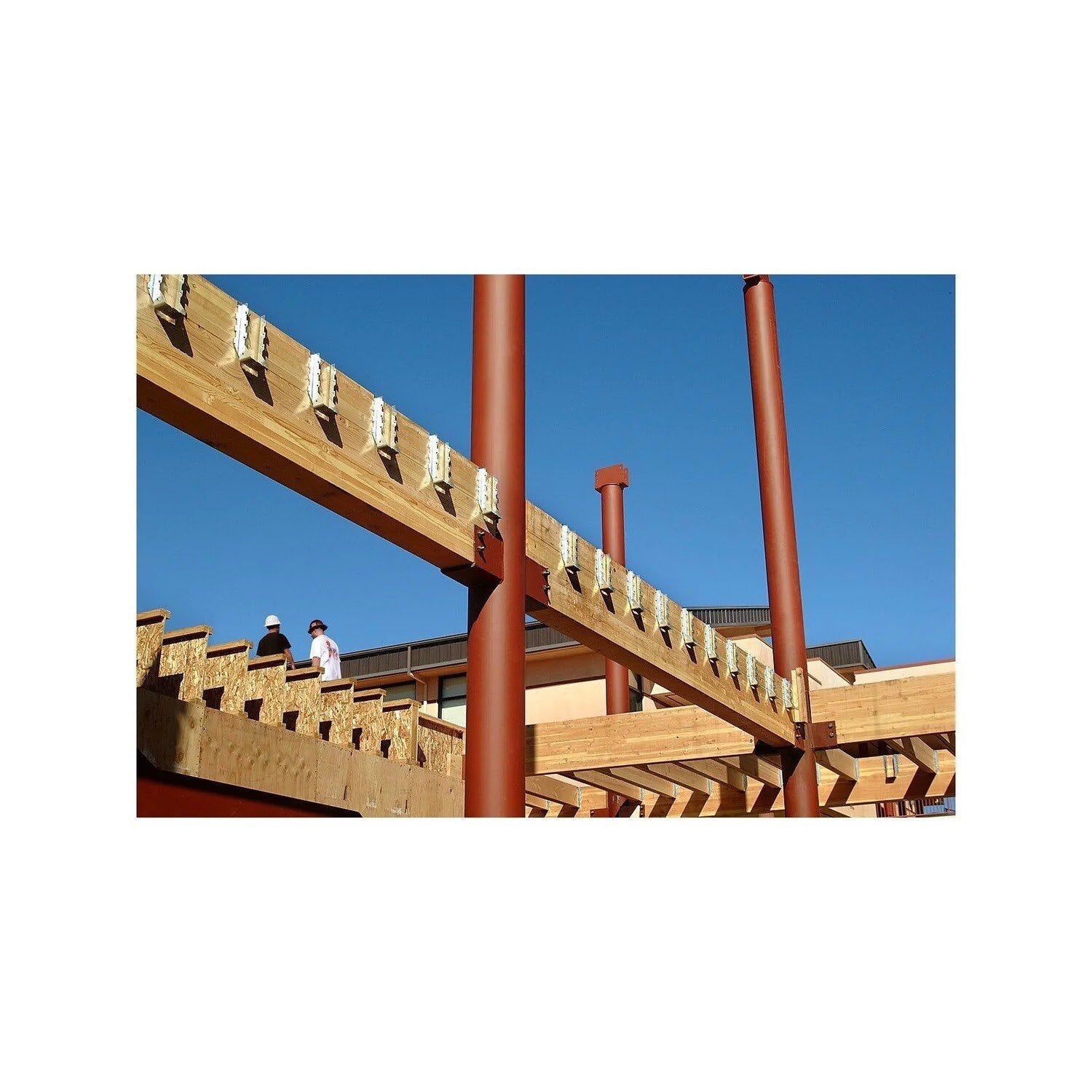

Simpson Strong-Tie U210R Applications
- Deck construction: Provides sturdy support for deck joists
- Floor framing: Ensures secure connections between floor joists and headers
- Roof framing: Supports rafters or ceiling joists for reinforcement
Simpson Strong-Tie U210R Installation Overview
- Use recommended nails or screws as specified by the manufacturer
- Install the hanger flush against the header for maximum structural integrity
- Ensure all fasteners are fully driven and properly seated

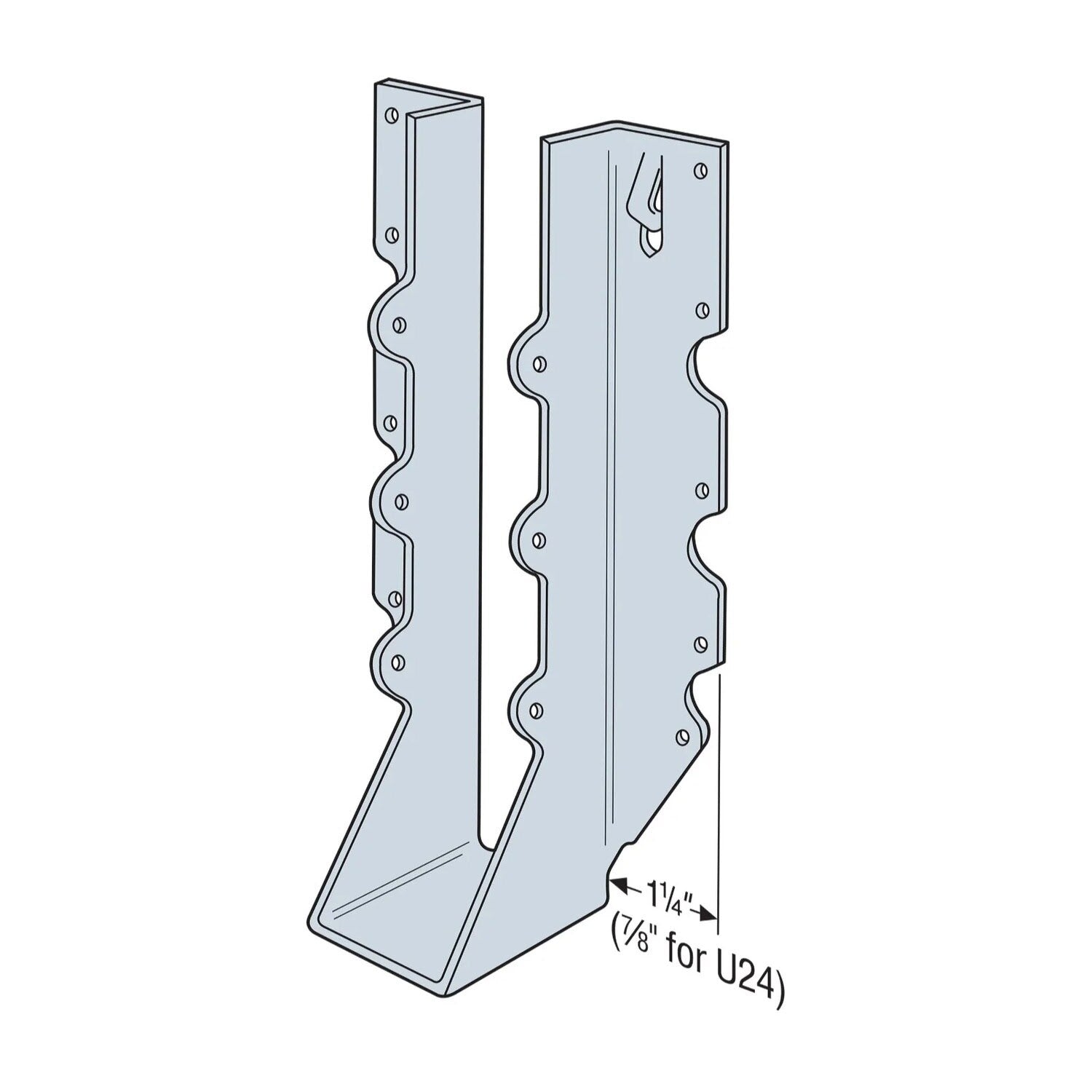

Simpson Strong-Tie U210R Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-1/8" |
| Joist size | 2" X 10" Rough |
| Thickness | 16 Gauge |
| Width | 2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
