Simpson Hangers | SKU:
U214
Simpson Strong-Tie U214 (10") 16Ga U Face-Mount Joist Hanger - G90 Galvanized (2x14)
$6.04
$8.69
Unit price
/
Unavailable
Description
Description

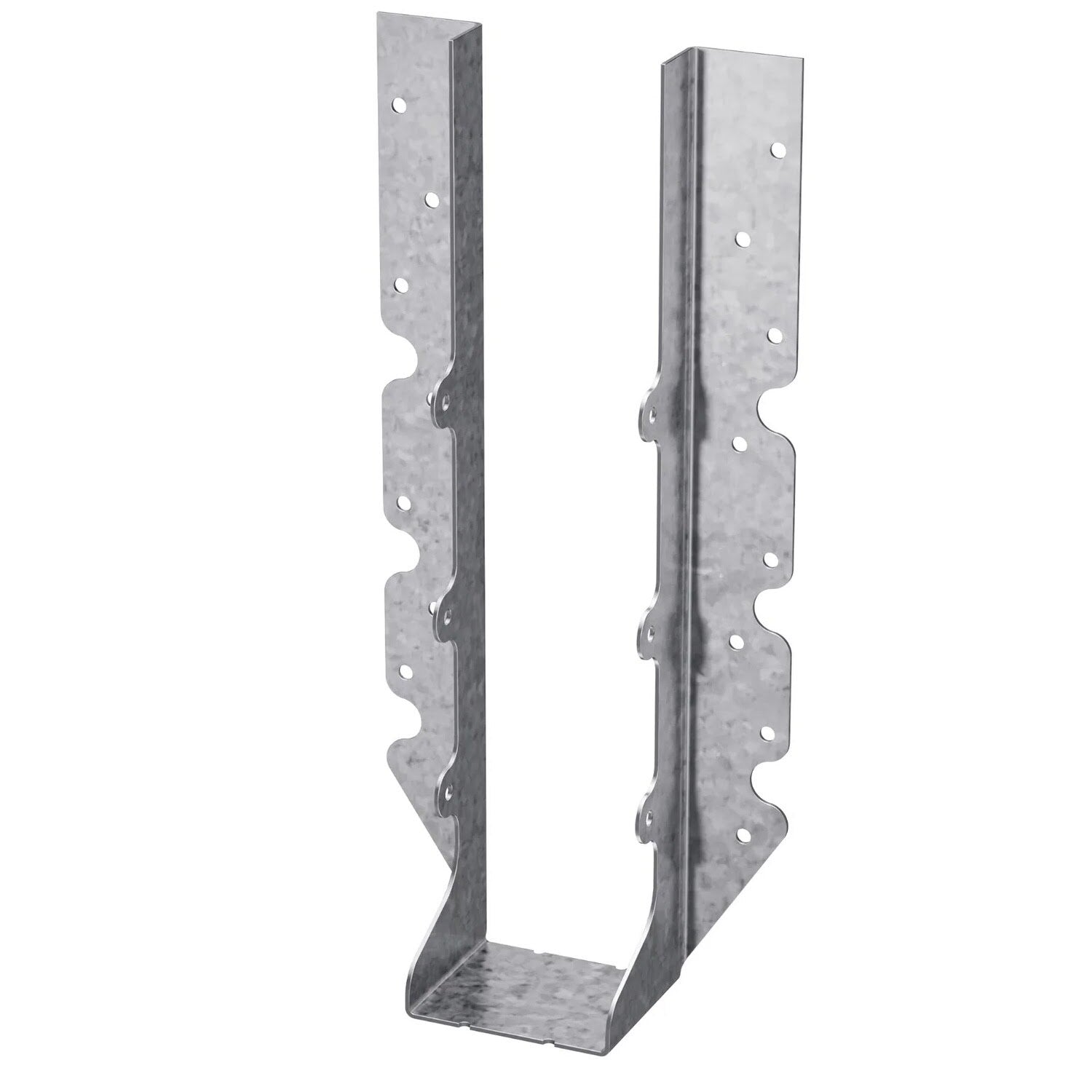

Simpson Strong-Tie U214 Description
The Simpson Strong-Tie U214 Face-Mount Joist Hanger is designed for strong and secure wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U214 Includes
- (1) 2x14 Face Mount Joist Hanger
Simpson Strong-Tie U214 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance for durability.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U214 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.

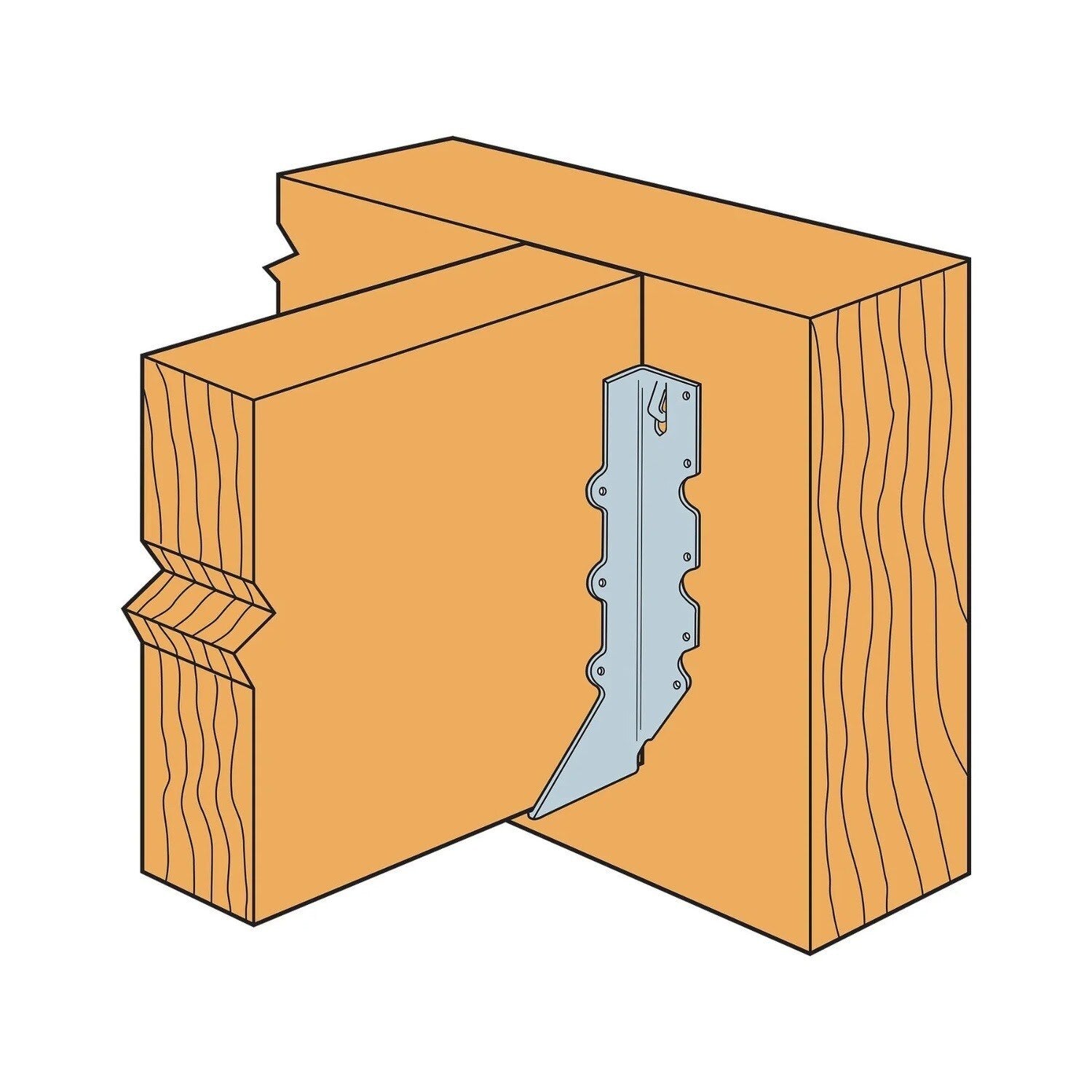

Simpson Strong-Tie U214 Installation Overview
- Use nails, screws, or SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger for maximum support.
- Install fasteners into all nail holes for optimal strength.
- Verify the hanger meets the required load capacity for the application.
Simpson Strong-Tie U214 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (12) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 10" |
| Joist size | 2" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 1-9/16" |
