Simpson Hangers | SKU:
U24-2

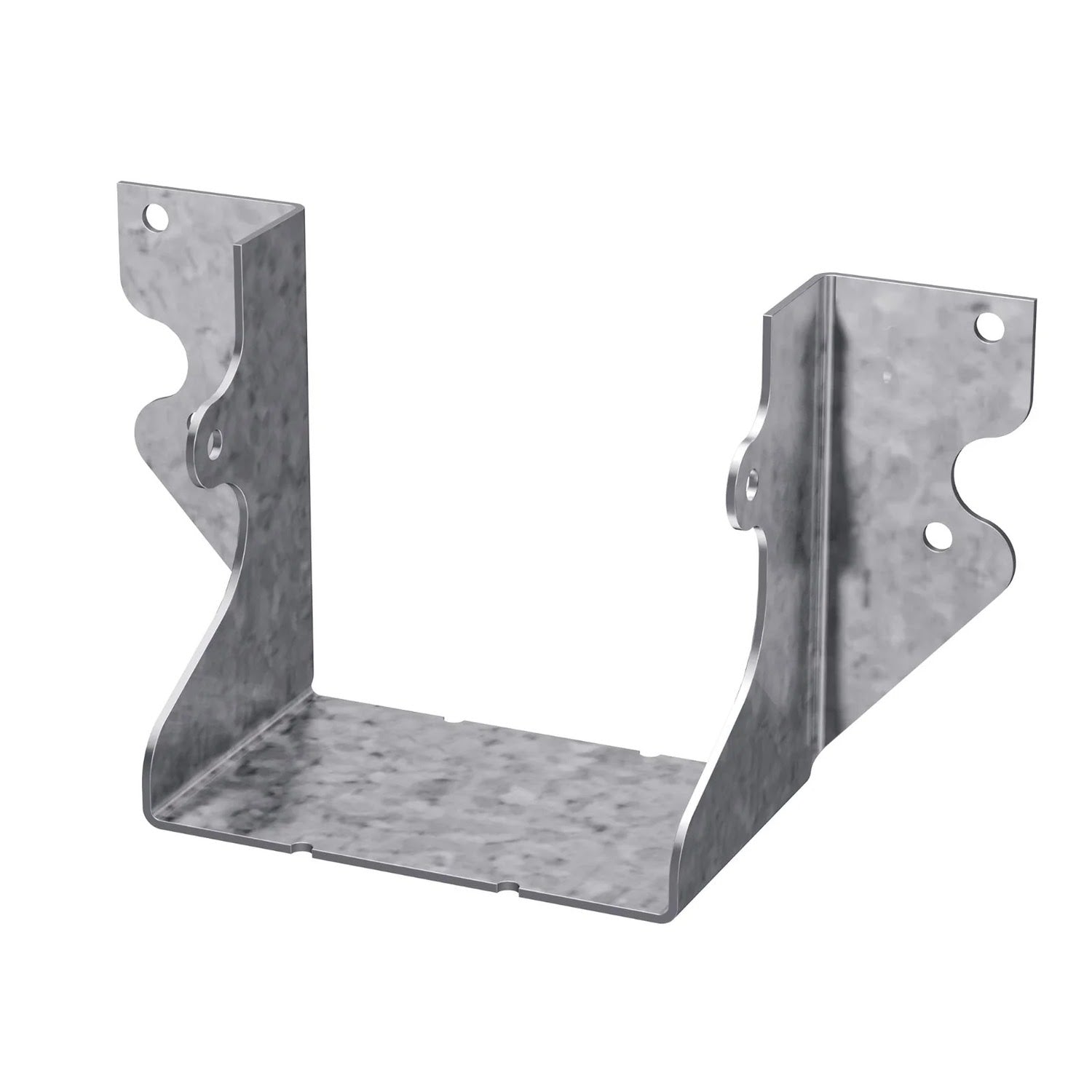

Simpson Strong-Tie U24-2 (3") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$4.79
$6.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U24-2 Description

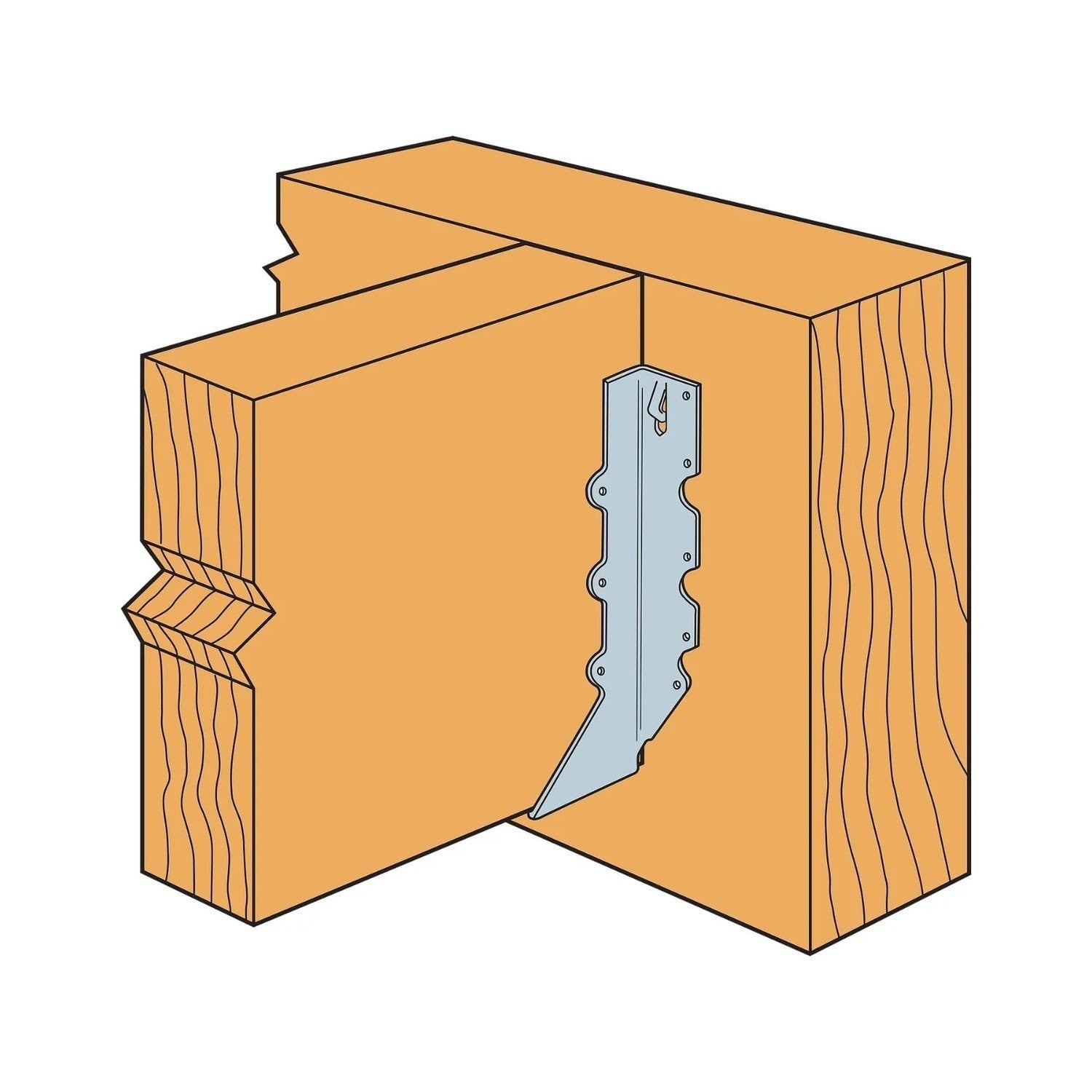

The Simpson Strong-Tie U Face-Mount Joist Hanger is designed to provide strong, stable, and secure connections for wood framing applications. Made from galvanized steel, it offers exceptional corrosion resistance and is suitable for various indoor and outdoor projects.
Simpson Strong-Tie U24-2 Includes
- (1) Double 2x4 Face Mount Joist Hanger
Simpson Strong-Tie U24-2 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists, ensuring a secure connection in various framing applications.
- Face-Mount Design: Offers easy installation with a flush, secure connection to the supporting member.
- Optimized Load Distribution: Provides full bearing support, helping to prevent twisting or shifting under load.
- Galvanized Steel Construction: Enhances corrosion resistance, making it suitable for interior and protected exterior applications.
- Precision Engineering: Manufactured for tight tolerances and a snug fit, reducing the need for field adjustments.
Simpson Strong-Tie U24-2 Applications
- Deck Framing: Secures joists to beams, ensuring a stable and long-lasting deck structure.
- Floor Joists: Supports floor framing systems in residential and commercial buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.
Simpson Strong-Tie U24-2 Installation Overview
- Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified for the application.
- The joist should be fully seated in the hanger to achieve maximum bearing support.
- Install fasteners into all available nail holes for optimal strength and stability.
- Ensure that the selected hanger meets the required load capacity for your specific application.
Simpson Strong-Tie U24-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 3" |
| Joist size | Double 2" X 4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-1/8" |
