Simpson Hangers | SKU:
U24
Simpson Strong-Tie U24 (3-1/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized (2x4)
$1.97
$2.84
Unit price
/
Unavailable
Description
Description

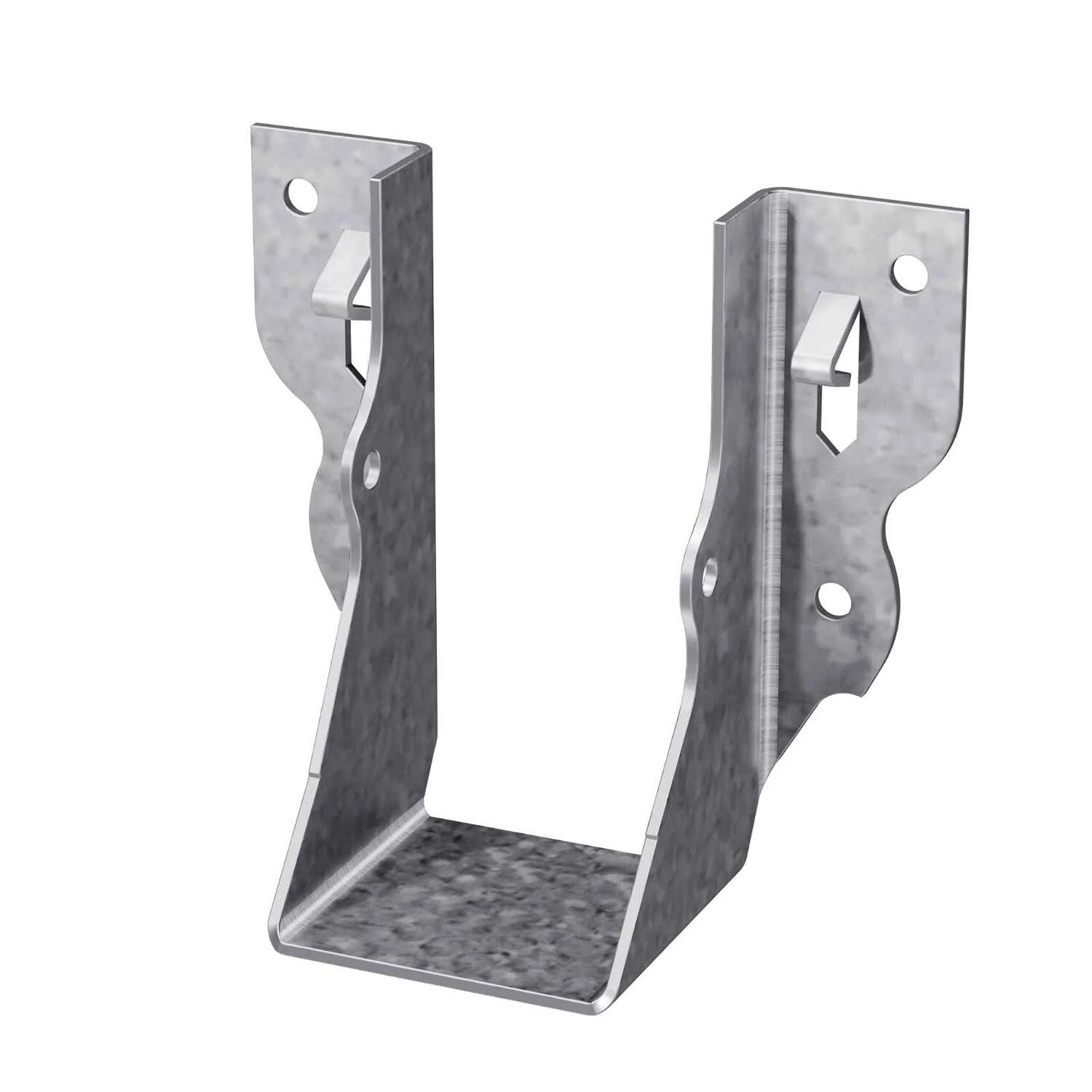

Simpson Strong-Tie U24 Description

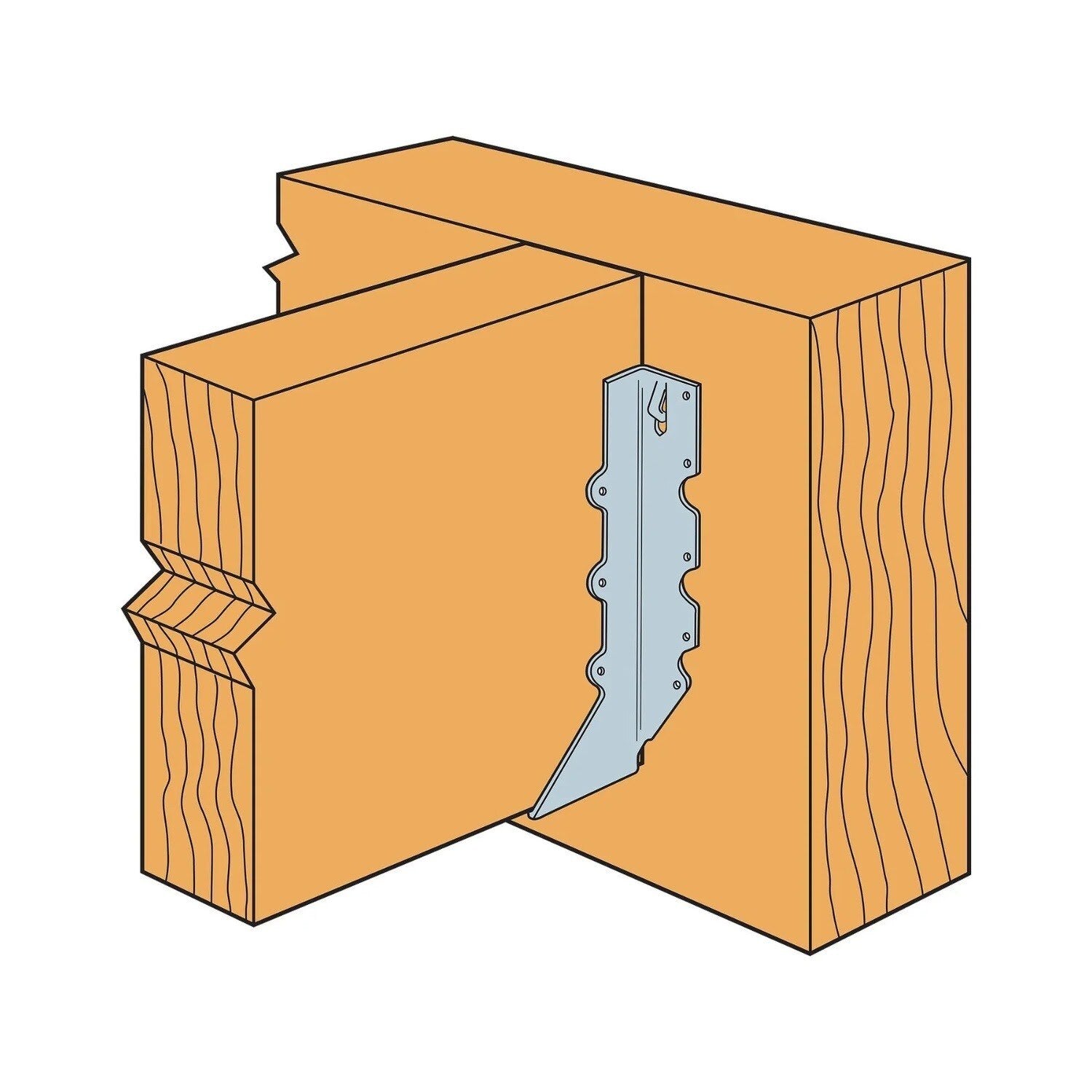

The Simpson Strong-Tie U Face-Mount Joist Hanger provides strong, stable, and secure connections for wood framing applications, ensuring proper load distribution and structural integrity.
Simpson Strong-Tie U24 Includes
- (1) Galvanized Face-Mount Joist Hanger for 2x4
Simpson Strong-Tie U24 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U24 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.
Simpson Strong-Tie U24 Installation Overview
- Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all available nail holes.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U24 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 3-1/8" |
| Joist size | 2" X 4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 1-9/16" |
NOTE: Ensure the joist is fully seated in the hanger to achieve maximum bearing support.
