Simpson Strong-Tie U24R Description

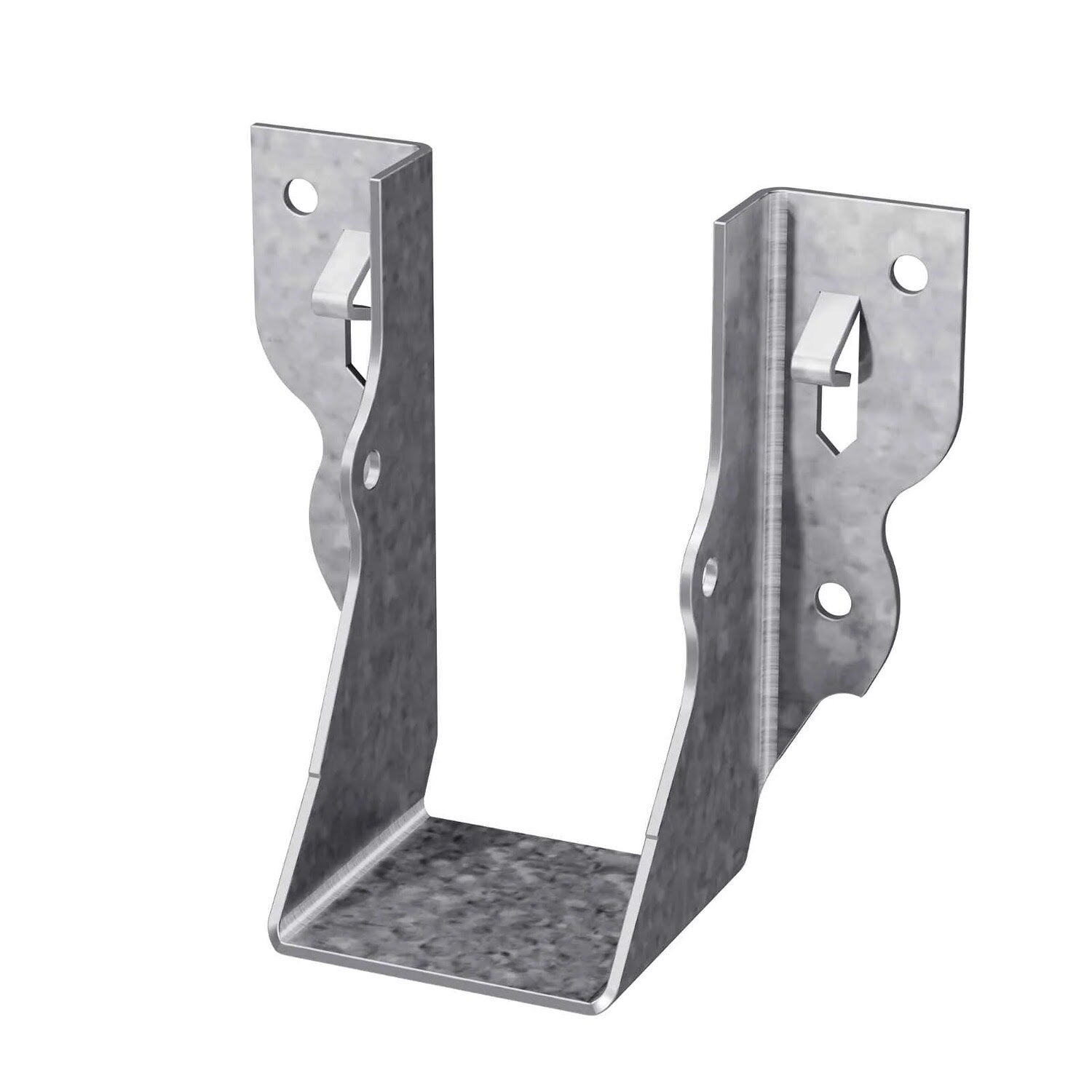

The Simpson Strong-Tie U24R is a face-mount joist hanger designed for rough cut 2x4 lumber, offering strong and secure joist-to-header connections with a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie U24R Includes
- (1) Rough Cut 2x4 Face Mount Joist Hanger
Simpson Strong-Tie U24R Features
- Precision engineering for consistent strength and performance
- Versatile design compatible with various joist sizes and wood species
- Corrosion-resistant G90 galvanized finish
- Designed for rough cut lumber
Simpson Strong-Tie U24R Applications
- Deck construction: Provides sturdy support for deck joists
- Floor framing: Ensures secure connections between floor joists and headers
- Roof framing: Supports rafters or ceiling joists for reinforcement

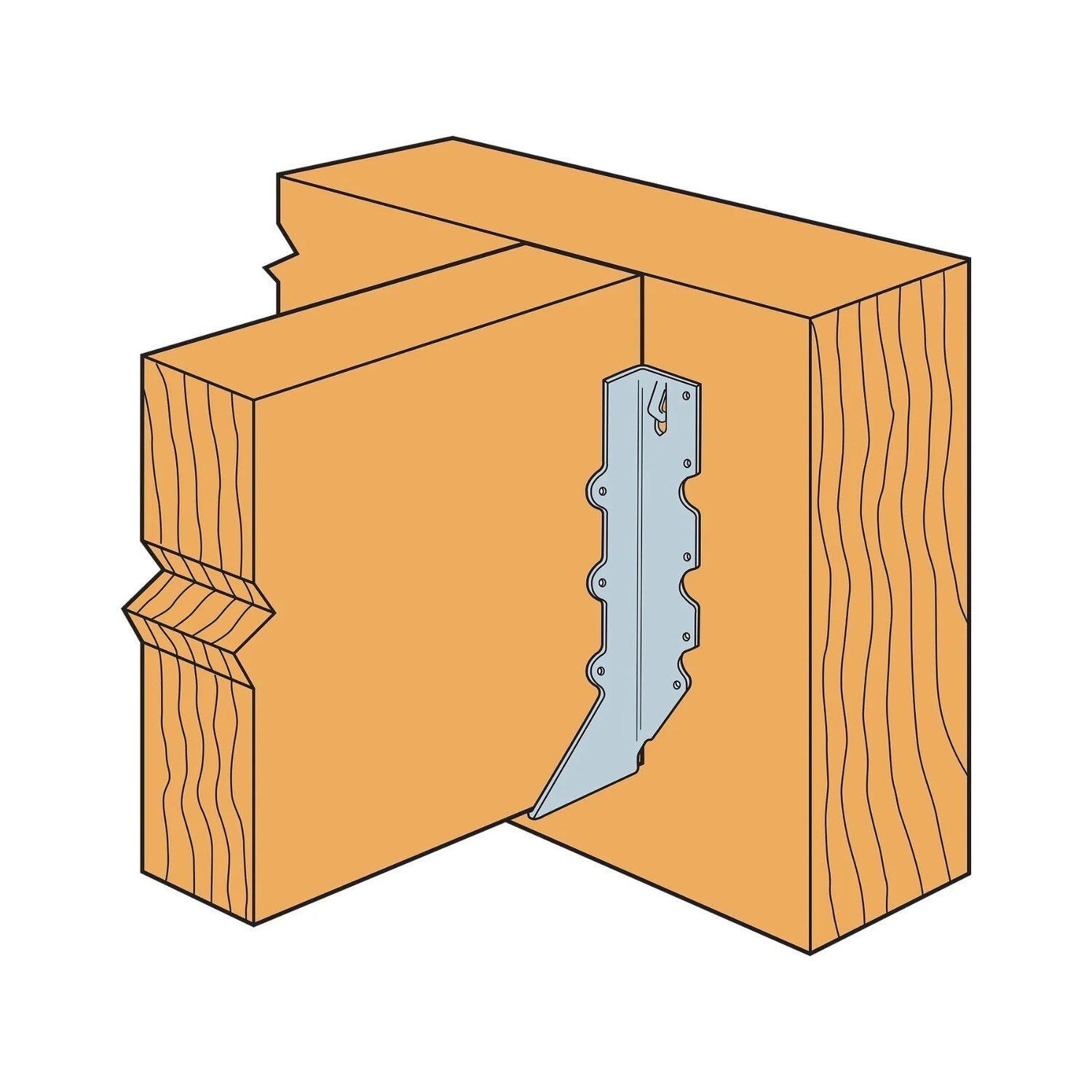

Simpson Strong-Tie U24R Installation Overview
- Use recommended nails or screws as specified by the manufacturer
- Install the hanger flush against the header for maximum structural integrity
- Ensure all fasteners are fully driven and properly seated
Simpson Strong-Tie U24R Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 3-5/8" |
| Joist size | 2" X 4" Rough |
| Thickness | 16 Gauge |
| Width | 2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
