Simpson Hangers | SKU:
U26-2

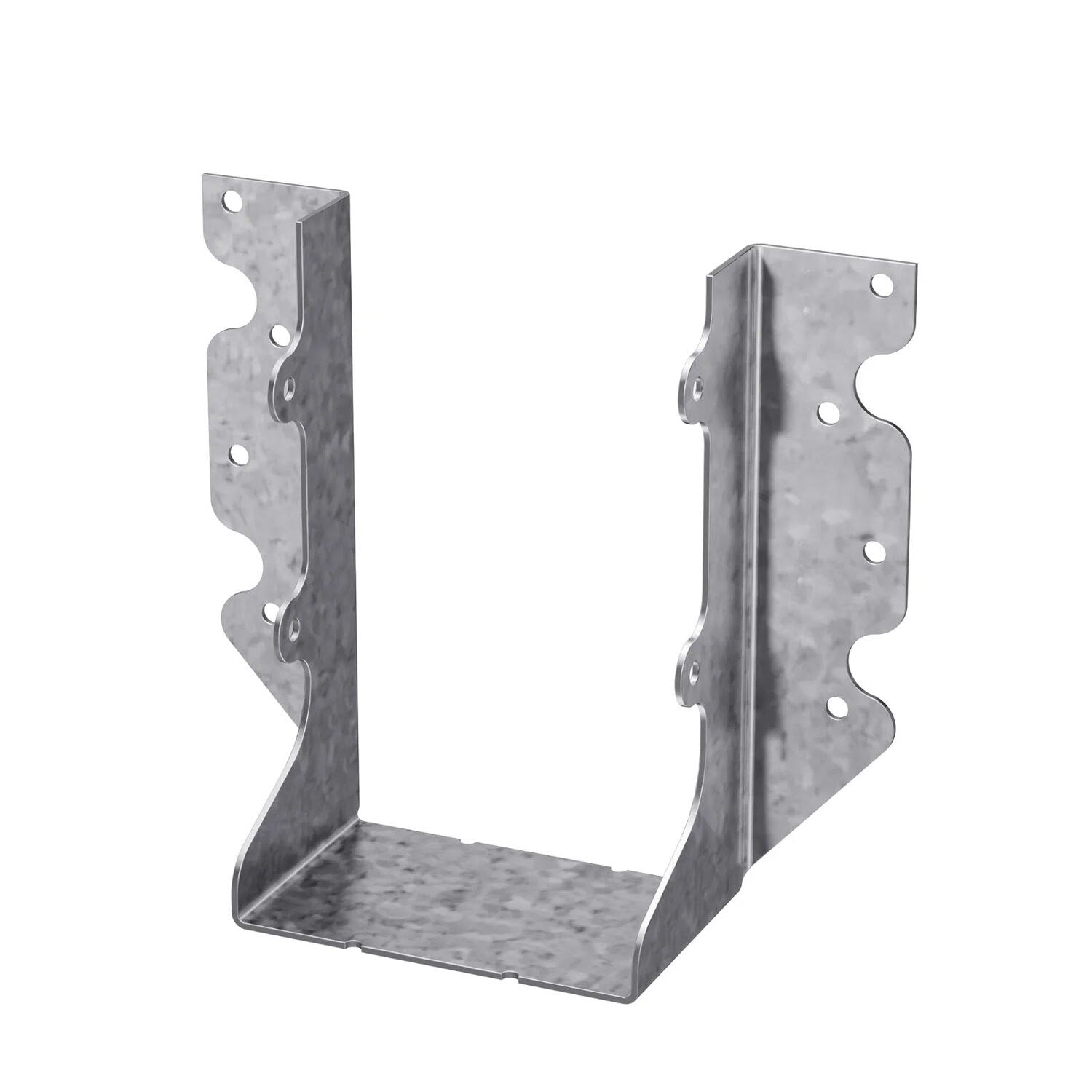

Simpson Strong-Tie U26-2 (5") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for (Double 2x6)
$5.54
$7.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U26-2 Description
The Simpson Strong-Tie U Face-Mount Joist Hanger is designed to provide strong, stable, and secure connections for wood framing applications.
Simpson Strong-Tie U26-2 Includes
- (1) Double 2x6 Face-Mount Joist Hanger
Simpson Strong-Tie U26-2 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists, ensuring a secure connection in various framing applications.
- Face-Mount Design: Offers easy installation with a flush, secure connection to the supporting member.
- Optimized Load Distribution: Provides full bearing support, helping to prevent twisting or shifting under load.
- Galvanized Steel Construction: Enhances corrosion resistance, making it suitable for interior and protected exterior applications.
- Precision Engineering: Manufactured for tight tolerances and a snug fit, reducing the need for field adjustments.
Simpson Strong-Tie U26-2 Applications
- Deck Framing: Secures joists to beams, ensuring a stable and long-lasting deck structure.
- Floor Joists: Supports floor framing systems in residential and commercial buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.

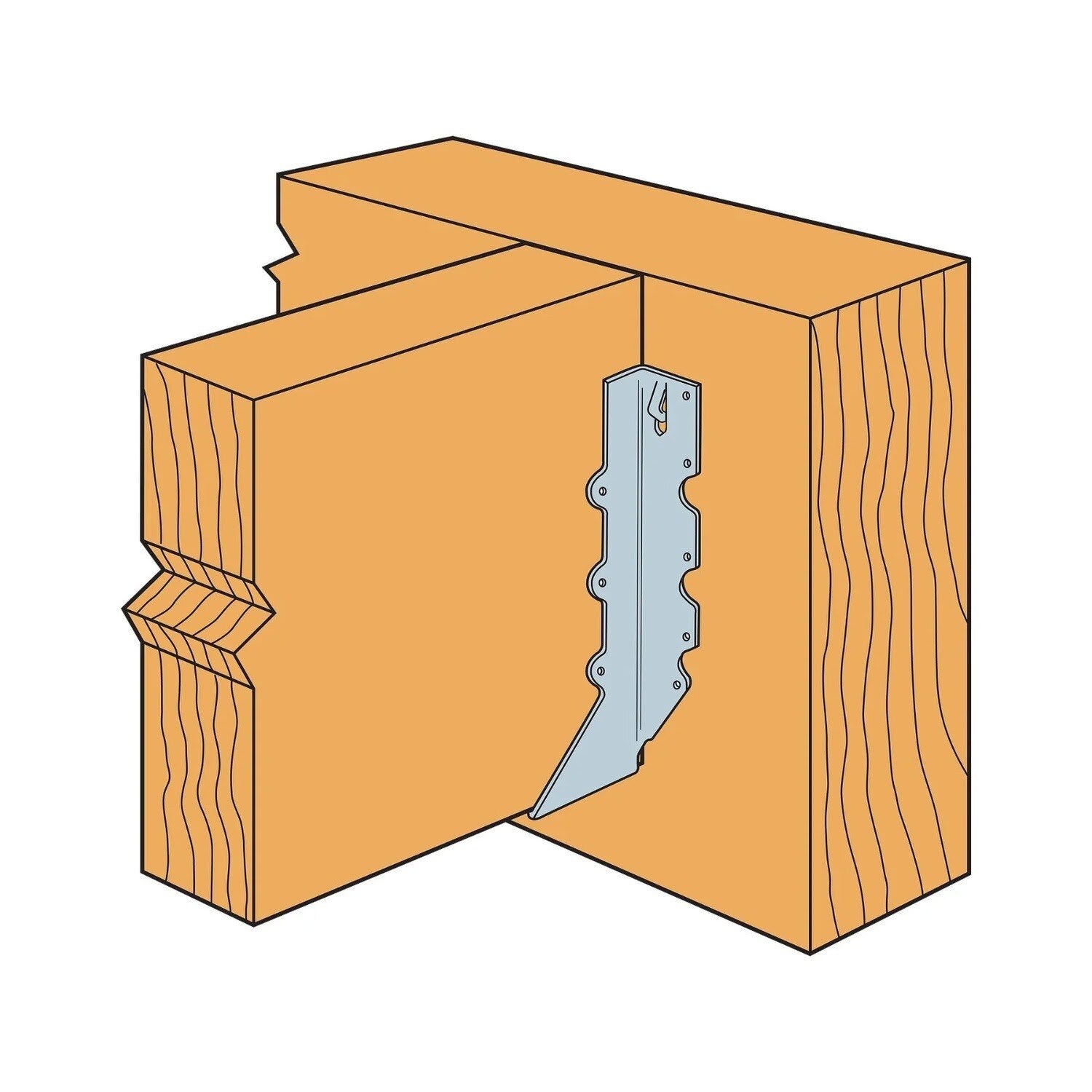

Simpson Strong-Tie U26-2 Installation Overview
- Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified for the application.
- The joist should be fully seated in the hanger to achieve maximum bearing support.
- Install fasteners into all available nail holes for optimal strength and stability.
- Ensure that the selected hanger meets the required load capacity for your specific application.
Simpson Strong-Tie U26-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 5" |
| Joist size | Double 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-1/8" |
NOTE: Ensure that the selected hanger meets the required load capacity for your specific application.
