Simpson Hangers | SKU:
U26-3
Simpson Strong-Tie U26-3 (Triple 2x6) 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$11.92
$17.15
Unit price
/
Unavailable
Description
Description

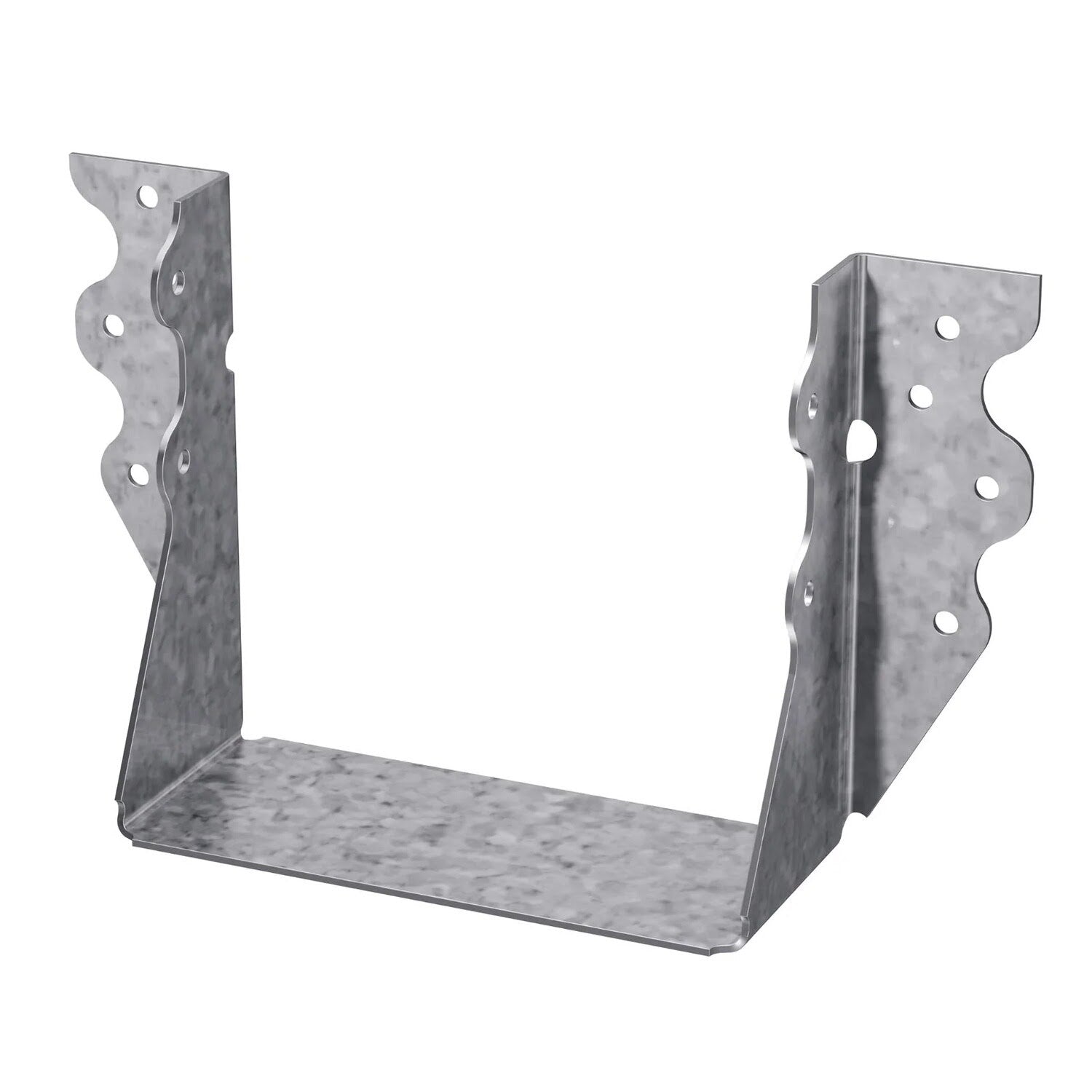

Simpson Strong-Tie U26-3 Description
The Simpson Strong-Tie U Face-Mount Joist Hanger is designed for secure wood framing connections, offering strong load distribution and corrosion resistance.
Simpson Strong-Tie U26-3 Includes
- (1) Triple 2x6 Face-Mount Joist Hanger
Simpson Strong-Tie U26-3 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U26-3 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceilings.

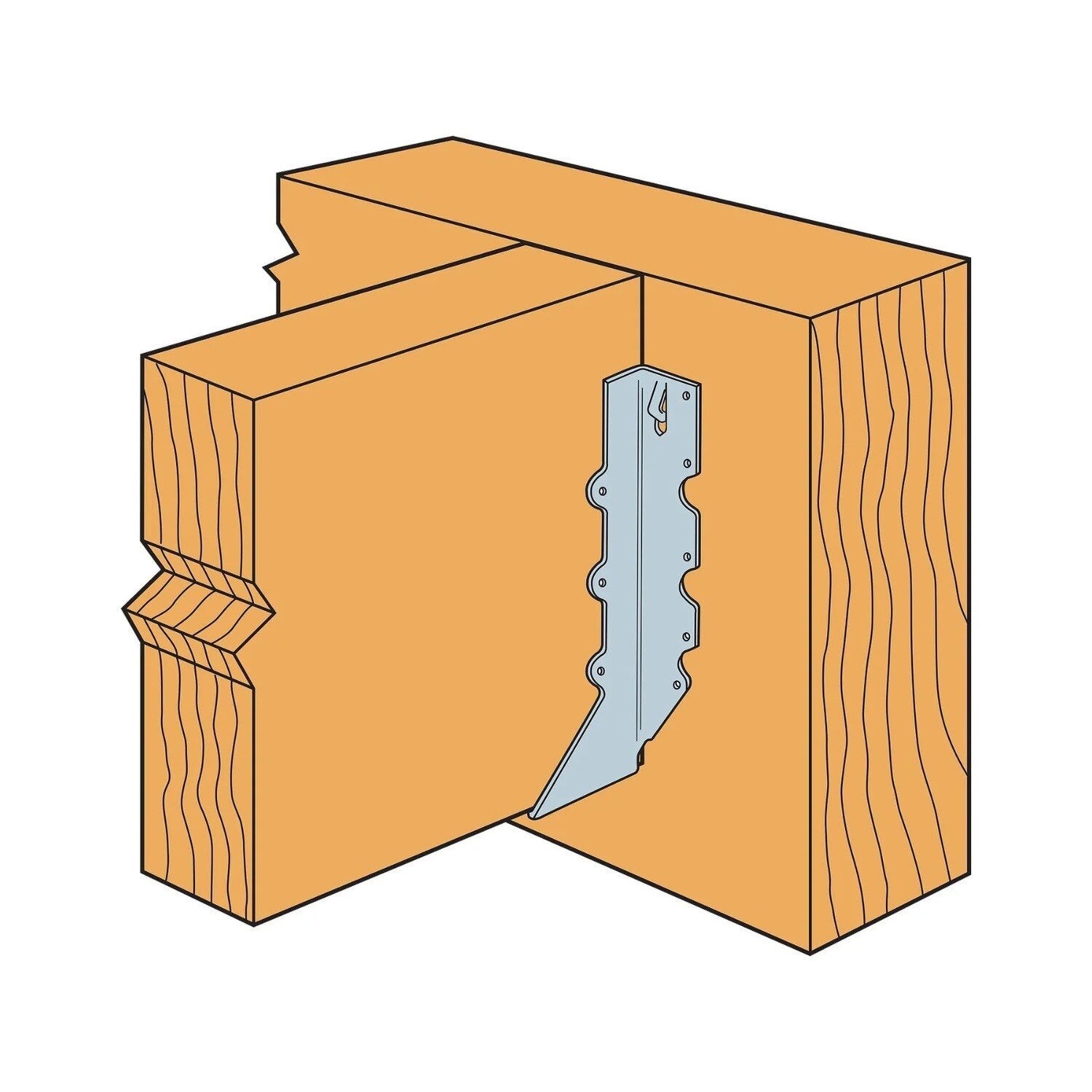

Simpson Strong-Tie U26-3 Installation Overview
- Use nails, screws, or SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all available nail holes.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U26-3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 4-1/4" |
| Joist size | Triple 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 4-5/8" |
NOTE: Ensure the joist is fully seated in the hanger to achieve maximum bearing support.
