Simpson Hangers | SKU: U26R | Barcode: 044315901607

Simpson Strong-Tie U26R (5-5/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for 2x6 Rough

Name: Simpson Strong-Tie U26R (5-5/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for 2x6 Rough
Brand: Simpson Hangers
SKU: 248920
Price: 5.05 USD
Availability: BackOrder

$5.05 ~~$7.27~~

Description

Simpson Strong-Tie U26R Description

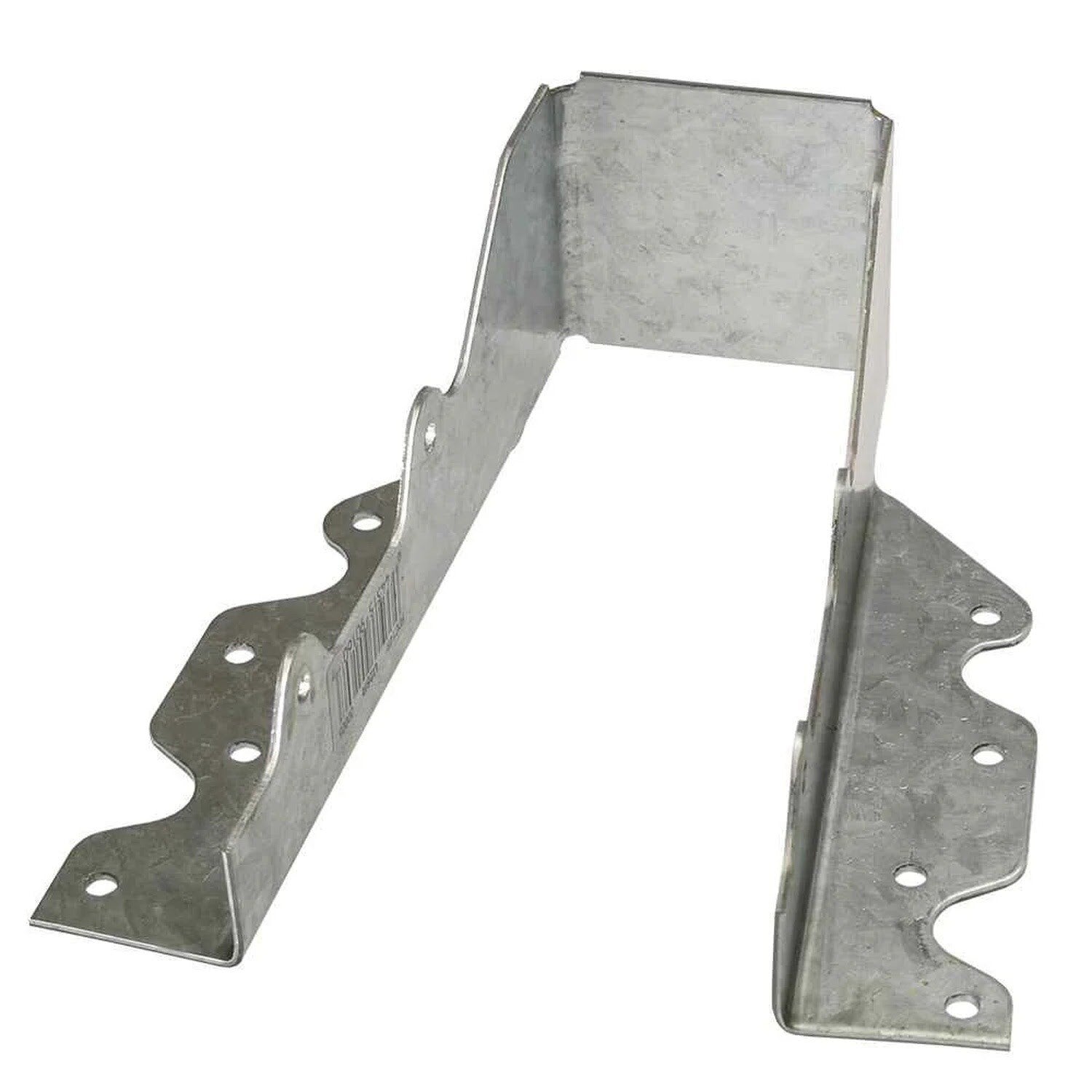

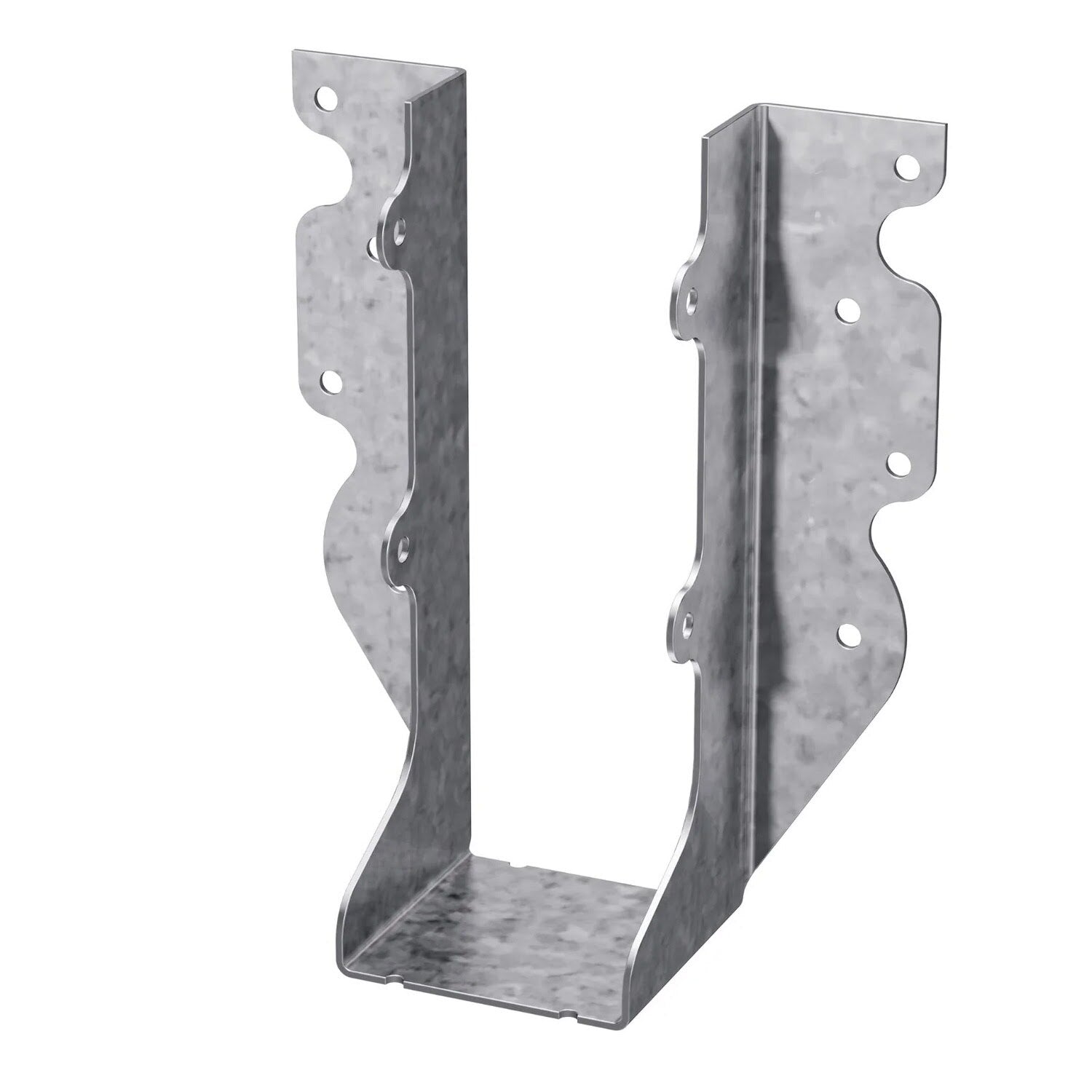

The Simpson Strong-Tie U26R Face-Mount Joist Hanger is designed for rough cut 2x6 lumber, providing strong and secure joist-to-header connections in wood-framed structures.

Simpson Strong-Tie U26R Includes

(1) U26R Face-Mount Joist Hanger

Simpson Strong-Tie U26R Features

Precision Engineering: Manufactured to meet the highest quality standards, ensuring consistent strength and performance.
Versatile Design: Compatible with various joist sizes and wood species, offering flexibility across multiple applications.
Corrosion Resistance: Available in different finishes to withstand various environmental conditions.

Simpson Strong-Tie U26R Applications

Deck Construction: Provides sturdy support for deck joists, ensuring long-term durability in outdoor structures.
Floor Framing: Ensures a secure connection between floor joists and headers, maintaining a strong and stable flooring system.
Roof Framing: Supports rafters or ceiling joists to provide essential reinforcement in roofing systems.

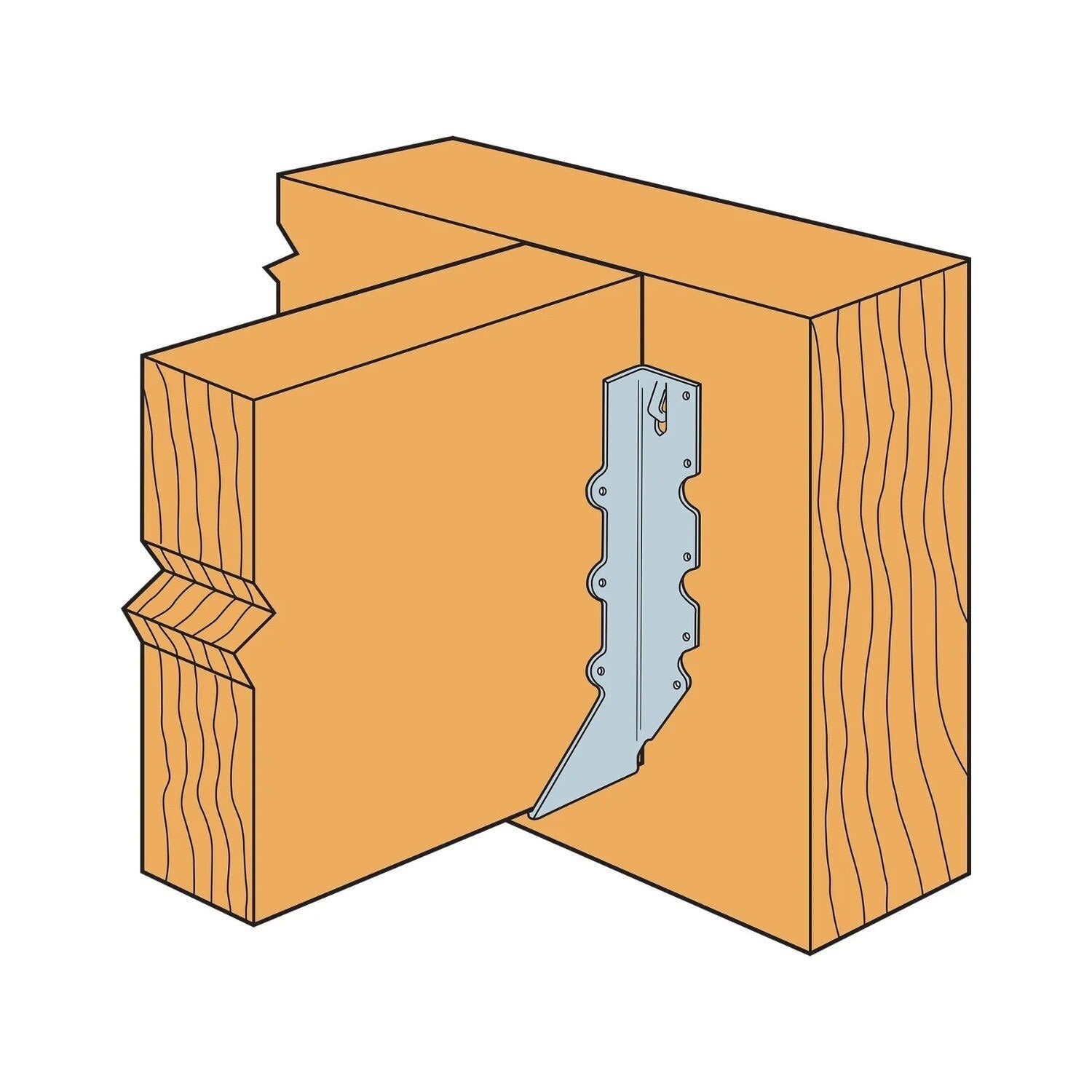

Simpson Strong-Tie U26R Installation Overview

Fastener Requirements: Use the recommended nails or screws as specified by the manufacturer to ensure optimal load capacity.
Flush Mounting: The hanger should be installed flush against the header for maximum structural integrity.
Secure Fastening: Ensure all fasteners are fully driven and properly seated to prevent movement.

Simpson Strong-Tie U26R Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	5-5/8"
Joist size	2" X 6" Rough
Thickness	16 Gauge
Width	2"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
