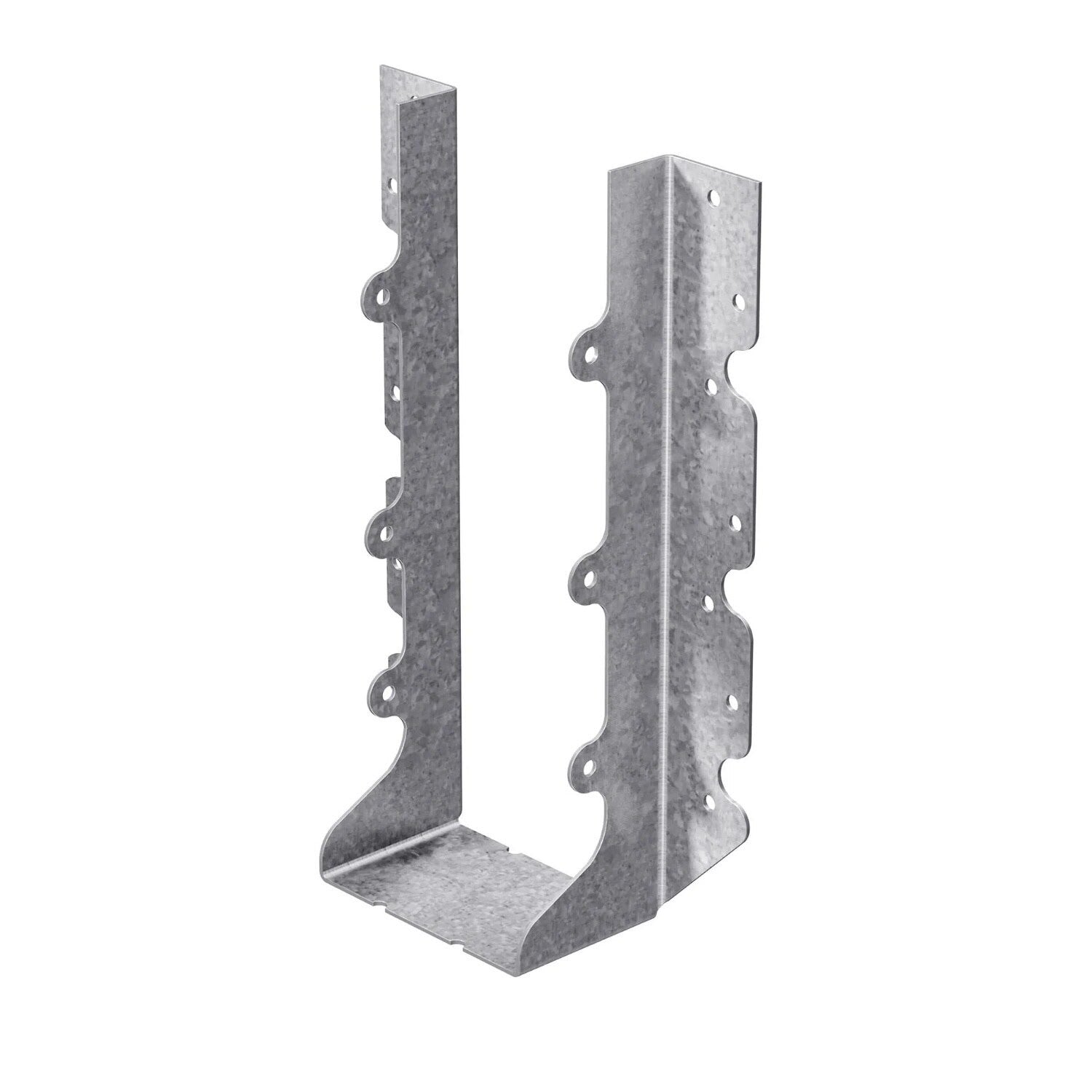

Simpson Strong-Tie U310 Description
The Simpson Strong-Tie U310 Face-Mount Joist Hanger is designed for secure and stable wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U310 Includes
- (1) U310 Joist Hanger
Simpson Strong-Tie U310 Features
- Versatile compatibility for solid sawn lumber and engineered wood joists
- Face-mount design for easy installation
- Optimized load distribution to prevent twisting or shifting
- Galvanized steel construction for corrosion resistance
- Precision-engineered for tight tolerances and snug fit
Simpson Strong-Tie U310 Applications
- Deck framing: Secures joists to beams for stable deck structures
- Floor joists: Supports floor framing systems in buildings
- Roof framing: Provides strong connections for rafters and ceiling joists

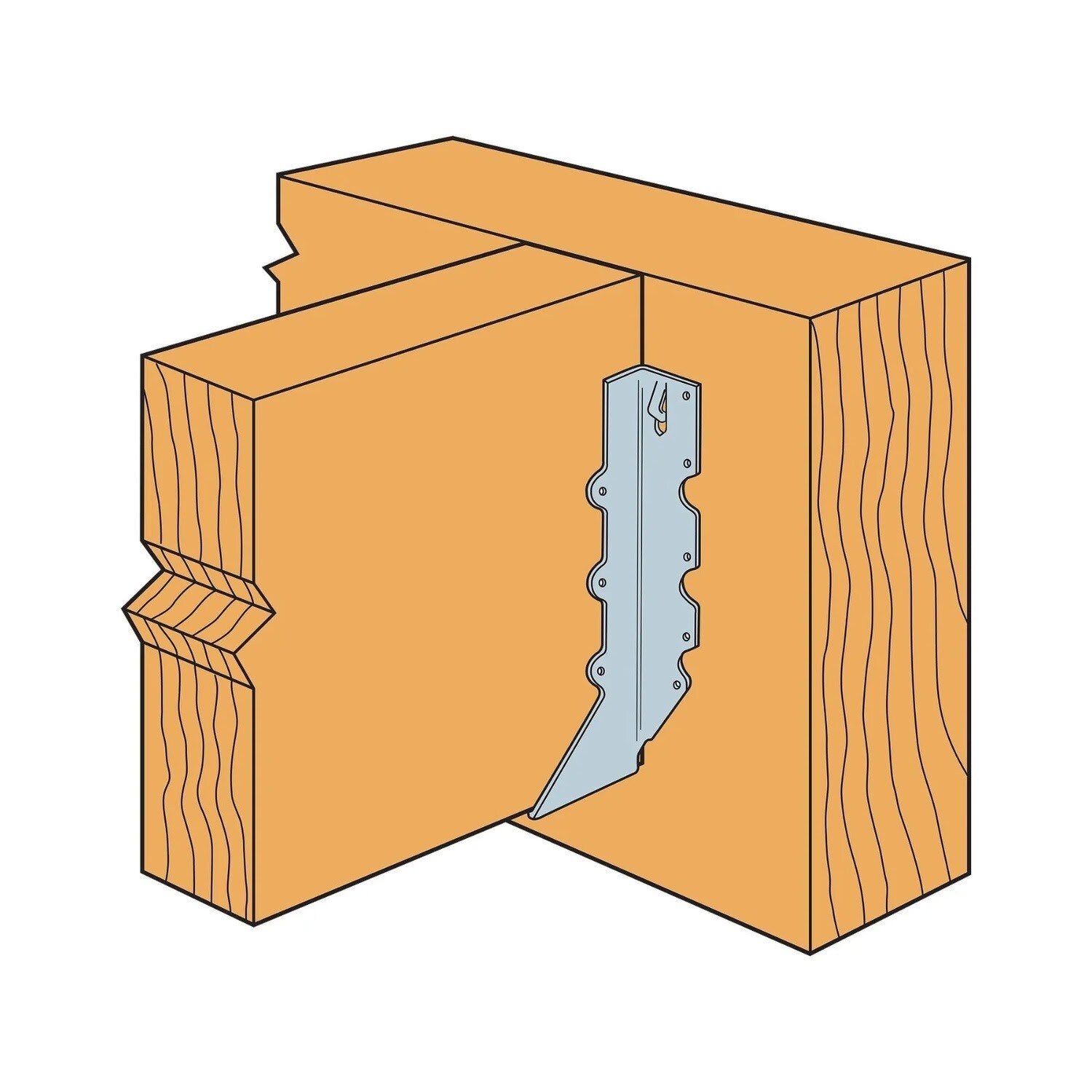

Simpson Strong-Tie U310 Installation Overview
- Use specified nails, screws, or SDS Heavy-Duty Connector screws
- Ensure the joist is fully seated in the hanger
- Install fasteners into all nail holes for optimal strength
- Verify the hanger meets the required load capacity
Simpson Strong-Tie U310 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-7/8" |
| Joist size | 3" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
