Simpson Hangers | SKU:
U314
Simpson Strong-Tie U314 (10-1/2") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for (3x14)
$11.44
Unit price
/
Unavailable
Description
Description

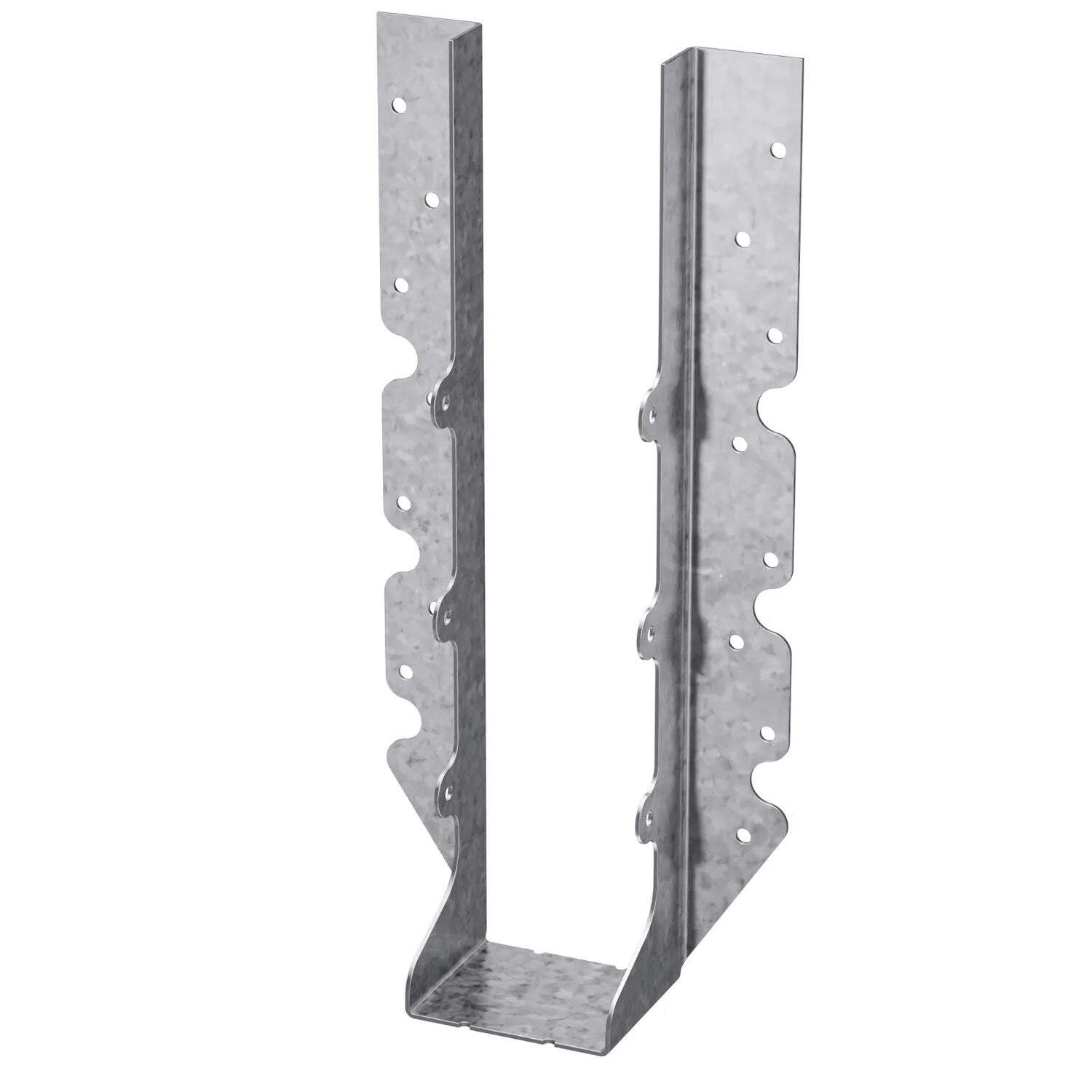

Simpson Strong-Tie U314 Description
The Simpson Strong-Tie U Face-Mount Joist Hanger is designed to provide strong, stable, and secure connections for wood framing applications. Crafted from high-quality galvanized steel, it ensures proper load distribution and exceptional corrosion resistance.
Simpson Strong-Tie U314 Includes
- (1) 3x14 Face Mount Joist Hanger
Simpson Strong-Tie U314 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists, ensuring a secure connection in various framing applications.
- Face-Mount Design: Offers easy installation with a flush, secure connection to the supporting member.
- Optimized Load Distribution: Provides full bearing support, helping to prevent twisting or shifting under load.
- Galvanized Steel Construction: Enhances corrosion resistance, making it suitable for interior and protected exterior applications.
- Precision Engineering: Manufactured for tight tolerances and a snug fit, reducing the need for field adjustments.

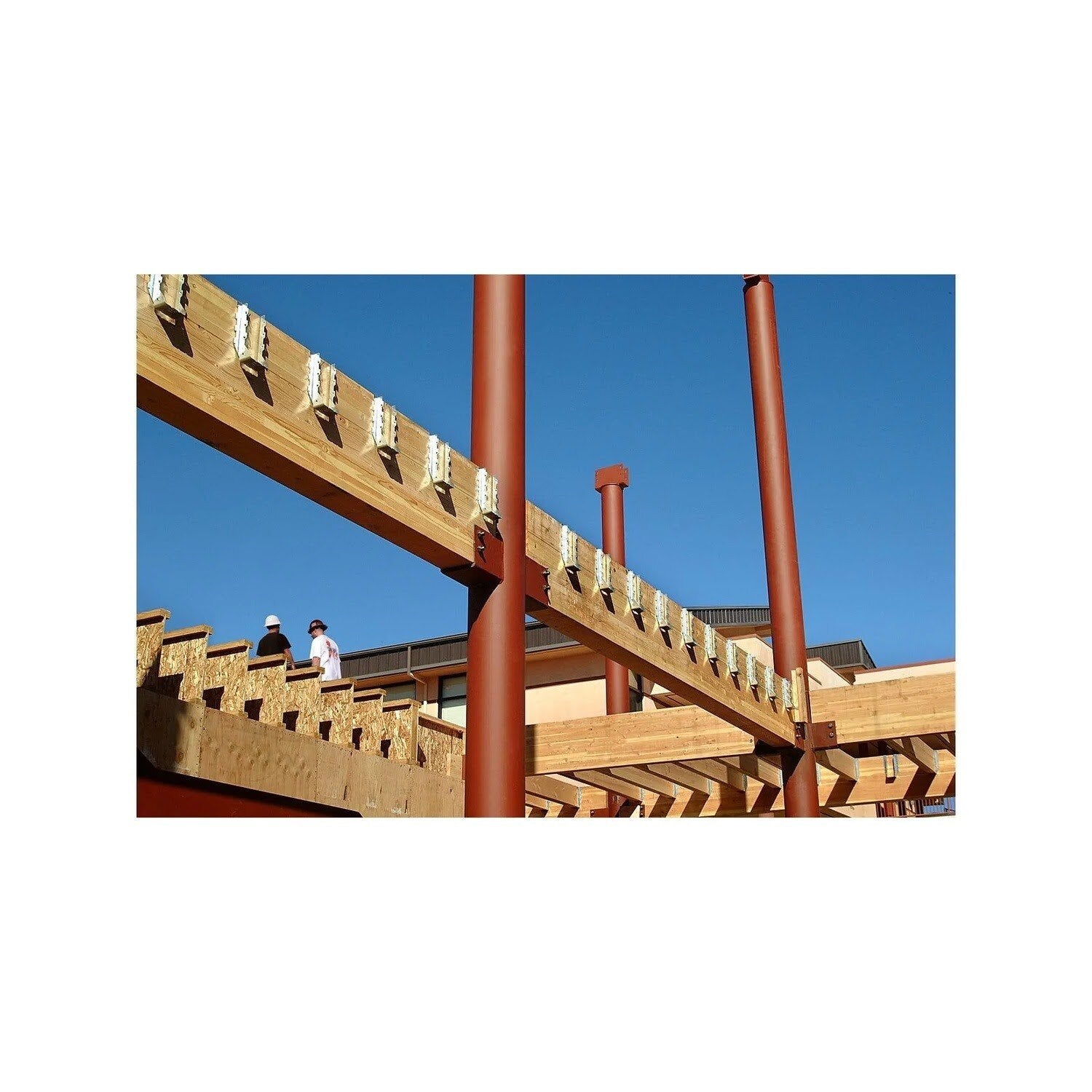

Simpson Strong-Tie U314 Applications
- Deck Framing: Secures joists to beams, ensuring a stable and long-lasting deck structure.
- Floor Joists: Supports floor framing systems in residential and commercial buildings.
- Roof Framing: Provides strong connections for rafters and ceiling joists.

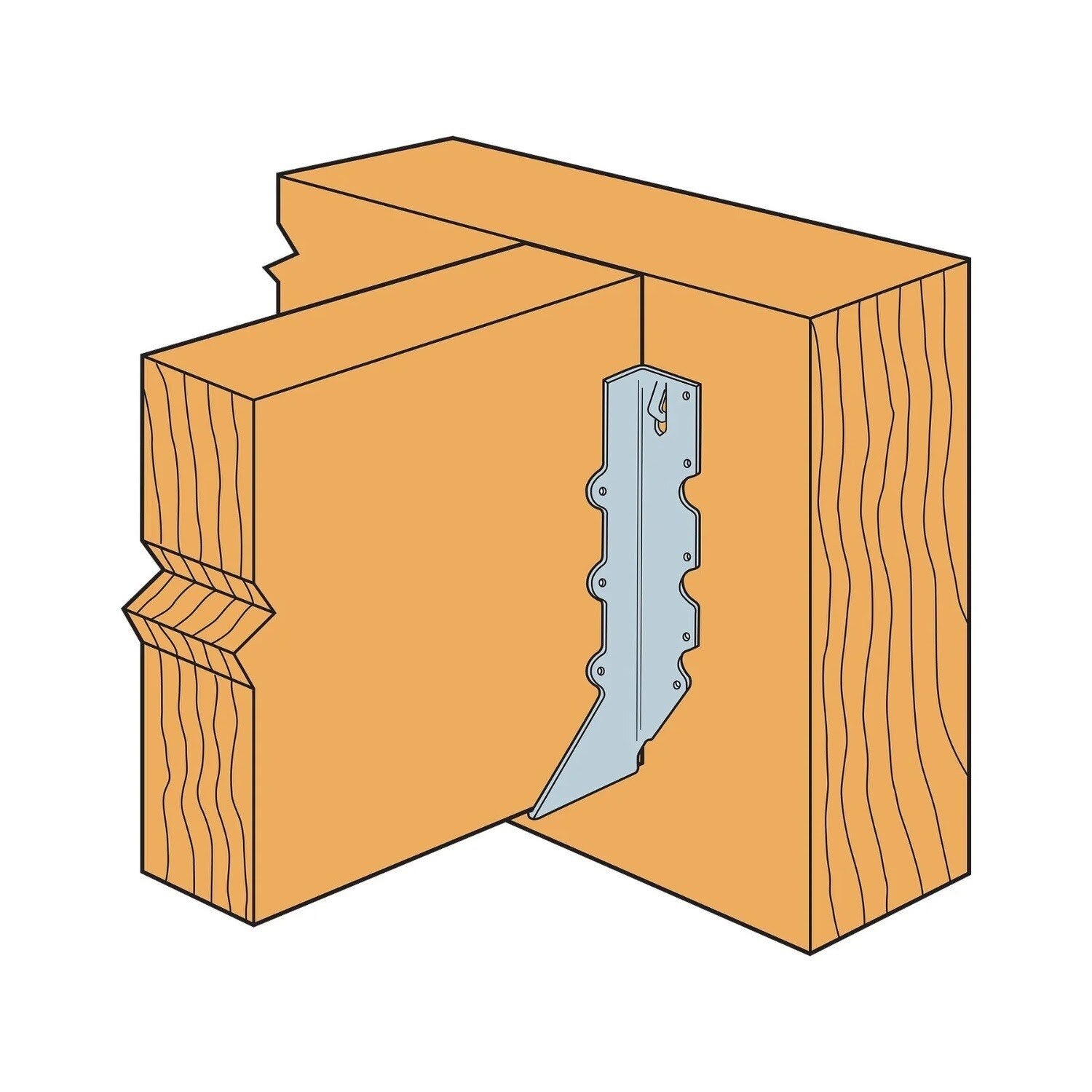

Simpson Strong-Tie U314 Installation Overview
- Use nails, screws, or Strong-Drive SDS Heavy-Duty Connector screws as specified for the application.
- The joist should be fully seated in the hanger to achieve maximum bearing support.
- Install fasteners into all available nail holes for optimal strength and stability.
- Ensure that the selected hanger meets the required load capacity for your specific application.
Simpson Strong-Tie U314 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 10-1/2" |
| Joist size | 3" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
