Simpson Hangers | SKU:
U36
Simpson Strong-Tie U36 (5-3/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$6.20
$8.91
Unit price
/
Unavailable
Description
Description

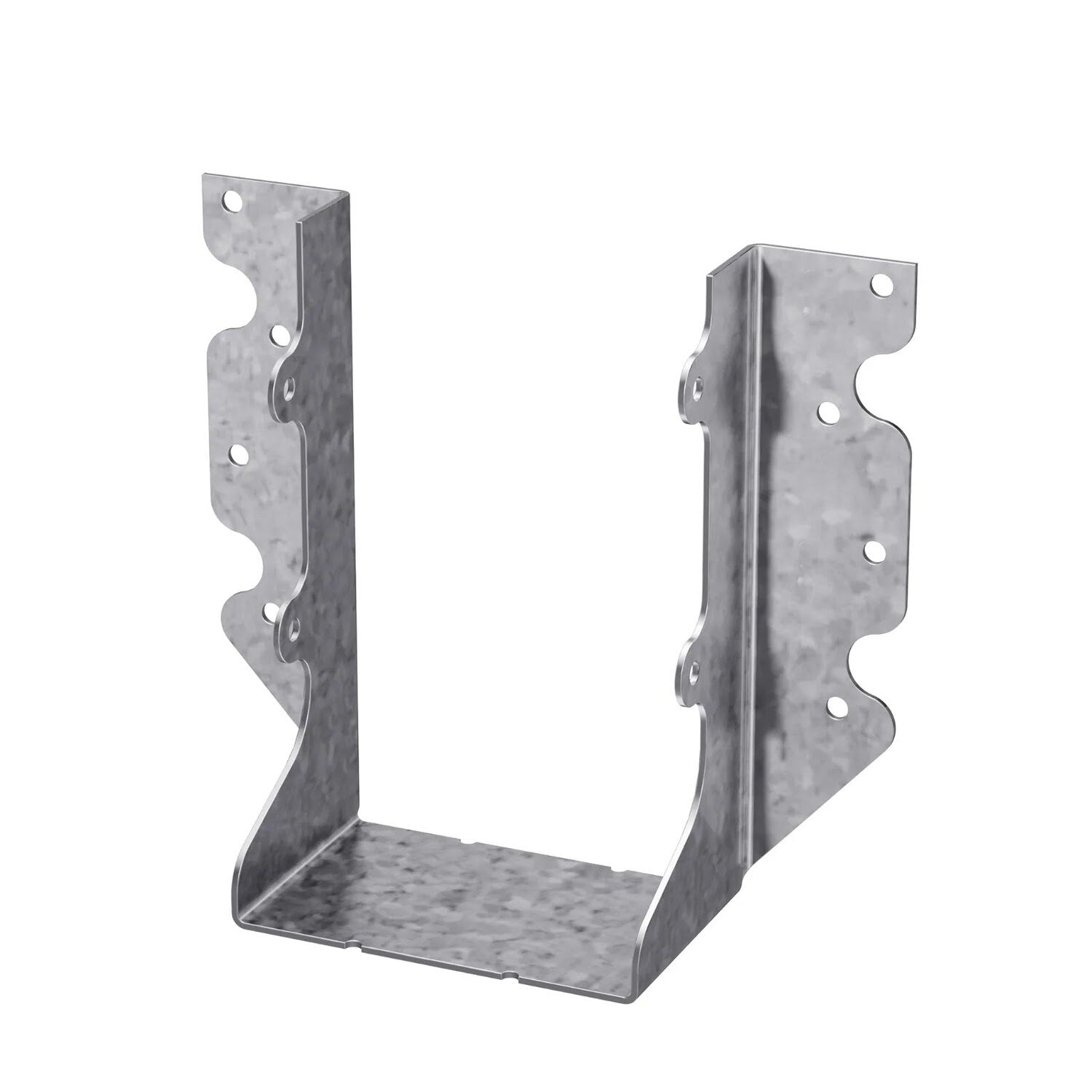

Simpson Strong-Tie U36 Description
The Simpson Strong-Tie U36 Face-Mount Joist Hanger is designed for secure wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U36 Includes
- (1) U36 Face-Mount Joist Hanger
Simpson Strong-Tie U36 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U36 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceilings.

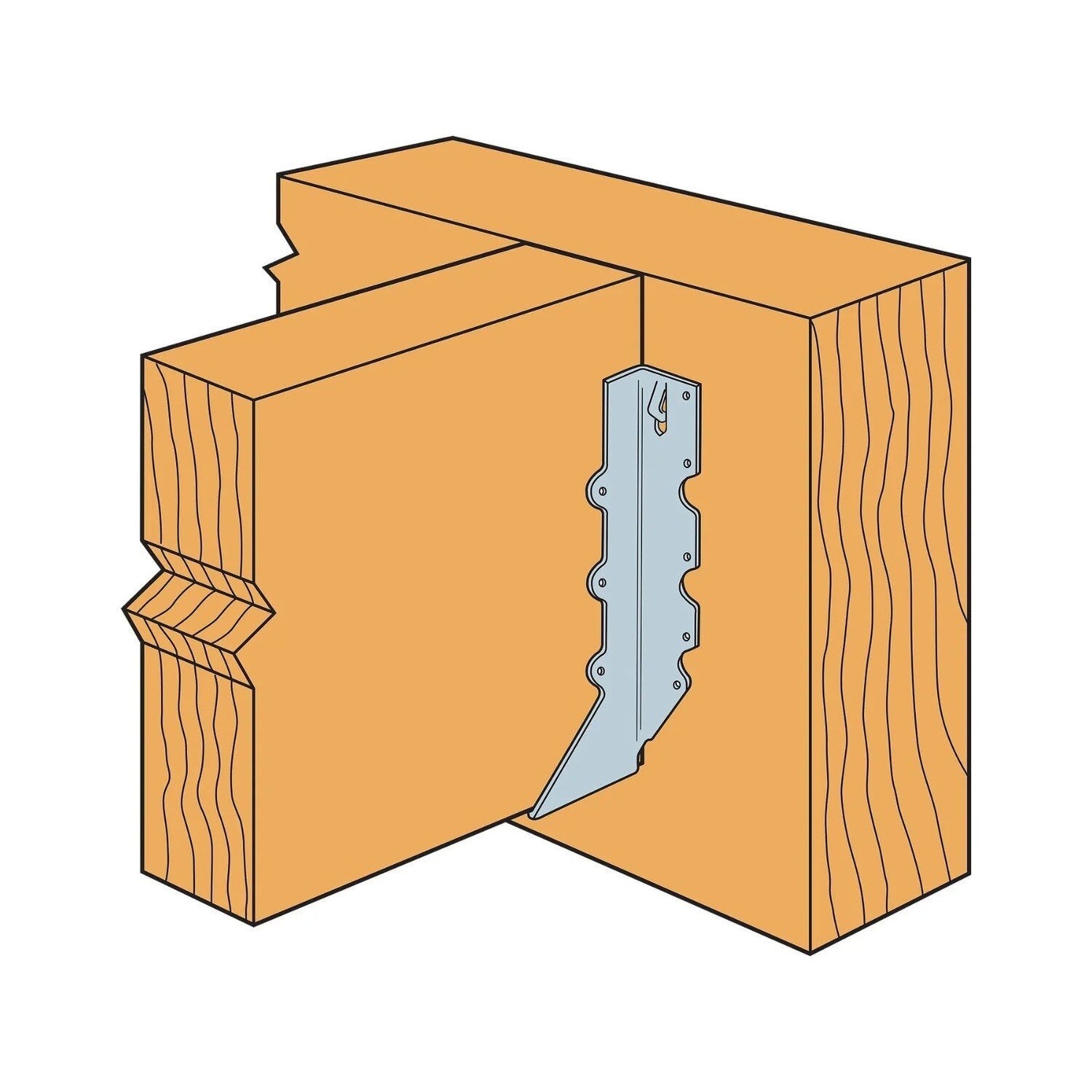

Simpson Strong-Tie U36 Installation Overview
- Use nails, screws, or SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all available nail holes.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U36 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 3" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
NOTE: Ensure the joist is fully seated in the hanger to achieve maximum bearing support.
