Simpson Hangers | SKU:
U414
Simpson Strong-Tie U414 (10") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$11.75
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U414 Description

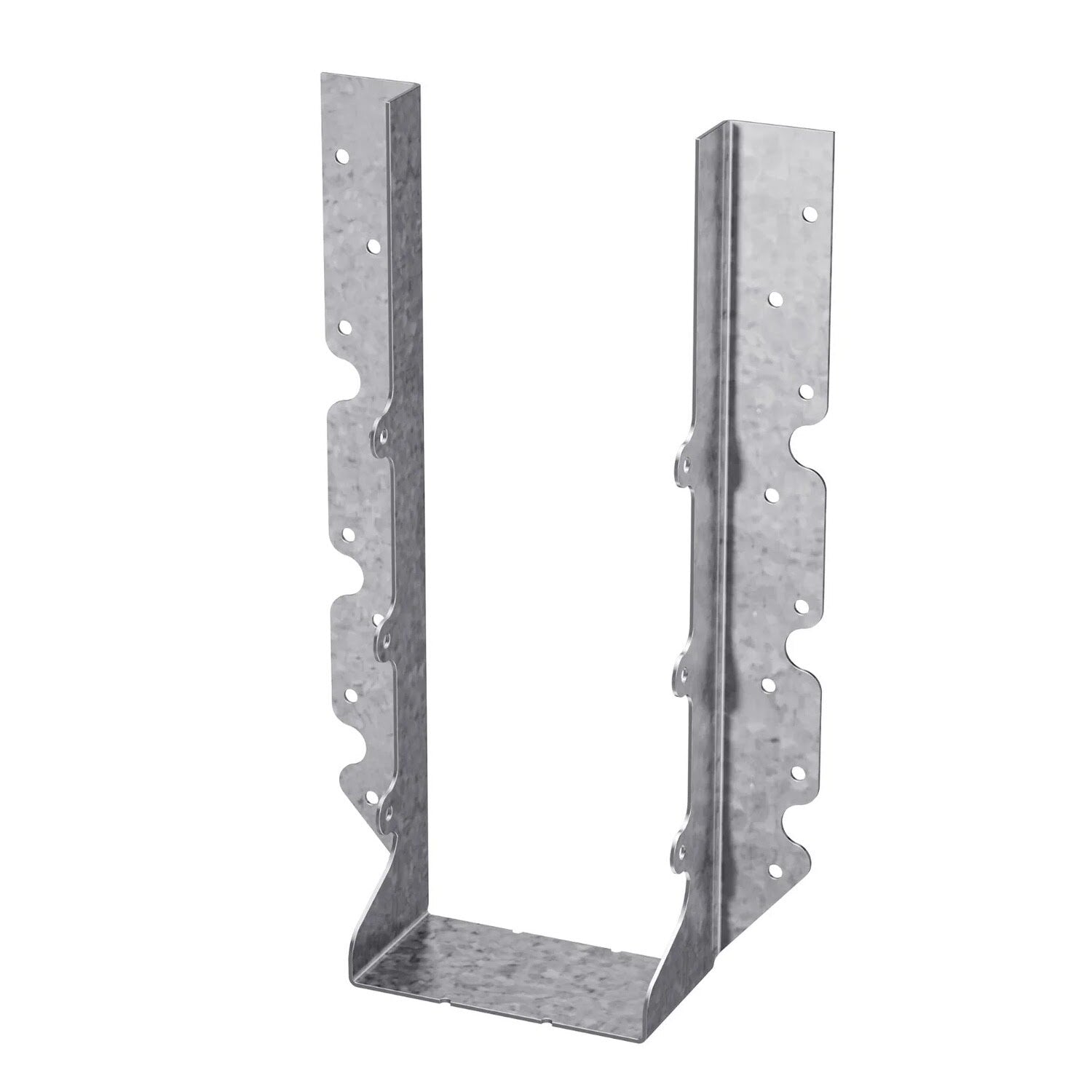

The Simpson Strong-Tie U414 Face-Mount Joist Hanger is designed for secure wood framing connections, offering optimized load distribution and corrosion resistance.
Simpson Strong-Tie U414 Includes
- (1) Face-Mount Joist Hanger
Simpson Strong-Tie U414 Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- Galvanized Steel Construction: Enhances corrosion resistance.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.

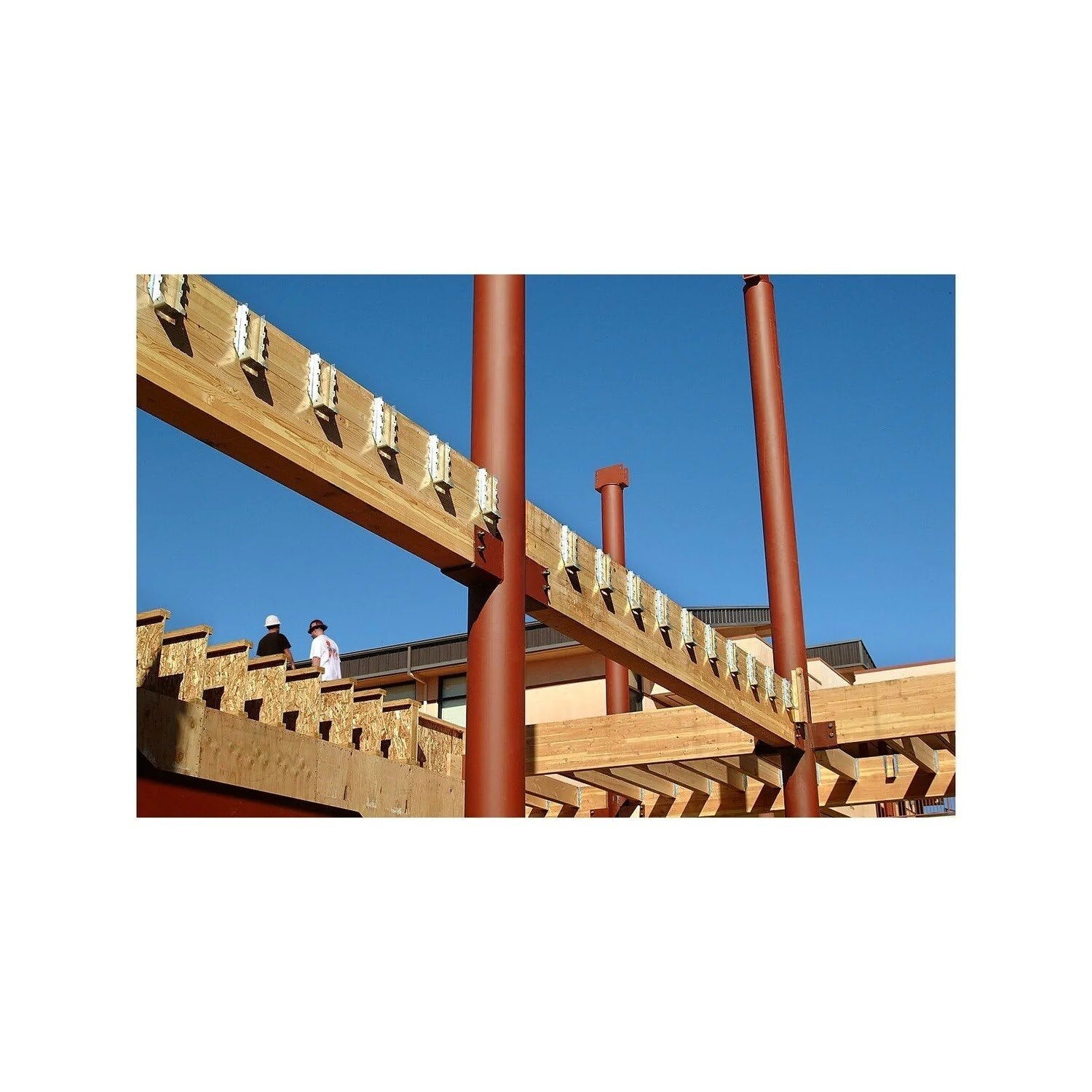

Simpson Strong-Tie U414 Applications
- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters and ceilings.

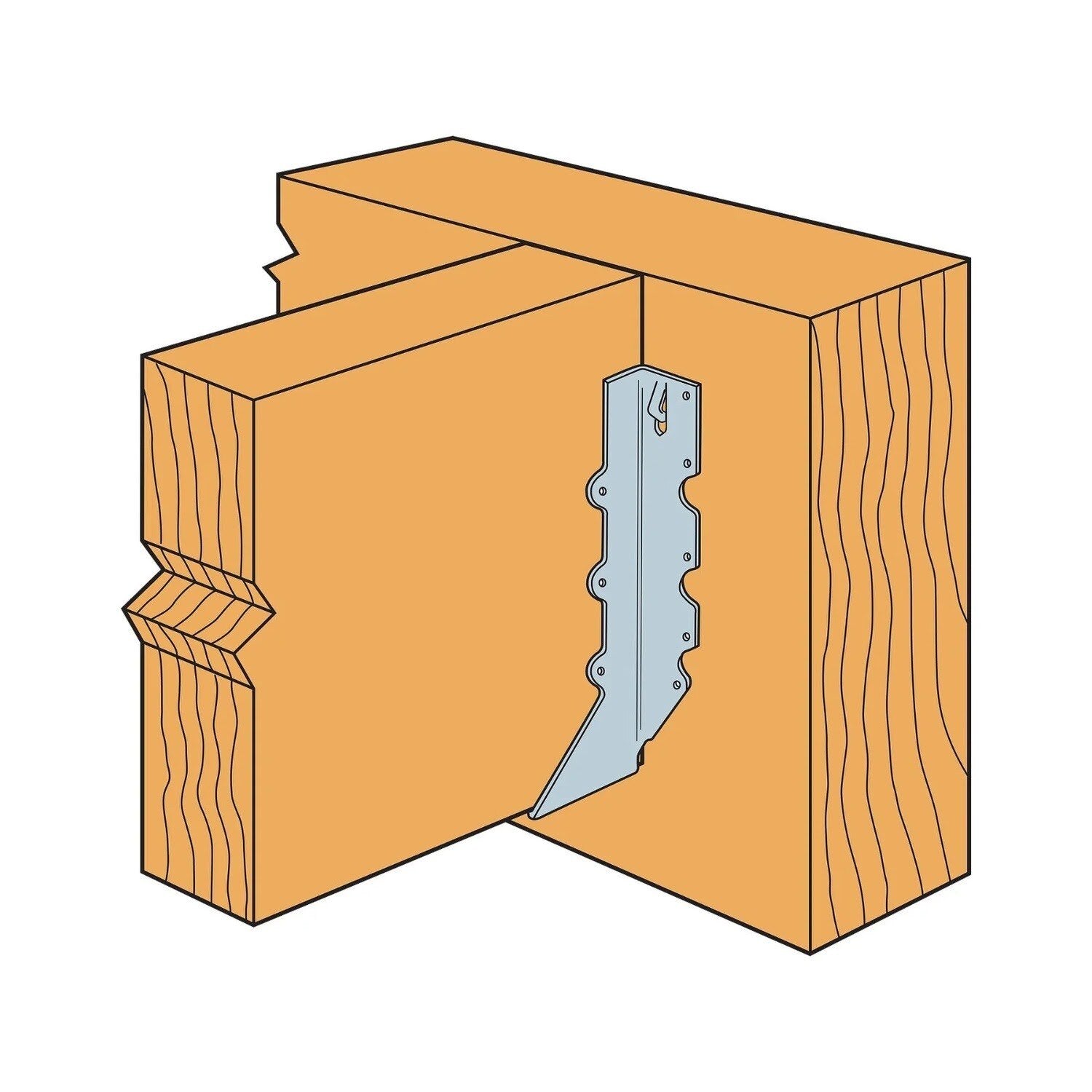

Simpson Strong-Tie U414 Installation Overview
- Use specified nails, screws, or SDS Heavy-Duty Connector screws.
- Ensure the joist is fully seated in the hanger.
- Install fasteners into all available nail holes.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U414 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 10" |
| Joist size | 4" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 3-9/16" |
NOTE: Ensure the joist is fully seated in the hanger to achieve maximum bearing support.
