Simpson Hangers | SKU:
U44R
Simpson Strong-Tie U44R (2-5/8") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$6.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U44R Description

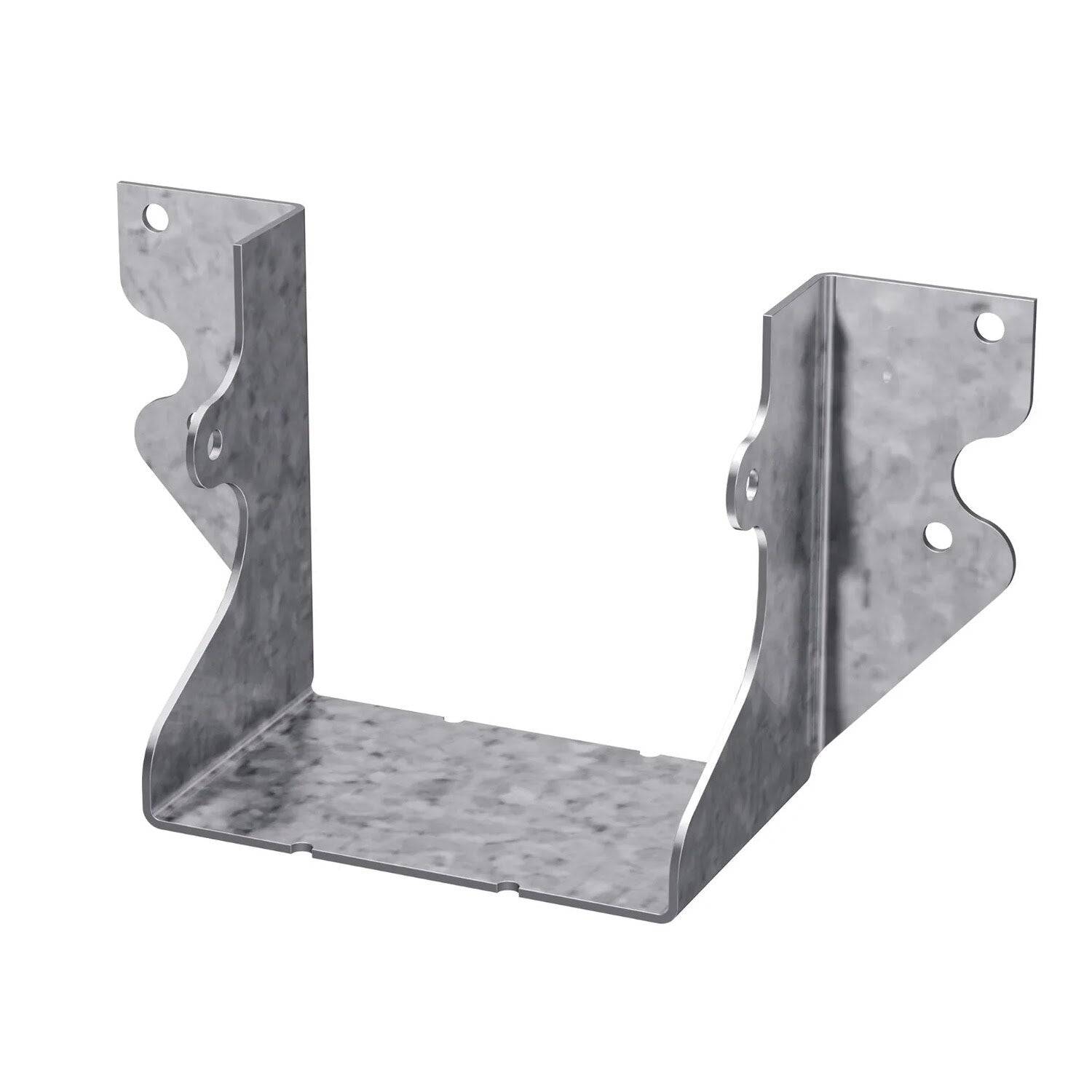

The Simpson Strong-Tie U44R is a face-mount joist hanger designed for rough cut 4x4 lumber, providing strong and secure joist-to-header connections with a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie U44R Includes
- (1) Rough Cut 4x4 Face Mount Joist Hanger
Simpson Strong-Tie U44R Features
- Precision engineering for consistent strength and performance
- Versatile design compatible with various joist sizes and wood species
- Corrosion-resistant G90 galvanized finish
- Designed for rough cut lumber
Simpson Strong-Tie U44R Applications
- Deck construction: Provides sturdy support for deck joists
- Floor framing: Ensures secure connections between floor joists and headers
- Roof framing: Supports rafters or ceiling joists for reinforcement
Simpson Strong-Tie U44R Installation Overview
- Use recommended nails or screws as specified by the manufacturer
- Install the hanger flush against the header for maximum integrity
- Ensure all fasteners are fully driven and properly seated
Simpson Strong-Tie U44R Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 2-5/8" |
| Joist size | 4" X 4" ROUGH |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 16 Gauge |
| Width | 4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
