Simpson Hangers | SKU:
U610R

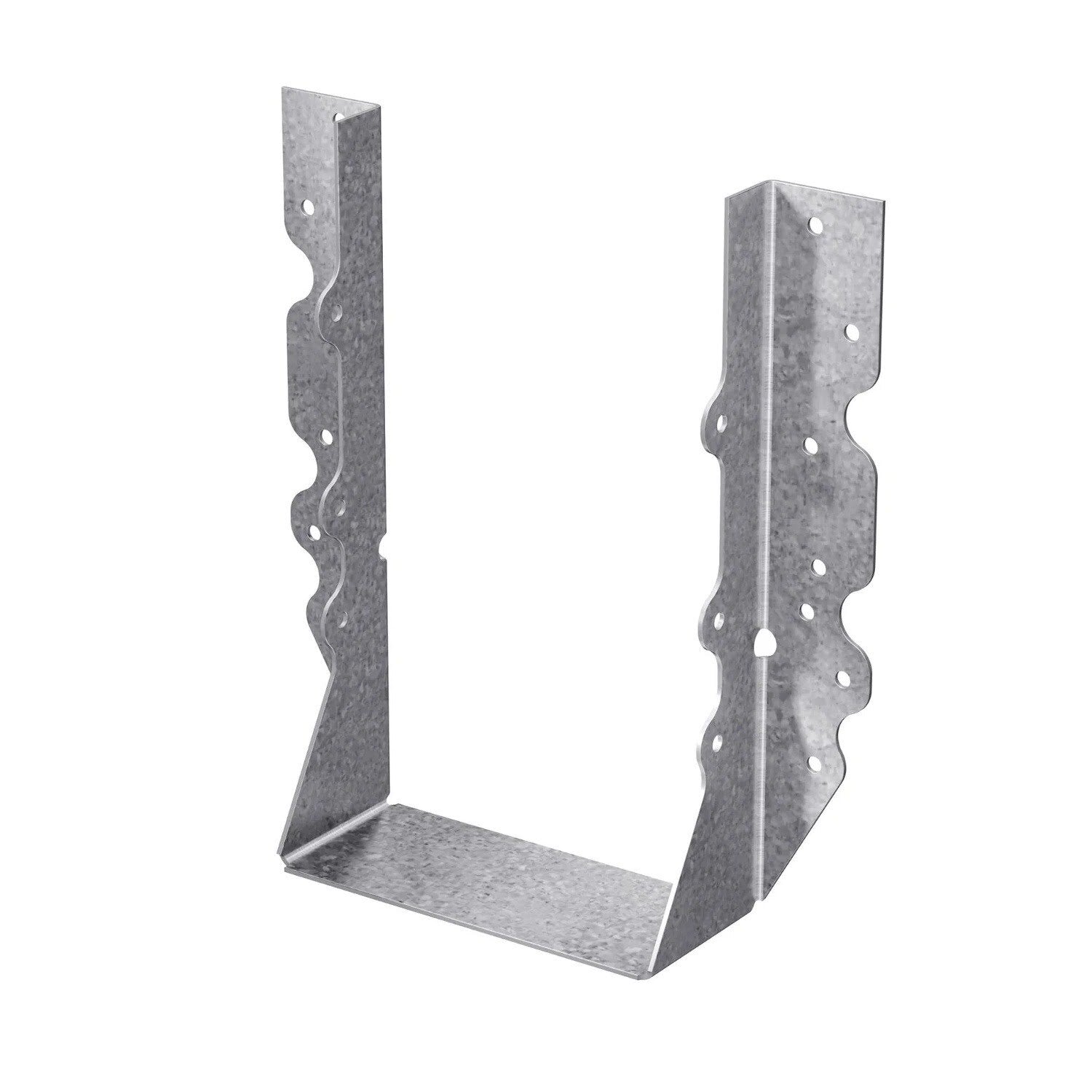

Simpson Strong-Tie U610R (8-1/2" x 6") 16Ga U Face-Mount Joist Hanger - G90 Galvanized
$26.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie U610R Description

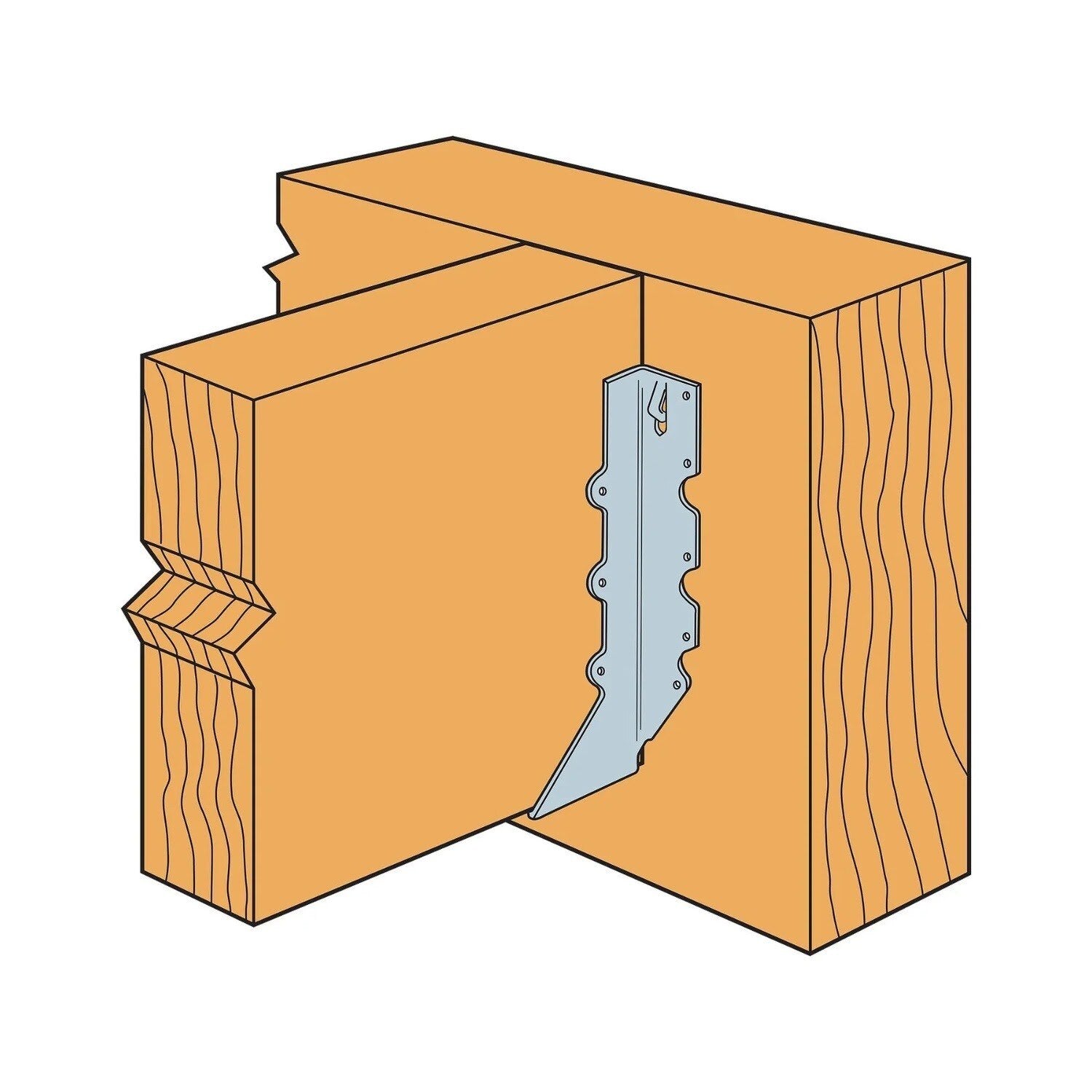

The Simpson Strong-Tie U610R Rough Cut Face-Mount Joist Hanger is designed for 6x10 rough cut lumber, providing strong and secure joist-to-header connections in wood-framed structures.
Simpson Strong-Tie U610R Includes
- (1) U610R Rough Cut Face-Mount Joist Hanger
Simpson Strong-Tie U610R Features
- Precision Engineering: Manufactured to meet the highest quality standards, ensuring consistent strength and performance.
- Versatile Design: Compatible with various joist sizes and wood species, offering flexibility across multiple applications.
- Corrosion Resistance: Available in different finishes to withstand various environmental conditions.
Simpson Strong-Tie U610R Applications
- Deck Construction: Provides sturdy support for deck joists, ensuring long-term durability in outdoor structures.
- Floor Framing: Ensures a secure connection between floor joists and headers, maintaining a strong and stable flooring system.
- Roof Framing: Supports rafters or ceiling joists to provide essential reinforcement in roofing systems.
Simpson Strong-Tie U610R Installation Overview
- Fastener Requirements: Use the recommended nails or screws as specified by the manufacturer to ensure optimal load capacity.
- Flush Mounting: The hanger should be installed flush against the header for maximum structural integrity.
- Secure Fastening: Ensure all fasteners are fully driven and properly seated to prevent movement.
Simpson Strong-Tie U610R Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-1/8" |
| Joist size | 6" X 10" Rough |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 16 Gauge |
| Width | 6" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
