Simpson Anchors | SKU:
VB10

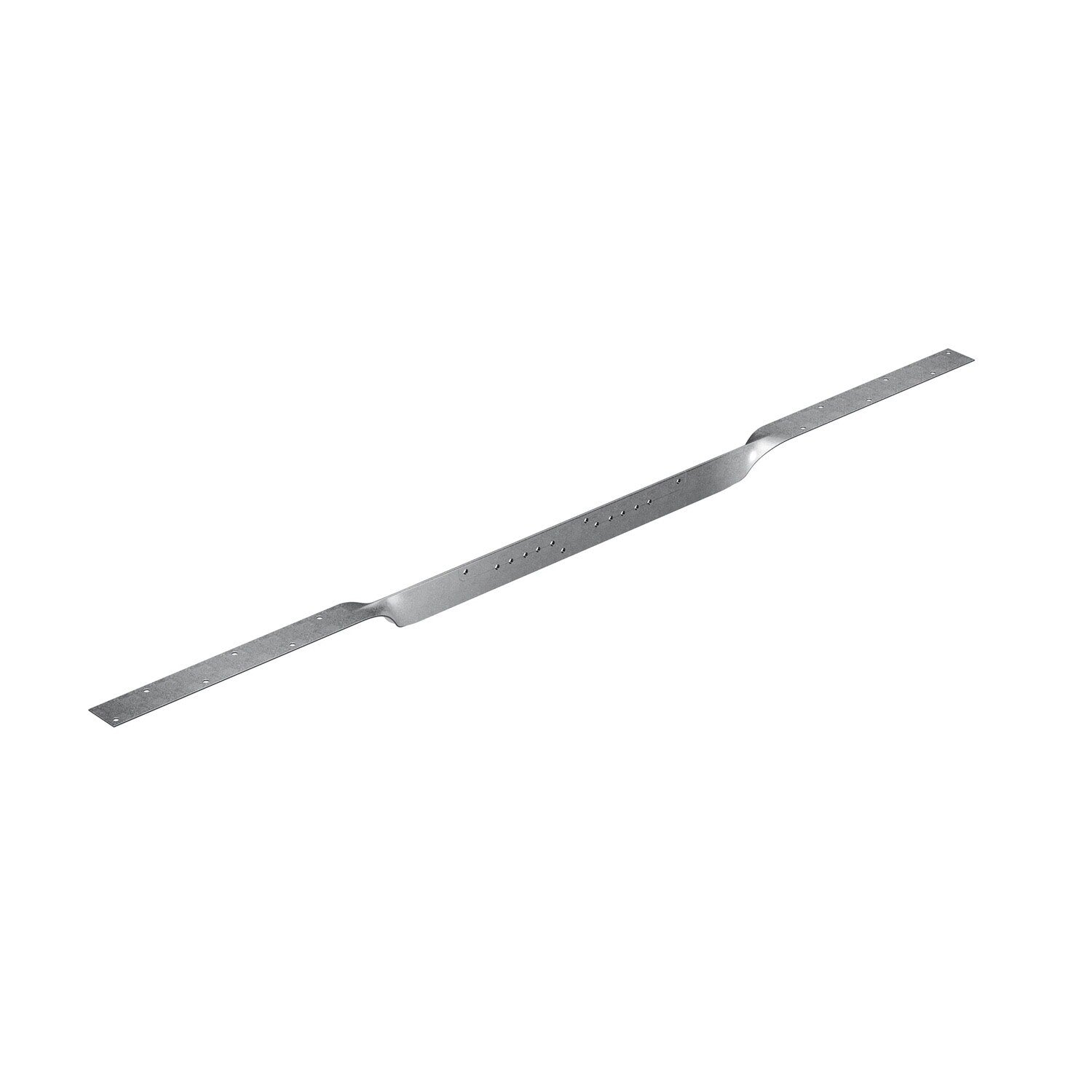

Simpson Strong-Tie VB10 (10 ft.) 12 Gauge Knee Brace with Fasteners
$86.41
$124.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VB10 Description
The VB10 Knee Brace by Simpson Strong-Tie offers robust lateral resistance for beams, featuring a 12-gauge construction and G90 galvanized finish for enhanced durability.
Simpson Strong-Tie VB10 Includes
- (1) 10 ft. 12 Gauge Knee Brace
- (16) N54A Fasteners
Simpson Strong-Tie VB10 Features
- 12-gauge steel construction for strength and durability
- G90 galvanized finish for corrosion resistance
- Provides lateral resistance force for beams
- Includes 16 N54A fasteners for installation
Simpson Strong-Tie VB10 Applications
- Lateral resistance for beams in construction
- Suitable for use in seismic and hurricane tie applications
Simpson Strong-Tie VB10 Installation Overview
- Use all specified fasteners as per guidelines
- Install at approximately 45° or more to the vertical plane
- 16 N54A fasteners are included for installation
Simpson Strong-Tie VB10 Specifications
| Material | 12 Gauge Steel |
| Finish | G90 Galvanized |
| Length | 10 ft |
| Weight | 7.6 lb |
| Fasteners Included | (16) N54A |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
