Simpson Anchors | SKU:
VB12

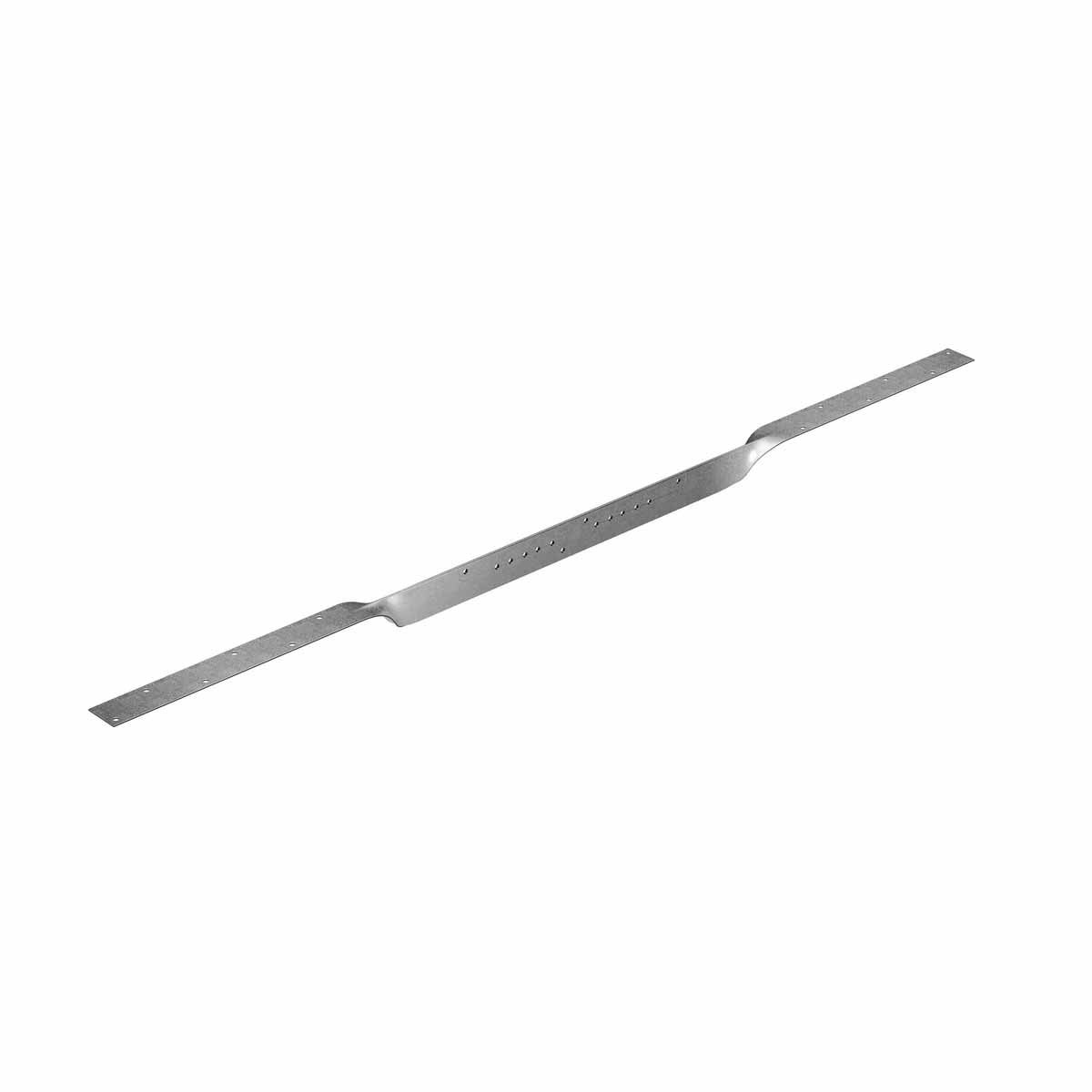

Simpson Strong-Tie VB12 (12') Knee Brace with Fasteners for Lateral Beam Support
$116.37
$167.36
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VB12 Description
The VB12 Knee Brace by Simpson Strong-Tie offers robust lateral resistance for beams, featuring a 12-gauge construction and G90 galvanized finish for enhanced durability.
Simpson Strong-Tie VB12 Includes
- (1) 12' Knee Brace
- (16) N54A Fasteners
Simpson Strong-Tie VB12 Features
- 12-gauge steel construction for strength
- G90 galvanized finish for corrosion resistance
- Provides lateral resistance for beams
- Includes 16 N54A fasteners for installation
Simpson Strong-Tie VB12 Applications
- Lateral beam support in wood construction
- Seismic and hurricane tie applications

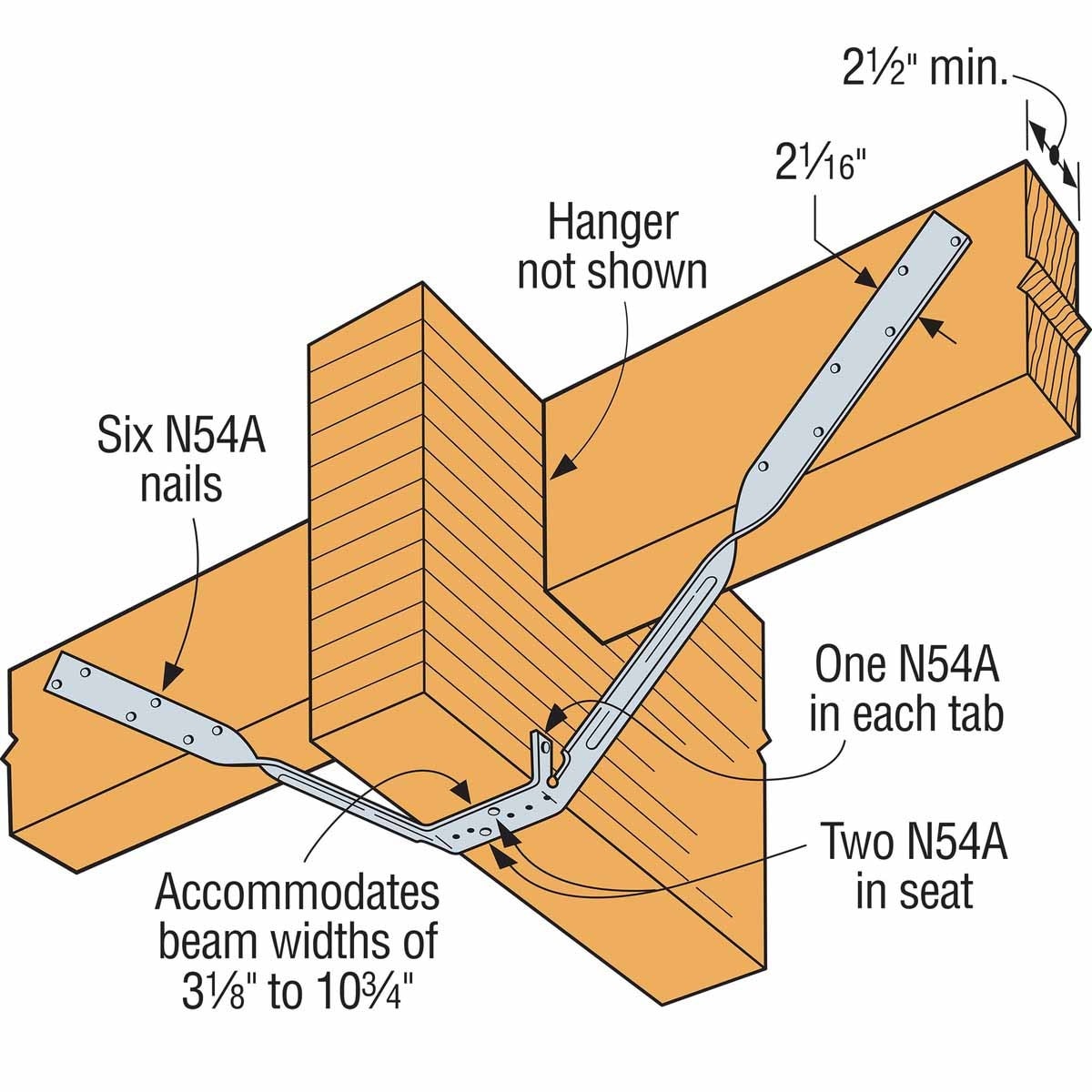

Simpson Strong-Tie VB12 Installation Overview
- Use all specified fasteners as per guidelines
- Install at approximately 45° or more to the vertical plane
- Secure using the included N54A fasteners
Simpson Strong-Tie VB12 Specifications
| Material | 12 Gauge Steel |
| Finish | G90 Galvanized |
| Length | 12' |
| Weight | 9.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
