Simpson Anchors | SKU:
VB5

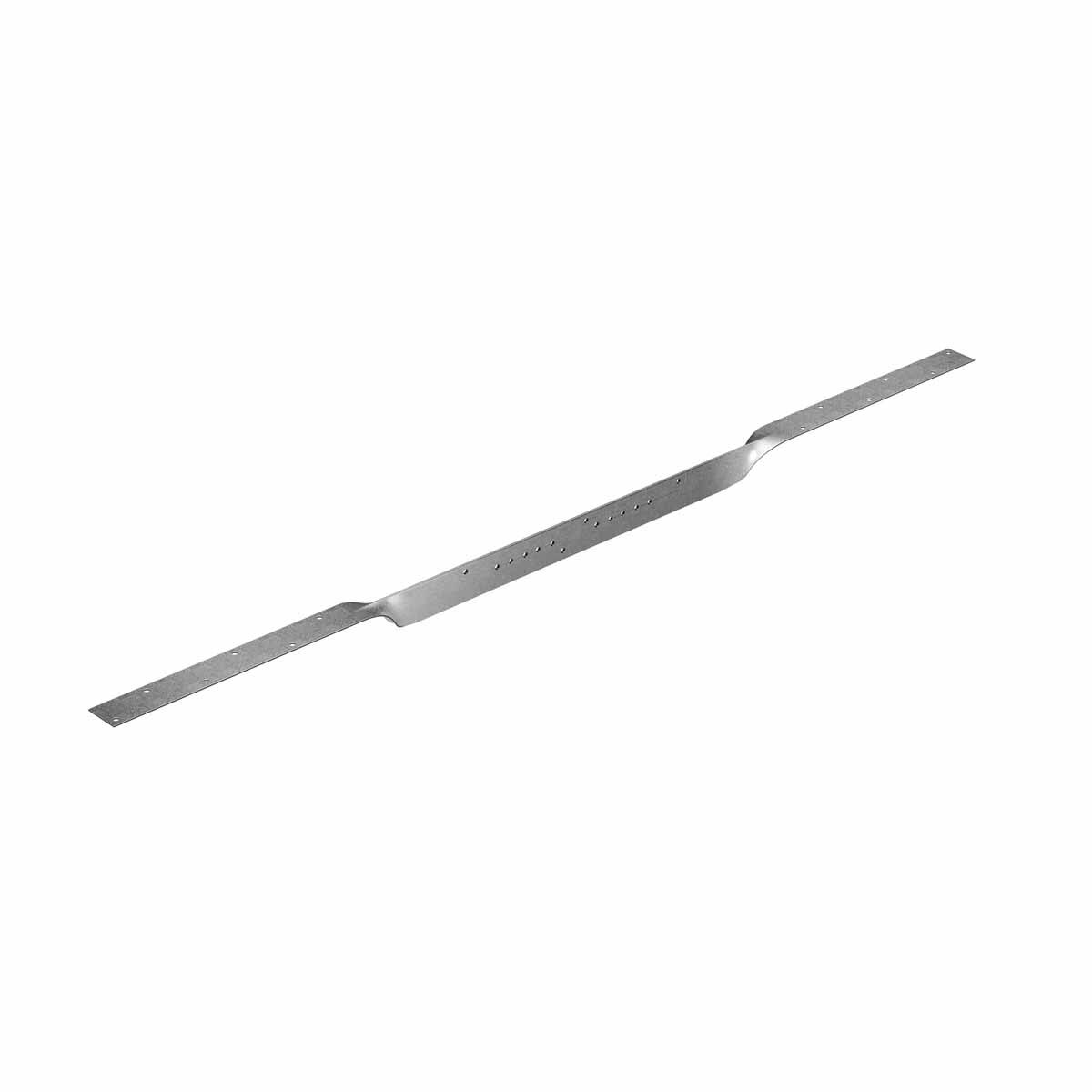

Simpson Strong-Tie VB5 (5') Knee Brace with Fasteners for Lateral Beam Support
$73.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VB5 Description
The Simpson VB5 Knee Brace provides lateral resistance force at the bottom of beams, featuring a 12-gauge construction and G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie VB5 Includes
- (1) 5' 12 Gauge Knee Brace
- (16) N54A Fasteners
Simpson Strong-Tie VB5 Features
- Provides lateral resistance force at the bottom of beams
- Constructed from 12-gauge steel for durability
- G90 galvanized finish for corrosion resistance
- Designed for installation at 45° or more to the vertical plane
Simpson Strong-Tie VB5 Applications
- Lateral beam support in construction projects
- Structural reinforcement for beams
Simpson Strong-Tie VB5 Installation Overview
- Position the knee brace at a 45° or greater angle to the vertical plane.
- Secure the brace using the included (16) N54A fasteners.
- Ensure all fasteners are installed in the correct positions to achieve load values.
Simpson Strong-Tie VB5 Specifications
| Finish | G90 Galvanized |
| Length | 5' |
| Fasteners required | (16) N54A |
| Weight | 4.1 lb |
| Material | 12 Gauge Steel |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
