Simpson Anchors | SKU:
VB7

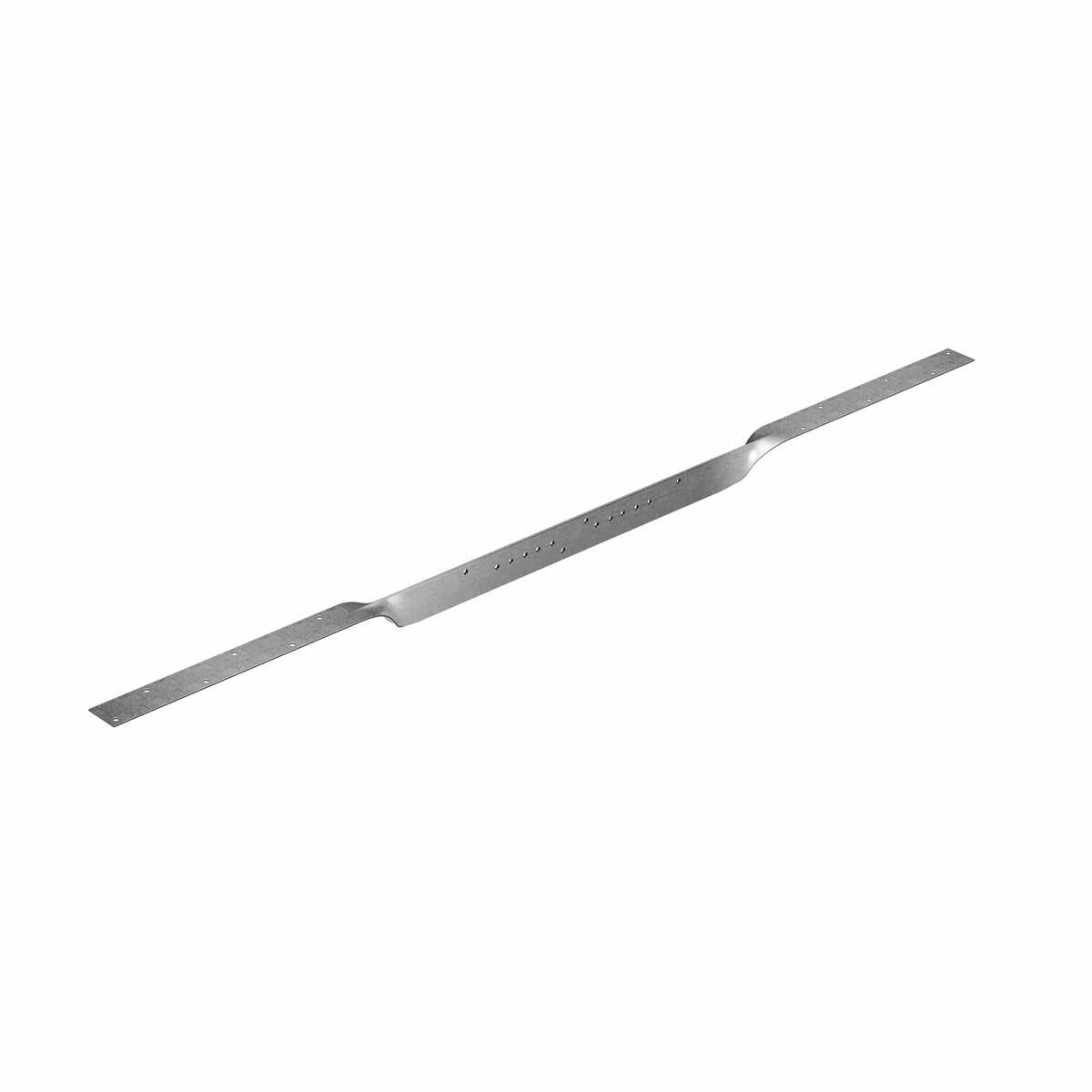

Simpson Strong-Tie VB7 (7') Knee Brace with Fasteners for Lateral Beam Support
$73.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VB7 Description
The Simpson VB7 Knee Brace provides lateral resistance force at the bottom of beams, featuring a 12 gauge construction and G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie VB7 Includes
- (1) 7' Knee Brace
- (16) N54A Fasteners
Simpson Strong-Tie VB7 Features
- Provides lateral resistance force at the bottom of beams
- Constructed from 12 gauge steel
- G90 Galvanized finish for corrosion resistance
- Includes 16 N54A fasteners for installation
Simpson Strong-Tie VB7 Applications
- Lateral beam support in construction projects
- Providing resistance force at the bottom of beams
Simpson Strong-Tie VB7 Installation Overview
- Install the knee brace at an angle of 45° or more to the vertical plane
- Use all specified fasteners for secure installation
Simpson Strong-Tie VB7 Specifications
| Finish | G90 Galvanized |
| Length | 7' |
| Fasteners required | (16) N54A |
| Weight | 5.5 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
