Simpson Anchors | SKU:
VB8

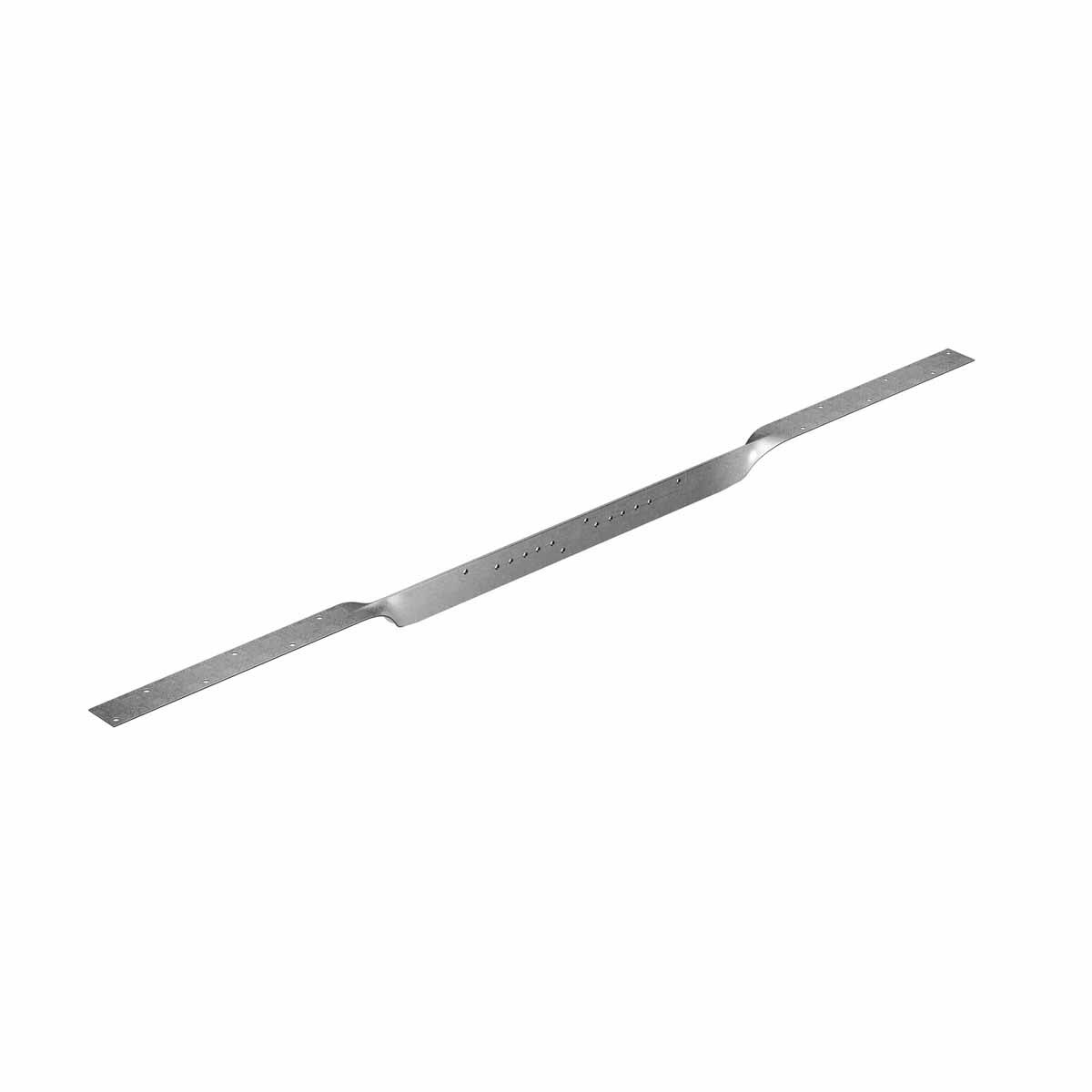

Simpson Strong-Tie VB8 (8') Knee Brace with Fasteners for Lateral Beam Support
$79.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VB8 Description
The VB8 Knee Brace by Simpson Strong-Tie offers robust lateral resistance for beams, featuring a 12-gauge construction and G90 galvanized finish for enhanced durability.
Simpson Strong-Tie VB8 Includes
- (1) VB8 Knee Brace
- (16) N54A Fasteners
Simpson Strong-Tie VB8 Features
- Provides lateral resistance force for beams
- Constructed from 12-gauge steel
- G90 Galvanized finish for corrosion resistance
- Includes 16 N54A fasteners for installation
Simpson Strong-Tie VB8 Applications
- Lateral beam support in construction projects
- Reinforcement of beams at angles of 45° or more
Simpson Strong-Tie VB8 Installation Overview
- Position the knee brace at an angle of 45° or more to the vertical plane.
- Secure the brace using the included 16 N54A fasteners.
- Ensure all fasteners are installed correctly to achieve optimal load values.
Simpson Strong-Tie VB8 Specifications
| Finish | G90 Galvanized |
| Length | 8' |
| Fasteners required | (16) N54A |
| Weight | 6.2 lb |
| Material Thickness | 12 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
