Simpson Anchors | SKU:
VGT
Simpson Strong-Tie VGT (1-7/8") 7Ga Variable-Pitch Girder Tiedown - G90 Galvanized
$94.59
Unit price
/
Unavailable
Description
Description

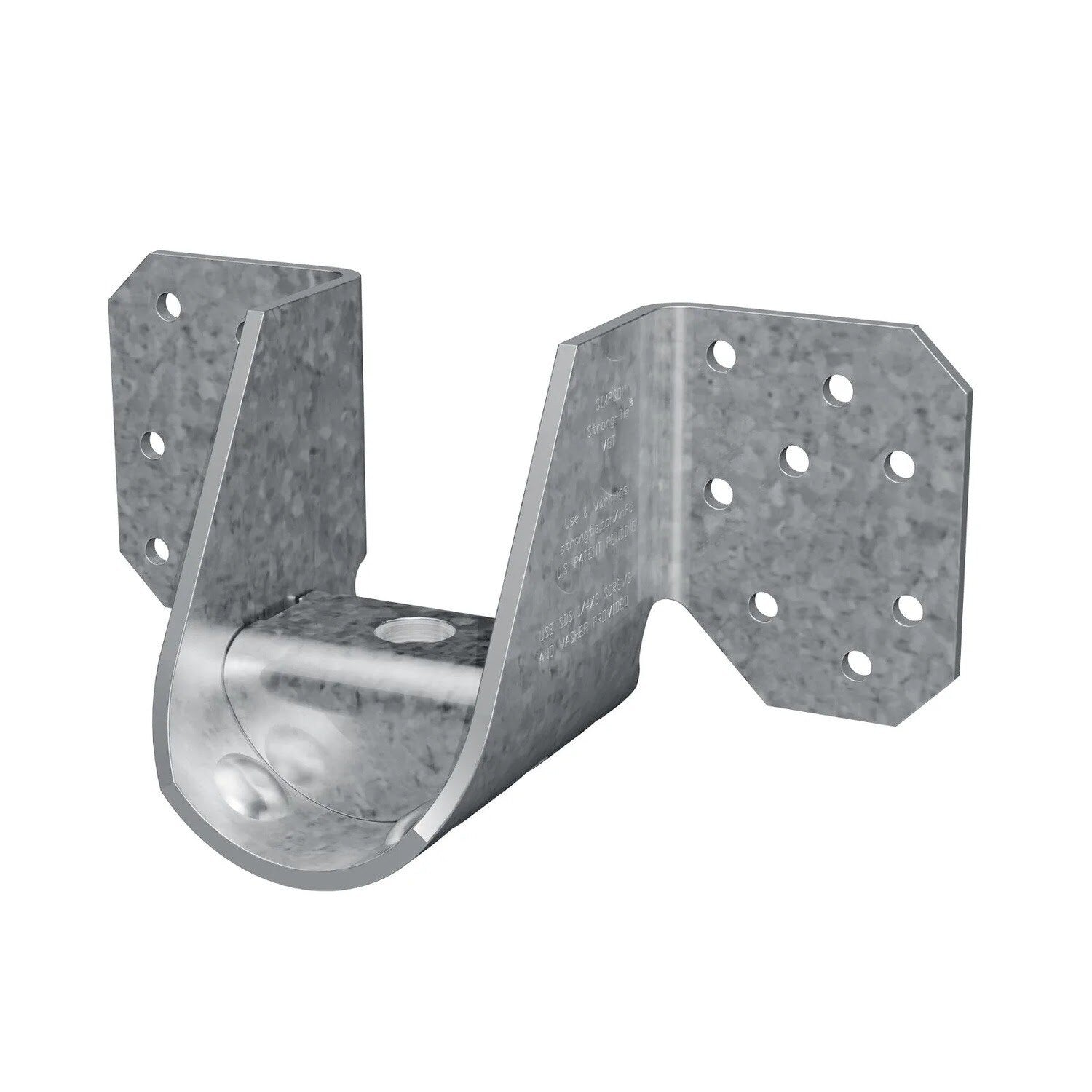

Simpson VGT Description
The Simpson VGT Variable Girder Tiedown is a high-capacity solution for girder trusses, designed for retrofit applications and high-wind construction.
Simpson VGT Includes
- (16) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Predeflected crescent washer
Simpson VGT Features
- Suitable for retrofit applications
- Available with one flange concealed for attachment to trusses with no tail
- Load rated to resist high-wind forces
Simpson VGT Applications
- High-wind construction
- Retrofit applications for girder trusses

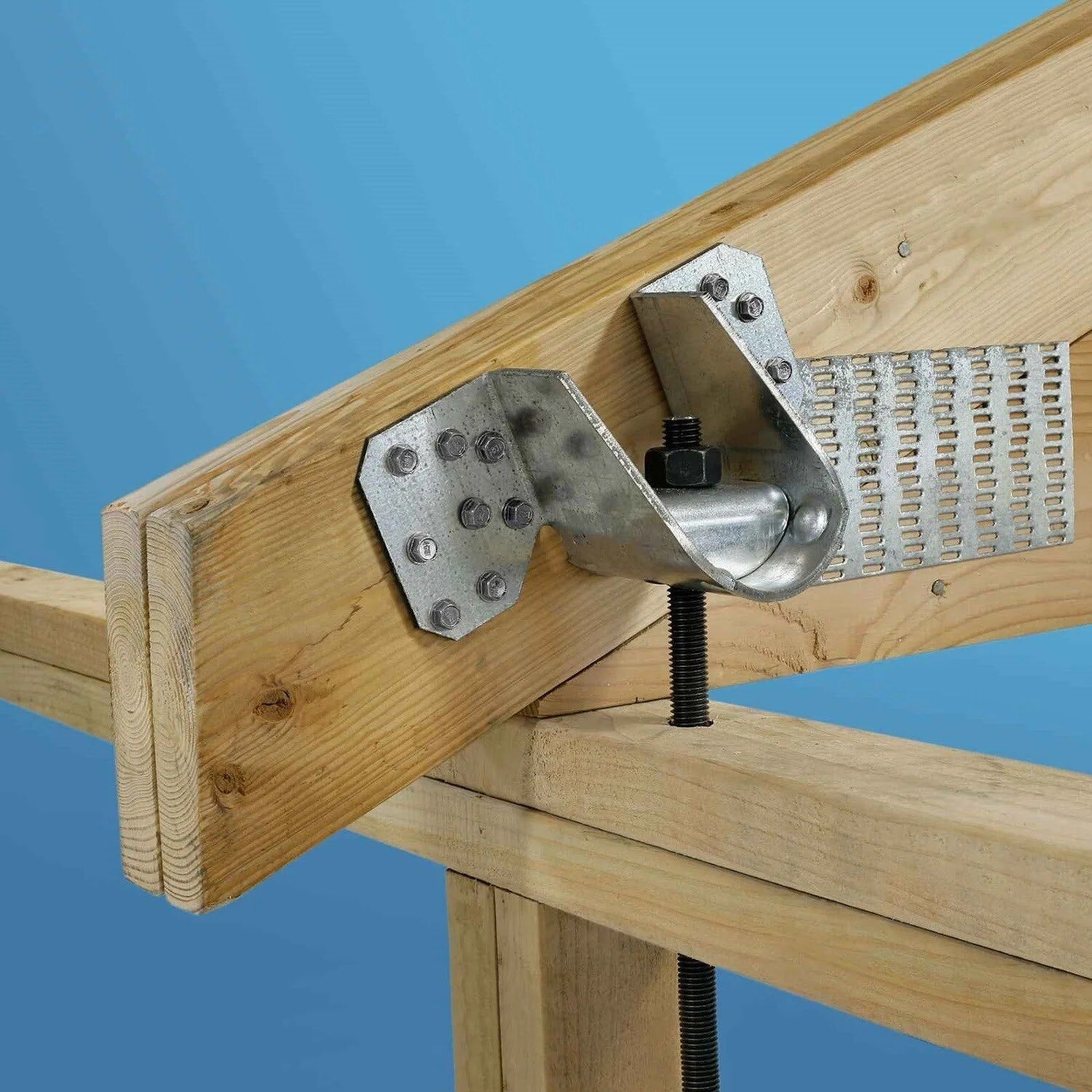

Simpson VGT Installation Overview
- Install washer component so top of washer is horizontal and parallel with top plate of wall
- Can be installed on roof pitches up to 8/12 or on a bottom chord designed to transfer the load
- Screw holes are configured to allow for double installation on a two-ply (minimum) truss
- When installing on trusses with no overhangs, specify VGTR/L
Simpson VGT Specifications
| Material | 7 Gauge |
| Finish | Galvanized |
| Weight | 3.7 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
