Simpson Anchors | SKU:
VGTR

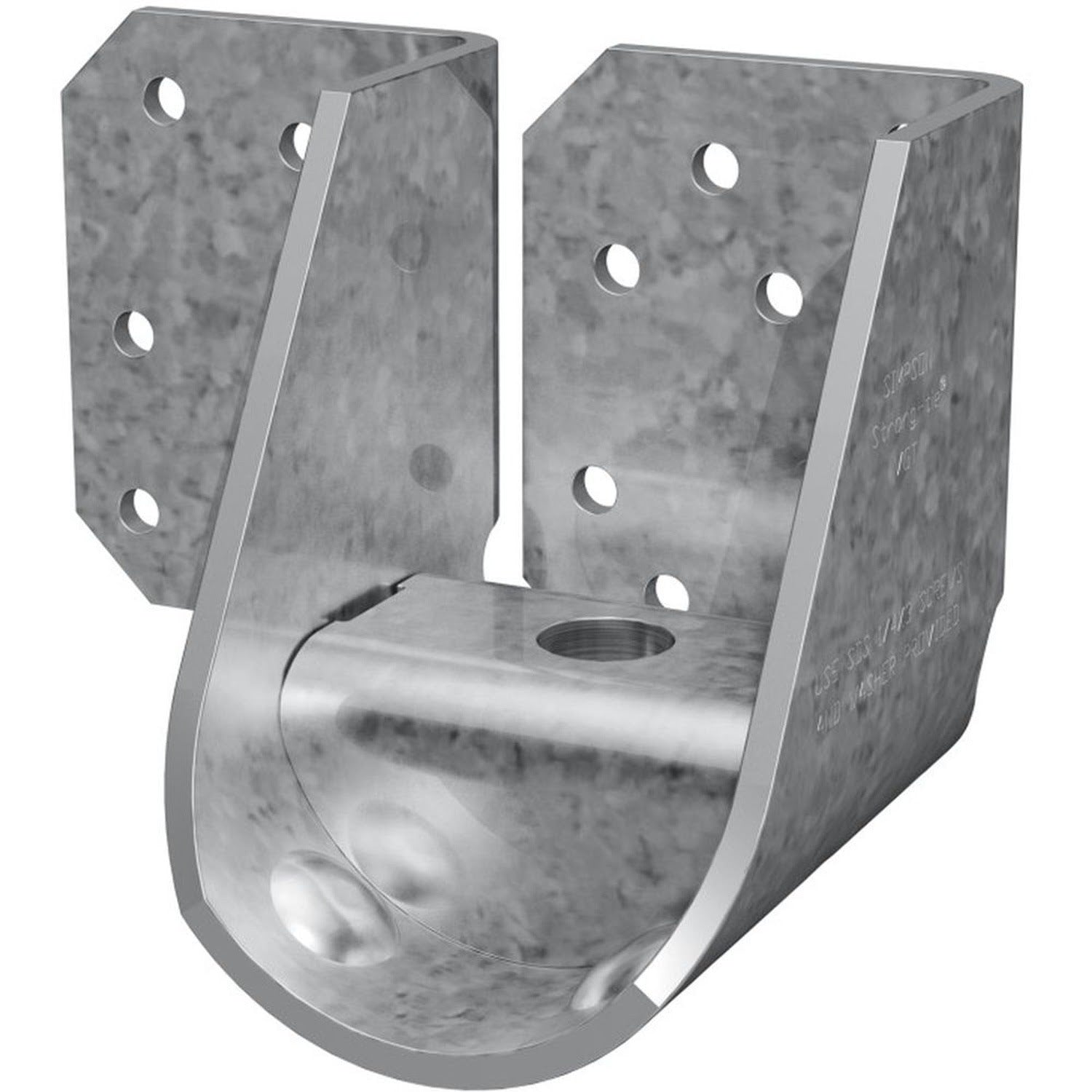

Simpson Strong-Tie VGTR (1-7/8") 7Ga Variable-Pitch Girder Tiedown - G90 Galvanized, Right Conceal
$104.48
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VGTR Description
The VGTR Variable Girder Tiedown Right Conceal is designed for high-wind construction applications, offering retrofit capabilities and concealed flange options for trusses with no tail.
Simpson Strong-Tie VGTR Includes
- (16) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
- (1) Predeflected Crescent Washer
Simpson Strong-Tie VGTR Features
- Suitable for retrofit applications
- Available with one flange concealed for attachment to trusses with no tail
- Load rated to resist high-wind forces
Simpson Strong-Tie VGTR Applications
- High-Wind Construction: Provides secure girder tiedown solutions for areas prone to strong winds.
- Retrofit Applications: Ideal for upgrading existing structures to meet higher load requirements.
Simpson Strong-Tie VGTR Installation Overview
- Verify dimensions and alignment of trusses and supporting members.
- Install washer component so the top of the washer is horizontal and parallel with the top plate of the wall.
- Attach using the provided Strong-Drive SDS Heavy-Duty Connector screws.
- Ensure proper alignment and secure fastening to achieve desired uplift capacity.
- Follow installation guidelines for roof pitches up to 8/12 or bottom chord applications.
Simpson Strong-Tie VGTR Specifications
| Material | 7 gauge |
| Finish | Galvanized |
| Width | 8 1/2 in. |
| Height | 4 1/4 in. |
| Centerline | 1 7/8 in. |
| Coating/Material | Zinc Galvanized, G90 |
NOTE: Ensure proper installation using the provided washer component and specified screws to achieve published load values.
