Simpson Anchors | SKU:
VPA2.1

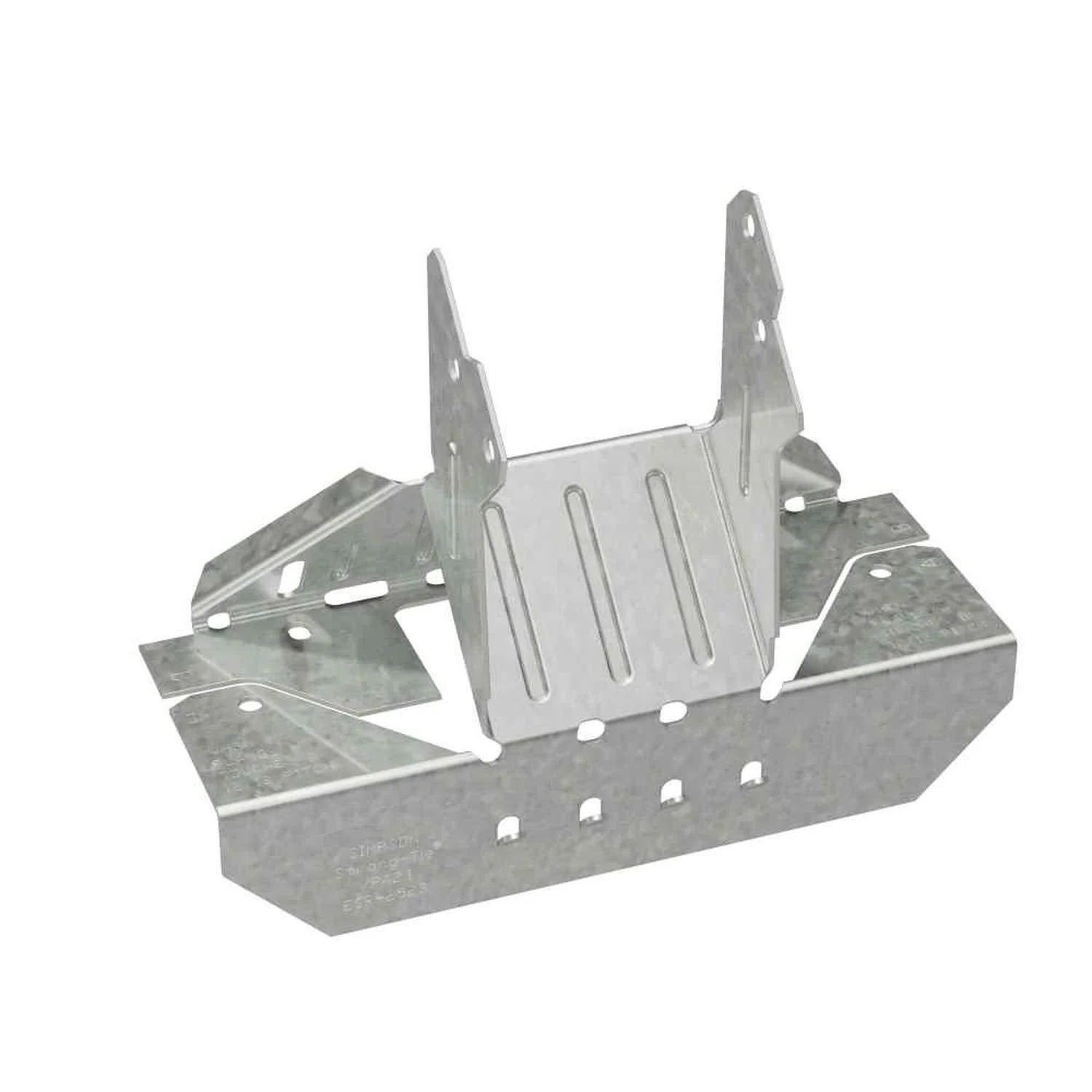

Simpson Strong-Tie VPA2.1 (2-1/16") 18Ga Galvanized Variable-Pitch Connector
$8.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VPA2.1 Description
The Simpson VPA Variable-Pitch Connector delivers strength and versatility for rafter-to-wall or beam-to-post connections at varying angles. Designed to accommodate diverse framing configurations, this adjustable connector is an ideal solution for securing members at pitches from 3:12 to 12:12, with field adjustability to match your exact slope needs.
Simpson Strong-Tie VPA2.1 Includes
- (1) 2-1/16" Joist Variable Pitch Connector
Simpson Strong-Tie VPA2.1 Features
- Adjustable Pitch Design: One connector accommodates multiple angles for diverse roof and brace configurations.
- Heavy-Duty Steel Construction: Offers high structural load capacity with consistent performance.
- Engineered for Wood Members: Compatible with both solid sawn lumber and engineered wood.
- Corrosion-Resistant Finish: Provides durability in exterior applications.
Simpson Strong-Tie VPA2.1 Applications

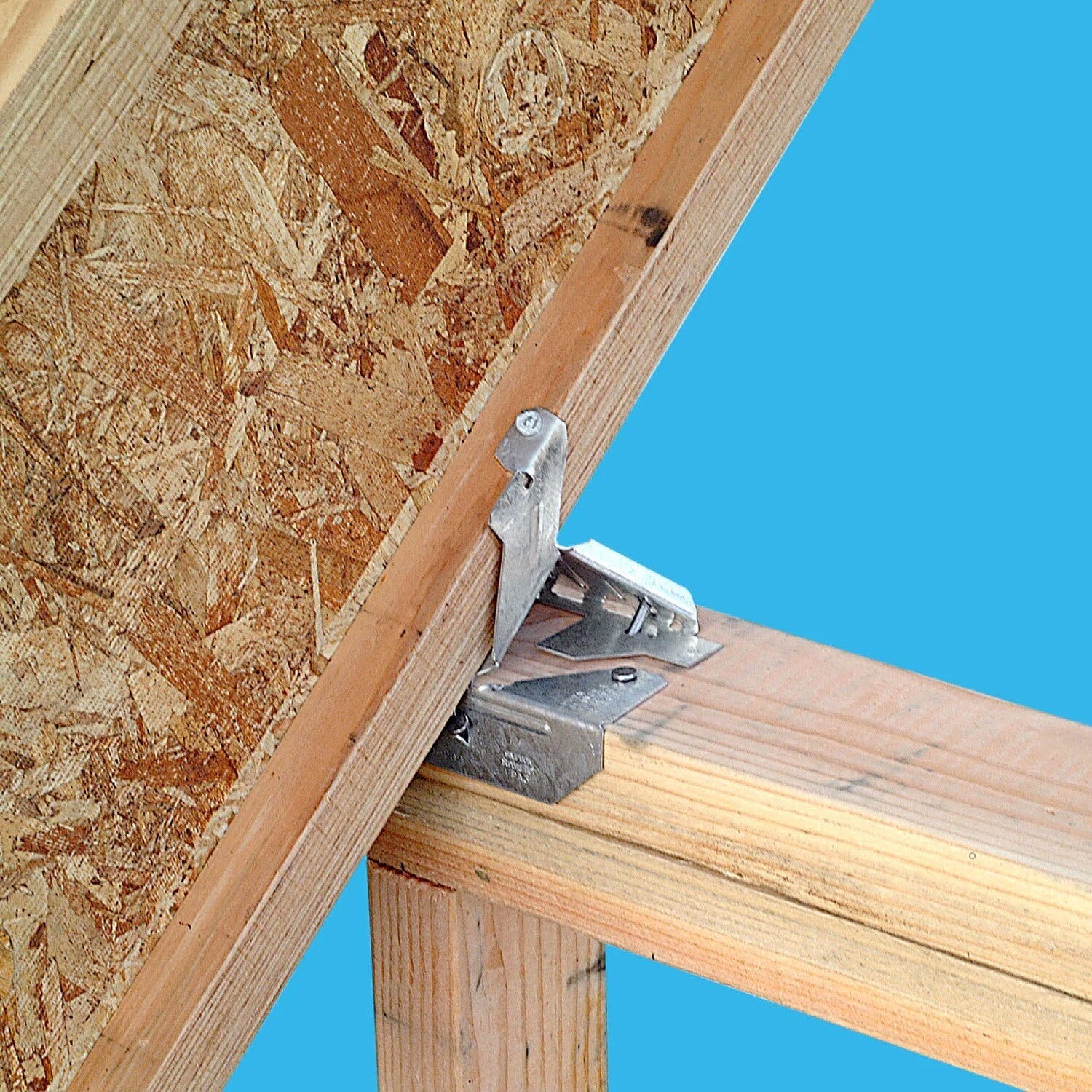

- Rafter-to-Top Plate Connections: Securely anchor angled rafters to wall plates or headers.
- Beam-to-Column Ties: Provide reliable lateral and uplift support for beams intersecting columns at an angle.
- Knee Braces: Reinforce angled support members in covered porches, pergolas, or pole barns.
- Shed or Awning Roof Framing: Adapt to varying roof slopes in accessory structures.
- Retrofit Projects: Add reinforcement to existing framing where angular connections were previously unsupported.
Simpson Strong-Tie VPA2.1 Installation Overview
- Field-adjust the connector to suit the pitch required for your application.
- Install fasteners according to manufacturer guidelines, typically requiring Strong-Drive SD Connector screws or nails.
- Verify load requirements and placement with an engineer or refer to Simpson’s documentation.
- Install both sides of the connector for full strength and ensure proper alignment of the flanges to structural members.
Simpson Strong-Tie VPA2.1 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Carrying Member - (9) 0.148" x 3" Nails, Carried Member - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Joist size | 2-1/16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 2-1/16" |
