Simpson Anchors | SKU:
VPA3

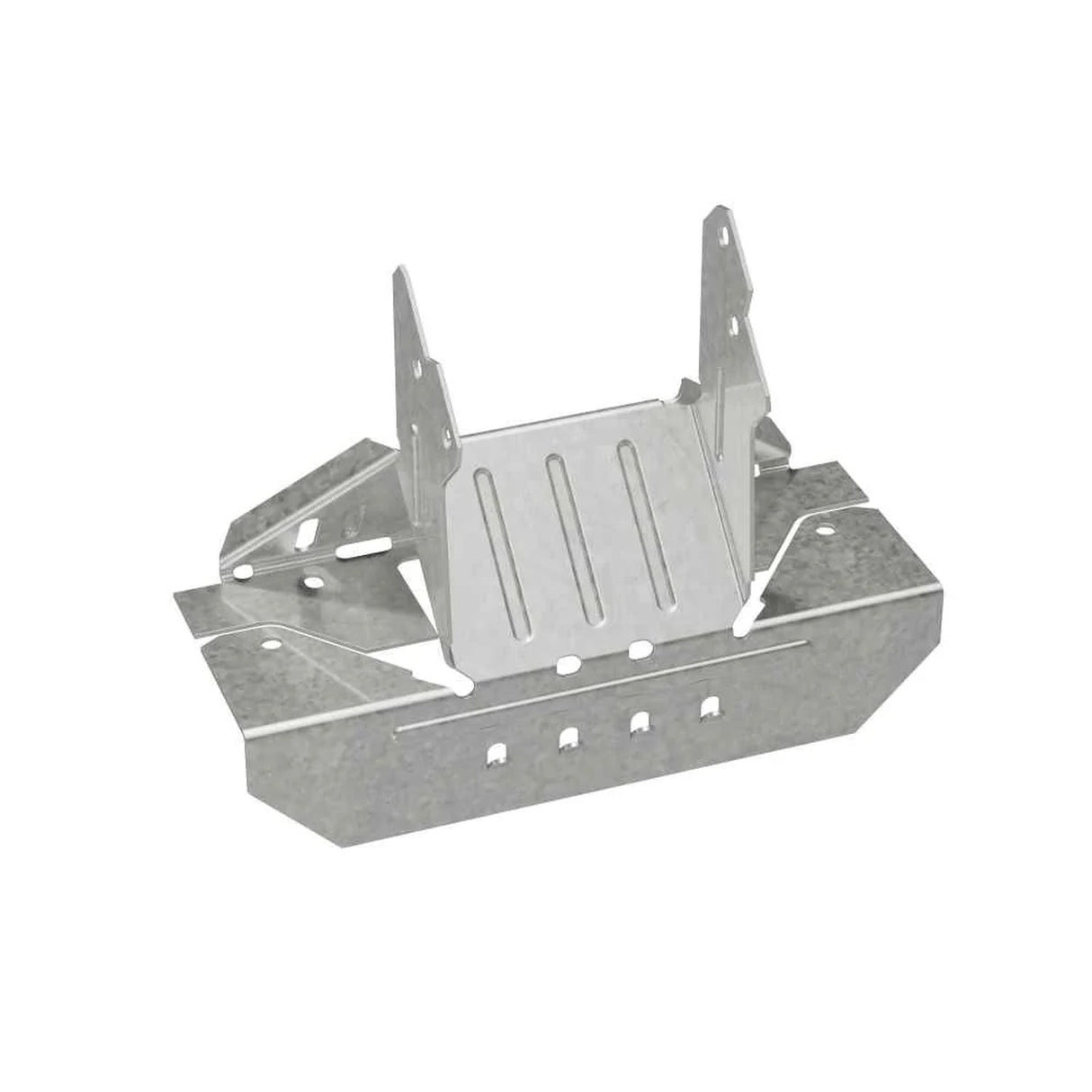

Simpson Strong-Tie VPA3 (2-1/2") 18Ga Galvanized Variable-Pitch Connector
$8.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VPA3 Description
The Simpson VPA3 Variable-Pitch Connector is designed for versatile rafter-to-wall or beam-to-post connections, accommodating pitches from 3:12 to 12:12. Made from heavy-gauge steel with a corrosion-resistant finish, it ensures structural integrity and flexibility for various framing projects.
Simpson Strong-Tie VPA3 Includes
- (1) Variable-Pitch Connector
Simpson Strong-Tie VPA3 Features
- Adjustable pitch design for diverse roof and brace configurations
- Heavy-duty steel construction for high structural load capacity
- Engineered for compatibility with solid sawn lumber and engineered wood
- Corrosion-resistant G90 galvanized finish for durability
Simpson Strong-Tie VPA3 Applications

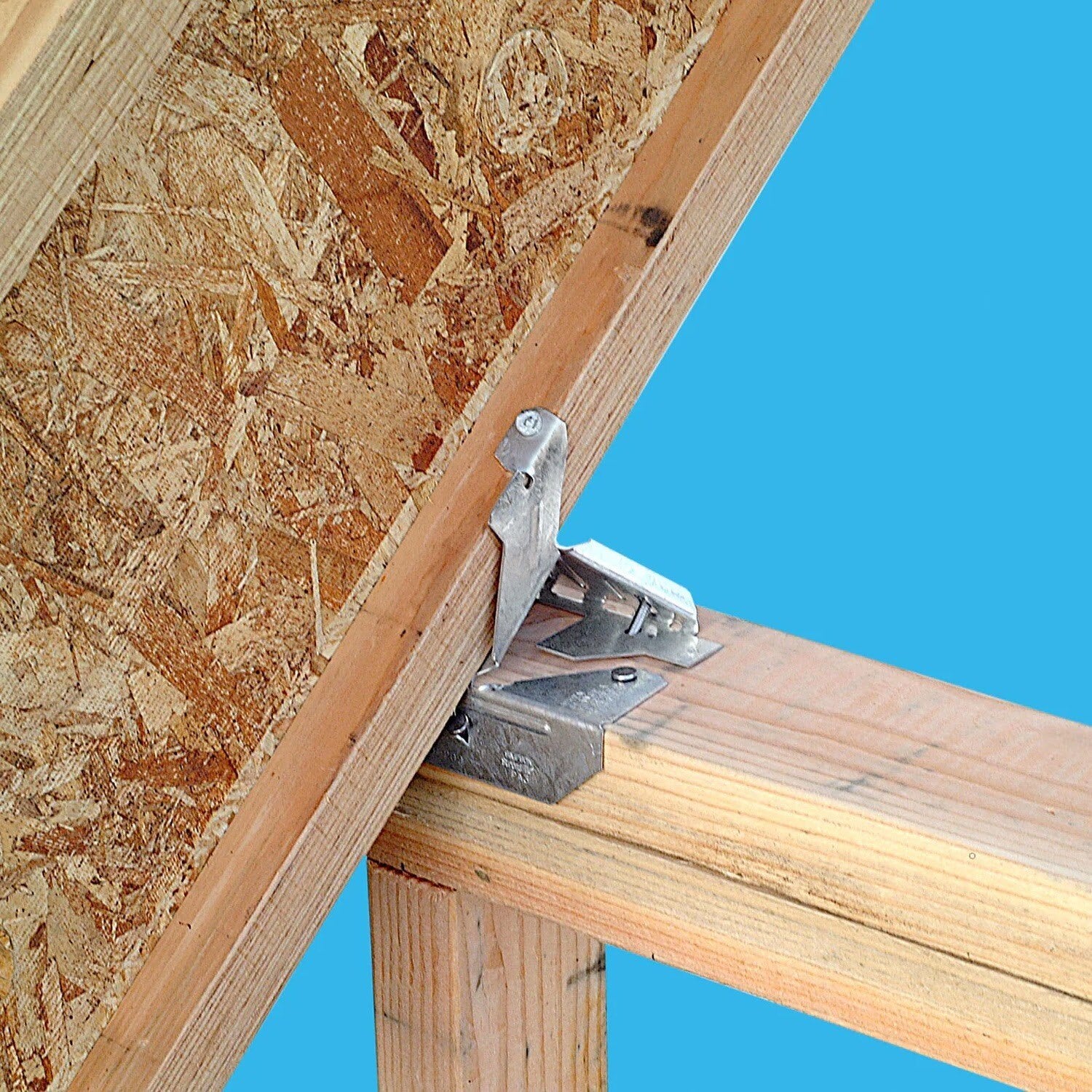

- Rafter-to-top plate connections for angled rafters
- Beam-to-column ties for lateral and uplift support
- Knee braces for angled support members in structures
- Shed or awning roof framing for varying slopes
- Retrofit projects for reinforcing angular connections
Simpson Strong-Tie VPA3 Installation Overview
- Field-adjustable to suit required pitch
- Install fasteners as per manufacturer guidelines
- Verify load requirements and placement with an engineer
- Install both sides of the connector for full strength
- Ensure proper alignment of flanges to structural members
Simpson Strong-Tie VPA3 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Carrying Member - (9) 0.148" x 3" Nails, Carried Member - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Joist size | 2-1/2" - 2-9/16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
