Simpson Anchors | SKU:
VPA35

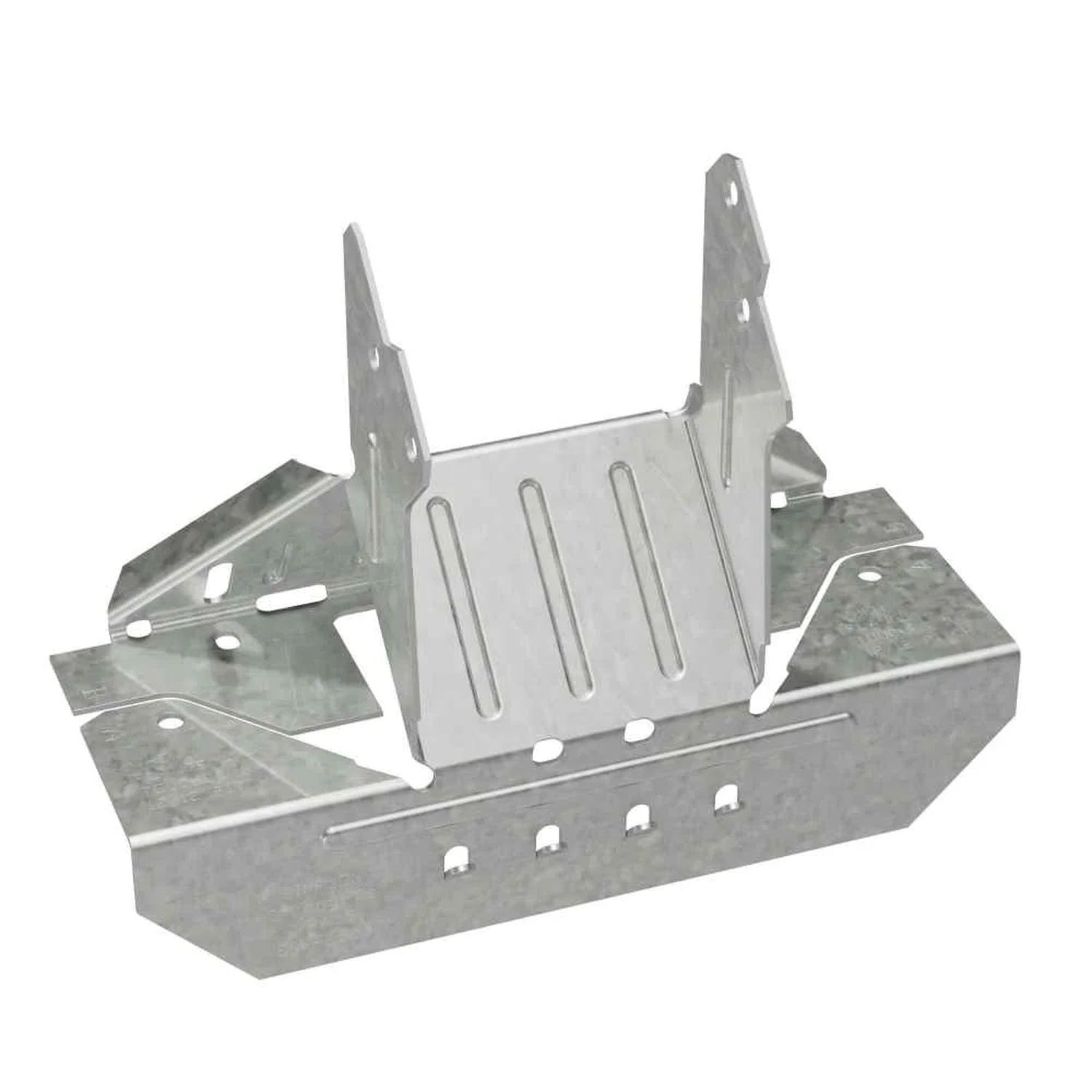

Simpson Strong-Tie VPA35 (2-1/4") 18Ga Galvanized Variable-Pitch Connector
$9.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie VPA35 Description
The Simpson VPA35 Variable-Pitch Connector is designed for versatile rafter-to-wall or beam-to-post connections, accommodating pitches from 3:12 to 12:12.
Simpson Strong-Tie VPA35 Includes
- (1) Variable Pitch Connector
Simpson Strong-Tie VPA35 Features
- Adjustable pitch design for diverse roof and brace configurations
- Heavy-duty steel construction for high structural load capacity
- Engineered for compatibility with solid sawn lumber and engineered wood
- Corrosion-resistant G90 galvanized finish for durability
Simpson Strong-Tie VPA35 Applications

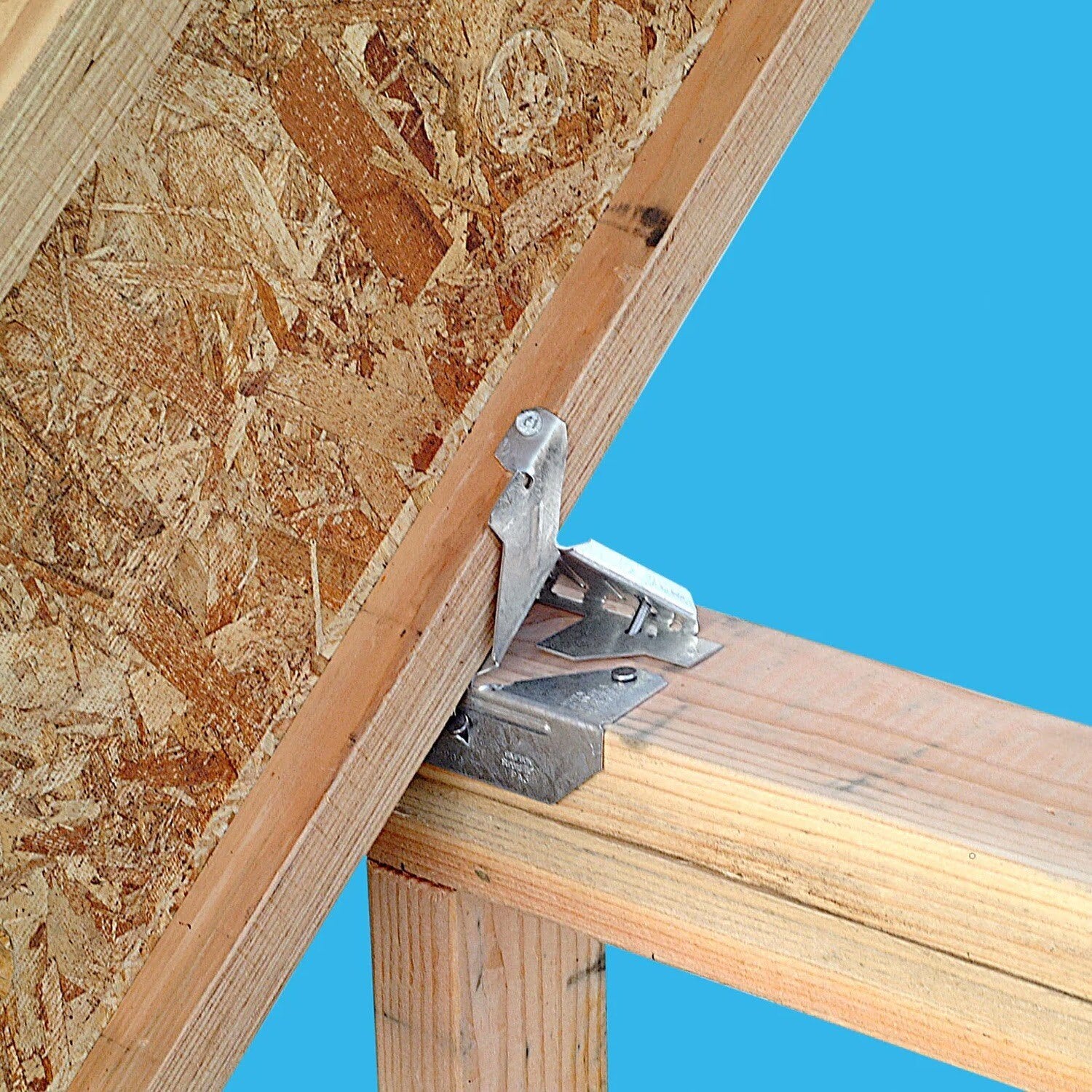

- Rafter-to-top plate connections for angled rafters
- Beam-to-column ties for lateral and uplift support
- Knee braces for angled support members
- Shed or awning roof framing for varying slopes
- Retrofit projects for reinforcement of angular connections
Simpson Strong-Tie VPA35 Installation Overview
- Adjust the connector to the required pitch for your application
- Install fasteners according to manufacturer guidelines
- Verify load requirements and placement with an engineer
- Install both sides of the connector for full strength
- Ensure proper alignment of flanges to structural members
Simpson Strong-Tie VPA35 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Carrying Member - (9) 0.148" x 3" Nails, Carried Member - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Joist size | 2-1/4" - 2-5/16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
NOTE: Ensure proper alignment and installation of both sides of the connector for full strength.
