Simpson Anchors | SKU:
VTCR

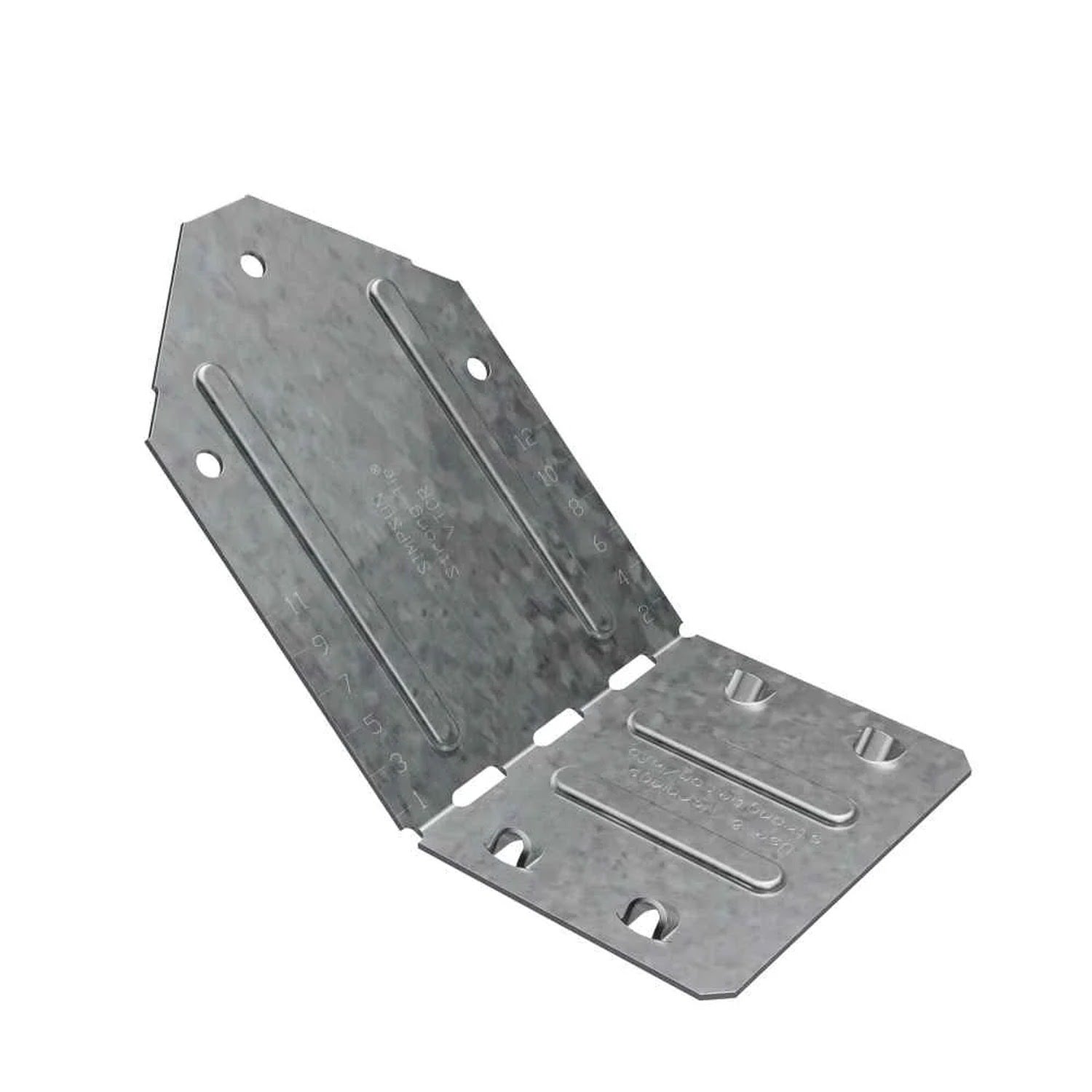

Simpson Strong-Tie VTCR Single-Sided Valley Truss Clip for Wood Construction
$4.14
Unit price
/
Unavailable
Description
Description
Simpson VTCR Description
The VTCR Valley Truss Clip is a single-sided connector designed for wood construction, providing secure attachment between valley trusses and supporting framing.
Simpson VTCR Includes
- (1) Single-Sided Valley Truss Clip
Simpson VTCR Features
- Single-sided design for new construction or retrofit applications
- Accommodates pitches from 0/12 to 12/12
- Compatible with beveled and non-beveled bottom chords
- Installs with nails or Strong-Drive SD Connector screws
- Made from 18-gauge galvanized steel for durability
Simpson VTCR Applications
- Wood construction requiring secure valley truss connections
- Roof framing applications
- Retrofit installations for existing structures
Simpson VTCR Installation Overview
- Position the clip on the valley truss and supporting framing.
- Secure using specified nails or screws.
- Ensure fasteners are installed at approximately 45 degrees using dome holes.
Simpson VTCR Specifications
| Material | 18 Gauge |
| Finish | Galvanized |
| Weight | 0.2 lb |
| Fasteners Required | Supporting Frame - (4) 0.148" x 3" Nails OR (4) SD9212 Screws; Valley Truss - (4) 0.148" x 1-1/2" Nails OR (4) SD9112 Screws |
NOTE: Ensure proper fasteners are used in the correct positions to achieve published load values.
