Simpson Anchors | SKU:
WB106

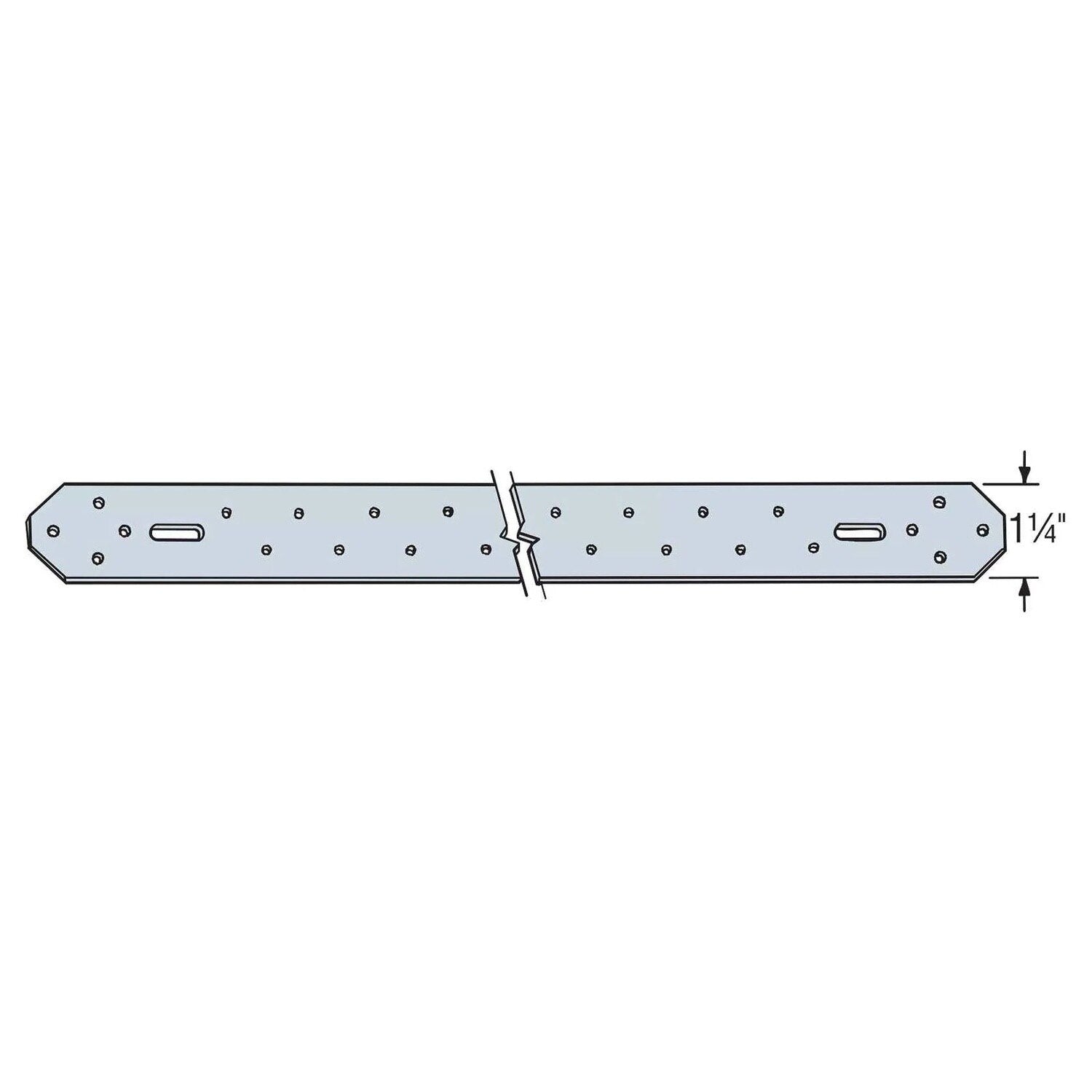

Simpson Strong-Tie WB106 (9' 5-5/8") Wall Bracing - G90 Galvanized (10 Pack)
$171.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WB106 Description
The WB106 Wall Bracing is designed to resist racking during construction and provide long-term strength for structural walls.
Simpson Strong-Tie WB106 Includes
- (10) WB106 Wall Bracing
Simpson Strong-Tie WB106 Features
- Resists racking during construction
- Provides long-term strength for structural walls
- Cost-effective alternative to structural panel shearwall components
- Fulfills code bracing requirements
- Faster installation process
Simpson Strong-Tie WB106 Applications
- Structural wall bracing in construction
- Providing resistance to in-plane forces
- Strengthening overall structural integrity
Simpson Strong-Tie WB106 Installation Overview
- Position the WB106 Wall Bracing as per the construction plan.
- Secure the bracing using the specified fasteners.
- Ensure all fasteners are installed in the correct positions to achieve load values.
Simpson Strong-Tie WB106 Specifications
| Finish | G90 Galvanized |
| Length | 9' - 5-5/8" |
| Material | Galvanized Steel |
| Fasteners required | Plates: (2) 0.162 x 3-1/2"; Studs (1) 0.131 x 2-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 10 |
| Thickness | 16 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
