Simpson Anchors | SKU:
WB126C

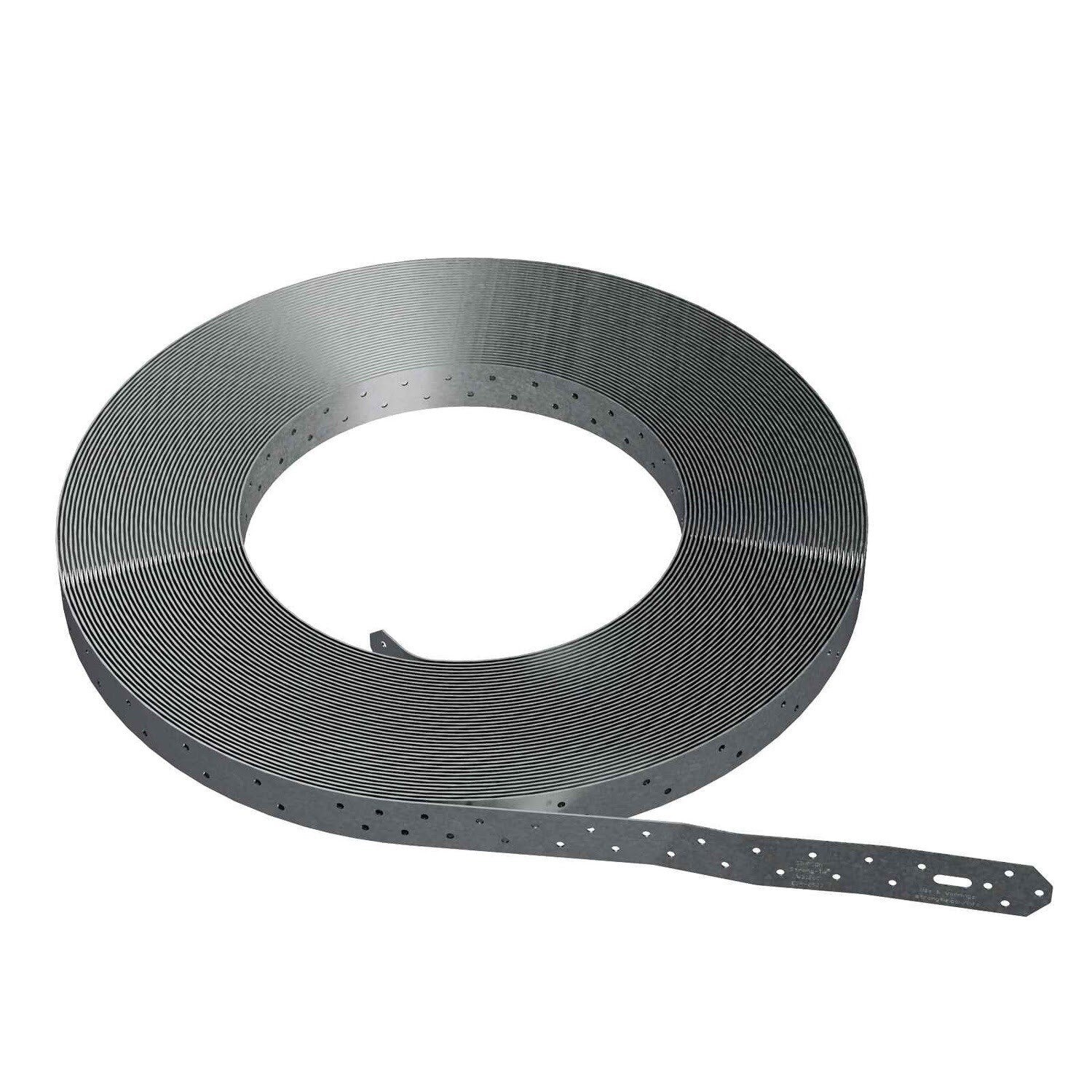

Simpson Strong-Tie WB126C (11-ft. 4-3/4-in.) Coiled Wall Bracing - G90 Galvanized (12 Piece Roll)
Free Shipping
$220.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WB126C Description
The WB126C Coiled Wall Bracing is designed to resist racking during construction and provide long-term strength for structural walls.
Simpson Strong-Tie WB126C Includes
- (12) Coiled Wall Bracing
Simpson Strong-Tie WB126C Features
- Coiled in a multiple-product dispenser pack
- Prevents cosmetic damage, performance problems, and structural failure over time
- Helps resist lateral loads resulting from wind and earthquake forces
- Galvanized for corrosion resistance
- Reference WB for pre-cut straps
Simpson Strong-Tie WB126C Applications
- Structural wall bracing to resist racking during construction
- Provides resistance to in-plane forces for stronger structures
- Fulfills code bracing requirements as a cost-effective alternative to 1x4 let-in braces
Simpson Strong-Tie WB126C Installation Overview
- Use all specified fasteners as per General Notes
- Install in 'X' pairs or in opposing 'V' fashion
- Use with 16" or 24" o.c. 2x4 (min.) studs
Simpson Strong-Tie WB126C Specifications
| Finish | G90 Galvanized |
| Length | 11' - 4-3/4" |
| Material | Galvanized Steel |
| Fasteners required | Plates: (2) 0.162 x 3-1/2"; Studs (1) 0.131 x 2-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 12 pc/roll |
| Thickness | 16 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
