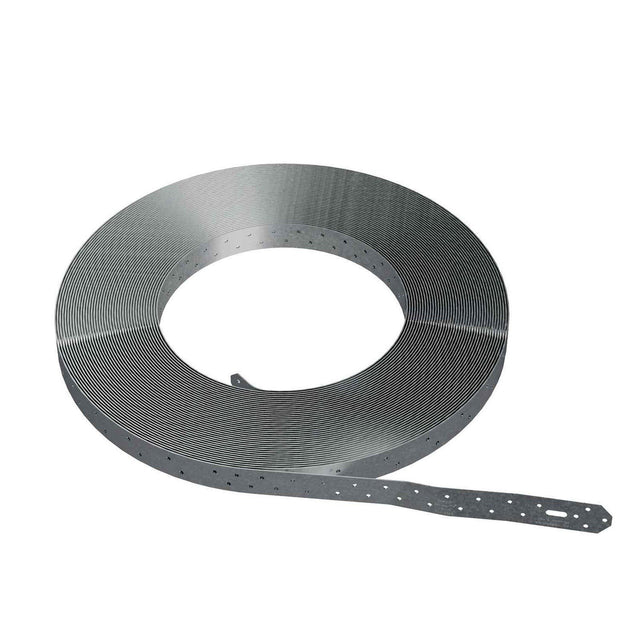

Simpson Strong-Tie WB143C Description
The WB143C Coiled Wall Bracing is designed to resist racking during construction and provide long-term strength for structural walls. It is a cost-effective option that fulfills code bracing requirements with a faster install process.
Simpson Strong-Tie WB143C Includes
- (10) Coiled Wall Bracing
Simpson Strong-Tie WB143C Features
- Coiled in a multiple-product dispenser pack
- Prevents cosmetic damage, performance problems, and structural failure over time
- Helps resist lateral loads resulting from wind and earthquake forces
- Galvanized for corrosion resistance
Simpson Strong-Tie WB143C Applications
- Structural wall bracing for construction
- Resisting racking during construction
- Providing long-term strength for structural walls
Simpson Strong-Tie WB143C Installation Overview
- Use all specified fasteners as per the general notes
- Install in 'X' pairs or in opposing 'V' fashion
- Use with 16" or 24" o.c. 2x4 (min.) studs
Simpson Strong-Tie WB143C Specifications
| Finish | G90 Galvanized |
| Length | 14' - 3" |
| Material | Galvanized Steel |
| Fasteners required | Plates: (2) 0.162 x 3-1/2"; Studs (1) 0.131 x 2-1/2" |
| Quantity | 10 pc/roll |
| Thickness | 16 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824773
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
