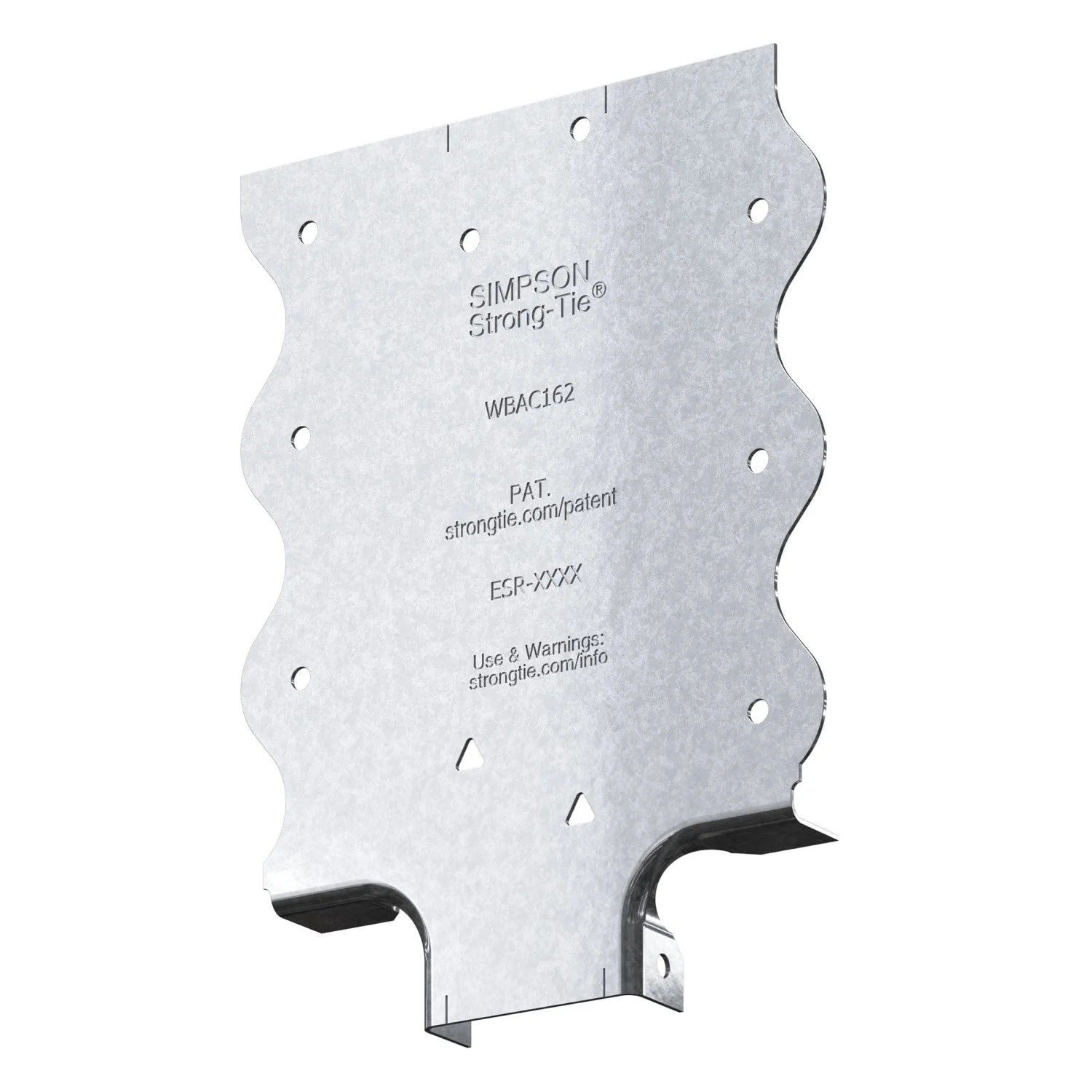

Simpson WBAC162-R50 Description
The WBAC wood backing steel connector is designed for connecting wood backing to cold-formed steel studs, offering tested strength and easy installation.
Simpson WBAC162-R50 Includes
- (50) Wood Backing Steel Connector
Simpson WBAC162-R50 Features
- Simple installation using prepunched holes allowing the same screw to be used for both backing and stud attachment
- Accommodates 1-1/4" flanges, 1-5/8" flanges, and 2" flanges
- Works for any stud spacing, predetermined or typical stud spacing not required
- Sight lines to guide installation alignment
- Unique rolled support bottom tabs provide extra strength and stiffness
Simpson WBAC162-R50 Applications
- Cabinets: Securely mounts cabinets to steel studs
- Shelves: Provides reliable support for shelving installations
- Handrails: Ensures sturdy attachment of handrails
- Heavy wall hangings: Optimized for heavy-duty wall-mounted items

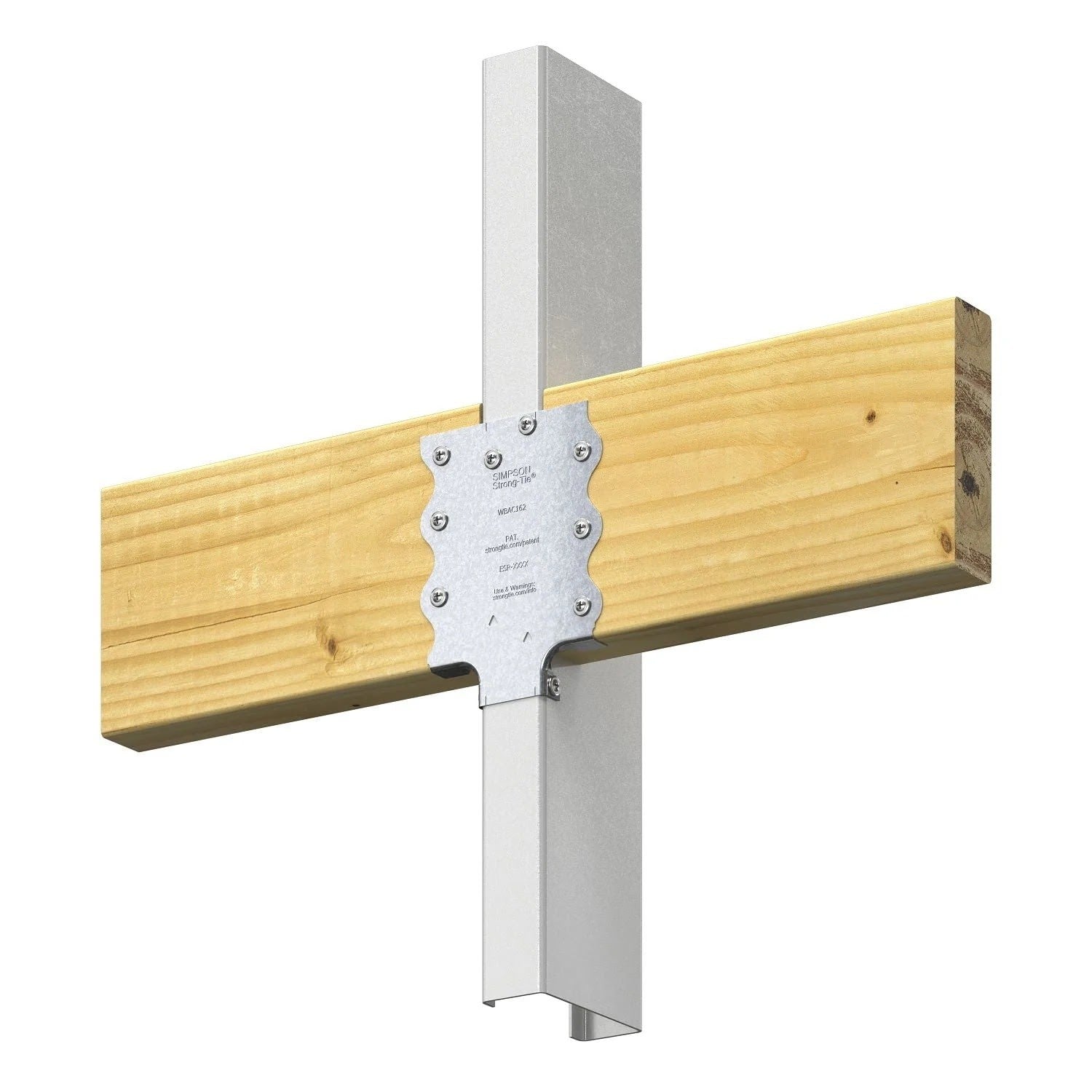

Simpson WBAC162-R50 Installation Overview
- Attach to grade lumber or 5/8" fire-rated board or CFS stud/track
- Use WBAC162 for 1-1/4" and 1-5/8" flanges, and WBAC200 for 2" flanges
- Align top of connector with markings and attach using specified screws to stud flange and block
- Ensure proper alignment and secure fastening for optimal performance

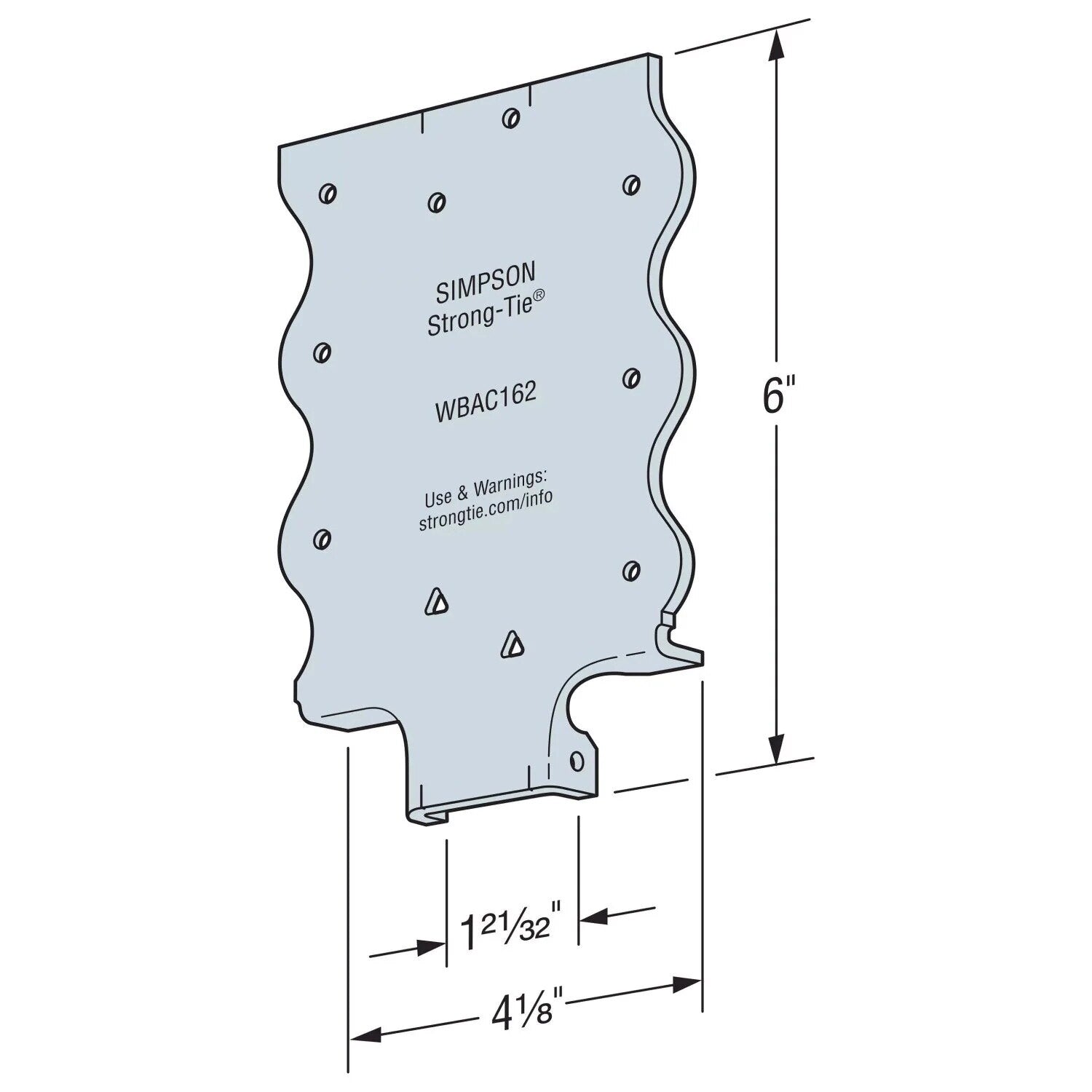

Simpson WBAC162-R50 Specifications
| Material | 33 mil (20 ga.), 33 ksi |
| Finish | Galvanized (G90) |
| Weight | 11.0 lb |
| Packaging Quantity | 50 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
825740
