Simpson Anchors | SKU:
WBT-KT30
Simpson Strong-Tie WBT-KT30 (10-Gauge) Wall Brace Tensioner for Cold-Formed Steel Strap Bracing (30 Pack)
$110.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WBT-KT30 Description

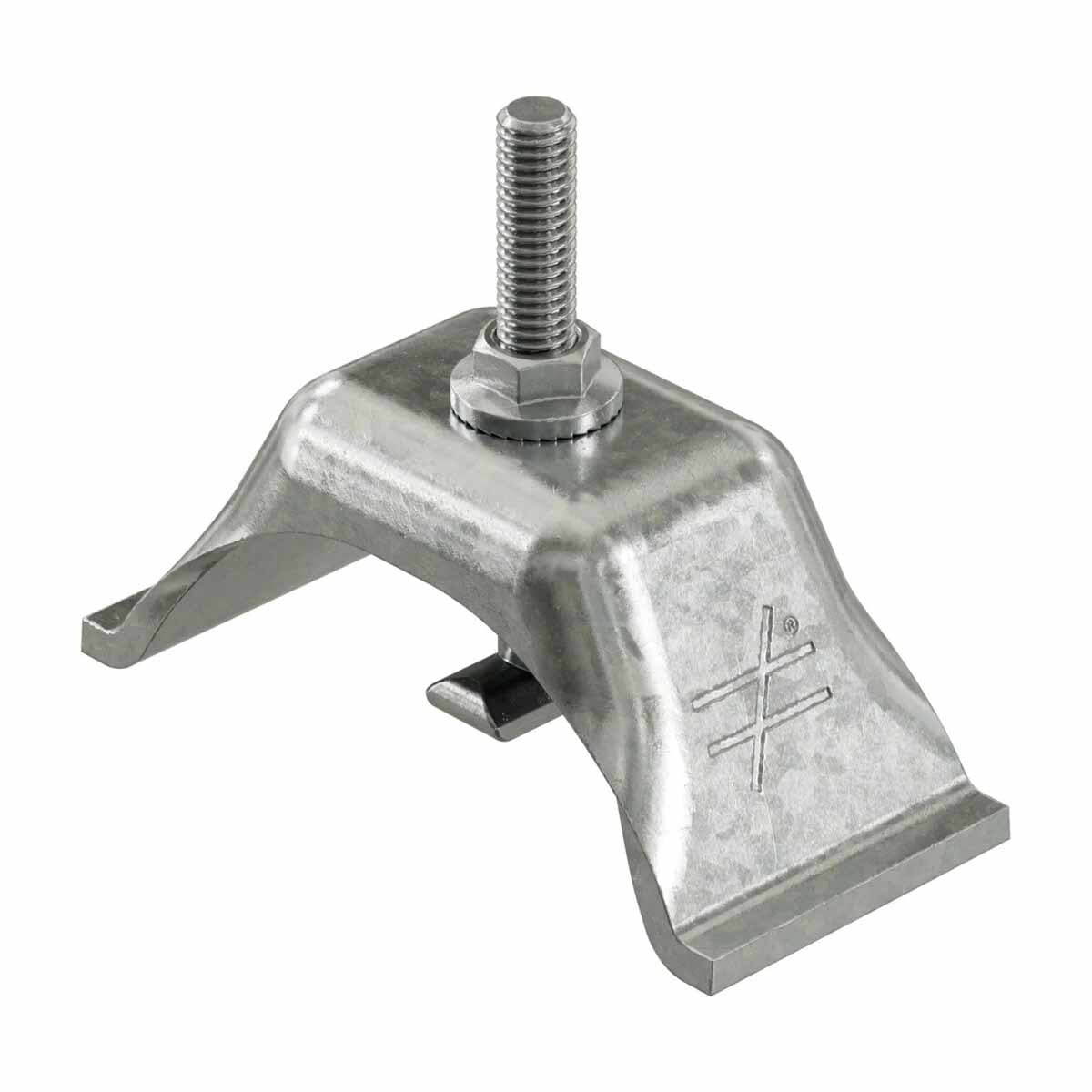

The WBT Wall Brace Tensioner is an efficient device designed to eliminate slack in cold-formed steel (CFS) strap bracing, enhancing the stability of braced wall panels.
Simpson Strong-Tie WBT-KT30 Includes
- (30) WBT connectors
- (30) bolts and nuts
Simpson Strong-Tie WBT-KT30 Features
- Removes up to 1/2" of slack from a single strap
- Can be used on straps up to 6" wide, 14 ga. (68 mil) thick
- Max torque on bolt in strap is 115 in.-lb.
- Compatible with generic strap and Simpson Strong-Tie CS coil strap
- Durable construction with 10-gauge galvanized steel
Simpson Strong-Tie WBT-KT30 Applications
- Bridging and bracing for cold-formed steel structures
- Enhancing stability of braced wall panels
Simpson Strong-Tie WBT-KT30 Installation Overview

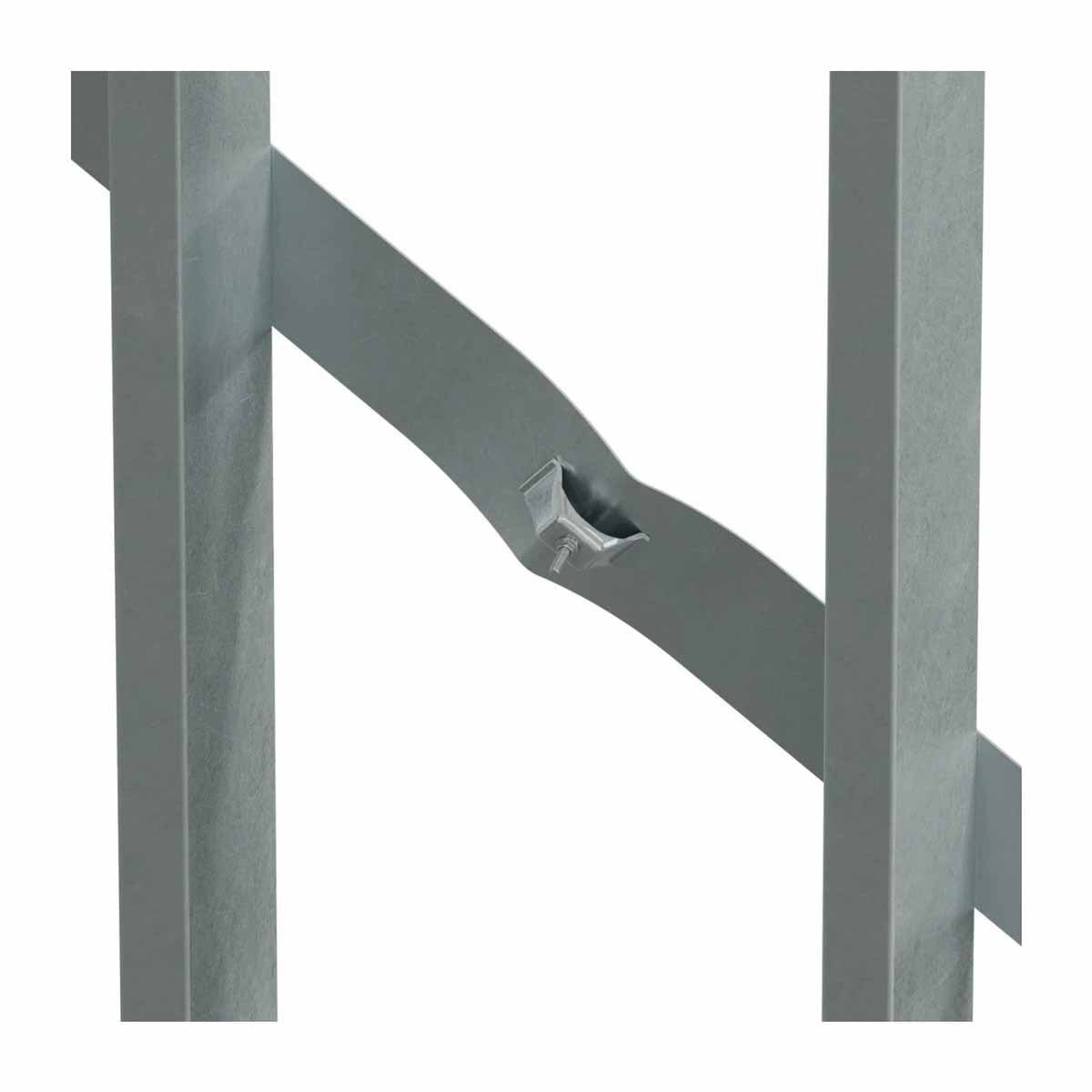

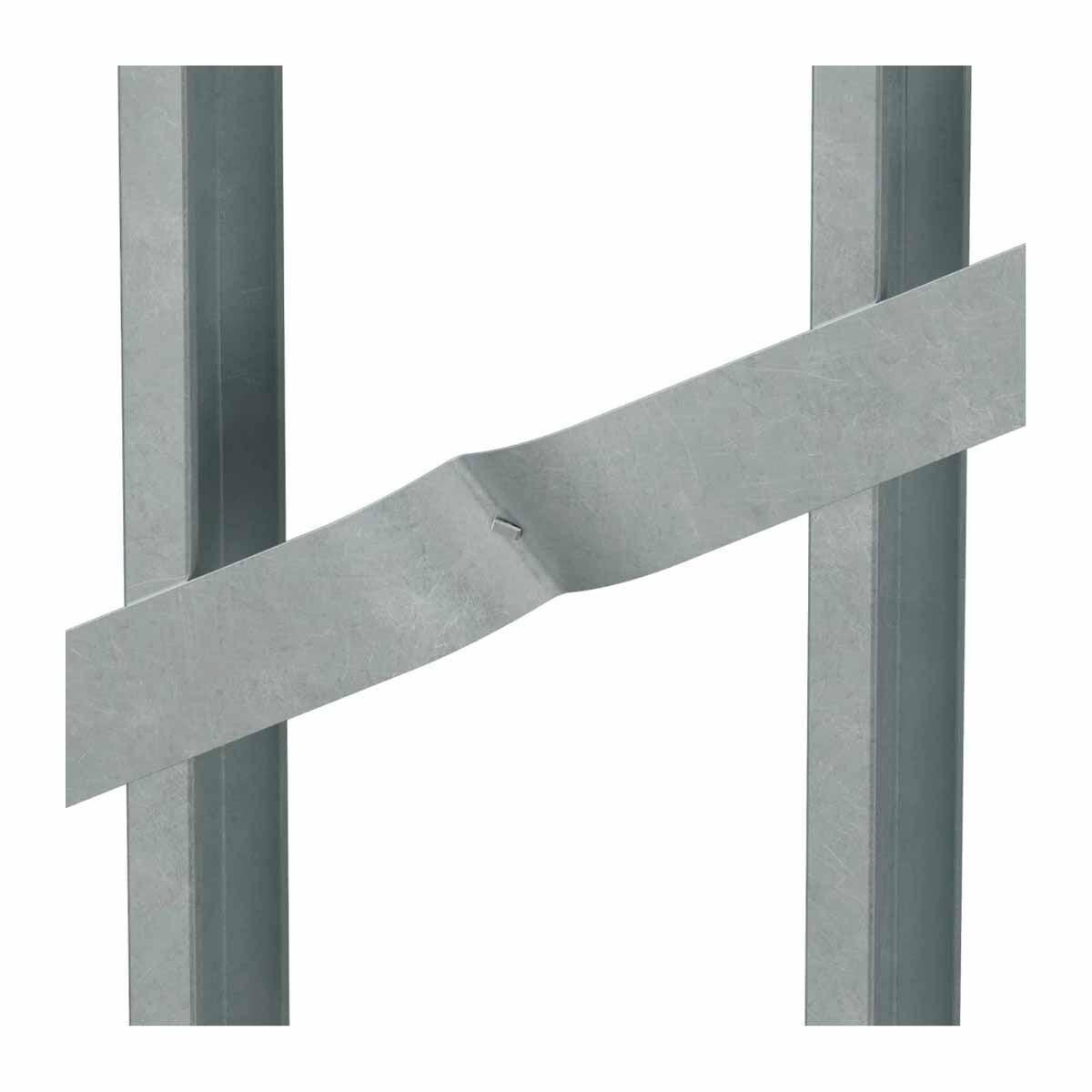

- Place WBT near center of diagonal brace
- Drill 1/4"-dia. hole through the center of strap width

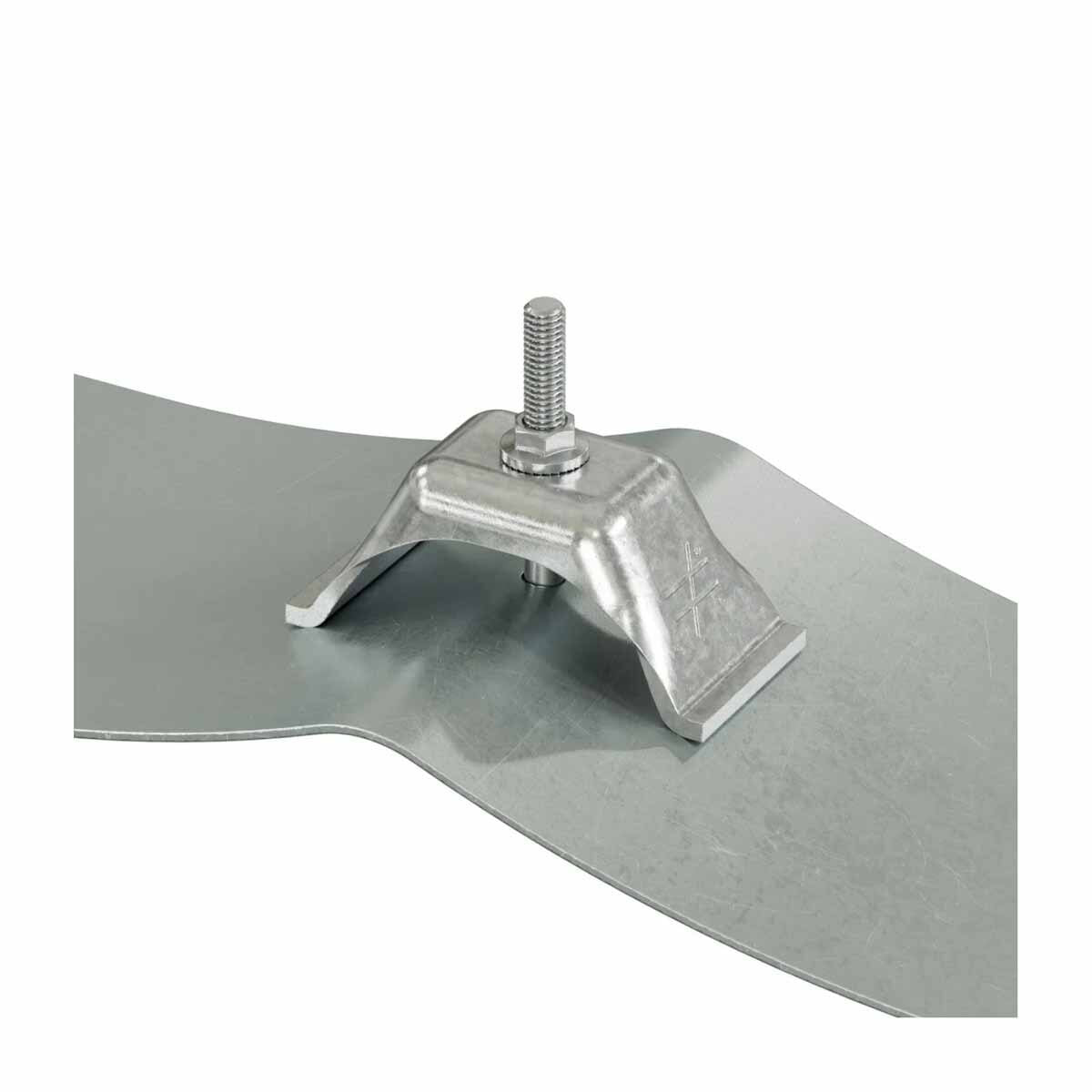

- Install bolt through strap hole and WBT with nut facing towards the wall cavity
- Tighten the nut using a 10mm hex head socket setter until the slack is removed
Simpson Strong-Tie WBT-KT30 Specifications
| Material | 10-gauge galvanized steel |
| Finish | Zinc Galvanized, G90 |
| Bolt | M6 (6mm) ASTM A307 Grade A Class 5 |
| Nut | ASTM A563 Grade A |

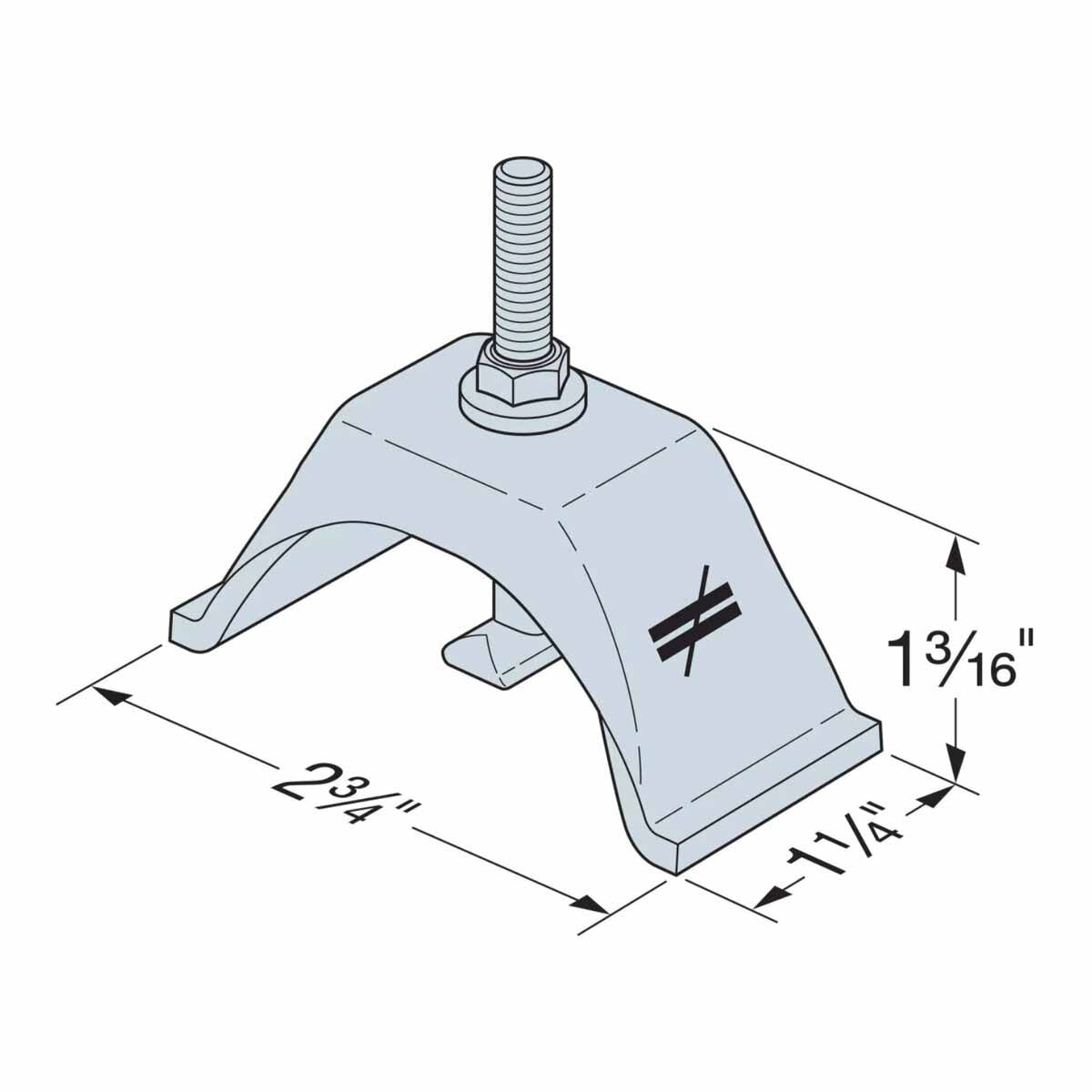

| Length | 2-3/4" |
| Width | 1-1/4" |
| Height | 1-3/16" |
| Packaging Quantity | 30 |
